Ergotron LX Pro Dual Monitor Arm 45-686-292, Side-by-Side, 2x 27in, 9kg each, VESA 75/100, Black
Brand:
Ergotron
Ergotron LX Pro Dual Monitor Arm 45-686-292, Side-by-Side, 2x 27in, 9kg each, VESA 75/100, Black
€528.23 inc. VAT
45-686-292
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
The next generation of the arm that defined the category
2 screens, up to 27in1.8 kg to 9 kg per screen33 cm of lift, 64 cm reachTension-level indicatorModular, reconfigurable10-year Ergotron warranty

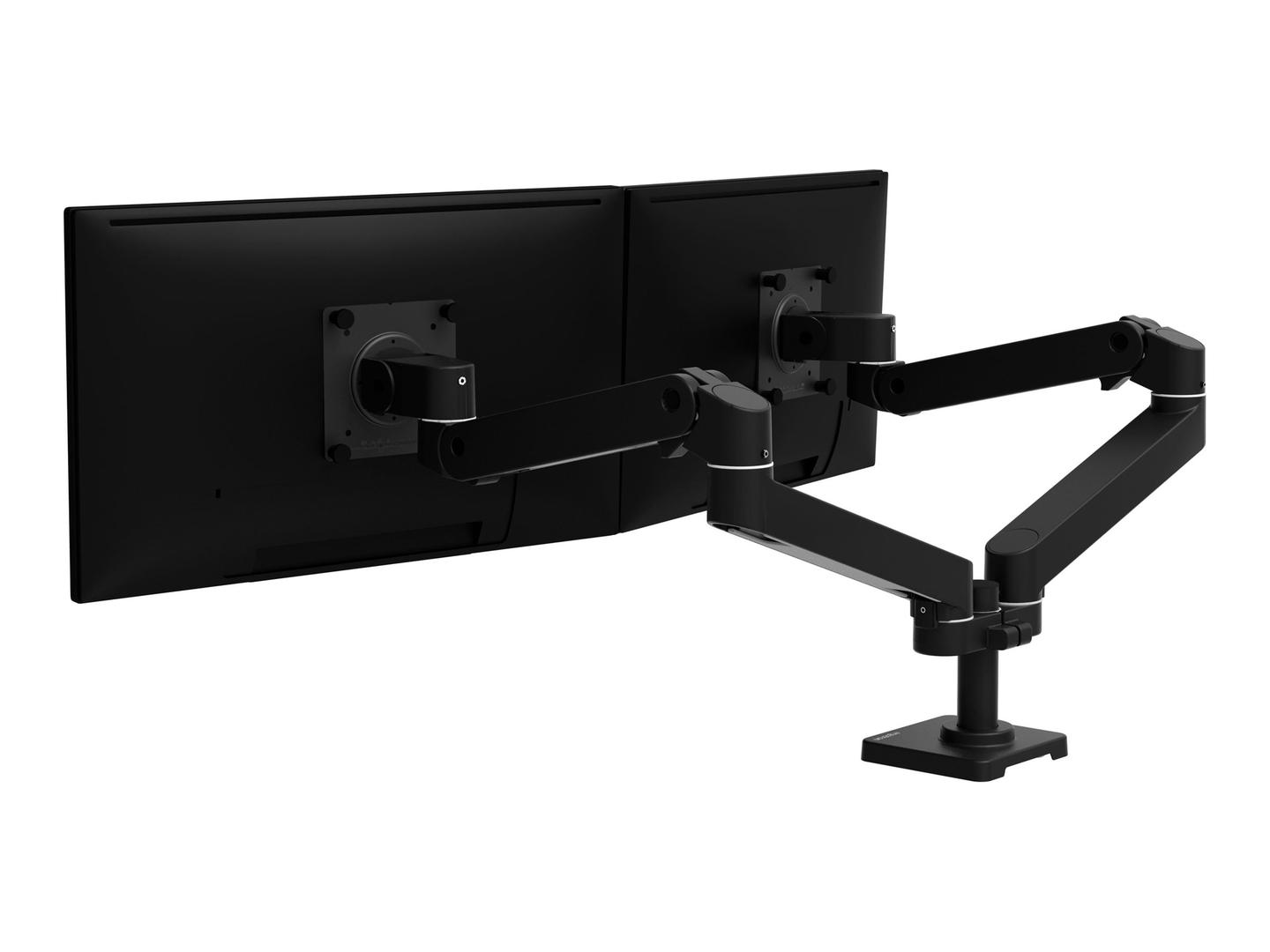

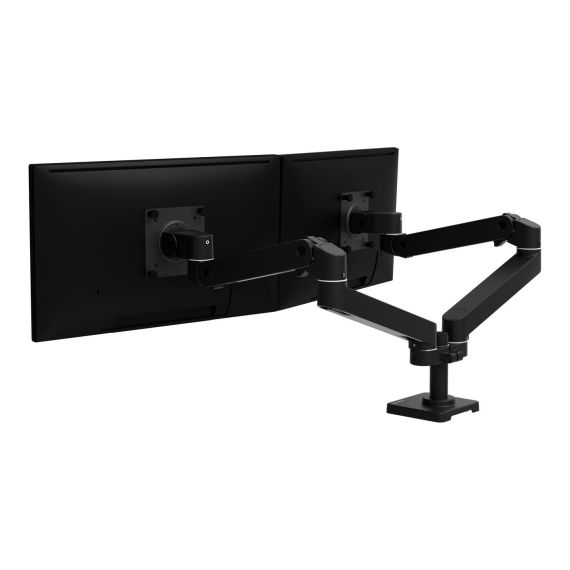

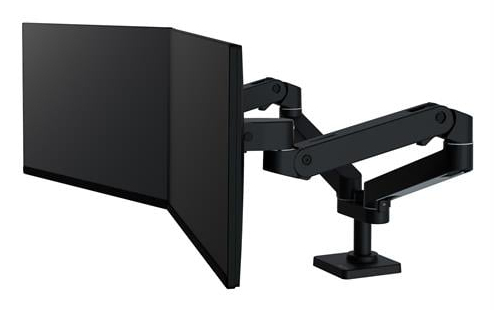

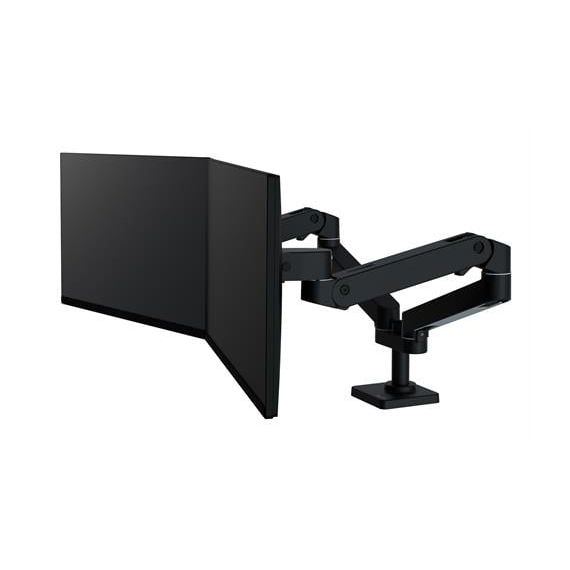

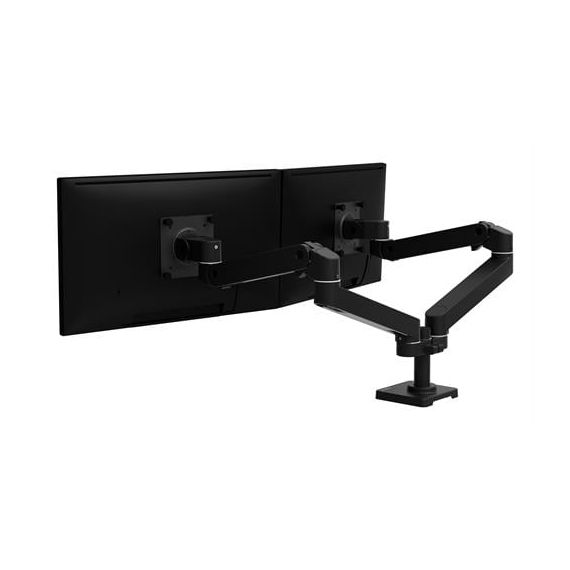

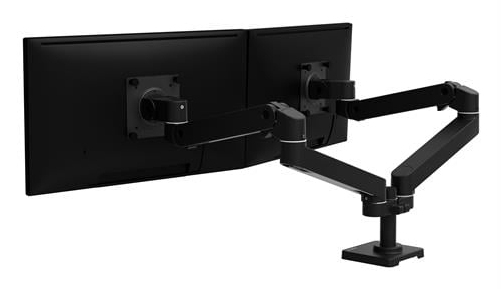

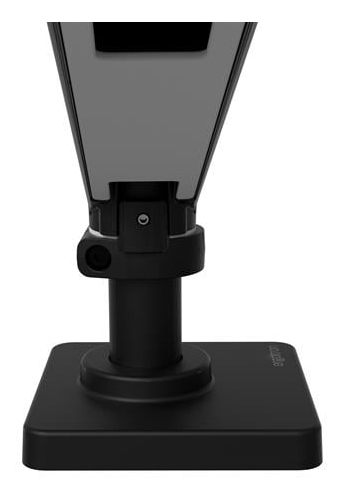

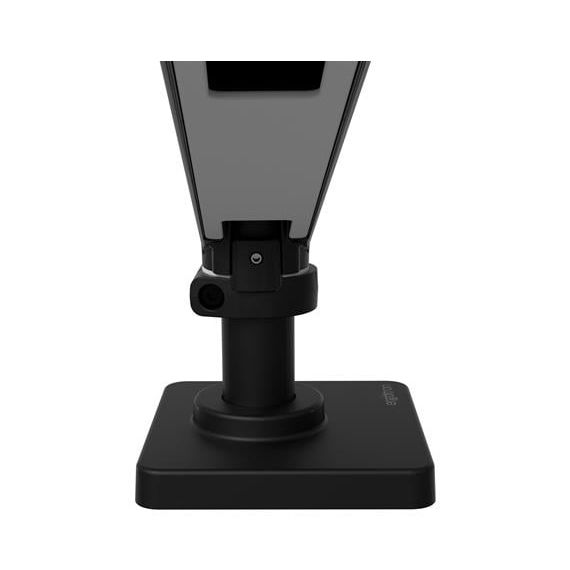

The Ergotron LX Pro is the redesign of the LX, and the 45-686-292 is the side-by-side dual configuration in black. Two arms rise from a short pole on a two-piece desk clamp, joined by a T-bracket so the screens sit level next to each other. What is new on the Pro is the modularity and the tension-level indicator: the arms, extensions, pivots, poles and bases are separate parts that can be reconfigured, and the counterbalance setting can be read off a scale instead of being found by feel.
Compatibility — check before buying:
Ergotron rates this configuration for two screens up to 27 inches, with each display weighing 4 to 20 lbs (1.8 to 9 kg) and a total of 8 to 40 lbs (3.6 to 18.1 kg). Displays deeper than 9 cm may reduce the usable capacity. VESA is MIS-D 100/75, meaning 100 x 100 and 75 x 75 mm. Ergotron notes that the 27-inch figure is approximate and may be exceeded if the display stays inside the weight limit, though larger screens will have a reduced range of motion. Mounting is by the supplied two-piece desk clamp.
Best For
✓ Two 24in or 27in screens side by side on one desk
✓ Offices standardising on one arm family across many desks
✓ Users who reposition their screens through the day
✓ Fleet installations where a readable tension setting speeds up fitting
✓ Setups that may later be reconfigured, since the parts are modular
Key Features

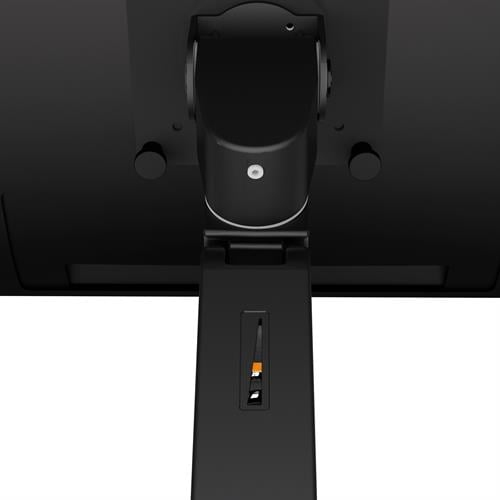

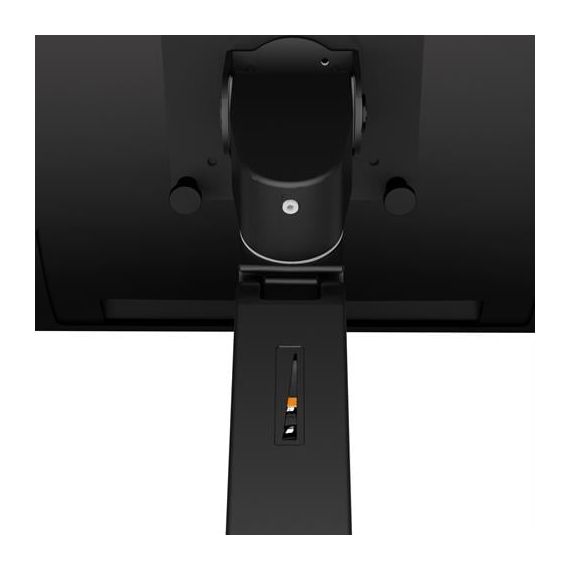

A tension setting you can read
The tension-level indicator gives a visual reference when counterbalancing an arm against its display. Fit the first arm, note the number, and every arm after it takes seconds instead of trial and error.
Three-point panning with a built-in stop
Overall side-to-side motion is 360 degrees, split across three turning points: 360 at the base and extension, 360 at the extension and arm, and 180 at the arm and pivot. A built-in rotation stop can restrict the base joint to 180 degrees so the arm cannot swing into a wall or a colleague.
85 degrees of tilt
Tilt runs 70 degrees backward and 15 degrees forward, which is more range than the original LX and enough to angle a screen properly for a standing user or a shared view.
Modular by design
Arms, extensions, pivots, poles, brackets and bases are separate components. A side-by-side pair can later become a stacked pair, or take a laptop tray, without replacing the whole product.
64 cm of reach
Maximum extension is 25 inches. That is enough to push both screens back to the wall for a clear desk and pull one forward when you need it close.
Aluminium build, ten-year term
Aluminium construction and Ergotron ten-year warranty, with BIFMA level 2 certification for sustainability.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Two things separate the LX Pro from the original LX, and both matter more on a fleet than on a single desk. The first is the tension indicator, which turns arm setup from a fiddly process into a repeatable one; if you are fitting twenty desks, this is the feature that pays for the product. The second is modularity: the poles, bases, brackets and pivots are separate parts, so a side-by-side pair can later become a stacked pair or take a laptop tray without a new purchase. What has not changed is the thing people get wrong: the 1.8 kg minimum. Very light 24-inch panels drift upward on a counterbalanced arm, and no amount of adjustment fixes it. Weigh the screen with its stand removed before you order.
Buyer’s Guide
Buy it if
2 arms and 2 extensions,2 monitor pivots,Two-piece desk clamp and standard base,5 in pole,Side-by-side T-bracket,Attachment hardware
Skip it if
You want the screens stacked vertically (order 45-690-292),Either screen weighs less than 1.8 kg or more than 9 kg,You need a grommet mount rather than a desk clamp,Your screens are well over 27 inches
Features - Ergotron - 45-686-292
Colour
black
More Details
Product Code
CN84390
EAN Code
0698833091687
Manufacturer
Ergotron
