Ergotron LX Wall Mount System 45-247-026 Monitor Keyboard Arm with Medium CPU Holder up to 32 inch Aluminium
Brand:
Ergotron
Ergotron LX Wall Mount System 45-247-026 Monitor Keyboard Arm with Medium CPU Holder up to 32 inch Aluminium
€1193.27 inc. VAT
45-247-026
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

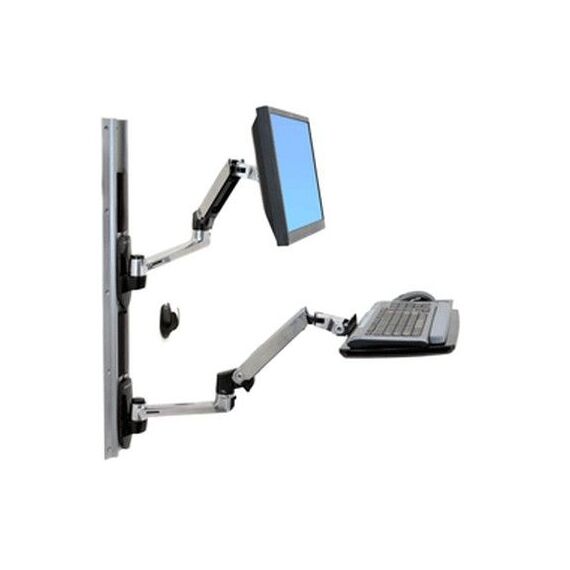

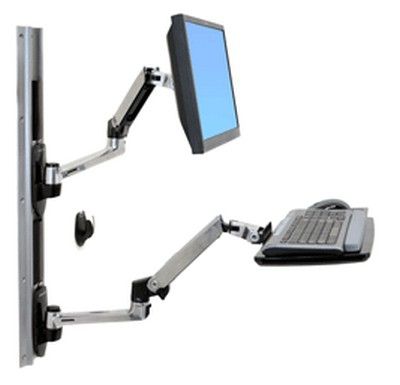

Ergotron LX Wall Mount System 45-247-026 — Monitor, Keyboard and CPU Holder on One Wall Plate
Displays up to 32 inch33 cm of liftMedium CPU holder included10-year Ergotron term

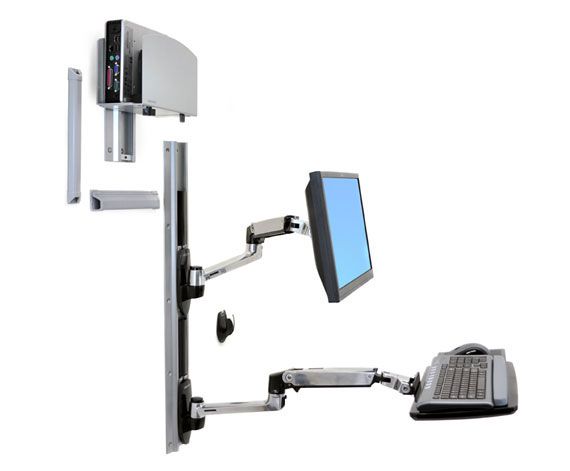

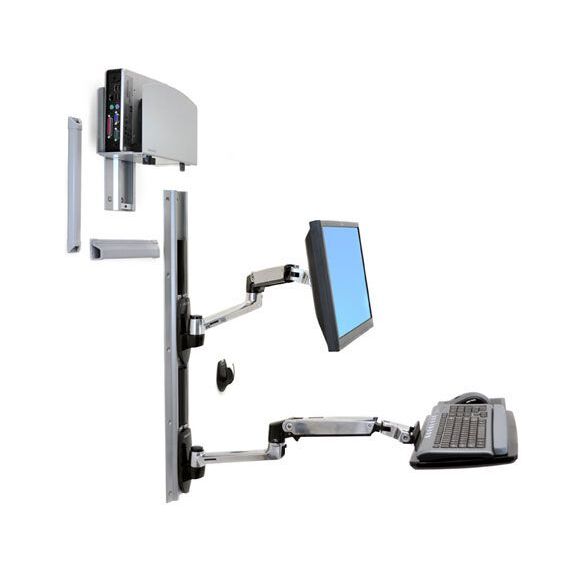

The Ergotron LX Wall Mount System 45-247-026 puts an entire computer workstation on a wall plate: an articulating LX monitor arm, a separate keyboard arm with a back-tilt tray, and a medium CPU holder in silver for the computer itself. Ergotron rates the monitor arm for displays up to 32 inch weighing 2.3 to 11.3 kg, with 33 cm of lift, 360 degrees of pan and rotation and a 70 degree tilt range. When nobody is using it the keyboard folds to within about 9 cm of the wall and the monitor arm to about 13 cm, so a corridor or a bench stays clear. Ergotron publishes a 10-year warranty on its LX monitor arms, which is the longest term in its catalogue outside the WorkFit Elevate range.
Compatibility — check before buying:
The monitor, keyboard, mouse and computer are not included, though the CPU holder for the computer is. Your display must use a VESA 75 x 75 mm or 100 x 100 mm pattern; Ergotron publishes MIS-D only for this system, so larger patterns need an adapter plate. Weight matters in both directions: 2.3 kg minimum and 11.3 kg maximum on the monitor arm. The CPU holder is the medium size, taking a computer 5 to 20 cm wide, and a plastic spacer is supplied — a wide tower will not fit, and the small-holder version is the 45-253-026. Mounting hardware is supplied for a wood stud (2x M8 x 80 mm, 5 mm pilot drill) and for concrete (2x M8 x 80 mm, 10 mm drill). Ergotron publishes no hollow-drywall fixing for this system, so a plasterboard wall needs structural backing before installation.
Best For
✓ Clinical and laboratory benches with no floor space
✓ Industrial and production line-side terminals
✓ Workshop and service counters
✓ Server rooms and comms cupboards
✓ Reception positions serving seated and standing visitors
✓ Any position where the computer must be off the floor
Key Features
Monitor, keyboard and computer on one plate
This is the version of the LX wall system that includes a CPU holder — the medium size in silver, adjustable from 5 to 20 cm wide, with a plastic spacer supplied. The computer comes off the floor and away from dust and cleaning trolleys.
Full articulation on the monitor arm
33 cm of lift, 360 degrees of pan and 360 degrees of rotation, plus a 70 degree tilt range. Portrait working, sharing the screen with someone standing beside you and tilting away from ceiling lights are all covered without tools.
Folds nearly flat when idle
The keyboard arm folds to within about 9 cm of the wall and the monitor arm to about 13 cm depth. That is what makes it viable in a corridor or against a busy bench where a permanently protruding arm would be a hazard.
Built for a decade of use
Ergotron tests the system to 10,000 movement cycles and publishes a 10-year warranty on its LX monitor arms. The back-tilt keyboard tray keeps wrists neutral, and the whole system weighs 14 kg.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
This is the wall system to specify when the computer has to leave the floor. Everything else Ergotron makes for a wall carries a screen and a keyboard; this part number adds the CPU holder, and in a workshop, a lab or a comms room that single difference is usually the whole decision. Two things to check before ordering. Note the display size: Ergotron publishes 32 inch for this system, which is larger than several distributor listings state, so do not rule it out on a figure you saw elsewhere — but do check the VESA pattern, because Ergotron supports only 75 and 100 mm here and many 32 inch panels use 200 x 200 mm. And check the CPU: the medium holder covers 5 to 20 cm of width, which fits small-form-factor and standard mid-tower machines but not a wide full tower. The 10-year term on the LX arm is genuinely unusual and worth weighing against cheaper systems with a two or three-year term. Panel VESA patterns are listed throughout our PC monitors range, and the wall and desk alternatives sit in monitor stands and mounts.
Buyer’s Guide
Buy it if
The computer needs to be off the floor and on the wall,Your display is 2.3 to 11.3 kg and up to 32 inch,The station must fold nearly flat when unused,Your PC is between 5 and 20 cm wide,A 10-year manufacturer term on the arm matters
Skip it if
Your PC is a wide full tower over 20 cm across,The display uses a VESA pattern larger than 100 x 100 mm,The wall is plasterboard with no stud or backing plate,You need a barcode scanner holder and a longer reach — see the StyleView
Also consider
45-253-026 — the same system with the small CPU holder,45-551-216 — white version, supplied without a CPU holder,45-266-026 StyleView Combo Arm — 24 inch, 109 cm reach, scanner holder,45-405-026 WorkFit-LX — desk-mounted, displays to 42 inch
Features - Ergotron - 45-247-026
Colour
silver
Monitor mount capacity
Single monitor mount
More Details
Product Code
M480960
EAN Code
0698833012057
Manufacturer
Ergotron
