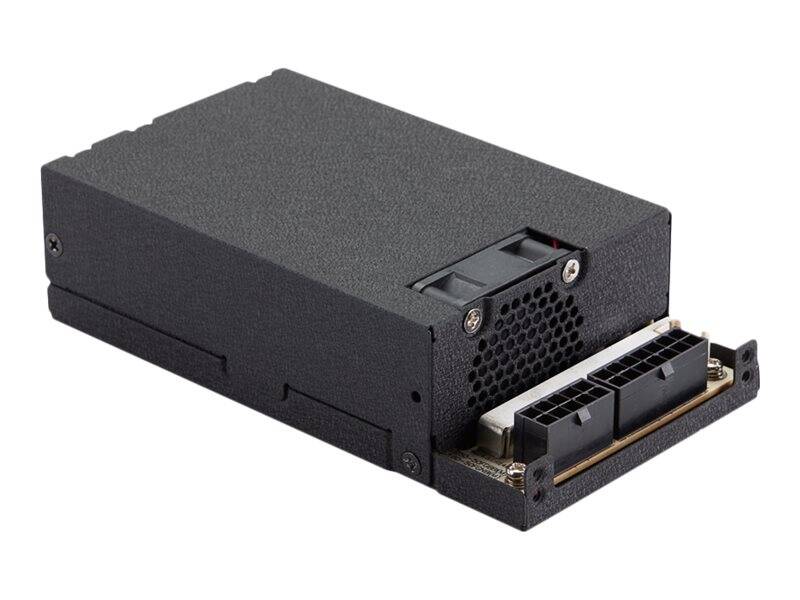

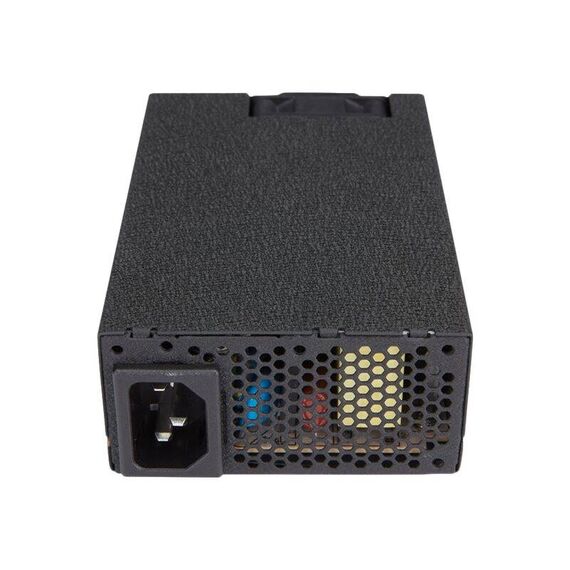

FSP FlexGURU FSP300-57FCB - Power supply (internal) - FlexATX 1.22 - AC 100-240 V - 300 Watt - active PFC | PPA3004300
Brand: Fortron-Source
PPA3004300
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Features

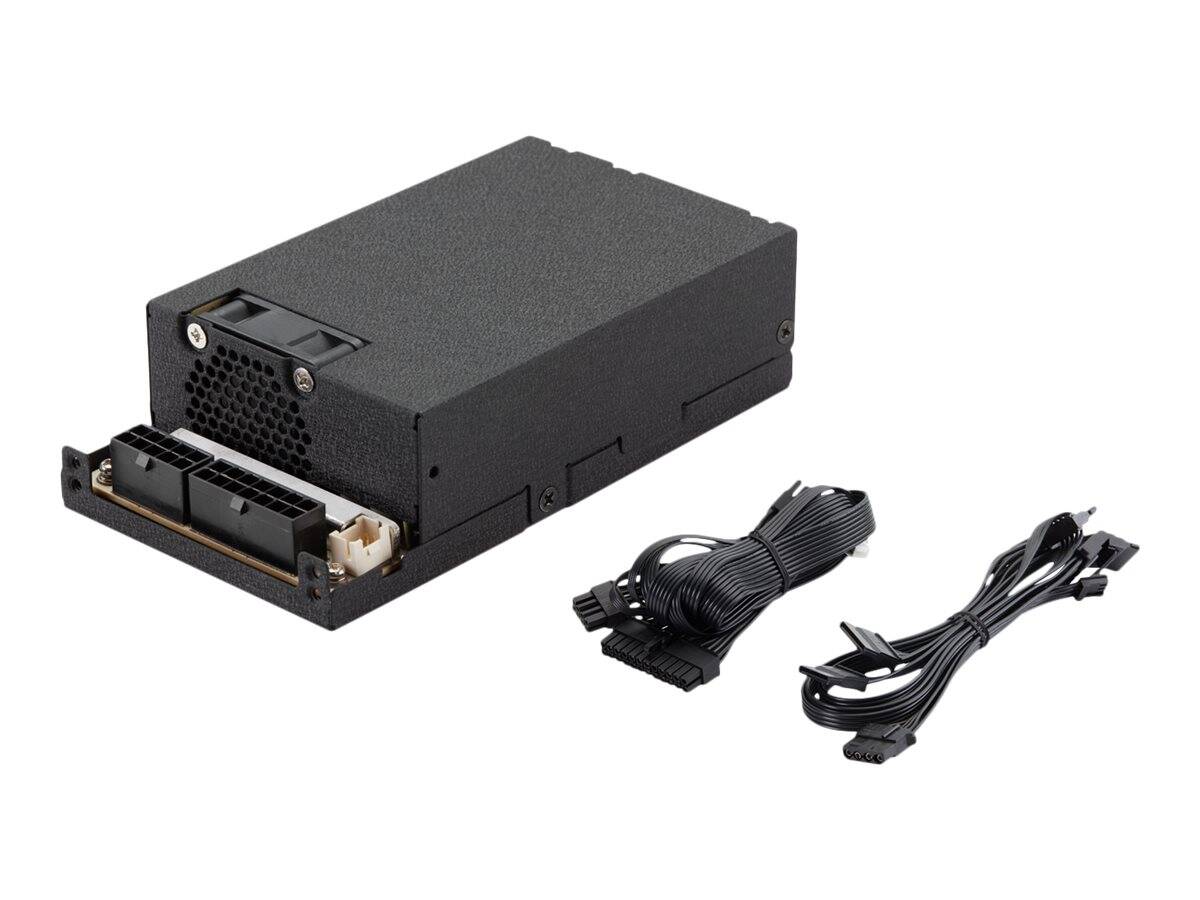

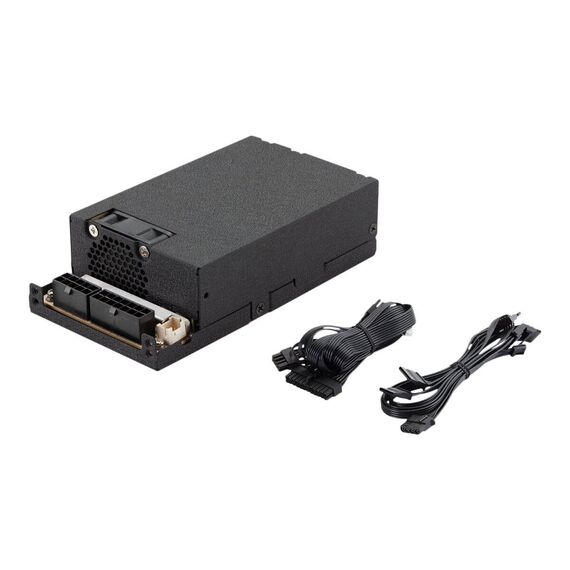

- Fully modular design
Fully modular design with all black ribbon cables simplifies installation, which allows you to use only the cables you need, for a much neater build. - High power density
FlexGURU series featured with high power density, 20% higher than any Flex PSU in the same wattage and frame. - Firm installation with Beetle technology
The new technology strengthens the fixation adequacy by 25% which makes the PSU fit in most of the Flex-ATX chassis in the market. - Excellent thermal performance
Differ from the general FLEX PSU, FlexGURU series is designed with inner 40mm fan, noise cancellation and achieving maximum cooling at all times. - 90% efficiency conversion
The efficiency of your power supply directly affects your system's performance. FlexGURU 300W has a guaranteed typical efficiency of 90%, offer the high conversion power to boost your system.
Special Fetures
- Compliant with the latest Flex ATX V1.22
- Compliant with UL/EN/IEC 62368-1 and 60950 International safety standards
- Intelligent fan speed control
- Quiet and long-lasting 40mm ball bearing fan
- Ribbon cables for the need of enthusiasts
- Powerful single +12V rail design
- Main Japanese electrolytic capacitors
- Intel latest CPU ready
- Complete protections: UVP, OVP, SCP, OPP, OTP
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | FlexATX 1.22 |
| PSU Form Factor | Flex ATX |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 300 Watt |
| Output Current | +3.3V - 12 A ¦ +5V - 14 A ¦ +12V - 18 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 40mm fan |
| Features | Overheat protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, ball bearing cooling fan, fully modular |
| Compliant Standards | EN 60950, IEC 60950, UL 60950, EN 62368-1, IEC 62368-1, UL 62368-1 |
| Dimensions & Weight | |
| Width | 8.15 cm |
| Depth | 15 cm |
| Height | 4.05 cm |
Features - Fortron-Source - PPA3004300
More Details
Product Code
07:703209
EAN Code
4713224522529
Manufacturer
Fortron-Source
