FSP Fortron FSP180-50FEB Flex ATX PC Power Supply, 180W, Fixed Cables, Silver

Brand:
Fortron-Source
FSP Fortron FSP180-50FEB silver Flex ATX power supply
FSP Fortron FSP180-50FEB Flex ATX PC Power Supply, 180W, Fixed Cables, Silver
€86.31 inc. VAT
Buy
9PA1806203
€72.53 €80.59
€86.31 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:444776
EAN Code
4713224523663
Manufacturer
Fortron-Source

Quick Specs

Output / format
180 W · Flex ATX
Dimensions (D × W × H)
150 × 81.5 × 40.5 mm
Motherboard / CPU
20+4-pin · 4-pin P4
Drive power
1 SATA · 2 Molex · 1 FDD
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

FSP FSP180-50FEB 180W Flex ATX Power Supply

180 W · Flex ATX150 × 81.5 × 40.5 mm20+4-pin · 4-pin P4

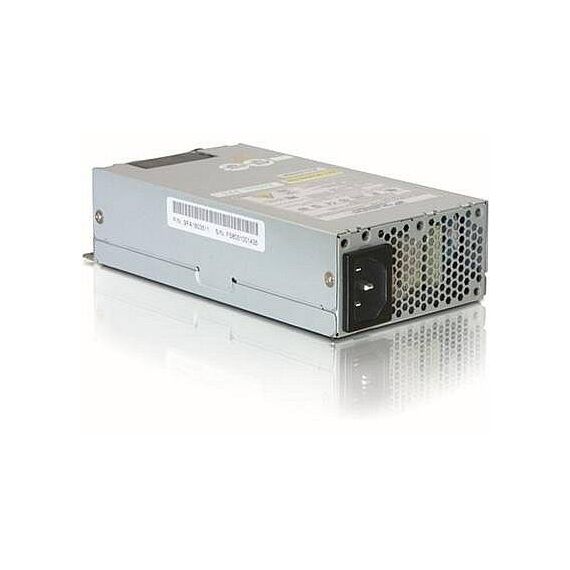

The FSP Fortron FSP180-50FEB, part number 9PA1806203, is a 180 W Flex ATX power supply for compact systems with the correct narrow PSU mounting position. Its silver housing measures 150 × 81.5 × 40.5 mm. Fixed cables provide 20+4-pin motherboard power, a four-pin CPU connection and a mixture of SATA and legacy drive power plugs.

Compatibility — check before buying:
Check Flex ATX mounting, the 150 mm body depth and your system’s 180 W power allowance before choosing this unit. The native CPU lead is four-pin P4 and there is no dedicated PCIe graphics-power plug. One SATA plug also limits direct SATA drive connections.

Key Features


Narrow Flex ATX body
The 81.5 mm width and 40.5 mm height suit a matching Flex ATX bay. Verify the case’s mounting pattern and cable exit clearance.

Full-range input with active PFC
The specified 90–264 V input range supports a wide range of AC supplies. Active PFC accompanies the unit’s 180 W output rating.

40 mm ball-bearing fan
A built-in 40 mm ball-bearing fan provides active cooling. Keep the intake and exhaust clear in tightly packed systems.

Native legacy drive connections
Two PATA/Molex plugs and one floppy plug accompany the single SATA connection. Match connector types and drive count before installation.

Technical Specifications

SKU / MPN 9PA1806203
EAN / GTIN 4713224523663
Electrical ratings
Rated total output 180 W
Combined +3.3 V / +5 V limit 61 W
AC input 90–264 V, 47–63 Hz
Input current 3 A at 115 V; 1.5 A at 230 V
PFC / stated typical efficiency Active PFC; typical efficiency greater than 85%
Standby consumption Below 0.5 W as listed
Protection circuits OCP, OTP, OVP listed in manufacturer datasheet
Hold-up time At least 16 ms at full load, 115 V / 60 Hz or 230 V / 50 Hz
Connections and installation
Form factor / cabling Flex ATX; fixed cables; bulk package
Motherboard 1 × 20+4-pin ATX
CPU / graphics power 1 × 4-pin P4 CPU; no native PCIe plug
Drive power 1 × SATA; 2 × PATA/Molex; 1 × FDD
Dimensions (D × W × H) 150 × 81.5 × 40.5 mm
Housing / cooling Silver metal; 40 mm ball-bearing fan
Operating conditions
Operating / storage temperature 0 to 50°C / −20 to 80°C
Operating / storage humidity 85% / 95% RH, non-condensing
Operating altitude Up to 5,000 m above sea level as specified
MTBF conditions 100,000 hours at 25°C and maximum output load; a reliability figure, not a warranty period
Safety standards listed CB 62368-1, CB 60950-1; CB, CE, TÜV, cUL, FCC listed

What's in the Box

FSP180-50FEB bulk power supply with fixed cable harness

Frequently Asked Questions

Does it provide eight-pin CPU or PCIe power?
The verified configuration has a four-pin P4 CPU lead and no dedicated PCIe graphics lead. Choose a different PSU if your equipment requires other native connectors.
Can I connect two SATA drives directly?
This part has one native SATA power plug. Check the required drive count and choose a PSU with sufficient native connectors.
Does the MTBF specify service life or warranty?
No. It is a manufacturer reliability figure under the stated temperature and load conditions. It does not guarantee a particular operating life or define warranty coverage.
Singular Expert Insight
The FSP180-50FEB is useful for a matching low-power Flex ATX system with one SATA drive and native four-pin CPU power. Compare other Singular power supplies when your build needs more SATA plugs, EPS eight-pin or graphics power, or a different mechanical format. Confirm the equipment’s exact PSU bay and complete load before selecting a replacement. Compare PSU formats and native connector counts Tell us your equipment model and we can check the compatibility requirements.

Buyer’s Guide

Buy it if

Your Flex ATX bay, 180 W system load and connector needs match.

Skip it if

You need multiple SATA plugs, eight-pin CPU or native PCIe power.

Also consider

A PSU matching the exact mounting and native connector requirements.
