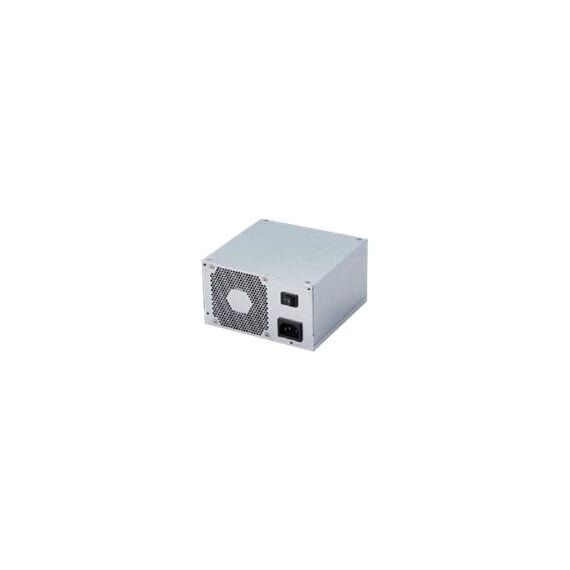

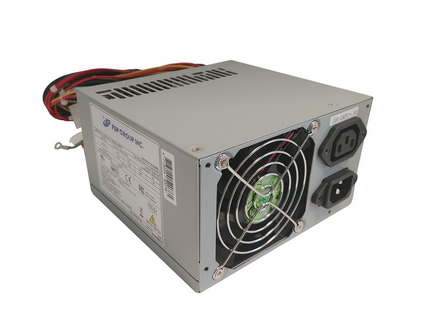

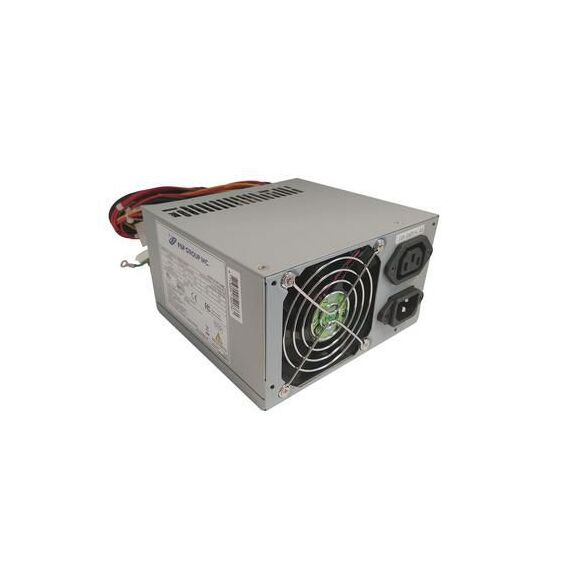

FSP FSP400-70AGB - Power supply (internal) - ATX12V - 80 PLUS Bronze - AC 115/230 V - 400 Watt - active PFC | 9PA400CV03
Please sign in so that we can notify you about a reply
Special Fetures
- Complied with ATX12V standard
- Active Power Factor Correction (PFC) meet EN61000-3-2
- High efficiency and reliability
- Remote on/off function
- Internal 12 V DC fan included
- AC input I/O switch is option.
- Low noise and ripple
- Output over voltage, short circuit, and over current protection
- 100% Hi-pot, ATE, and burn-in tested
- Re-settable power shut down
- Complies with FCC part 15 subpart J class B 115 VAC operation, and CISPR 22 class B at 230 VAC operation
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 115/230 V |
| Input Voltage Range | AC 90 - 264 V |
| Frequency Required | 47 - 63 Hz |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 400 Watt |
| Output Current | +3.3V - 19 A / 0.3 A ¦ +5V - 16 A / 0.5 A ¦ +12V1 - 17 A / 0.5 A ¦ +12V2 - 17 A / 0.5 A ¦ -12V - 0.3 A / 0 A ¦ +5VSB - 2.5 A / 0 A |
| Efficiency | 85%+ |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Features | On/off switch, over current protection, over voltage protection, short-circuit protection, cooling fan |
| Compliant Standards | UL, TUV, CISPR 22 Class B, EN 61000-3-2, EMC, RoHS, Energy-using Products (EuP) Lot 6, Directive 2011/65/EU, MIL-HDBK-217F, FCC Part 15 J Class B, CB 60950-1, Directive 2015/863/EU, CB 62368 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Fortron-Source - 9PA400CV03
More Details
Product Code
04:347460
EAN Code
4713224524332
Manufacturer
Fortron-Source
