Good Connections GC-N0147 Cat 6A Field-Attachable RJ45 Plug, Shielded
Cat 6A · 500 MHzTool-free assemblyShielded metal housingPoE / PoE+ / UPoE

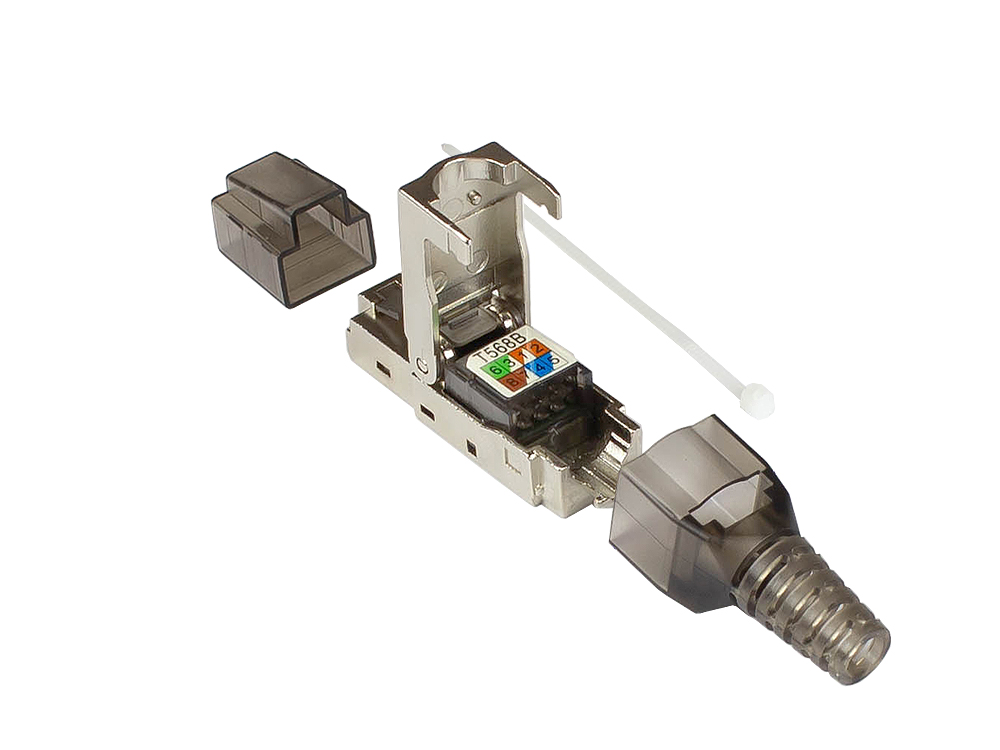

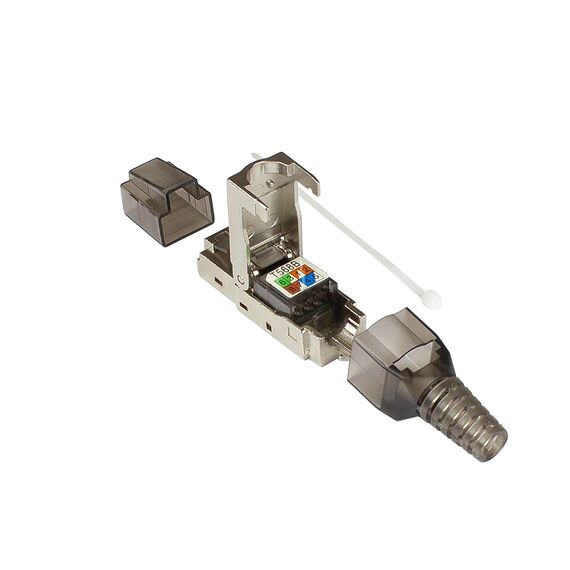

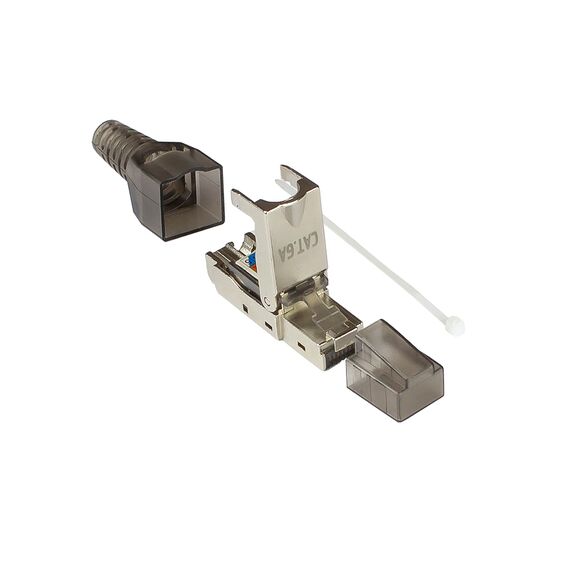

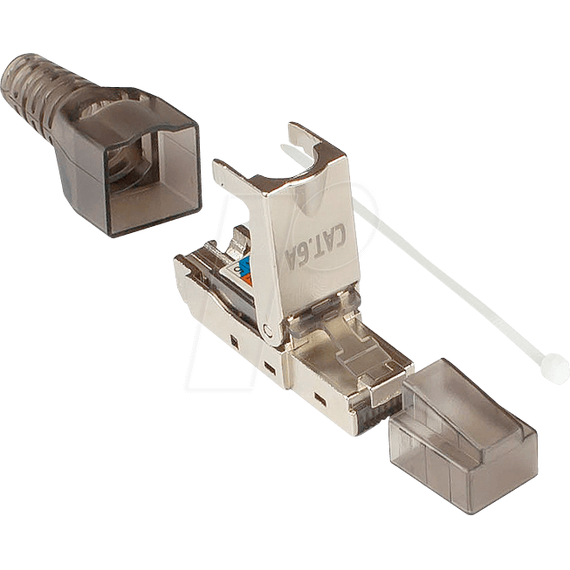

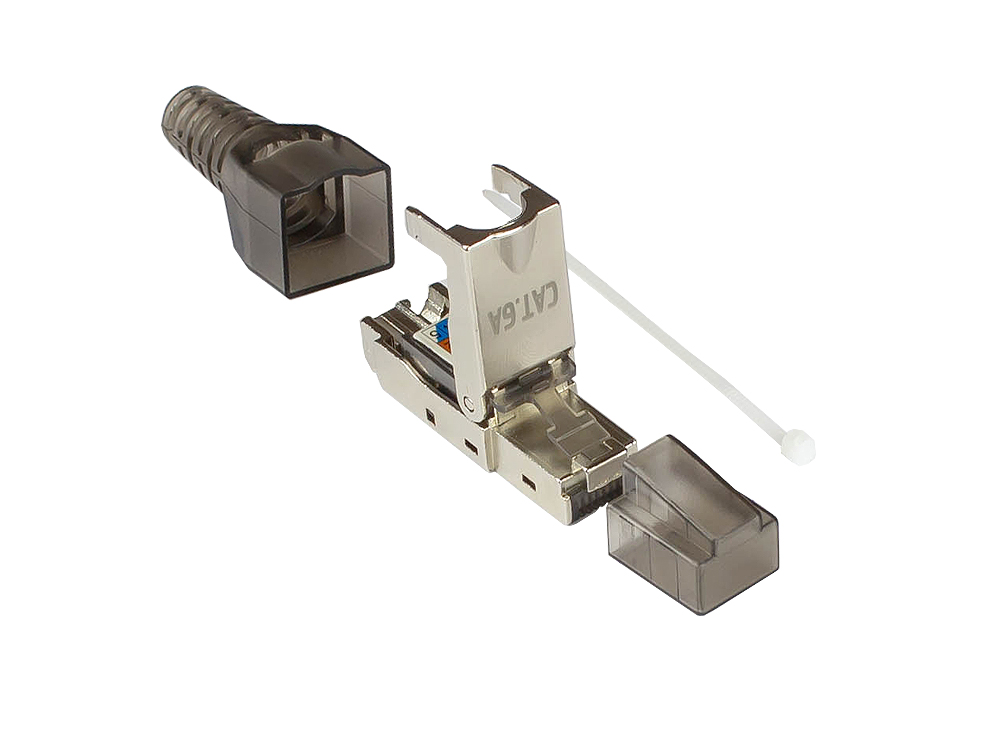

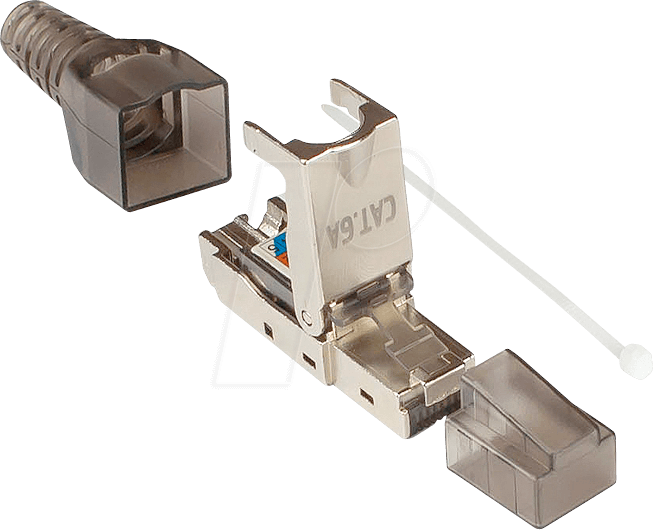

The Good Connections GC-N0147 is a tool-free, field-attachable Cat 6A RJ45 plug with a shielded zinc die-cast housing, used to terminate installation or patch cable on site without a crimping tool. Part number GC-N0147 (EAN 4014619709946) is rated to 500 MHz, accepts cables of 6 to 9.5 mm outer diameter with solid (AWG 26/1 to 22/1) or stranded (AWG 27/7 to 22/7) conductors, and has gold-plated phosphor-bronze contacts suitable for PoE, PoE+ and UPoE. Typically in stock with fast delivery across Cyprus.
Before you buy
This is a single RJ45 connector, not a finished cable: you supply the cable and terminate it on site. Check that your cable OD (6 to 9.5 mm) and conductor gauge fall within the stated ranges, and connect the cable shield to the metal housing to keep the link shielded end to end. One plug per pack; you need two for a cable with plugs on both ends.
Key Features
Tool-free termination
Lay the pairs in the threading aid, close the housing and the contacts are made, with no crimp tool needed; ideal for cables pulled through walls or conduit first.
Cat 6A shielded
500 MHz rating and a zinc die-cast metal housing for shielded (STP) 10GbE links.
Wide cable range
Accepts 6 to 9.5 mm cables with solid AWG 26/1-22/1 or stranded AWG 27/7-22/7 conductors; rated -25 to +68 °C.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We recommend the Good Connections GC-N0147 when a cable has to be pulled through a wall, duct or camera mount before it can be terminated, for example to connect an IP camera or access point directly to installation cable. For standard patching between panels and network switches, a factory-made patch cable such as DIGITUS DK-1644-A is quicker and fully tested.
Buyer's Guide
Buy it if
You terminate shielded installation or patch cable on site, without a crimp tool, for cameras, access points or custom lengths.
Skip it if
You simply need a ready-made patch cable, or your cable is outside the 6 to 9.5 mm OD range.
Also consider
Ready-made DIGITUS DK-1644-A Cat 6A patch cables, or Good Connections GC-N0165 Cat 6A plug.
Features - GoodConnections - GC-N0147
Colour
black
Standard
CAT6a
More Details
Product Code
04:480070
EAN Code
4014619709946
Manufacturer
GoodConnections
