Gigabyte MS73-HB1 Dual-Socket Server Motherboard LGA 4677 Intel C741 E-ATX 16x DDR5 RDIMM PCIe 5.0 Dual GbE IPMI
Brand:
GigaByte
Gigabyte MS73-HB1 Dual-Socket Server Motherboard LGA 4677 Intel C741 E-ATX 16x DDR5 RDIMM PCIe 5.0 Dual GbE IPMI
€1355.73 inc. VAT
9MS73HB1MR-000
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Gigabyte MS73-HB1 — Dual-Socket Intel Xeon Scalable Server Board
Dual LGA 4677 · Intel C74116× DDR5 RDIMM, 8-channel/CPU6× PCIe 5.0 x16Dual GbE · IPMI

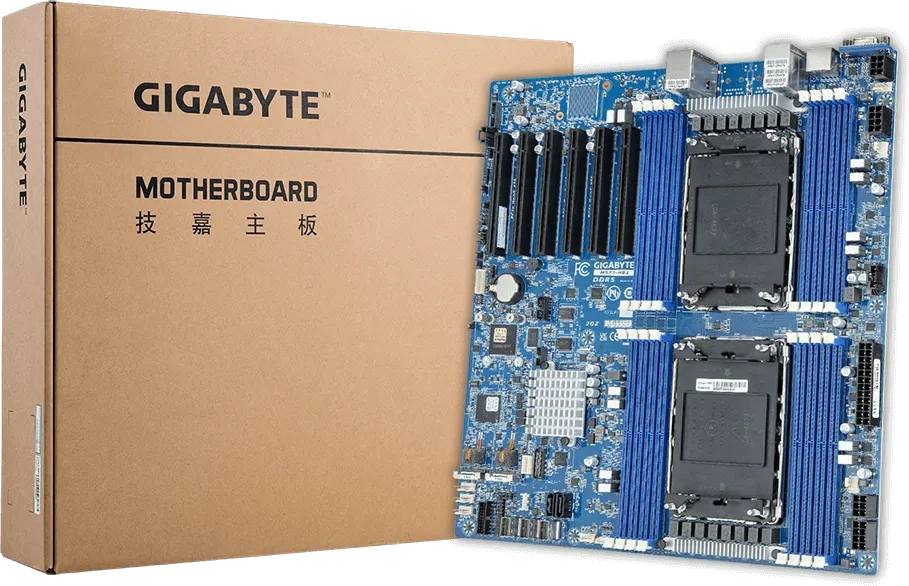

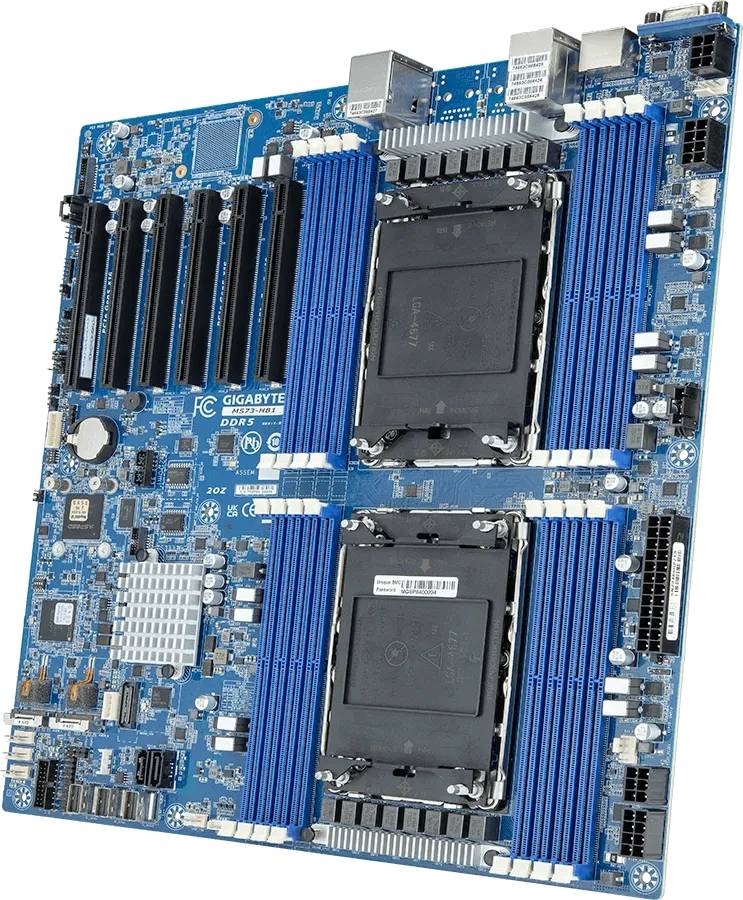

The Gigabyte MS73-HB1 is a dual-socket E-ATX server motherboard built on the Intel C741 chipset, supporting two 4th or 5th Generation Intel Xeon Scalable (and Xeon CPU Max) processors on Socket E (LGA 4677). Sold under Gigabyte part number 9MS73HB1MR-000 (EAN 4719331849368), it provides sixteen DDR5 RDIMM slots (8-channel per CPU), six PCIe 5.0 x16 expansion slots, dual M.2, SlimSAS and SATA storage, dual Gigabit LAN and IPMI remote management — a high-performance foundation for dual-processor servers and workstations. Typically in stock with fast delivery across Cyprus.
Compatibility — read before buying
This is a dual Socket E (LGA 4677) server board supporting 4th/5th Generation Intel Xeon Scalable and Xeon CPU Max processors (TDP up to 350W) — not desktop Intel CPUs. It requires DDR5 RDIMM (registered ECC) server memory, not desktop UDIMM, and its E-ATX footprint (304.8 × 330.2mm) needs a compatible dual-socket server/workstation chassis. Both sockets should be populated for full memory-channel bandwidth.
Best For
✓Dual-socket Intel Xeon Scalable servers
✓HPC, virtualization and data-center compute nodes
✓Memory-bandwidth-intensive workloads (8-channel/CPU)
✓Multi-GPU / accelerator servers (6× PCIe 5.0)
✓High-core-count workstations
✓Remote-managed enterprise infrastructure
Key Features
Dual 4th/5th Gen Xeon Scalable
Two LGA 4677 sockets support 4th and 5th Generation Intel Xeon Scalable and Xeon CPU Max processors (up to 350W TDP) for massive multi-threaded performance.
16× DDR5 RDIMM, 8-channel per CPU
Sixteen DDR5 RDIMM slots provide full 8-channel memory bandwidth per processor at up to 5600 MT/s (5th Gen) for memory-hungry server workloads.
Six PCIe 5.0 x16 slots
Six PCIe 5.0 x16 expansion slots deliver enormous bandwidth for GPUs, accelerators, network and storage cards in dense server builds.
Server storage & management
Dual M.2 (PCIe Gen4), three SlimSAS 4i and SATA ports for storage, plus dual Intel I210-AT GbE LAN and IPMI remote management with onboard BMC.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The MS73-HB1 is a serious dual-socket platform for 4th/5th Gen Xeon Scalable — its 16 DDR5 RDIMM slots and six PCIe 5.0 x16 slots make it ideal for HPC, virtualization and GPU-dense servers where total memory bandwidth and expansion matter most. For single-socket efficiency builds, the older X12-class or single-socket boards are simpler; for AMD, an EPYC server board is the alternative. Pair it with enterprise server SSDs for reliable, high-endurance storage.
Buyer's Guide
Buy it if
You are building a dual-socket 4th/5th Gen Intel Xeon Scalable server or workstation needing maximum memory bandwidth and PCIe 5.0 expansion.
Skip it if
You need a single-socket or low-power node, or a desktop build — choose a single-socket Xeon board or a desktop platform.
Also consider
A single-socket Xeon server board for simpler nodes, or an AMD EPYC board for an alternative dual-/single-socket platform.
Features - GigaByte - 9MS73HB1MR-000
CPU Socket
- Socket 4677
Interface
- M.2,
- SATA,
- Ethernet
More Details
Product Code
04:493962
EAN Code
4719331849368
Manufacturer
GigaByte
