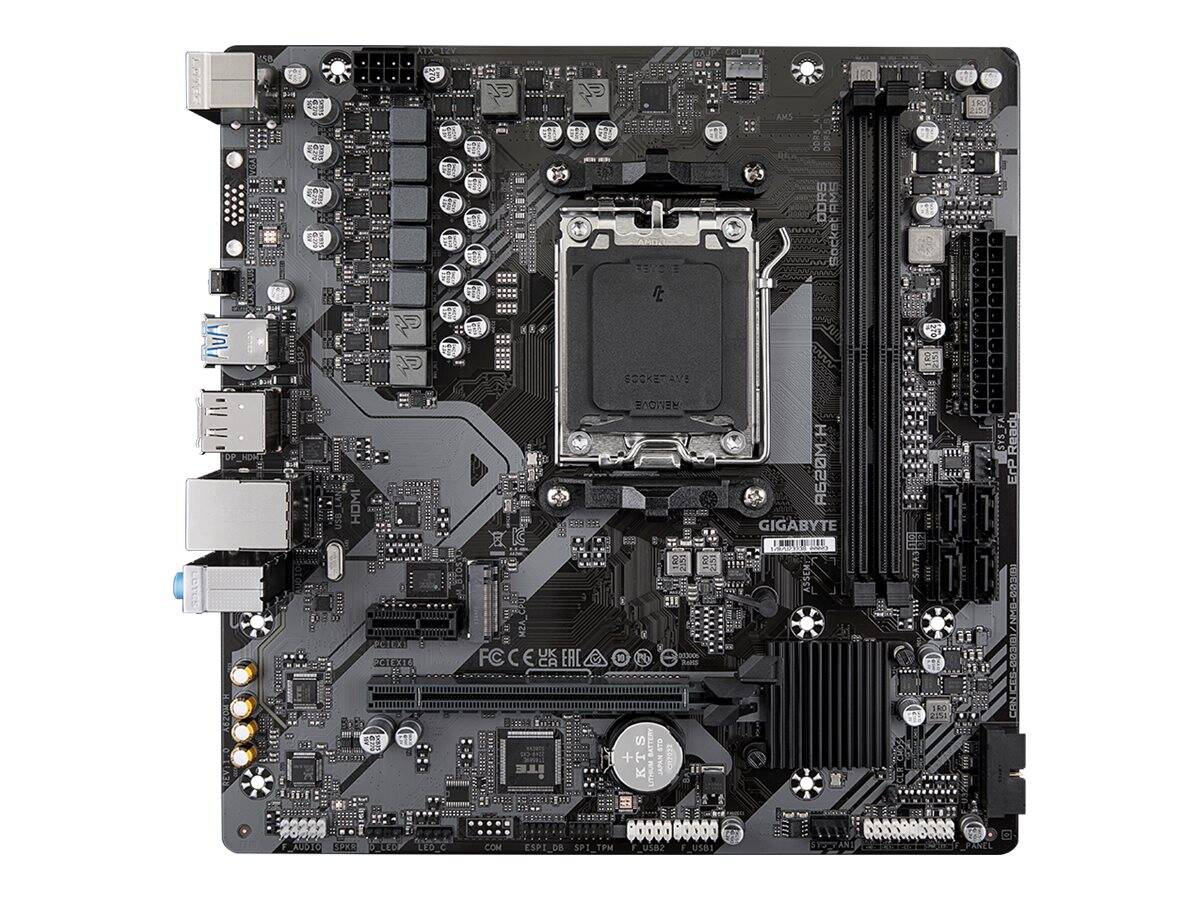

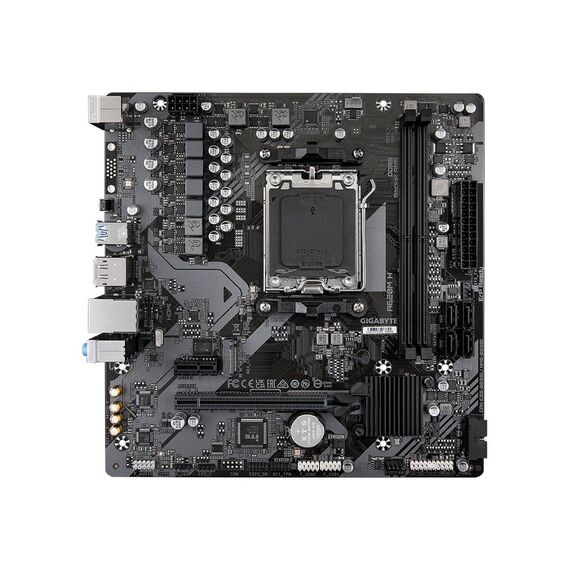

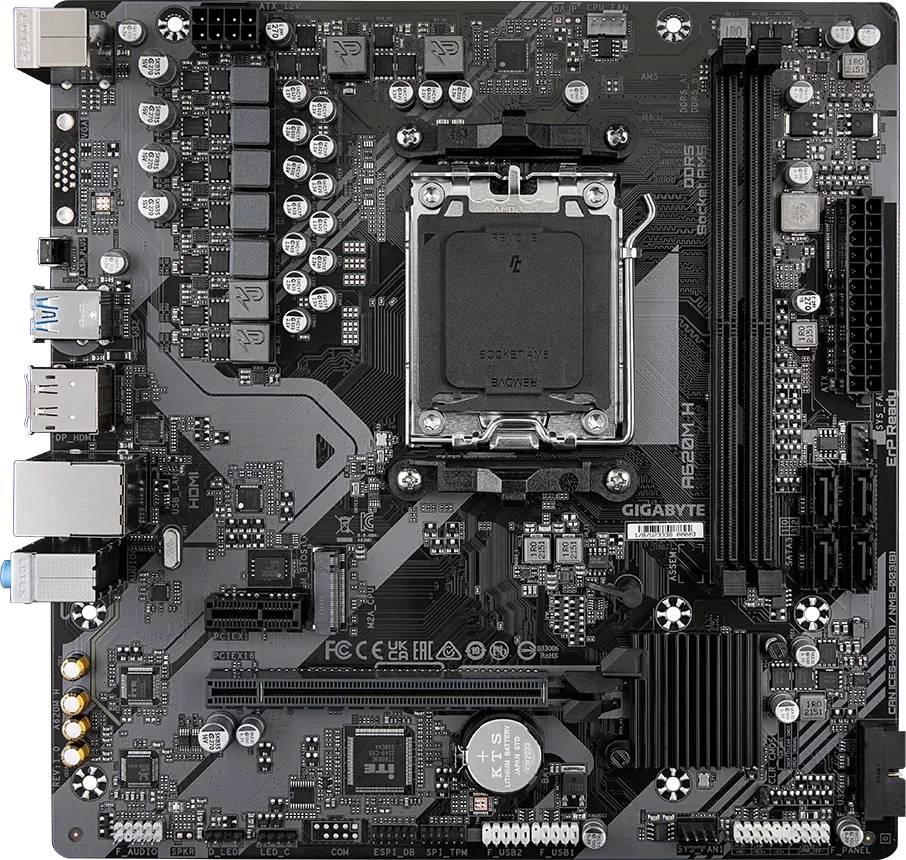

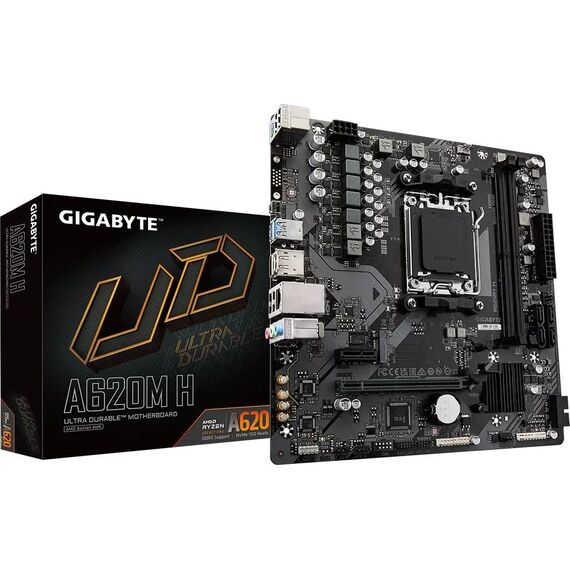

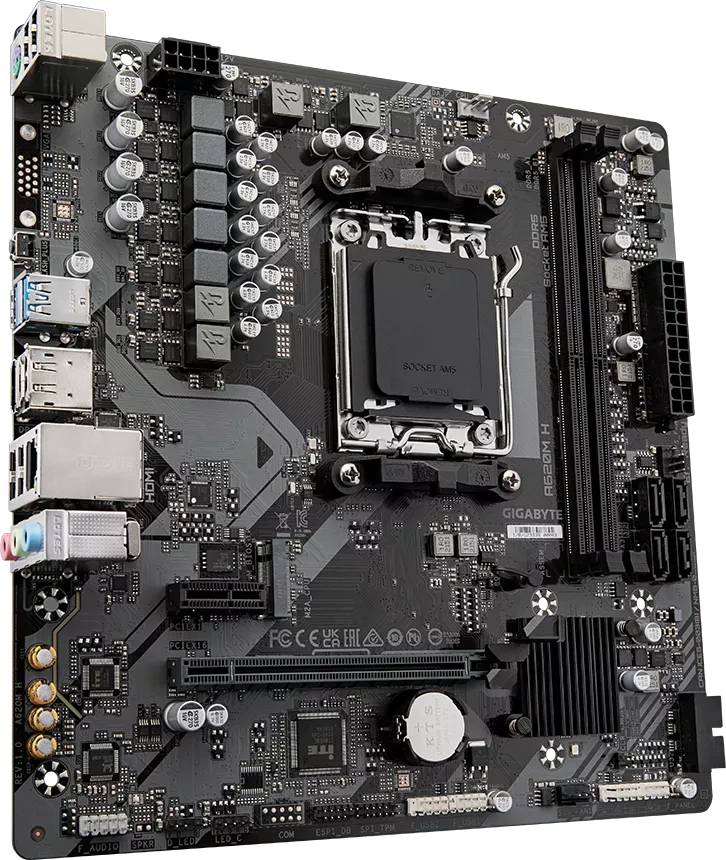

Gigabyte A620M H - Motherboard - micro ATX - Socket AM5 - AMD A620 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) | A620M H
Please sign in so that we can notify you about a reply
Product Features
- Digital VRM design
Features a multi-phase digital PWM and low-RDS (on) MOSFET design and offers incredible precision in delivering power to the motherboard's power-hungry and energy-sensitive components, as well as enhanced system performance and ultimate hardware scalability. - Impressive performance
To reach high speeds and maintain good signal integrity, GIGABYTE uses a low-impedance PCB to provide maximum performance. - Smart fan
Multiple fan headers can support PWM/DC fans and pumps, and users can easily define each fan curve based on different temperature sensors across the board via an intuitive user interface. - Bandwidth management
Improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. - High-end audio capacitors
The high-quality capacitors deliver high-resolution and high-fidelity audio to provide realistic sound effects for gamers. - Audio noise guard
The audio noise guard essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Special Fetures
- High performance: digital VRM solution
- Dual-channel RAM slots
- Advanced thermal design
- Impressive SSD performance
- PCIe slot with quick-release design
- Extended connectivity: DP, HDMI, USB-C
- Multiple temperature sensors and hybrid fan headers
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A620 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | |
| Max Size | 96 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 4400 MHz, 5200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2580 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

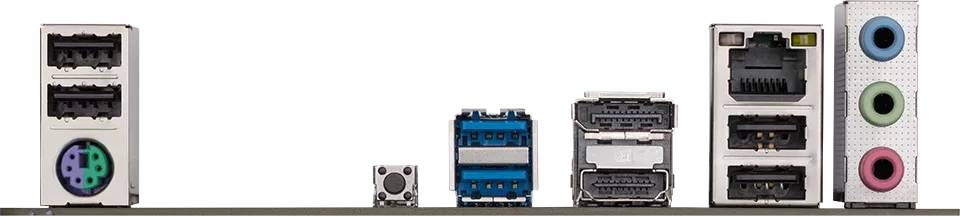

| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Features | Q-Flash, Q-Flash Plus, Solid Pin Power Connectors, DIY Friendly Design, GIGABYTE Smart Fan 6, 5+2+2 Phase Power Design |
| Miscellaneous | |
| Software Included | Norton Internet Security |
| Width | 22.5 cm |
| Depth | 23 cm |
Features - GigaByte - A620M H
More Details
Product Code
04:434034
EAN Code
4719331855512
Manufacturer
GigaByte
