Gigabyte B550 EAGLE / Motherboard / ATX / Socket AM4 / AMD B550 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B550 EAGLE
Gigabyte B550 EAGLE / Motherboard / ATX / Socket AM4 / AMD B550 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B550 EAGLE
€129.39 inc. VAT
B550 EAGLE
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Versatile connectivity options
The motherboard offers a range of interfaces including HDMI, USB 3.2 Gen 1, USB 3.2 Gen 2, and USB-C, ensuring compatibility with various devices and peripherals. - Robust storage capabilities
With support for up to 4 x SATA-600 and 2 x M.2 sockets, the motherboard allows for extensive storage configurations to meet diverse needs. - Enhanced audio experience
Featuring high definition audio output with an 8-channel capability, this motherboard delivers an immersive sound experience for gaming and media consumption. - Customizable cooling solutions
Equipped with GIGABYTE Smart Fan 6 technology, it allows users to manage cooling systems effectively with features like fan speed detection and control.
Special Features
- Compatible with Ryzen processors for performance
- Support for DDR4 RAM and multiple storage interfaces
- Advanced cooling and monitoring features
- RGB FUSION for customizable aesthetics
- DIY-friendly design for easy setup
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B550 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1467 MHz, 1333 MHz, 1200 MHz, 1067 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8851BE |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 4 x PCIe 4.0 x1 2 x M.2 socket (22110/2280) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

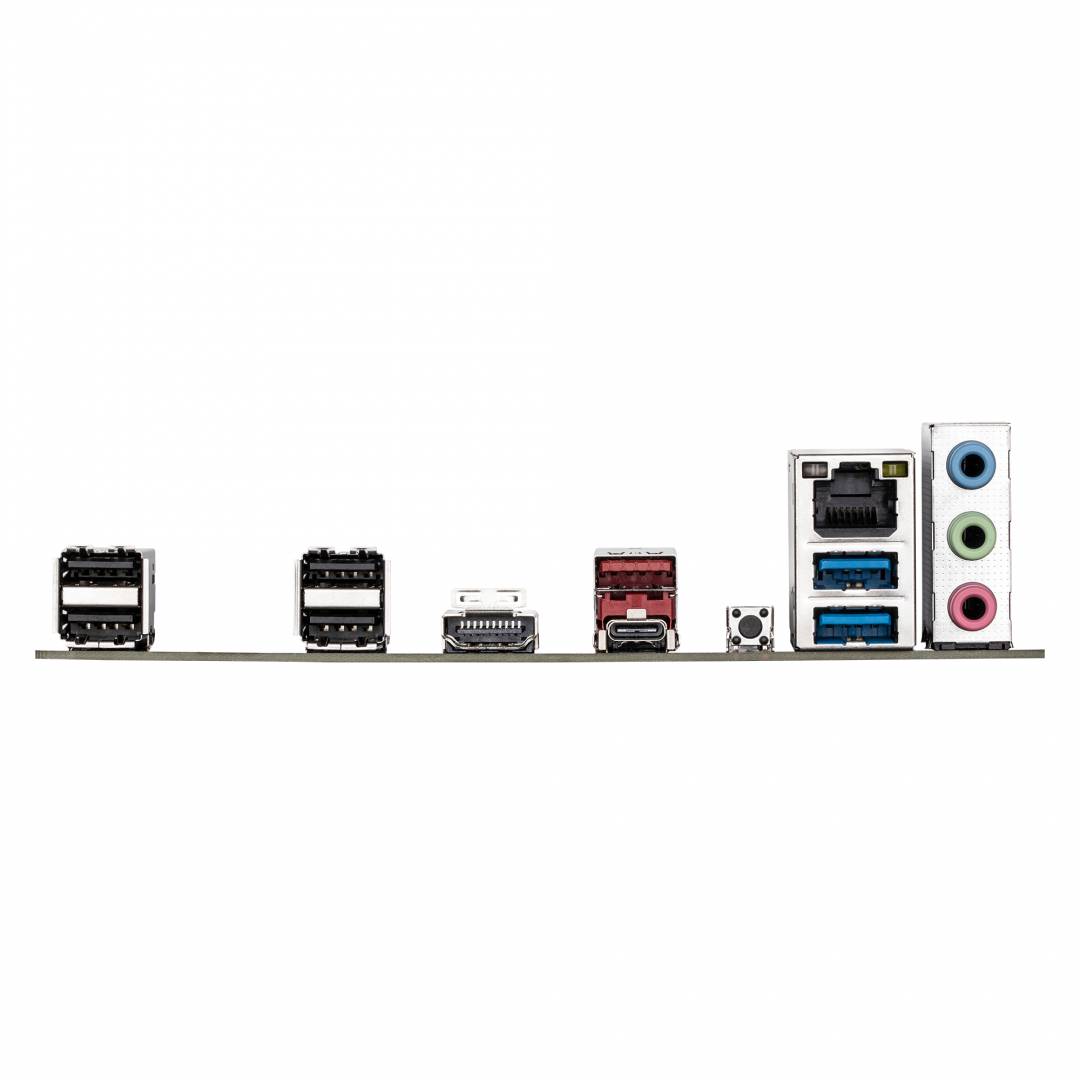

| Interfaces | 1 x HDMI 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 4 x USB 2.0 1 x USB-C 3.2 Gen 1 LAN (Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan fail warning, fan control, system voltage, temperature detection, water cooling flow rate, fan speed detection |
| Hardware Features | 10+3+1 Phase Power Design, 4 Layer PCB, Server-Grade Mid-Loss PCB, EZ Plug, M.2 EZ Latch, GIGABYTE Smart Fan 6, RGB FUSION, DIY Friendly Design |
| Miscellaneous | Miscellaneous |
| Included Accessories | M.2 screw package, rubber pad, IO shield |
| Cables Included | 2 x SATA Express cable |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), LAN manager |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - GigaByte - B550 EAGLE
CPU Socket
- Socket AM4
More Details
Product Code
04:519870
EAN Code
4719331868208
Manufacturer
GigaByte
