GIGABYTE B650E EAGLE WIFI6E AMD B650E ATX Motherboard AM5 DDR5 PCIe 5.0 Triple M.2 2.5GbE Ryzen 9000
Brand:
GigaByte
GIGABYTE B650E EAGLE WIFI6E AMD B650E ATX Motherboard AM5 DDR5 PCIe 5.0 Triple M.2 2.5GbE Ryzen 9000
€207.92 inc. VAT
B650E EAGLE WF6E
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

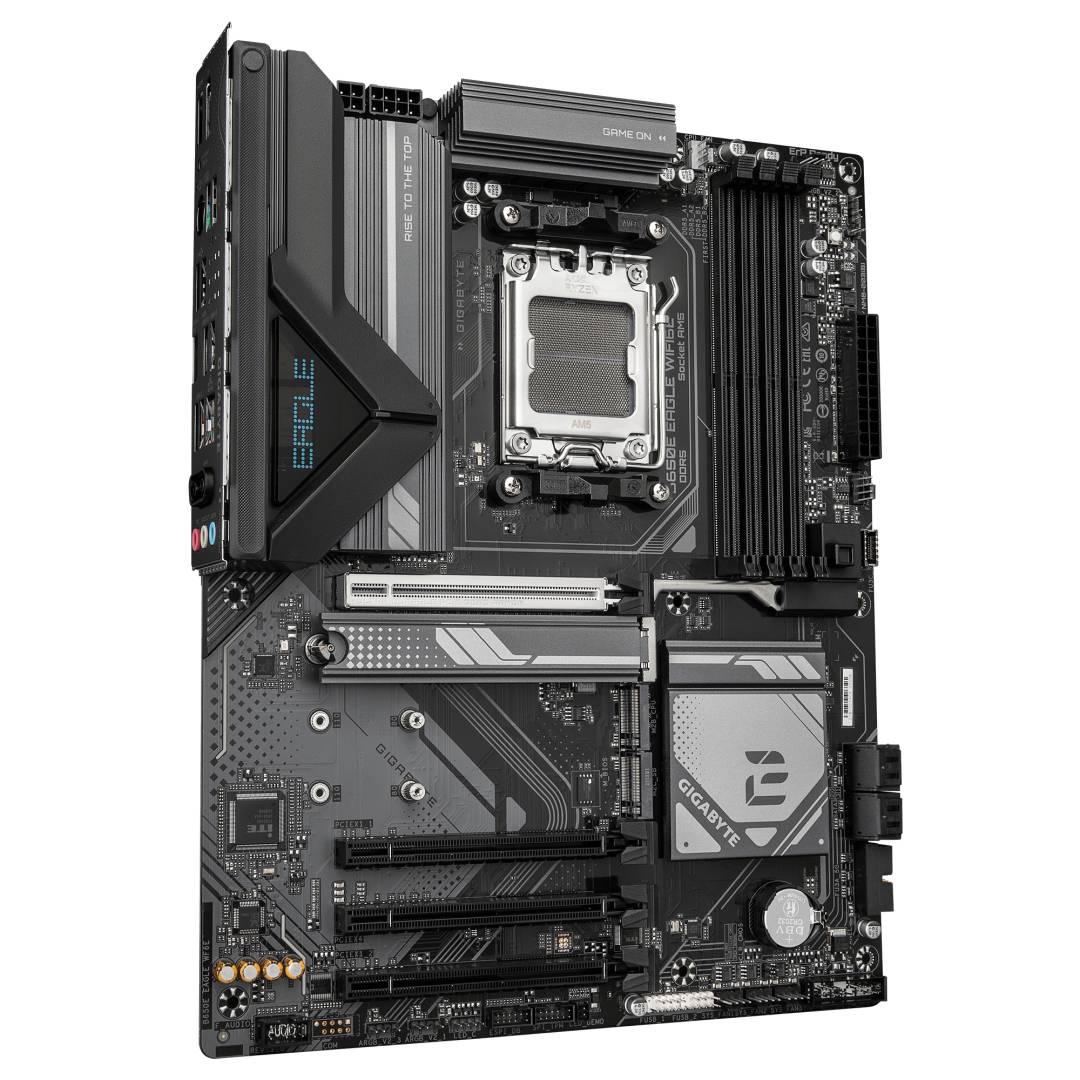

GIGABYTE B650E EAGLE WIFI6E — AMD B650E ATX for Socket AM5 with PCIe 5.0 Graphics and Storage
AMD B650E / Socket AM5PCIe 5.0 x16 + PCIe 5.0 M.2Wi-Fi 6E + Bluetooth 5.34 x DDR5 up to 256 GB
The GIGABYTE B650E EAGLE WIFI6E is a full-size ATX motherboard on the AMD B650E chipset for Socket AM5, and the E in B650E is the point: unlike plain B650, it gives you a PCIe 5.0 x16 graphics slot as well as a PCIe 5.0 M.2 slot. It carries the part number B650E EAGLE WIFI6E (EAN 4719331877798) and supports AMD Ryzen 9000, 8000 and 7000 Series processors, with four DDR5 DIMM slots taking up to 256 GB at a rated DDR5-8200 when overclocked. Storage runs to three M.2 slots and four SATA 6 Gb/s ports, networking to Realtek 2.5GbE plus a MediaTek Wi-Fi 6E module with Bluetooth 5.3, and there are two DisplayPort and HDMI outputs for processors with integrated graphics. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
Not all three M.2 slots are equal: M2A_CPU is PCIe 5.0 x4, M2B_CPU is PCIe 4.0 x4 and M2C_SB is only PCIe 4.0 x2, so put your fastest drive in M2A_CPU. PCIe 5.0 on the main graphics slot and on M2A_CPU requires a Ryzen 9000 or 7000 Series processor; with Ryzen 8000 Series chips the x16 slot runs PCIe 4.0 at x8 or x4. The secondary slots are modest: one PCIe 4.0 x4 and two PCIe 3.0 x1, all in x16-length physical slots. Wireless is Wi-Fi 6E, not Wi-Fi 7, on a MediaTek MT7902 module. Socket AM5 means DDR5 only — AM4 processors and DDR4 memory are not compatible. Display outputs need a CPU with integrated graphics. The board is full ATX at 30.5 x 24.4 cm.
Best For
✓ Ryzen 9000 gaming builds that want PCIe 5.0 graphics and storage
✓ Systems keeping the option of a Gen 5 graphics card later
✓ Builds with three NVMe drives plus four SATA disks
✓ Homes with a Wi-Fi 6E router using the 6 GHz band
✓ Workstations wanting 256 GB of DDR5 across four slots
✓ Full ATX cases with room for a large graphics card
Key Features
B650E means PCIe 5.0 on the graphics slot too
Plain B650 boards give you a Gen 5 M.2 slot but keep the graphics slot at PCIe 4.0. B650E adds PCIe 5.0 x16 from the CPU, so the board is ready for a Gen 5 graphics card as well as a Gen 5 NVMe drive. With Ryzen 9000 and 7000 Series processors both run at full Gen 5 speed.
Three M.2 slots with thermal guards
M2A_CPU runs PCIe 5.0 x4, M2B_CPU runs PCIe 4.0 x4 and M2C_SB adds a PCIe 4.0 x2 slot from the chipset, giving three NVMe drives on one board alongside four SATA 6 Gb/s connectors for hard disks and 2.5-inch SSDs.
Wi-Fi 6E on 6 GHz plus 2.5GbE
A MediaTek MT7902 module covers the 2.4, 5 and 6 GHz bands with 160 MHz channels and Bluetooth 5.3, and a Realtek 2.5GbE controller handles wired networking. The 6 GHz band is the practical benefit — it is empty compared with the crowded 2.4 and 5 GHz bands in most apartment blocks.
Four DDR5 slots to 256 GB with EXPO
Four DIMM sockets take 64 GB modules to a 256 GB total in dual channel, with one-click AMD EXPO and Intel XMP profiles and a rated ceiling of DDR5-8200 when overclocked. Starting with two modules leaves a genuine upgrade path rather than a replacement.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
B650E is the quiet value pick of the AM5 range. You get the same PCIe 5.0 graphics slot and Gen 5 M.2 slot that B850 offers, usually for less money, and the things B850 adds over B650E are marginal for most builds. The EAGLE line is GIGABYTE’s no-nonsense tier, so the styling is plain and the audio is a standard Realtek codec rather than an ALC1220, but the important parts — four DDR5 slots, three M.2 slots, 2.5GbE and Wi-Fi 6E — are all present. Watch the third M.2 slot: at PCIe 4.0 x2 it is half-speed, so plan your NVMe drives accordingly. And buy a matched two-module DDR5 memory kit rather than filling all four slots at once, because four populated DDR5 slots always clock lower than two.
Buyer's Guide
Buy it if
You want a full ATX AM5 board with PCIe 5.0 for both graphics and a Gen 5 NVMe drive, three M.2 slots, four DDR5 slots to 256 GB, and Wi-Fi 6E with 2.5GbE, without paying B850 or X870 prices.
Skip it if
You need Wi-Fi 7, USB4 or Thunderbolt, premium onboard audio, or several full-bandwidth expansion slots beyond the graphics card.
Also consider
The GIGABYTE B850 EAGLE WIFI6E if you prefer the newer chipset, or the ASRock B850 Rock WiFi 7 if built-in Wi-Fi 7 is worth the difference.
Features - GigaByte - B650E EAGLE WF6E
CPU Socket
- Socket AM5
Colour
black
More Details
Product Code
04:572680
EAN Code
4719331877798
Manufacturer
GigaByte
