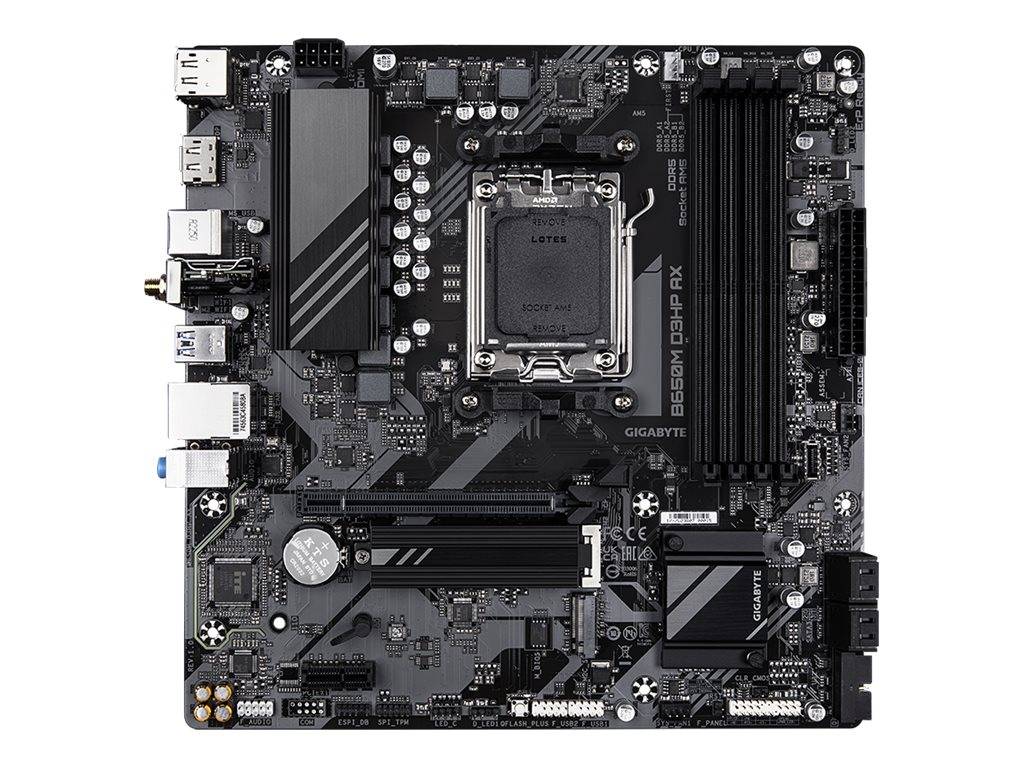

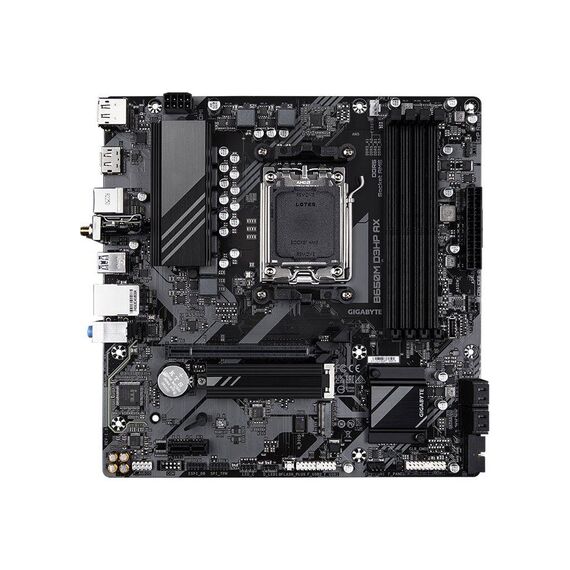

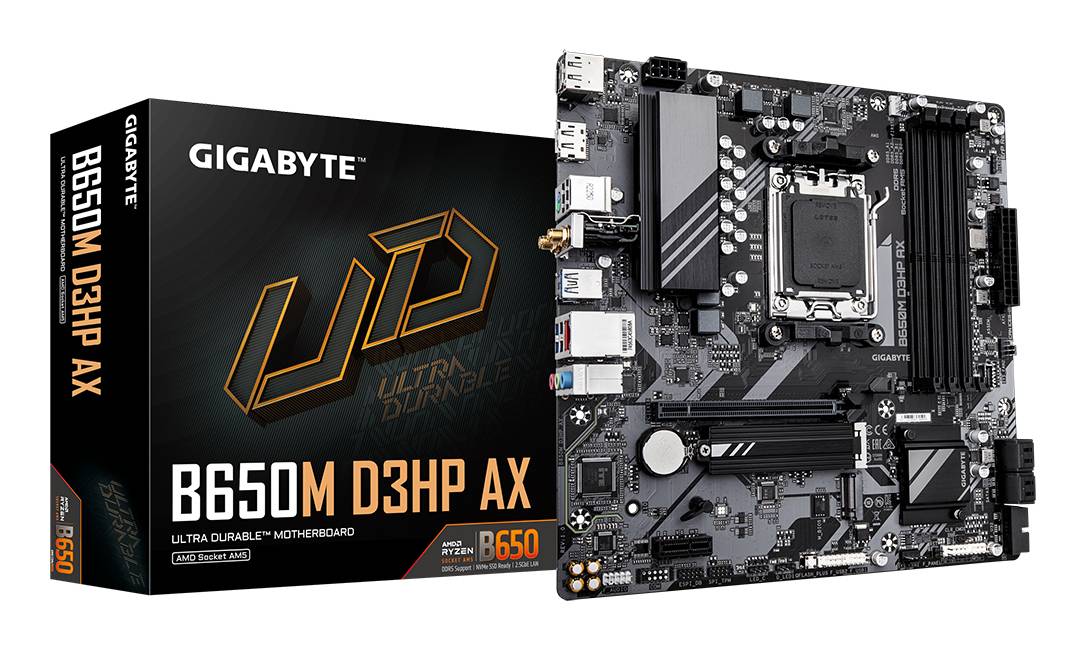

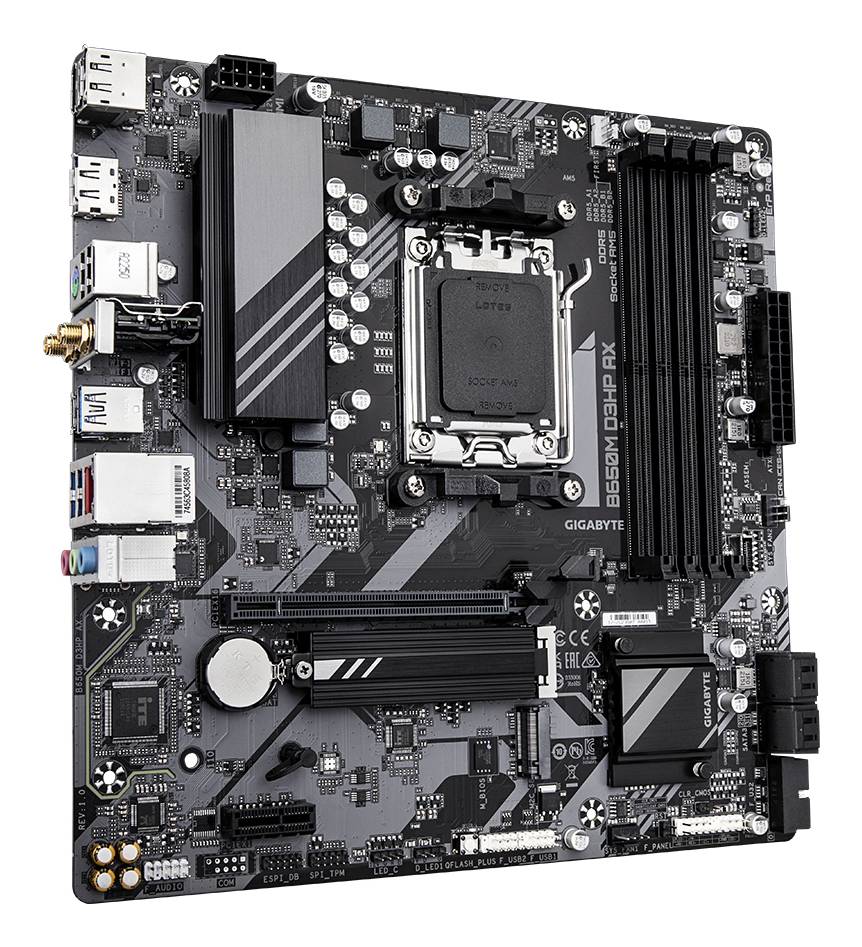

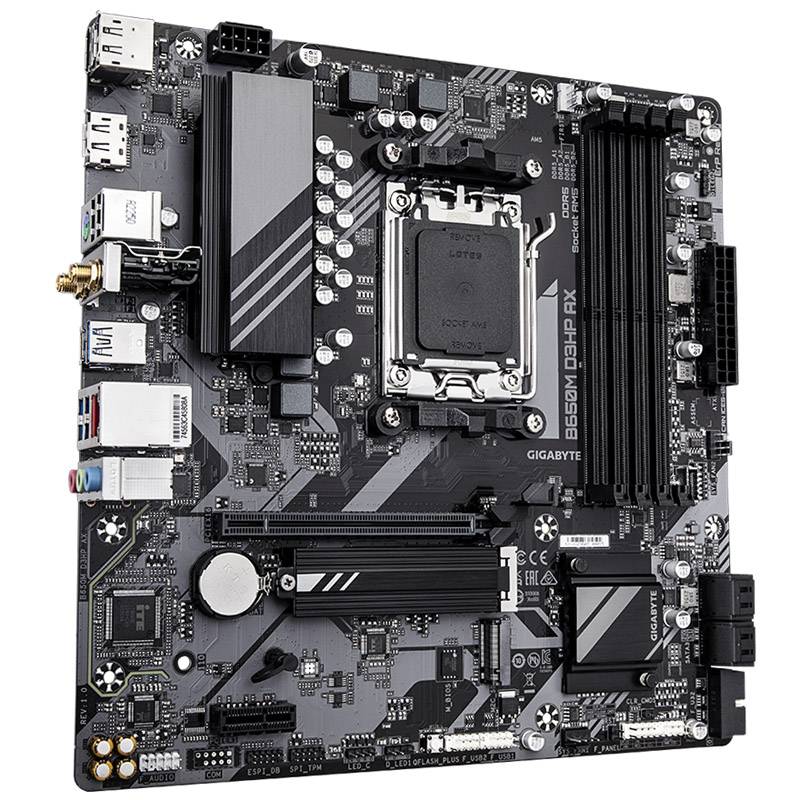

Gigabyte B650M D3HP AX / 1.0 / motherboard / micro ATX / Socket AM5 / AMD B650 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | B650M D3HP AX
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz, 7600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2580 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

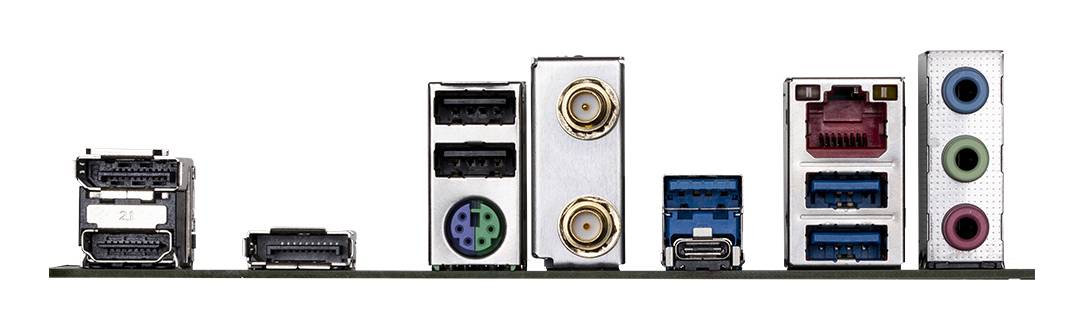

| Interfaces | 1 x HDMI ¦ 2 x DisplayPort ¦ 2 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial |
| Internal Interfaces | 1 x SPI - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, fan fail warning, fan control, fan speed detection, temperature detection |
| Hardware Features | Q-Flash, Q-Flash Plus, Audio Noise Guard, RGB FUSION, DIY Friendly Design, GIGABYTE Smart Fan 6, 5+2+2 Phase Power Design, PCIe EZ Latch, High-end Audio Capacitors |
| Miscellaneous | Miscellaneous |
| Software Included | GIGABYTE Control Center, LAN manager, Norton Internet Security (OEM Version) |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - GigaByte - B650M D3HP AX
CPU Socket
- Socket AM5
More Details
Product Code
04:456093
EAN Code
4719331859510
Manufacturer
GigaByte
