Gigabyte B650M GAMING PLUS WIFI / 1.X / motherboard / micro ATX / Socket AM5 / AMD B650 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E / onboard graphics (CPU required) / HD Audio (8-channel) | B650M Gaming Plus WF
B650M GAMING PLUS WF
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
With dual DisplayPort and HDMI interfaces, the B650M GAMING PLUS WIFI motherboard offers multiple options for connecting high-resolution displays, ensuring crisp and vibrant visuals for any gaming or multimedia experience. - Robust audio experience
Experience high-definition audio with an 8-channel sound card that brings movies, music, and games to life. Coupled with high-definition audio standards compliance, this motherboard delivers a rich audio experience with clarity and depth. - High-speed memory support
Supporting DDR5 SDRAM technology with speeds up to 7600 MHz (O.C.), the motherboard provides ample bandwidth for even the most memory-intensive applications, ensuring smooth and efficient performance across gaming, editing, and multitasking environments. - Advanced cooling and durability
GIGABYTE Smart Fan 6 technology along with a DIY-friendly design featuring ultra-durable components ensures your system remains cool and stable under intense operations, extending the lifespan of your components. - Next-gen networking
Equipped with 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E, the motherboard offers a range of high-speed networking options, allowing for seamless online gaming, fast downloads, and reliable connections for all your devices.
Special Features
- Supports Ryzen 7000/8000/9000 Series processors for high performance
- 4 DIMM slots supporting up to 7600 MHz (O.C.) DDR5 memory for high-speed data processing
- Dual M.2 sockets with PCIe 4.0 support for fast storage solutions
- 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E for comprehensive high-speed connectivity
- RGB FUSION supports customizable LED lighting for personalization
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x M.2 socket (2580 M.2 Key M slot) 1 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |

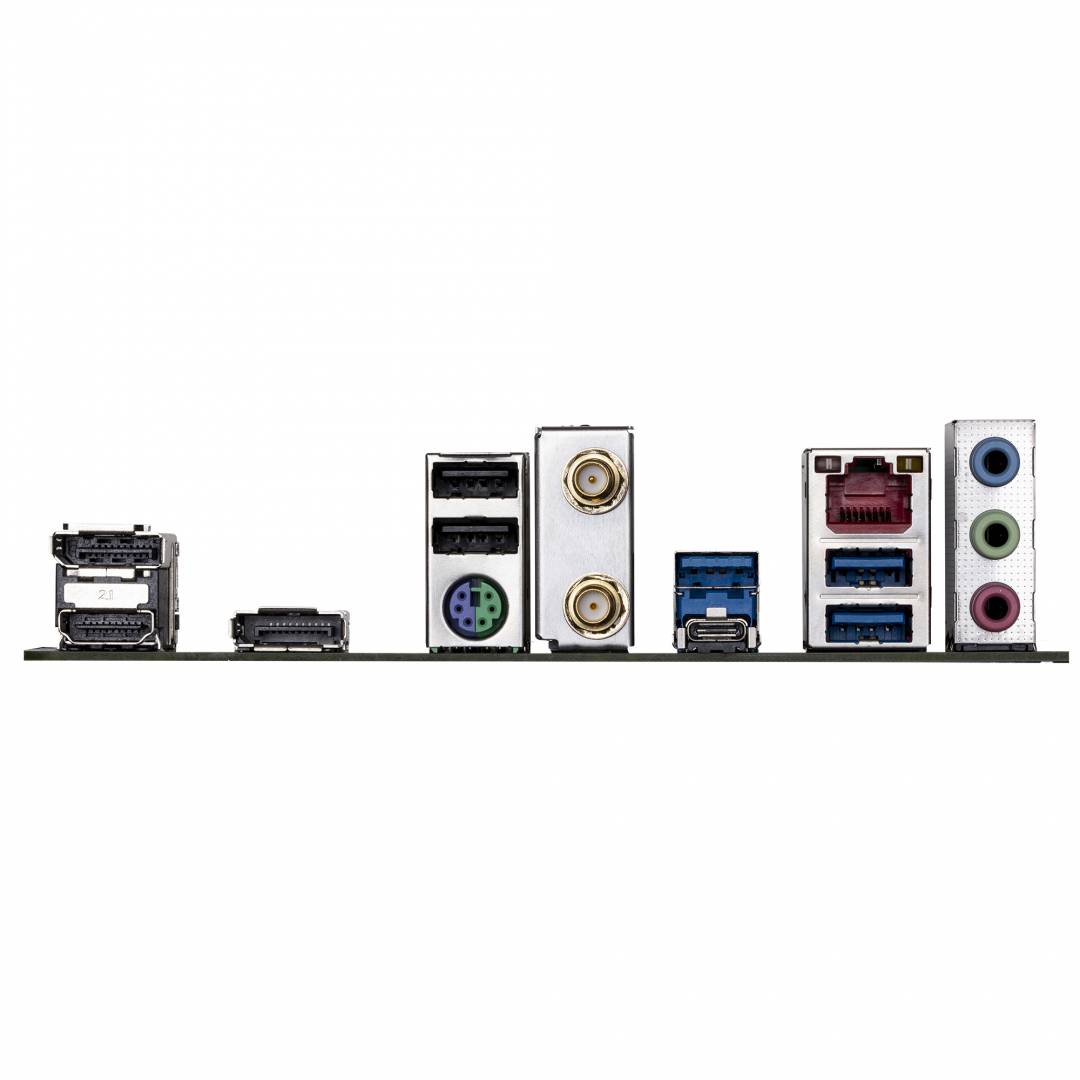

| Interfaces | 1 x HDMI 2 x DisplayPort 2 x USB 2.0 3 x USB 3.2 Gen 1 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x PS/2 keyboard / mouse 2 x aerial 1 x USB-C 3.2 Gen 1 |
| Internal Interfaces | 1 x SPI - header 1 x audio - header 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | Q-Flash Plus, Q-Flash, 5+2+2 Phase Power Design, GIGABYTE Smart Fan 6, PCIe EZ Latch, RGB FUSION, High-end Audio Capacitors, Audio Noise Guard, Ultra Durable, DIY Friendly Design |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - GigaByte - B650M GAMING PLUS WF
CPU Socket
- Socket AM5
More Details
Product Code
03:262991
EAN Code
4719331862213
Manufacturer
GigaByte
