Gigabyte B760 DS3H WIFI6E GEN5
Full ATX with PCIe 5.0 x16, DDR5 to 7600 OC, USB-C 20Gbps, Wi-Fi 6E and 2.5G LAN — the most complete DS3H GEN5 variant, combining ATX expansion with built-in modern wireless and high-speed I/O.
LGA1700 · 12/13/14th GenDDR5 · PCIe 5.0Wi-Fi 6E · 2.5G LANUSB-C 20Gbps · Q-Flash+

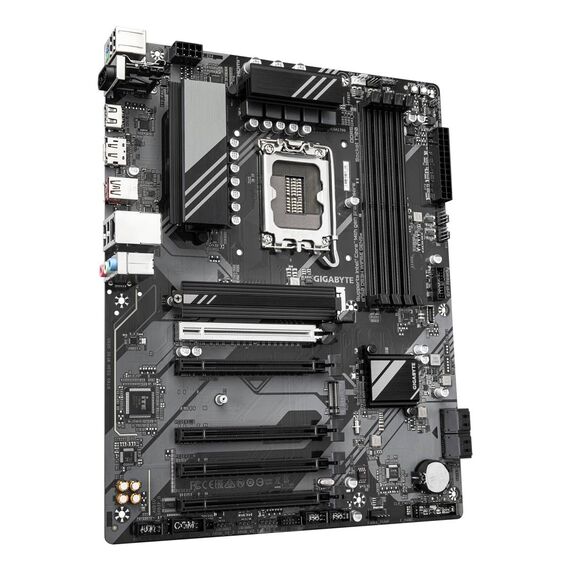

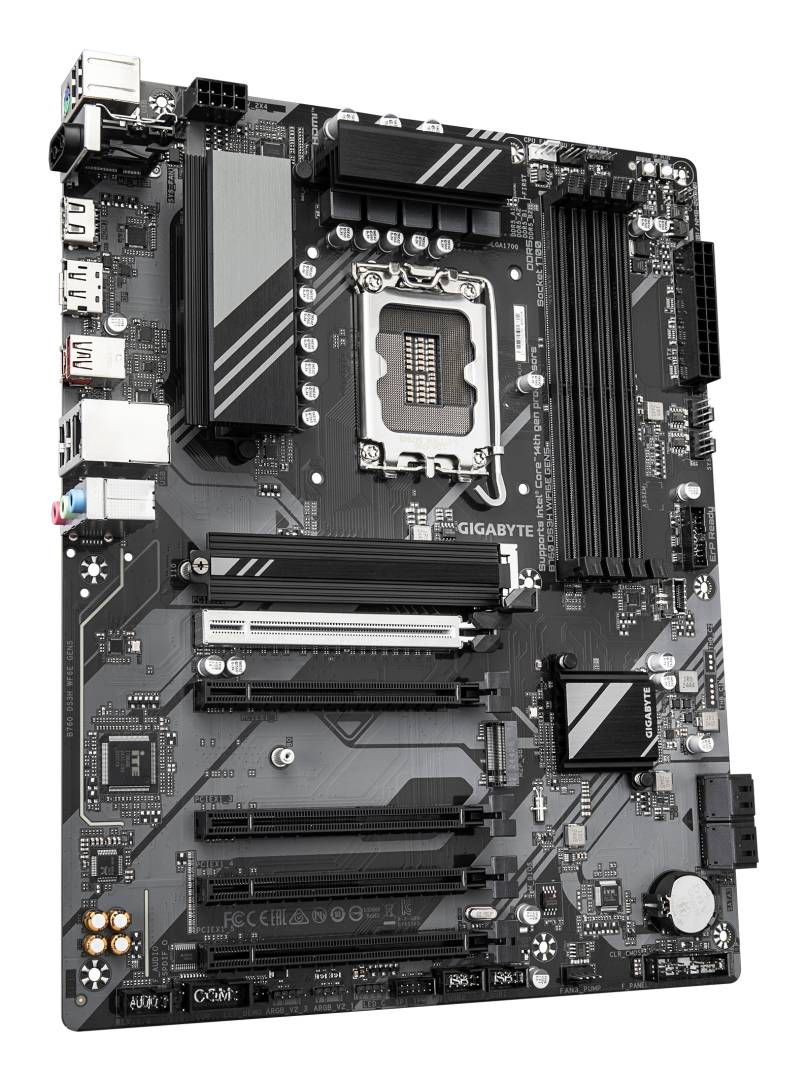

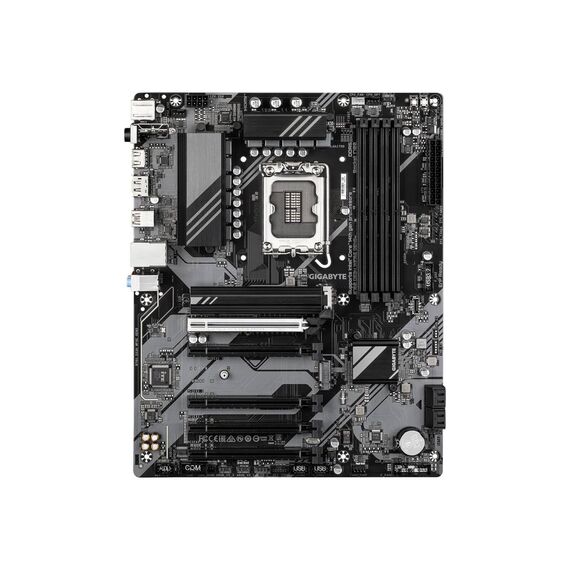

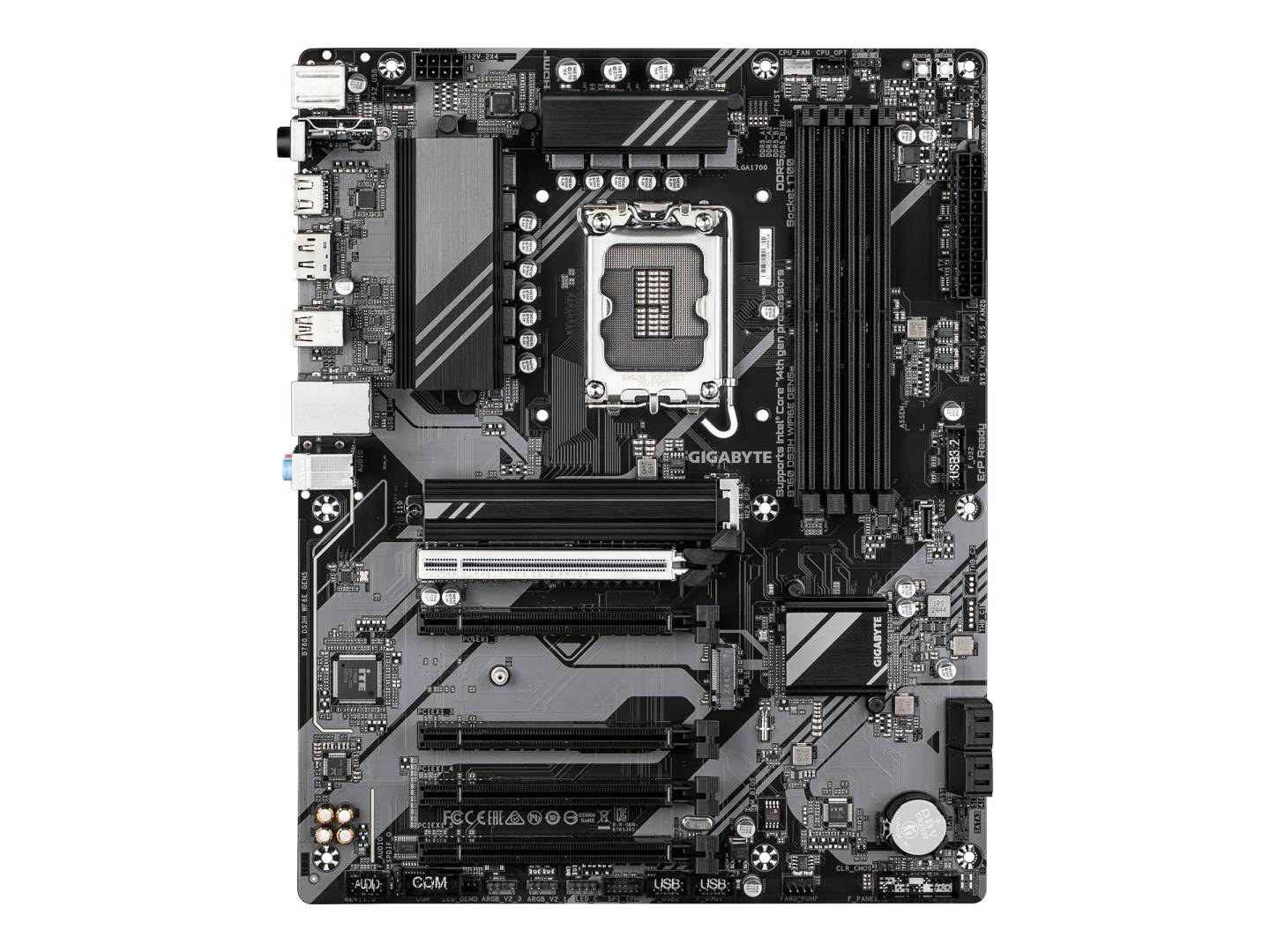

The Gigabyte B760 DS3H WIFI6E GEN5 is a full-size ATX motherboard for Intel’s LGA1700 platform, supporting 12th, 13th and 14th Gen Core processors. As the “GEN5” name implies, the main GPU slot is wired at PCIe 5.0 x16 from the CPU — ready for next-generation graphics cards. It pairs that with four DDR5 DIMM slots up to 256GB at 7600+ MT/s OC, two M.2 PCIe 4.0 x4 slots, four SATA III ports, an 8+1+1 hybrid digital VRM with low RDS(on) MOSFETs, and class-leading networking: 2.5GbE LAN with onboard Wi-Fi 6E + Bluetooth. The headline rear I/O includes a USB 3.2 Gen 2x2 Type-C (20Gbps) port plus a USB-C Gen 1 and USB 3.2 Gen 2 Type-A — full ATX I/O density on a B760 board. Builder-friendly extras: PCIe EZ-Latch quick-release for the GPU, WIFI EZ-Plug fast antenna mount, Q-Flash Plus (BIOS update without CPU/RAM/GPU) and front USB-C support. This is the most complete DS3H GEN5 variant — full ATX expansion AND built-in Wi-Fi 6E AND USB-C 20Gbps in one board.
Compatibility Note: LGA1700 socket only (Intel 12th/13th/14th Gen Core, Pentium Gold, Celeron). DDR5 memory only — DDR4 modules are not compatible. The B760 chipset does not support CPU overclocking. HDMI/DisplayPort output requires a CPU with integrated graphics. Full ATX form factor — please confirm chassis compatibility before purchase.
Best For
✓ Mid-range to upper Intel 12/13/14th Gen builds
✓ PCIe 5.0 GPU upgrade paths
✓ Wi-Fi 6E gaming & streaming rigs
✓ USB-C 20Gbps external SSD users
✓ Memory-heavy creator workloads (256GB)
✓ Full ATX cases with multiple expansion needs
Key Features
Most Complete DS3H GEN5 Variant
Full ATX expansion AND onboard Wi-Fi 6E AND 2.5G LAN AND USB-C 20Gbps in one board — the only B760 DS3H GEN5 model that combines all three.
PCIe 5.0 GPU + DDR5 7600+ OC
PCIe 5.0 x16 main GPU slot for next-gen graphics cards plus 4 DDR5 DIMMs to 256GB at 7600+ MT/s overclock with XMP — serious memory headroom for creators.
USB 3.2 Gen 2x2 Type-C 20Gbps
Rear USB-C port at 20Gbps for the fastest external SSDs, docks and capture devices — a step up over the standard 10Gbps Type-C found on cheaper B760 boards.
Wi-Fi 6E + 2.5G LAN + Q-Flash+
Onboard 802.11ax Wi-Fi 6E with 6GHz band, Realtek 2.5GbE LAN, plus Q-Flash Plus button for CPU-less BIOS updates — full networking and easy CPU swaps.
Technical Specifications
| Model |
B760 DS3H WIFI6E GEN5 (Rev. 1.0) |
| EAN |
4719331872939 |
| Form Factor |
ATX (full size) |
| Socket |
Intel LGA1700 — 12th / 13th / 14th Gen Core, Pentium Gold, Celeron |
| Chipset |
Intel B760 Express |
| VRM |
8+1+1 phases hybrid digital, low RDS(on) MOSFETs |
| Memory |
4 x DDR5 DIMM, max 256GB, Dual Channel, native 5600 + OC up to 7600+ MT/s, XMP, Non-ECC |
| Expansion Slots |
1 x PCIe 5.0 x16 (CPU, EZ-Latch) + chipset PCIe 4.0/3.0 lanes (full ATX layout) |
| Storage |
2 x M.2 PCIe 4.0 x4 (Type 2280) + 4 x SATA III 6Gb/s |
| Graphics Output |
1 x HDMI + 1 x DisplayPort — requires CPU with iGPU |
| LAN |
Realtek 2.5GbE LAN |
| Wireless |
Wi-Fi 6E (802.11ax) + Bluetooth — module included onboard, antennas in the box |
| Audio |
Realtek HD Audio Codec, audio noise guard, high-grade capacitors |
| Rear USB |

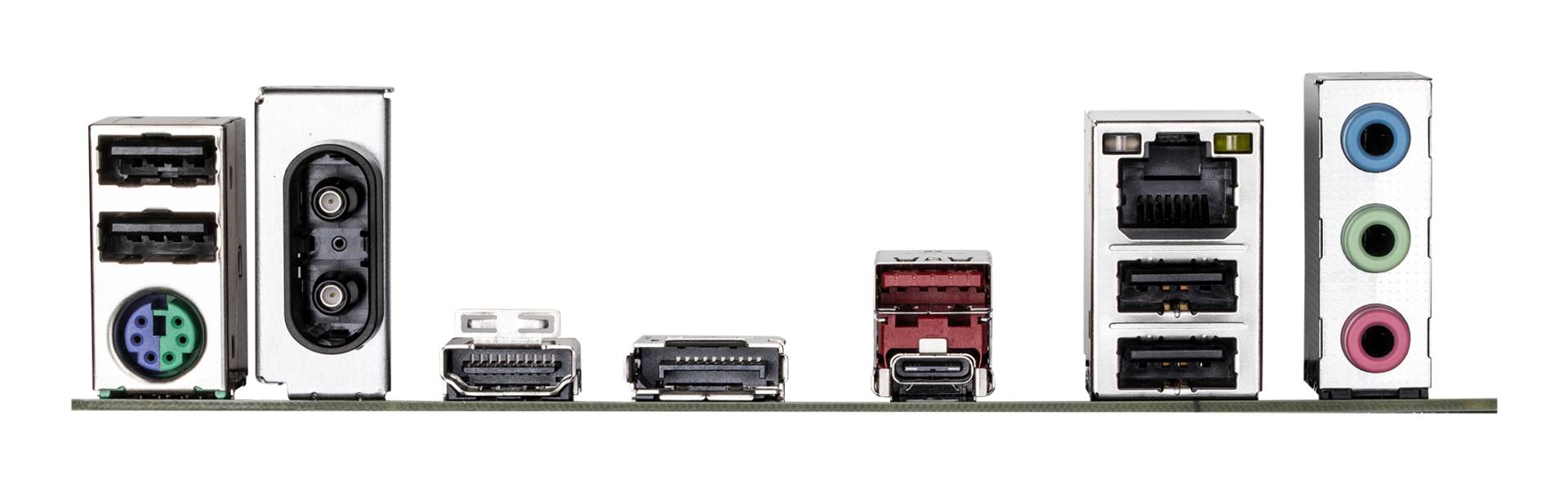

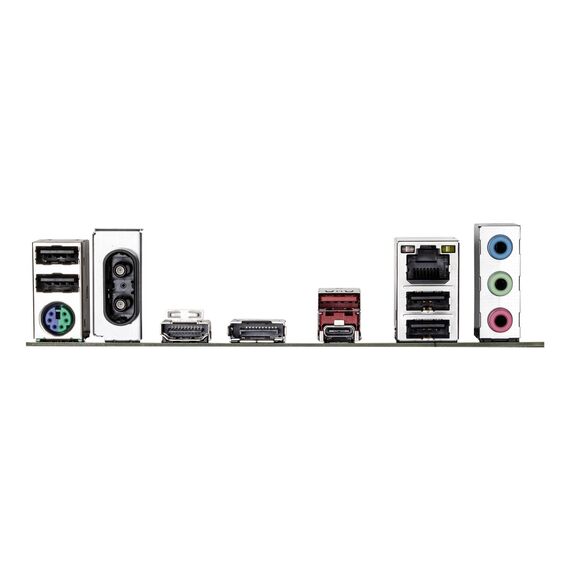

1 x USB 3.2 Gen 2x2 Type-C (20Gbps) + 1 x USB 3.2 Gen 1 Type-C + USB 3.2 Gen 2 Type-A + USB 3.2 Gen 1 + USB 2.0 ports |
| Front USB Headers |
1 x USB 3.2 Gen 1 Type-C front panel header + USB 3.2 Gen 1 + USB 2.0 headers |
| RGB Headers |
Addressable LED + RGB LED headers — RGB Fusion compatible |
| BIOS Features |
Q-Flash Plus (CPU-less BIOS update), Gigabyte UC BIOS, PerfDrive, AORUS Boot Sound |
| Builder Features |
PCIe EZ-Latch (GPU quick release) + WIFI EZ-Plug (antenna fast mount) + Smart Fan 6 |
| In the Box |

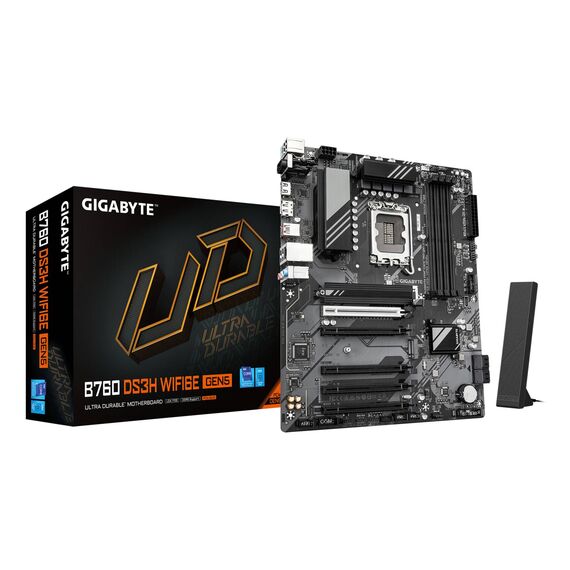

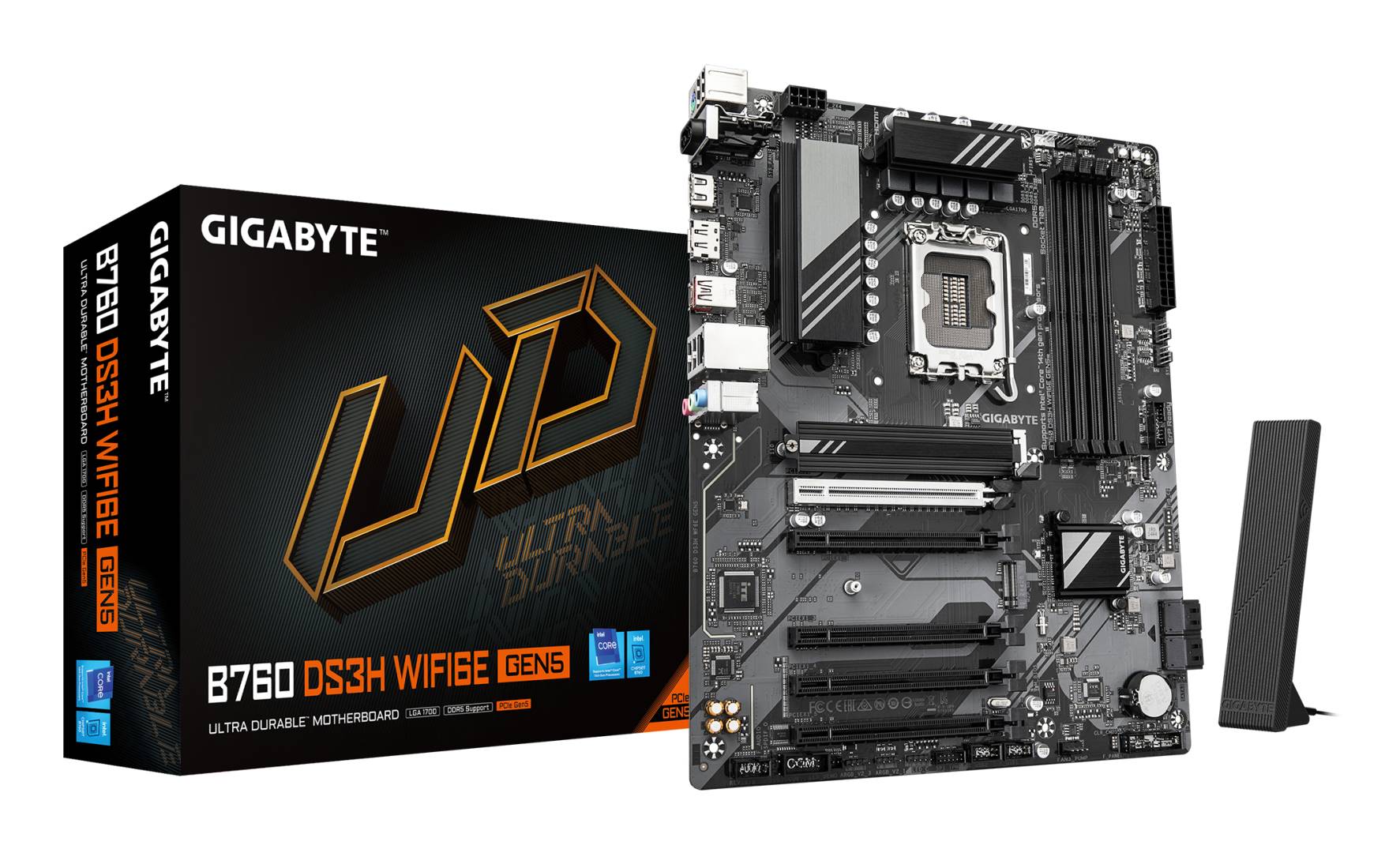

Motherboard, Wi-Fi 6E antennas, SATA cables, M.2 screws, I/O shield, user manual |
Frequently Asked Questions
How is this different from the plain B760 DS3H GEN5?
Both are full ATX boards with the same 8+1+1 VRM, 4 DDR5 DIMMs to 256GB and PCIe 5.0 x16 GPU slot. This WIFI6E GEN5 variant adds an onboard Wi-Fi 6E + Bluetooth module and 2.5GbE LAN (vs 1Gb on the plain version). Pick this one if you want built-in fast wireless without buying a separate Wi-Fi card.
How is this different from the micro-ATX B760M DS3H WIFI6E GEN5?
The full ATX version (this one) has a stronger 8+1+1 VRM (vs 6+2+1), supports up to 256GB DDR5 (vs 192GB) and includes a USB 3.2 Gen 2x2 (20Gbps) Type-C port (vs 10Gbps Gen 2 on micro-ATX). Pick this for full ATX cases needing maximum expansion; pick micro-ATX for compact builds.
Will it work with a 14th Gen CPU like the i7-14700K?
Yes — this board supports 12th, 13th and 14th Gen Intel Core processors on LGA1700. The 8+1+1 VRM handles non-K i5/i7 sustained loads well; for heavy K-series workloads, a Z790 board is the safer pick. Q-Flash Plus lets you update the BIOS without a CPU.
Can I overclock the CPU on this board?
No — the B760 chipset does not support CPU overclocking (you need a Z690 or Z790 board for that). DDR5 memory XMP overclocking is supported up to 7600+ MT/s.
Singular Expert Insight
Choose the B760 DS3H WIFI6E GEN5 if you want the most complete DS3H variant on B760 — full ATX expansion plus onboard Wi-Fi 6E plus 2.5G LAN plus USB-C 20Gbps in one board. If you do not need Wi-Fi or 20Gbps USB-C, the cheaper plain B760 DS3H GEN5 saves money. For compact builds choose the micro-ATX B760M DS3H WIFI6E GEN5. For LGA1851 (Core Ultra Series 2) builds this board does NOT work — pick a B860 or H810 board instead. For CPU overclocking step up to a Z790 board.
Buyer's Guide
Buy it if
You want a full ATX 12/13/14th Gen Intel build with PCIe 5.0 GPU, 4 DDR5 DIMMs to 256GB, USB-C 20Gbps, Wi-Fi 6E and 2.5G LAN all included.
Skip it if
You need micro-ATX, you do not need onboard Wi-Fi (cheaper plain B760 DS3H GEN5), you want CPU overclocking, or you own a Core Ultra Series 2 CPU (LGA1851 incompatible).
Also consider
B760 DS3H GEN5 (cheaper, no Wi-Fi, 1Gb LAN) for budget full ATX, or B760M DS3H WIFI6E GEN5 for compact micro-ATX with Wi-Fi 6E.
