Gigabyte B760M E / 1.0 / motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B760M E
Gigabyte B760M E / 1.0 / motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B760M E
€127.72 inc. VAT
B760M E
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Versatile connectivity
This motherboard includes a combination of HDMI, DisplayPort, and VGA outputs along with multiple USB 3.2 Gen 1 and USB 2.0 ports, making it suitable for various setups and devices. - High quality audio
Equipped with high definition audio support, the B760M E provides an immersive sound experience with its 8-channel output, ensuring clarity and depth in audio playback. - Flexible storage options
Offering four SATA-600 RAID ports and two M.2 sockets, this motherboard allows for extensive storage configurations, including RAID setup for improved performance and data redundancy. - Advanced hardware features
The motherboard includes GIGABYTE Smart Fan 6 technology, providing comprehensive fan control and monitoring options to maintain optimal thermal conditions within the system. - Reliable power design
With a 6+1+1 phase power design and VRM heatsink, the B760M E ensures stable power delivery, enhancing the reliability of the motherboard during intense workloads.
Special Features
- Supports Intel 12th, 13th, and 14th Generation processors
- Offers dual-channel DDR5 memory with variable speeds up to 3600 MHz
- Includes multiple USB ports for extensive connectivity options
- Features advanced hardware monitoring tools for system safety
- Durable design enhances longevity and performance
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2700 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz, 2000 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Supported ECC modules operate in non-ECC mode, dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |

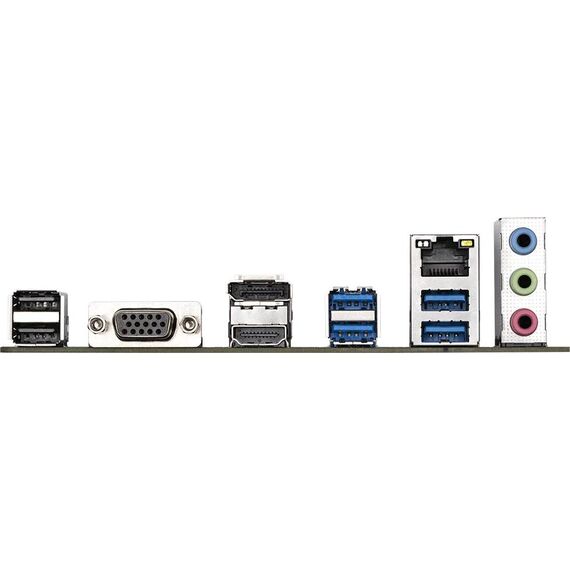

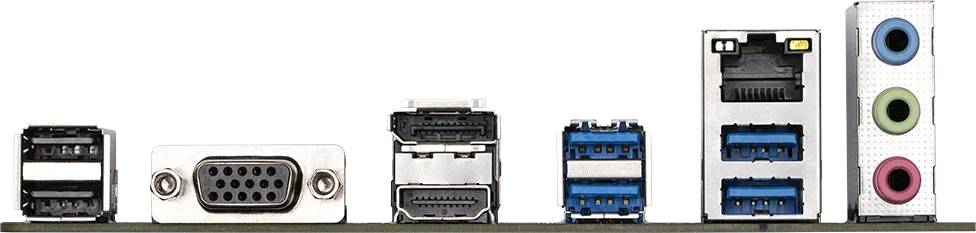

| Interfaces | 1 x LAN (Gigabit Ethernet) 1 x DisplayPort 1 x VGA 1 x HDMI 2 x USB 2.0 4 x USB 3.2 Gen 1 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x SPI - header 1 x serial - header 1 x SPDIF out - header |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, chassis temperature, fan control, fan speed detection, fan fail warning, temperature detection, water cooling flow rate |
| Hardware Features | Q-Flash, 6+1+1 Phase Power Design, PCIe EZ Latch, GIGABYTE Smart Fan 6, Ultra Durable, chipset heatsink, VRM heatsink design, GIGABYTE PerfDrive, Audio Noise Guard, DIY Friendly Design |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center |
| Compliant Standards | HDCP 2.3, DisplayPort 2.1 |
| Width | 23 cm |
| Depth | 21.5 cm |
Features - GigaByte - B760M E
CPU Socket
- Socket 1700
More Details
Product Code
04:533114
EAN Code
4719331856052
Manufacturer
GigaByte
