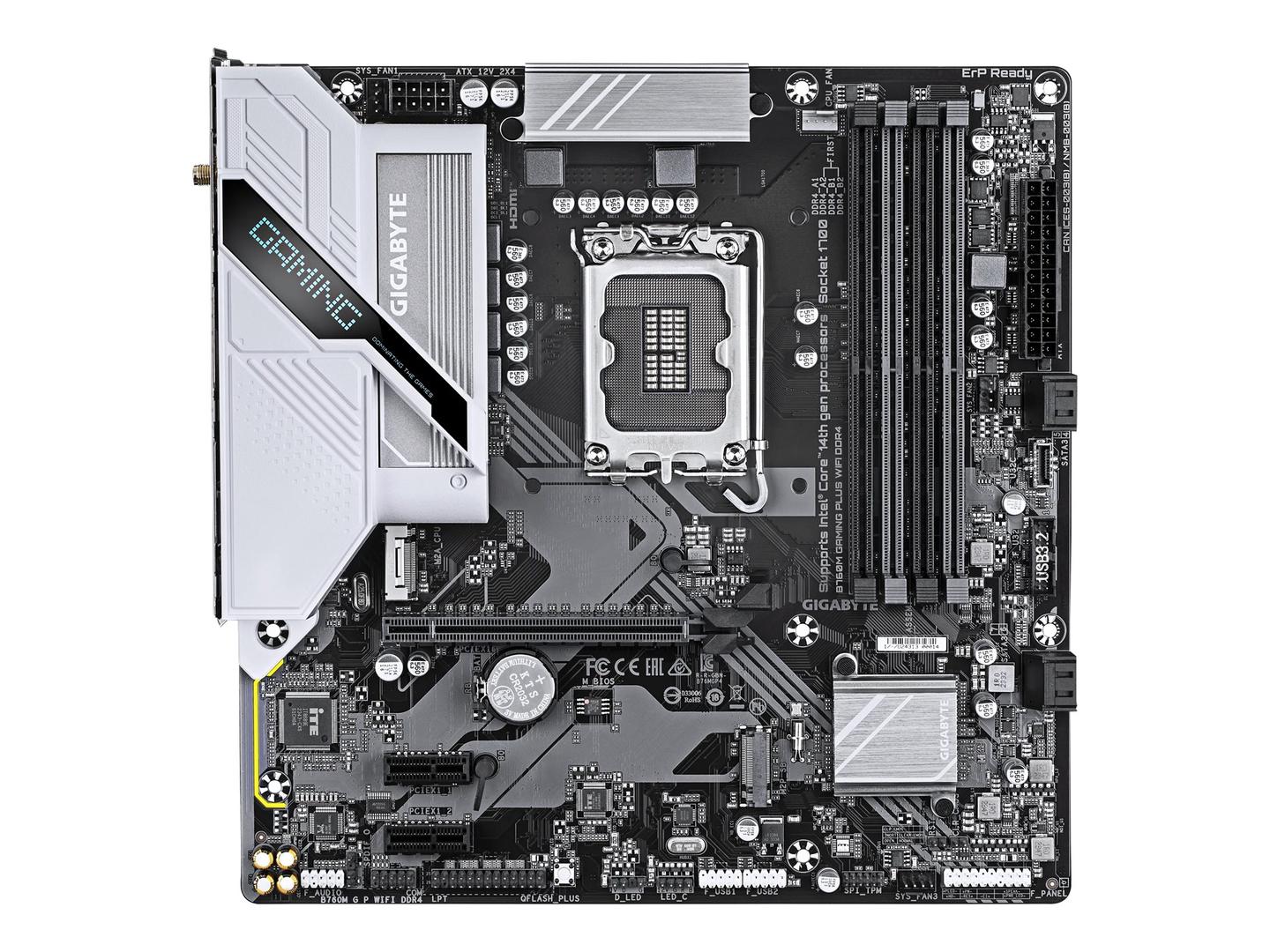

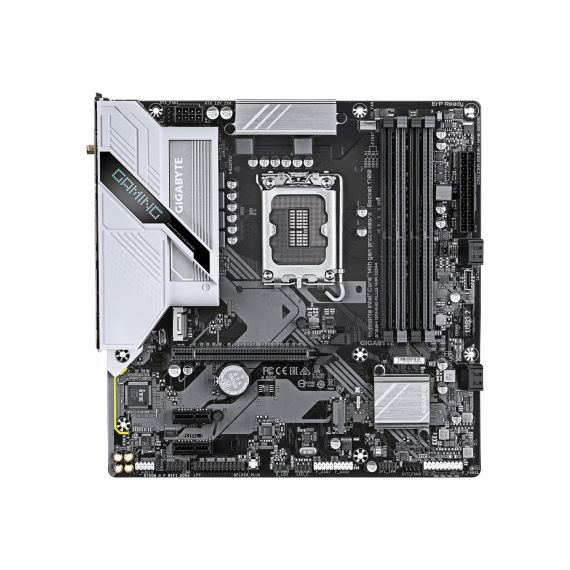

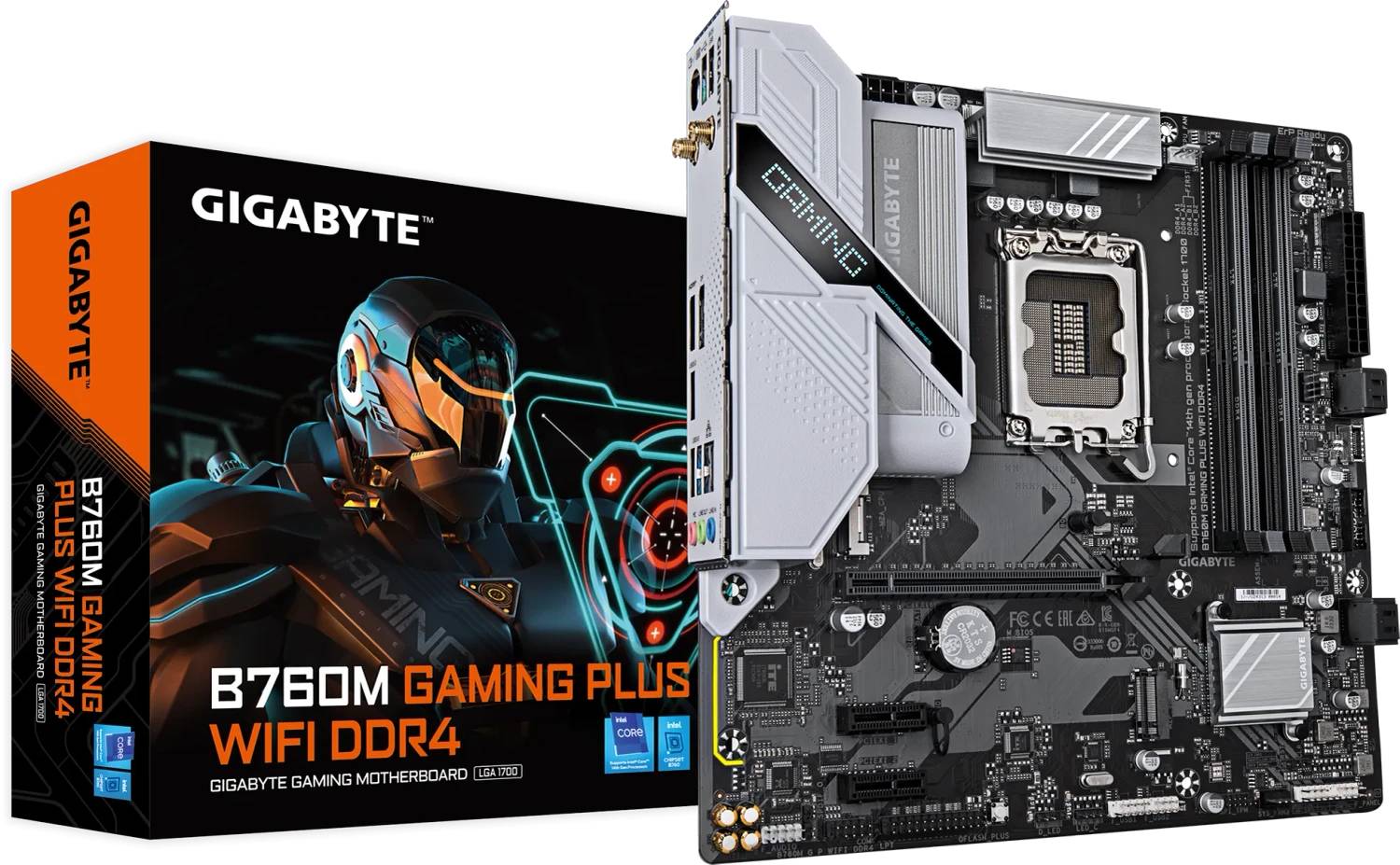

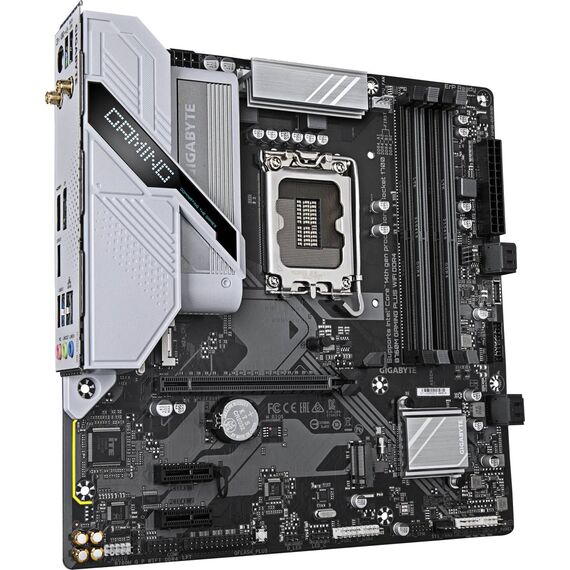

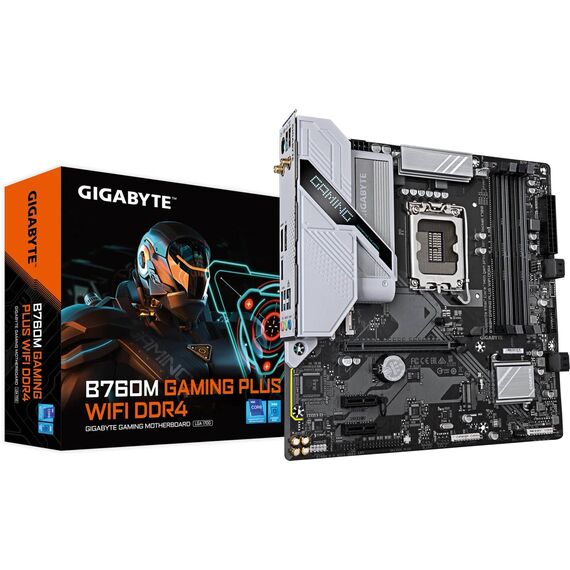

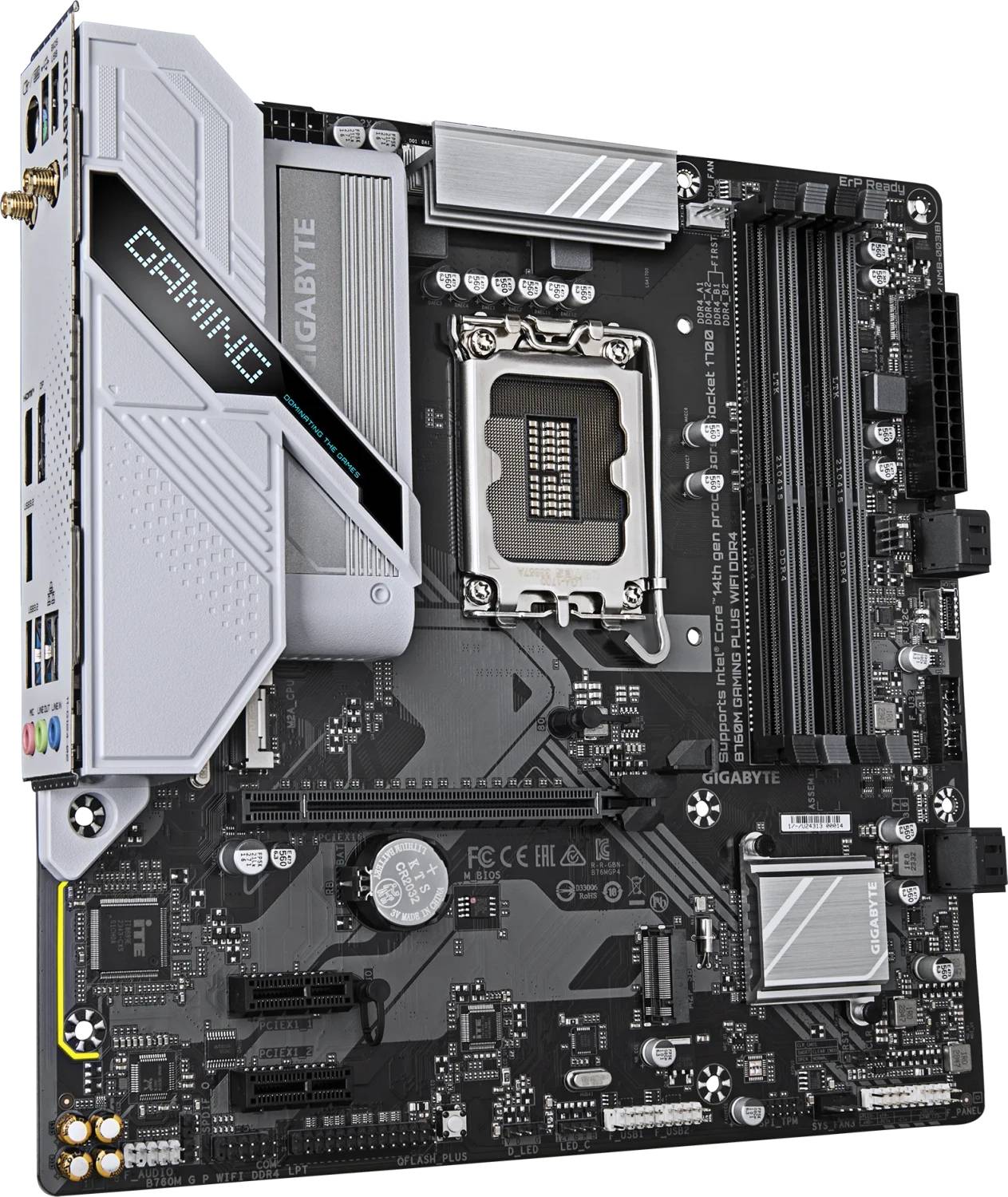

Gigabyte B760M GAMING PLUS WIFI DDR4 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Wi-Fi 6, Bluetooth, Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) | B760M G P WIFI DDR4
Gigabyte B760M GAMING PLUS WIFI DDR4 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Wi-Fi 6, Bluetooth, Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) | B760M G P WIFI DDR4
€170.44 inc. VAT
B760M G P WIFI DDR4
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
With support for Bluetooth 5.3 and Wi-Fi 6, the B760M GAMING PLUS WIFI DDR4 motherboard ensures high-speed connections and improved wireless range, making it ideal for seamless online gaming and high-speed file transfers. - Robust power design
Featuring a 4+1+1 Phase Power Design with 60A Power Stage, this motherboard is engineered to deliver stable and reliable power, enhancing the performance and longevity of your system components. - Superior memory support
Supports a wide range of DDR4 memory speeds up to 5333 MHz (O.C.), enabling users to maximize system performance and responsiveness, especially in demanding gaming and multitasking scenarios. - Advanced cooling system
GIGABYTE Smart Fan 6 technology allows for precise fan control, temperature detection, and water cooling flow rate monitoring, ensuring your system remains cool and stable under heavy loads. - Expansive storage options
Equipped with multiple storage interfaces including Serial ATA-600 and PCIe 4.0 M.2 slots, supporting RAID 0, 1, 10, and 5 configurations for flexible and fast storage solutions.
Special Fetures
- Bluetooth 5.3 and Wi-Fi 6 for high-speed wireless connectivity
- 4+1+1 Phase Power Design with 60A Power Stage for enhanced system stability
- Supports DDR4 memory speeds up to 5333 MHz (O.C.) for superior performance
- GIGABYTE Smart Fan 6 for advanced cooling and system monitoring
- Multiple storage options with RAID support for fast and flexible data management
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3666 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.) |
| Supported RAM Integrity Check | ECC (operate in non-ECC mode), non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Controller | Realtek RTL8851BE |
| Network Interfaces | 802.11a/b/g/n/ac/ax, Bluetooth 5.3, Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin <br /> 1 x PCIe 4.0 x16 <br /> 1 x PCIe 3.0 x1 <br /> 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 <br /> PCIe 4.0 -connectors: 2 x M.2 |

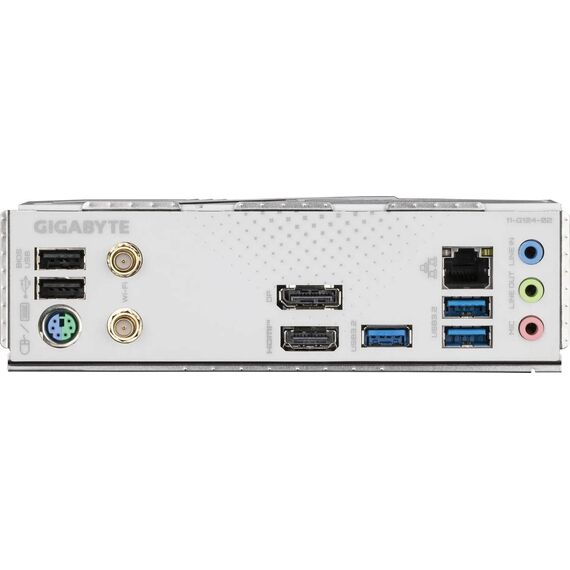

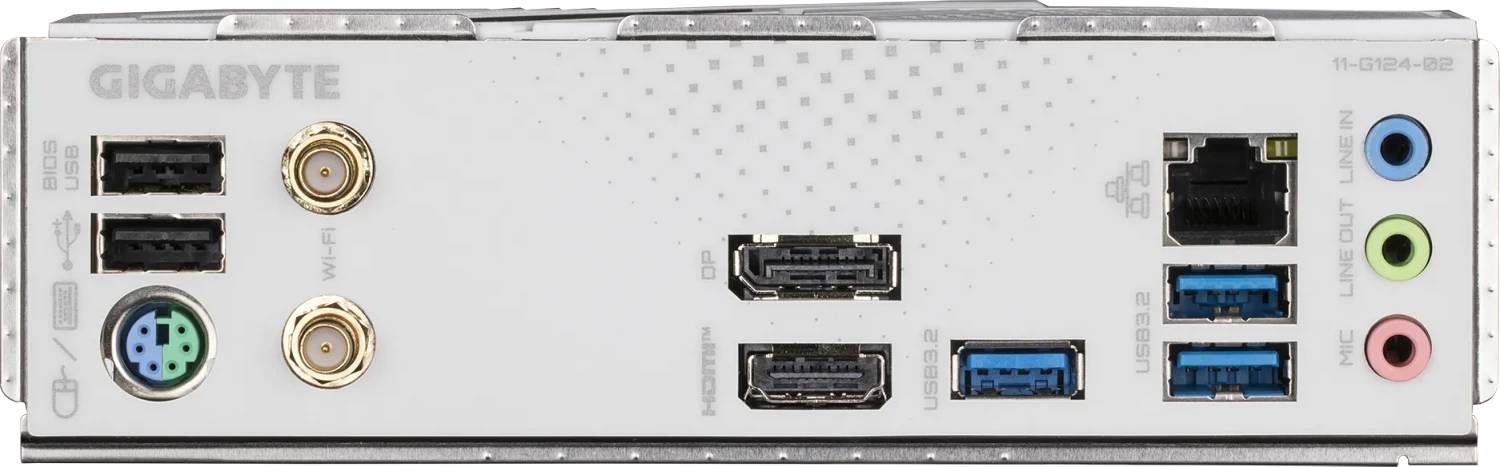

| Interfaces | 1 x PS/2 keyboard / mouse <br /> 1 x HDMI <br /> 1 x DisplayPort <br /> 1 x LAN (Gigabit Ethernet) <br /> 3 x USB 3.2 Gen 1 <br /> 2 x USB 2.0 <br /> 2 x aerial <br /> 1 x microphone - mini-jack <br /> 1 x audio line-in - mini-jack <br /> 1 x audio line-out - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header <br /> 2 x USB 3.2 Gen 1 - header <br /> 1 x USB-C 3.2 Gen 1 - header <br /> 1 x audio - header <br /> 1 x SPDIF out - header <br /> 1 x SPI - header <br /> 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS |
| Hardware Monitoring | Fan fail warning, fan control, system voltage, temperature detection, fan speed detection, water cooling flow rate |
| Hardware Features | 4+1+1 Phase Power Design, GIGABYTE Smart Fan 6, 60A Power Stage, DIY Friendly Design, pre-mounted I/O shield, GIGABYTE PerfDrive, Dr.MOS MOSFET, Audio Noise Guard, Q-Flash Plus, Solid Pin Power Connectors |
| Miscellaneous | |
| Software Included | Norton Internet Security (OEM Version), LAN manager |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - GigaByte - B760M G P WIFI DDR4
CPU Socket
- Socket 1700
More Details
Product Code
04:517998
EAN Code
4719331862855
