Gigabyte B840M D3HP WIFI6E AM5 Micro-ATX Motherboard DDR5 Wi-Fi 6E 2x M.2 Triple Display (B840M D3HP WF6E)

Brand:
GigaByte
B840M D3HP WF6E
€128.67 €142.97
€153.12 inc. VAT
Out of stock
Add to wish list Ask a question
Product Code
03:277725
EAN Code
4719331879662
Manufacturer
GigaByte
Quick Specs
Socket & chipset
AM5 · AMD B840
Memory
4x DDR5 · up to 256GB · 8200 MT/s OC
Expansion
PCIe 4.0 x16 + PCIe 3.0 x1 · 2x M.2 Gen4
Connectivity
GbE · Wi-Fi 6E · BT 5.3
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Gigabyte B840M D3HP WIFI6E — value AM5 Micro-ATX with Wi-Fi 6E

AMD B840 · Socket AM5DDR5 up to 8200 MT/s (OC)Wi-Fi 6E · GbEHDMI 2.1 + 2x DP 1.4

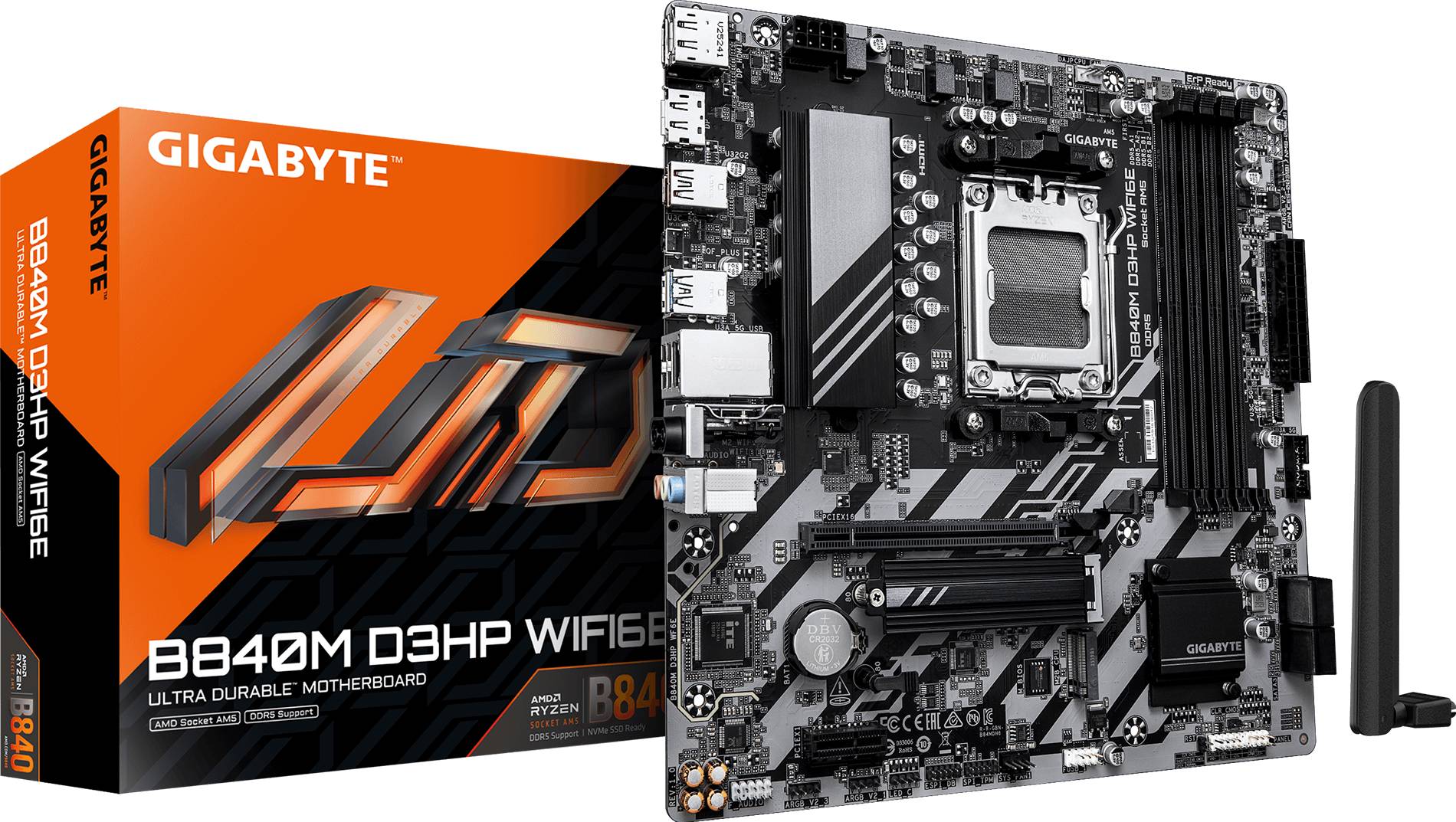

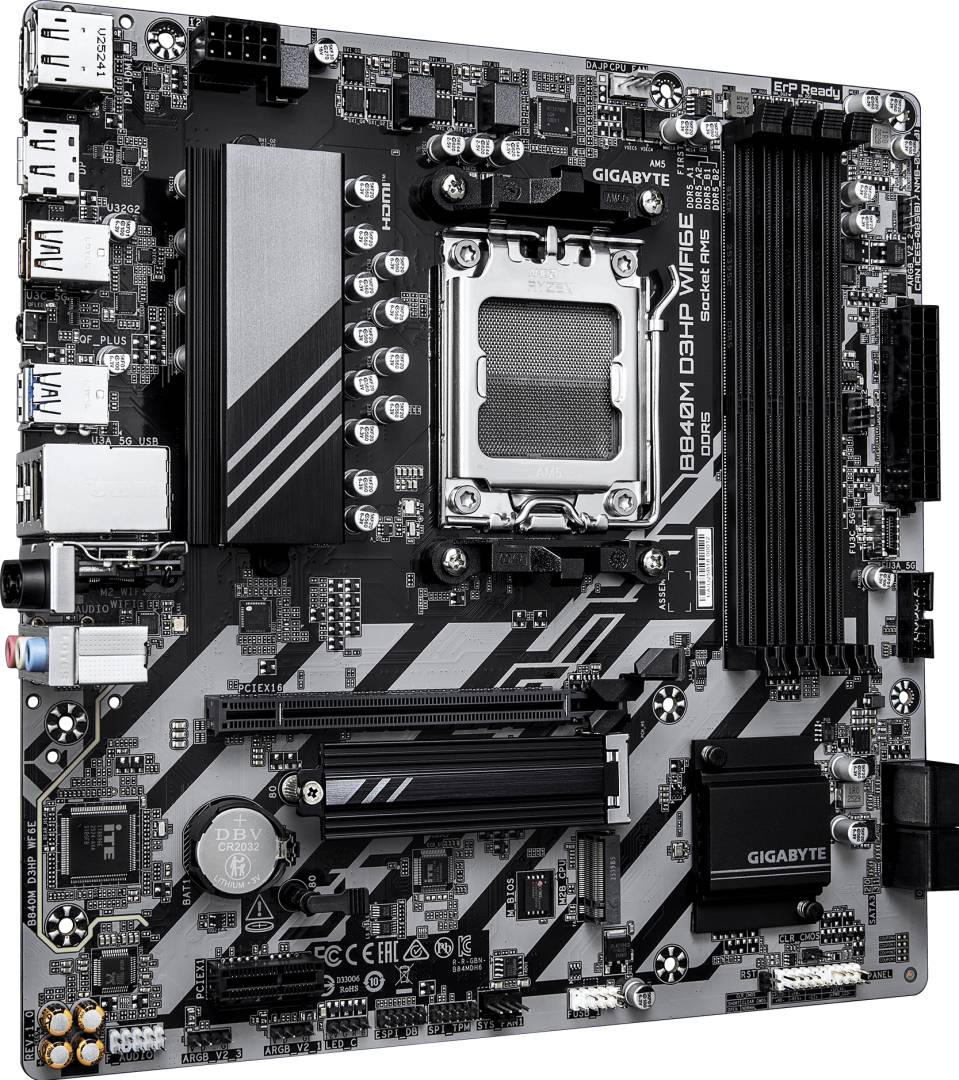

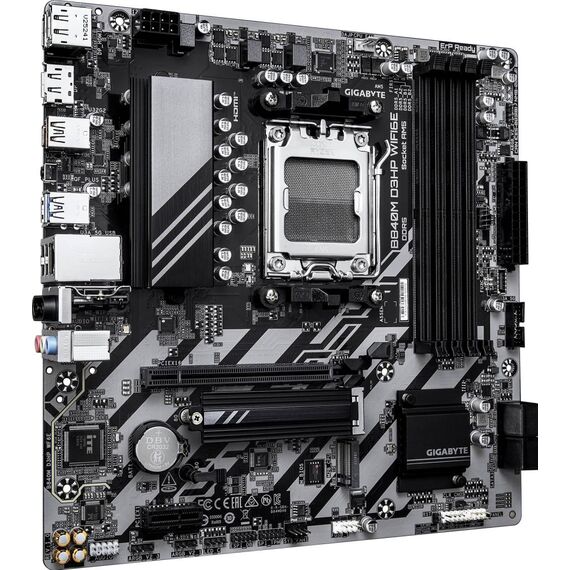

The Gigabyte B840M D3HP WIFI6E (part number B840M D3HP WF6E) is a Micro-ATX motherboard for AMD Socket AM5 on the B840 chipset, supporting Ryzen 9000, 8000 and 7000 processors — a value board for office, home and entry gaming PCs that need wireless networking.

It carries an 8+2+2 digital VRM on a 6-layer PCB, four DDR5 slots for up to 256GB (EXPO/XMP up to 8200 MT/s OC) and two CPU-attached PCIe 4.0 x4 M.2 slots, plus four SATA ports.

Rear connectivity includes Gigabit LAN, Wi-Fi 6E with Bluetooth 5.3, a 10 Gbps USB-A and USB-C, and HDMI 2.1 plus two DisplayPort 1.4 outputs for up to three monitors from Ryzen integrated graphics.

Compatibility note: LAN is 1 Gbps and the extra slot is a PCIe 3.0 x1. The B840 chipset does not allow CPU overclocking, and graphics and M.2 run at PCIe 4.0 rather than 5.0. Display outputs require a Ryzen CPU with integrated graphics.

Best For

✓ Office and business desktops on AM5
✓ Triple-monitor productivity PCs
✓ Budget Ryzen 5 gaming builds
✓ Home PCs without Ethernet cabling
✓ Small-form-factor Micro-ATX cases
✓ System builders standardising on AM5

Key Features


8+2+2 digital VRM
Digital PWM power with premium chokes and capacitors on a 6-layer PCB — stable for Ryzen 5 and Ryzen 7 processors at stock settings.

Two Gen4 M.2 from the CPU
M2A (2580/2280) and M2B (2280) both run PCIe 4.0 x4, with four SATA ports and NVMe RAID 0/1/5/10.

Wi-Fi 6E built in
MediaTek MT7902 Wi-Fi 6E with 160 MHz channels on 2.4/5/6 GHz, plus Bluetooth 5.3 for keyboards, mice and headsets.

Triple display outputs
HDMI 2.1 (4096x2160@60) and two DisplayPort 1.4 (3840x2160@144) — three screens without a graphics card on Ryzen iGPU models.

Technical Specifications

Identification
Part Number B840M D3HP WF6E
EAN/GTIN 4719331879662
MPN B840M D3HP WIFI6E
Brand Gigabyte
Processor & Chipset
Socket AMD AM5
Supported CPUs Ryzen 9000 / 8000 / 7000 Series
Chipset AMD B840
VRM 8+2+2 digital, 6-layer PCB
CPU power 1x 8-pin ATX 12V + 24-pin ATX
Memory
Slots 4x DDR5 DIMM, dual channel
Maximum 256GB (64GB per DIMM)
Speed 5600–6400 MT/s, up to 8200 MT/s (OC)
Type Non-ECC unbuffered 1Rx8/2Rx8/1Rx16 · AMD EXPO and XMP
Expansion & Storage
PCIe x16 (CPU) 1x PCIe 4.0 x16
PCIe x1 (chipset) 1x PCIe 3.0 x1
M.2 M2A_CPU PCIe 4.0 x4 (2580/2280) · M2B_CPU PCIe 4.0 x4 (2280)
SATA 4x SATA 6Gb/s
RAID NVMe RAID 0/1/5/10 (RAID 5 on Ryzen 9000) · SATA RAID 0/1/10
Networking & Audio
LAN Realtek Gigabit (1 Gbps)
Wireless MediaTek Wi-Fi 6E MT7902 (2.4/5/6 GHz, 160 MHz) + Bluetooth 5.3
Audio Realtek HD audio codec, 7.1-channel
Rear I/O
USB 1x USB-C 3.2 Gen 1 · 1x USB-A 3.2 Gen 2 (10 Gbps) · 1x USB-A 3.2 Gen 1 · 3x USB 2.0
Video 1x HDMI 2.1 (4096x2160@60) · 2x DisplayPort 1.4 (3840x2160@144)
Other RJ-45 · 2x antenna (1T1R) · 3 audio jacks · Q-Flash Plus button
Internal Connectors
USB headers 1x USB-C 3.2 Gen 1 · 1x USB 3.2 Gen 1 · 1x USB 2.0
Fans & RGB 1x CPU fan · 2x system fan · 3x ARGB Gen2 · 1x RGB
Other 4x SATA · TPM header (GC-TPM2.0 SPI V2)
General
Form factor Micro-ATX, 24.4 x 24.4 cm
BIOS 256 Mbit AMI UEFI · Q-Flash Plus
OS Windows 11 64-bit · Windows 10 64-bit
Software GIGABYTE Control Center

Frequently Asked Questions

What is the difference between the B840M D3HP WIFI6E and the B840M D3HP?
The WIFI6E version adds a MediaTek Wi-Fi 6E + Bluetooth 5.3 module and antenna connectors. Choose the plain D3HP if the PC will always use wired Ethernet.
How does it compare with the B840M GAMING PLUS WIFI6E?
They share the same B840 feature set, I/O and Wi-Fi 6E; the GAMING PLUS adds white heatsinks and gaming styling, while the D3HP keeps a plainer design at a lower price.
Can it drive three monitors?
Yes, with a Ryzen CPU that has integrated graphics: HDMI 2.1 plus two DisplayPort 1.4 support up to three displays at the same time.
Does it support Windows 10?
Yes, Gigabyte lists Windows 11 and Windows 10 64-bit support.

Singular Expert Insight

A no-frills AM5 board that covers what most office and home PCs need: Wi-Fi 6E, three display outputs and two fast M.2 slots. Gamers who want 2.5GbE should look at the GAMING X WIFI6E, and overclockers at B850. Add a DDR5 kit from our DDR5 memory range.
✓ Buy it if you need an affordable AM5 Micro-ATX board with built-in Wi-Fi 6E for office, home or entry gaming use.
✕ Skip it if you want 2.5GbE, CPU overclocking or PCIe 5.0 storage.
→ Also consider the B840M D3HP without Wi-Fi if you use Ethernet only, or the B840M GAMING X WIFI6E for 2.5GbE.
