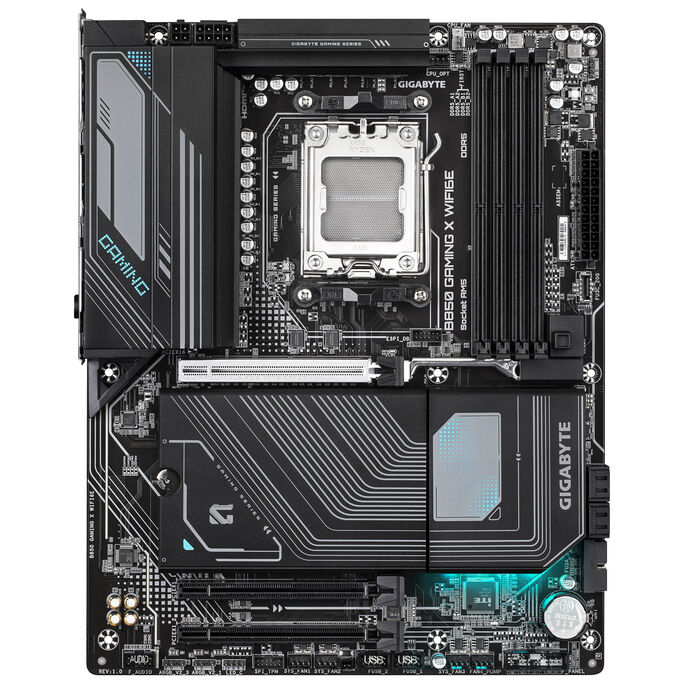

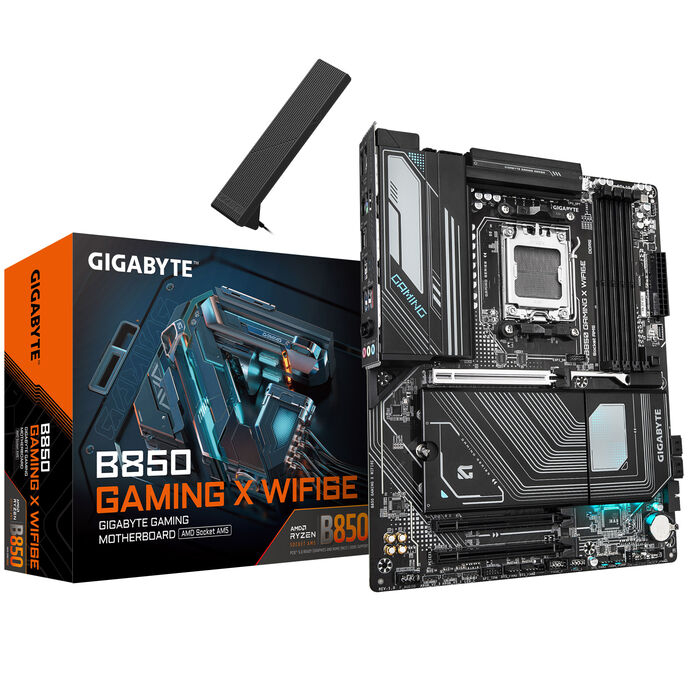

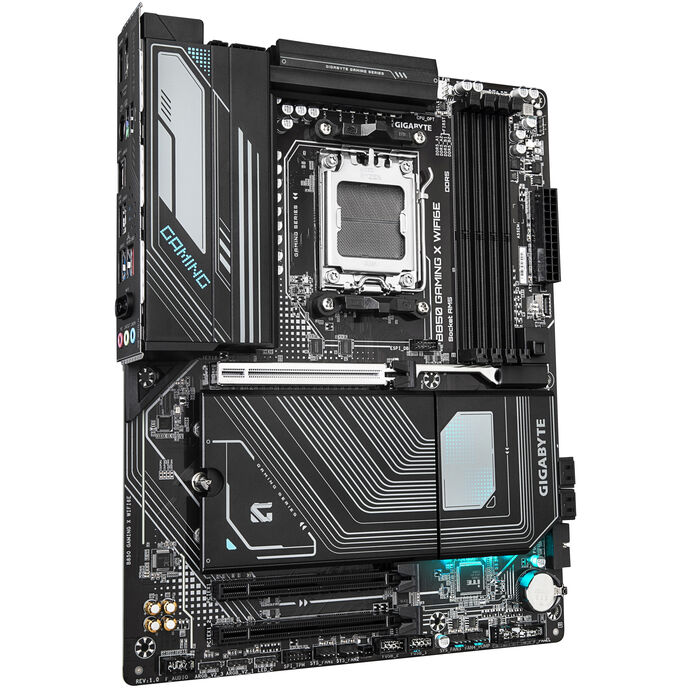

Gigabyte B850 GAMING X WIFI6E / Motherboard / ATX / Socket AM5 / AMD B850 Chipset / USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 / Wi-Fi 6E, Bluetooth, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio | B850 GAMING X WIFI6E
Gigabyte B850 GAMING X WIFI6E / Motherboard / ATX / Socket AM5 / AMD B850 Chipset / USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 / Wi-Fi 6E, Bluetooth, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio | B850 GAMING X WIFI6E
€284.45 inc. VAT
B850 GAMING X WIFI6E
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity
Equipped with a variety of ports including USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, and multiple SATA connections, this motherboard ensures versatile connectivity for a wide range of devices. - High-performance audio
Features high definition audio with an 8-channel output for a superior audio experience, allowing users to enjoy immersive sound quality during gaming or multimedia consumption. - Enhanced power design
Designed with a 12+2+2 phase power layout, this motherboard provides stable power delivery, improving overall system performance and efficiency. - Advanced networking capabilities
Includes 2.5 Gigabit Ethernet and supports Wi-Fi 6E for fast and reliable Internet connections, ensuring seamless online gaming and streaming.
Special Features
- Supports Ryzen 7000/8000/9000 Series processors
- Four DIMM slots for DDR5 RAM with various speed options
- Comprehensive connectivity with multiple USB and storage options
- Advanced networking with 2.5 Gigabit Ethernet and Wi-Fi 6E support
- Dual-channel memory architecture and BIOS features for enhanced performance
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8852CE |
| Network Interfaces | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe x16 2 x PCIe 3.0 x16 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) 2 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 PCIe 5.0 -connectors: 1 x M.2 |

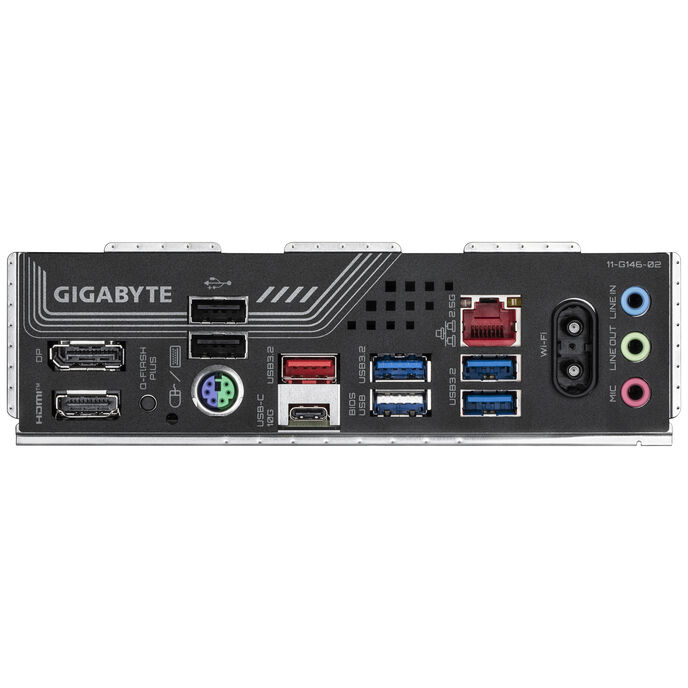

| Interfaces | 1 x USB-C 3.2 Gen 2 1 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 3 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x PS/2 keyboard / mouse 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x aerial 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control |
| Hardware Features | 12+2+2 Phase Power Design, 6 Layer PCB, 2x Copper PCB, DIY Friendly Design, shaped PCB design, WIFI EZ-Plug, M.2 EZ Latch plus, M.2 EZ Latch click |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wi-Fi aerial, 3 x M.2 rubber package, G-Connector |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - GigaByte - B850 GAMING X WIFI6E
More Details
Product Code
04:517138
EAN Code
4719331866457
Manufacturer
GigaByte
