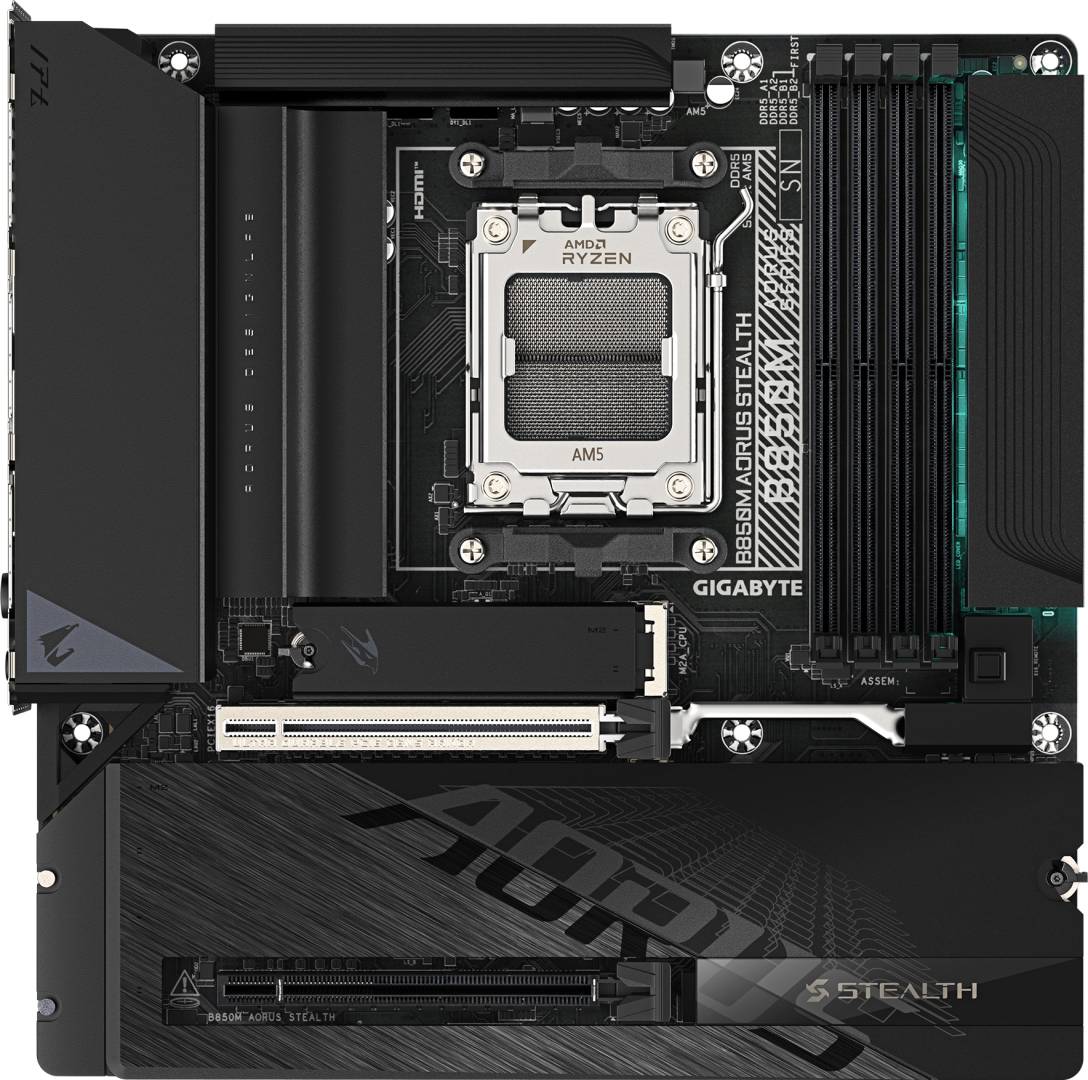

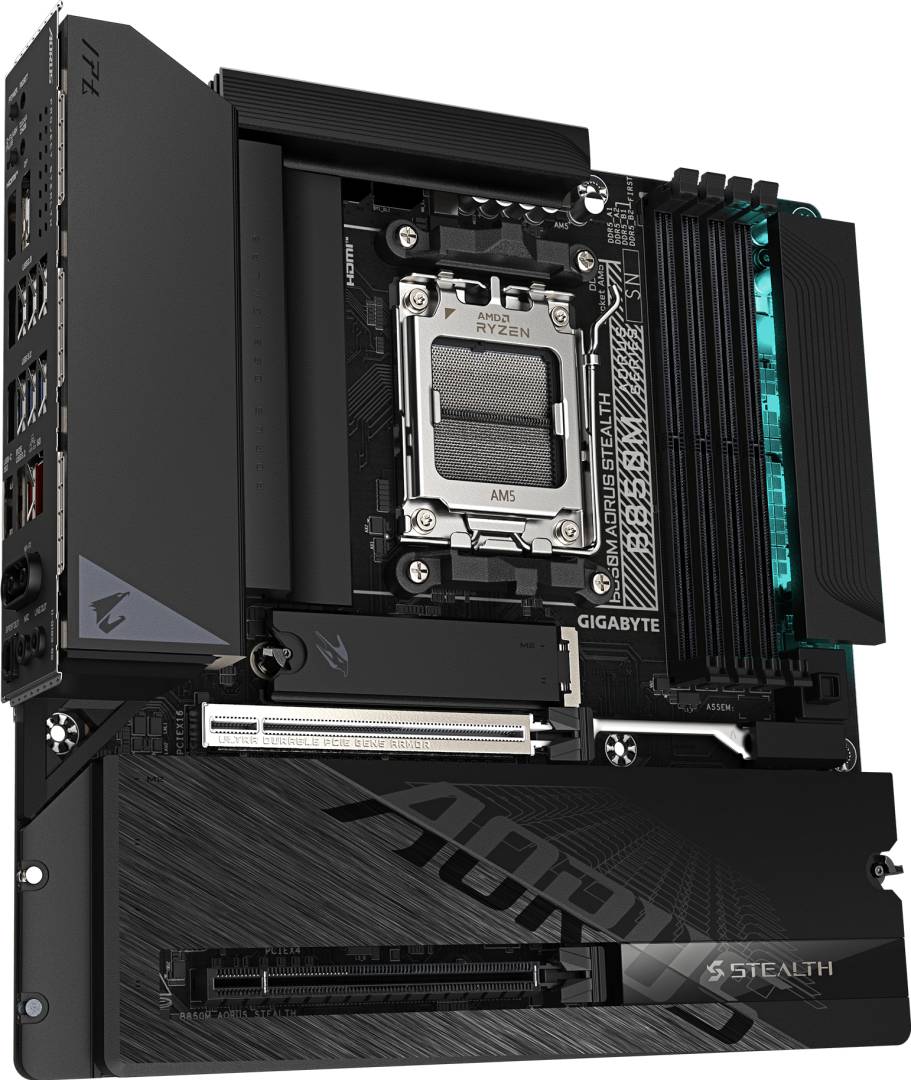

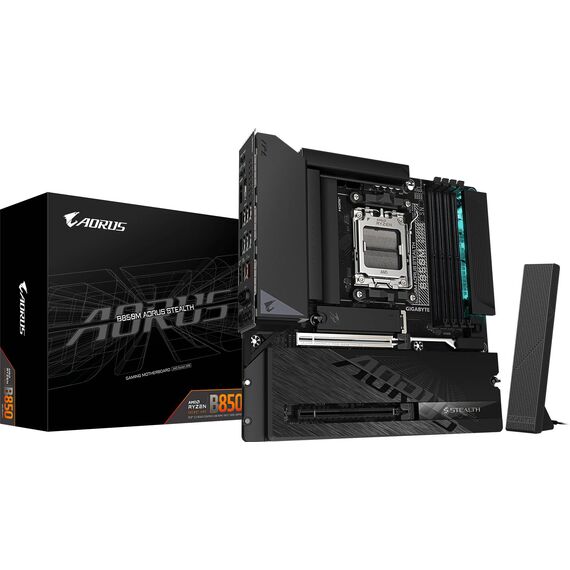

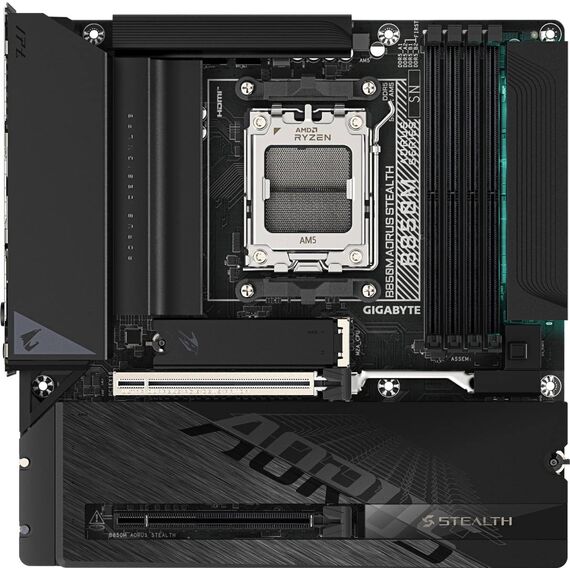

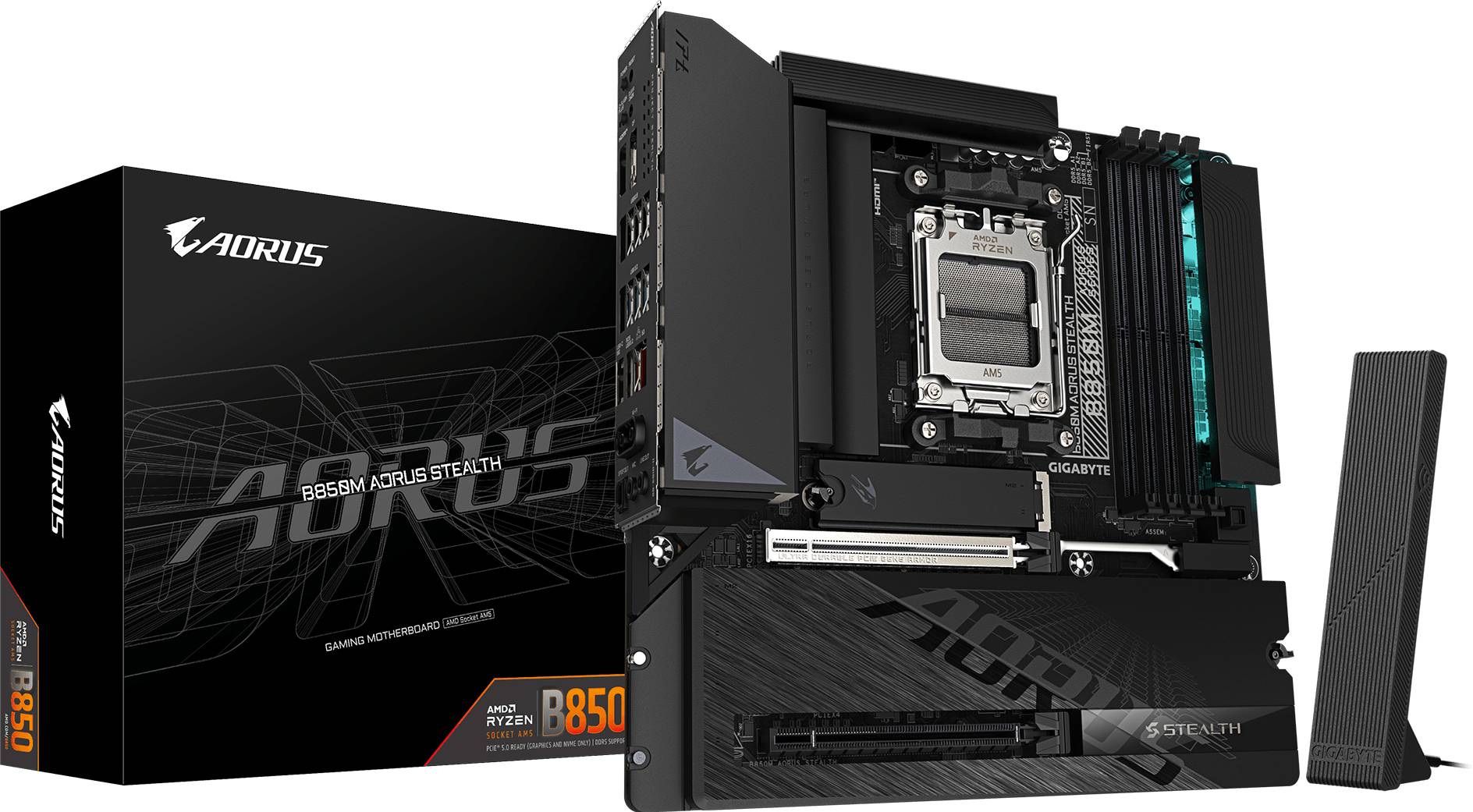

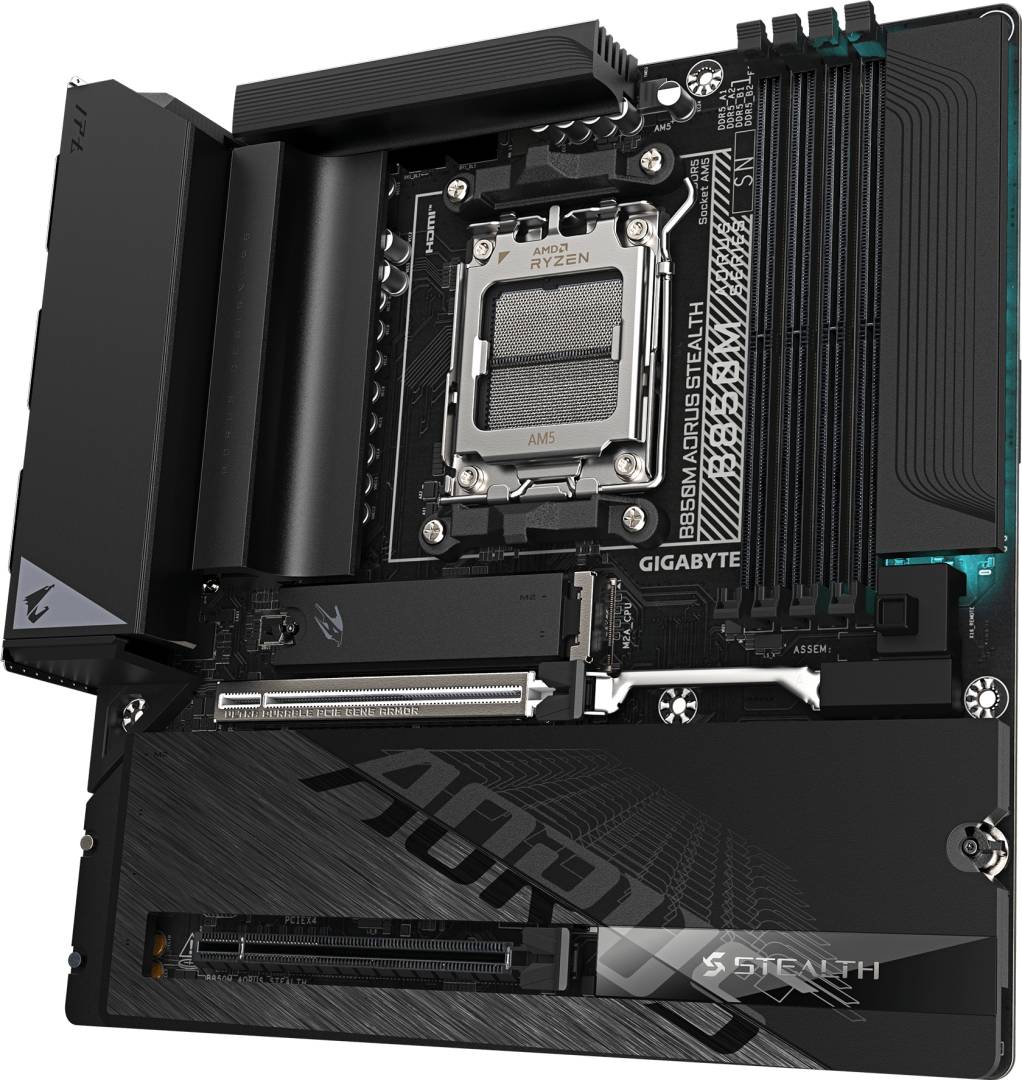

Gigabyte B850M AORUS STEALTH AM5 Micro-ATX Back-Connect Motherboard DDR5 Wi-Fi 7 5GbE PCIe 5.0 (B850M AORUS STEALTH)

Brand:
GigaByte
Gigabyte B850M AORUS STEALTH AM5 mATX Back-Connect DDR5
Gigabyte B850M AORUS STEALTH AM5 Micro-ATX Back-Connect Motherboard DDR5 Wi-Fi 7 5GbE PCIe 5.0 (B850M AORUS STEALTH)
€287.67 inc. VAT
Buy
B850M AORUS STEALTH
€241.74 €268.60
€287.67 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
04:601794
EAN Code
4719331882198
Manufacturer
GigaByte
Quick Specs
Socket & chipset
AM5 · AMD B850
Memory
4x DDR5 · up to 256GB · 8200 MT/s OC
Expansion
PCIe 5.0 x16 · 3x M.2 (1x Gen5)
Connectivity
5GbE · Wi-Fi 7 · BT 5.4
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Gigabyte B850M AORUS STEALTH — hidden-connector AM5 Micro-ATX

AMD B850 · Socket AM5Back-connect STEALTH design5GbE · Wi-Fi 7PCIe 5.0 x16 + Gen5 M.2

The Gigabyte B850M AORUS STEALTH (part number B850M AORUS STEALTH) is a Micro-ATX motherboard for AMD Socket AM5 on the B850 chipset, with the STEALTH back-connect design that moves the connectors to the rear of the board for cable-free builds with Ryzen 9000, 8000 and 7000 processors.

An 8+2+2 digital VRM on a 2x-copper PCB powers the CPU, four DDR5 slots support up to 256GB with EXPO/XMP kits up to 8200 MT/s (OC), and the PCIe 5.0 x16 graphics slot is paired with three M.2 slots — one PCIe 5.0 x4 and two PCIe 4.0 x4.

Connectivity includes Realtek 5GbE, Realtek Wi-Fi 7 with Bluetooth 5.4, HDMI 2.1 and DisplayPort 1.4 outputs, a 10 Gbps USB-C and USB-A on the rear, and ALC1220 audio with optical S/PDIF.

Compatibility note: Back-connect boards need a compatible case with cut-outs for rear-mounted connectors — check Gigabyte chassis support list before buying. There are only two SATA ports and three M.2 slots. Wi-Fi 7 requires Windows 11 (no Windows 10 driver).

Best For

✓ Clean, cable-free showcase builds
✓ Compact Micro-ATX Ryzen gaming PCs
✓ Ryzen 7 9800X3D gaming with PCIe 5.0
✓ 5GbE and Wi-Fi 7 desktops
✓ Builders with back-connect compatible cases
✓ Streaming and small studio PCs

Key Features

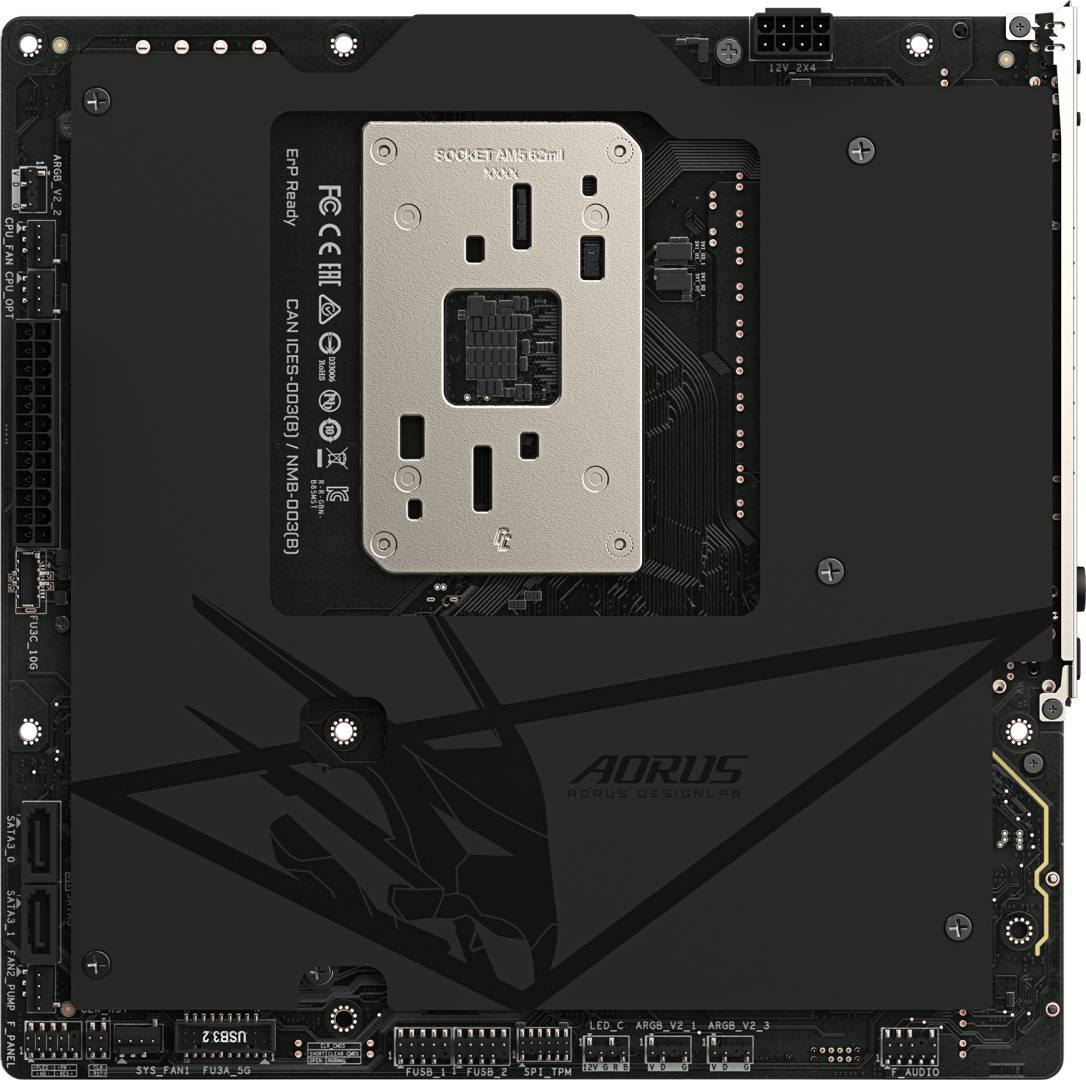

STEALTH back-connect design
Connectors are moved to the back of the PCB, so cables route behind the motherboard tray in compatible cases for a clean front view.

PCIe 5.0 graphics and storage
PCIe 5.0 x16 slot plus a PCIe 5.0 x4 M.2 slot from the CPU with Ryzen 9000/7000, and two further PCIe 4.0 x4 M.2 slots.

5GbE + Wi-Fi 7
Realtek 5GbE and Realtek RTL8922AE Wi-Fi 7 (160 MHz) with Bluetooth 5.4.

X3D Turbo Mode
Gigabyte BIOS gaming profile for Ryzen 9000 processors, alongside D5 Bionic Corsa memory tuning.

Technical Specifications

Identification
Part Number B850M AORUS STEALTH
EAN/GTIN 4719331882198
MPN B850M AORUS STEALTH
Brand Gigabyte (AORUS)
Processor & Chipset
Socket AMD AM5
Supported CPUs Ryzen 9000 / 8000 / 7000 Series
Chipset AMD B850
VRM 8+2+2 digital, 2x copper PCB
CPU power 1x 8-pin ATX 12V + 24-pin ATX
Memory
Slots 4x DDR5 DIMM, dual channel
Maximum 256GB (64GB per DIMM)
Speed 4400–5200 MT/s native, up to 8200 MT/s (OC)
Type Non-ECC unbuffered 1Rx8/2Rx8/1Rx16 · AMD EXPO and XMP
Expansion & Storage
PCIe x16 (CPU) 1x PCIe 5.0 x16
PCIe x16 (chipset) 1x PCIe 4.0, runs x4
M.2 CPU M2A_CPU PCIe 5.0 x4 (2280) · M2B_CPU PCIe 4.0 x4 (2280)
M.2 chipset M2C_SB PCIe 4.0 x4 (2280)
SATA 2x SATA 6Gb/s
RAID NVMe RAID 0/1/5/10 (RAID 5 on Ryzen 9000) · SATA RAID 0/1
Networking & Audio
LAN Realtek 5GbE
Wireless Realtek Wi-Fi 7 RTL8922AE (2.4/5/6 GHz, 160 MHz) + Bluetooth 5.4
Audio Realtek ALC1220 · 7.1-channel · S/PDIF out

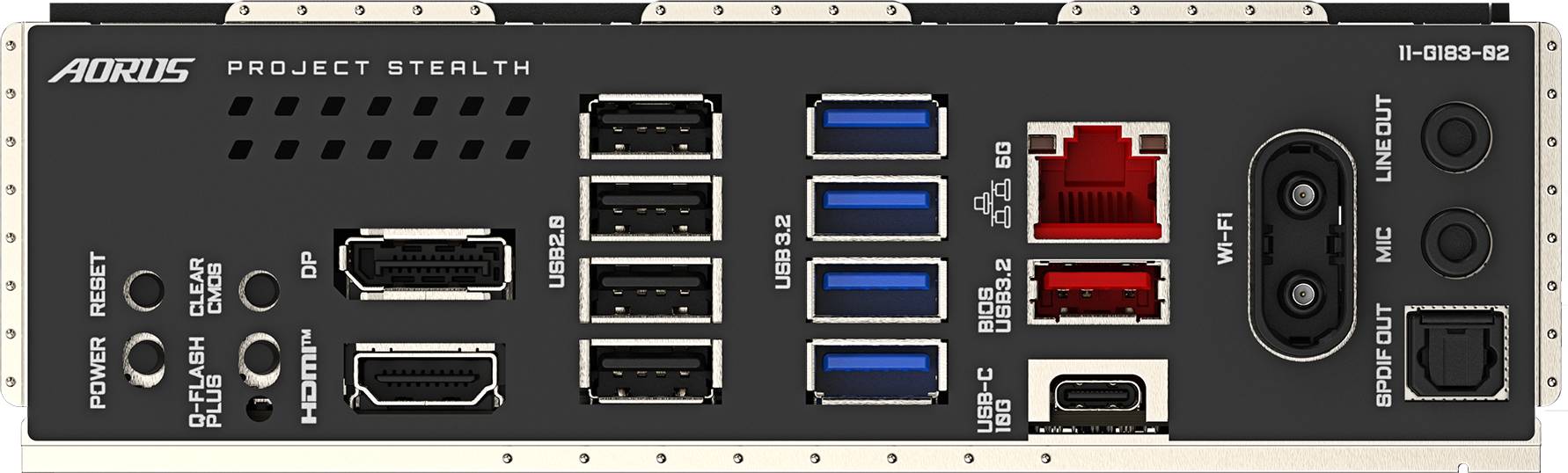

Rear I/O
USB 1x USB-C 3.2 Gen 2 · 1x USB-A 3.2 Gen 2 · 4x USB-A 3.2 Gen 1 · 4x USB 2.0
Video 1x HDMI 2.1 (4096x2160@60) · 1x DisplayPort 1.4 (3840x2160@144)
Other Q-Flash Plus, Clear CMOS, power and reset buttons · RJ-45 · 2x antenna (2T2R) · optical S/PDIF · 2 audio jacks
Internal Connectors
USB headers 1x USB-C 3.2 Gen 2 · 1x USB 3.2 Gen 1 · 2x USB 2.0
Fans & RGB CPU fan · CPU fan/pump · system fan · system fan/pump · 3x ARGB Gen2 · 1x RGB
Other 2x SATA · TPM header (GC-TPM2.0 SPI V2)
General
Form factor Micro-ATX, 24.4 x 24.4 cm (back-connect)
BIOS 512 Mbit AMI UEFI · Q-Flash Plus
OS Windows 11 64-bit
Software GIGABYTE Control Center

Frequently Asked Questions

Will the B850M AORUS STEALTH fit any Micro-ATX case?
No. Because its connectors are on the back of the board, the case needs matching cut-outs in the motherboard tray. Gigabyte publishes a STEALTH chassis support list with compatible cases from many manufacturers.
Is it good for a Ryzen 7 9800X3D?
Yes, B850 supports PBO and memory overclocking, and the board offers PCIe 5.0 graphics plus Gen5 NVMe; X3D Turbo Mode is also available in the BIOS.
How many fan headers does it have?
Four: CPU fan, CPU fan/pump, one system fan and one system fan/pump header. Builds with many case fans may need a hub or ARGB/fan controller.
Does it support Windows 10?
Gigabyte lists Windows 11 64-bit only, and the Wi-Fi 7 module has no Windows 10 driver.

Singular Expert Insight

The STEALTH is for builders who want a genuinely clean look: with connectors hidden on the back, the front of the system shows only the components. It is a solid B850 board in its own right (5GbE, Wi-Fi 7, Gen5), but only makes sense if your case supports back-connect boards. Otherwise the B850 AORUS ELITE-P ICE is simpler. Add DDR5 from our DDR5 memory range.
✓ Buy it if you have or plan a back-connect compatible case and want a clean, compact Ryzen gaming build.
✕ Skip it if your case lacks back-connect cut-outs or you need many fan headers and SATA ports.
→ Also consider the B850 AORUS ELITE-P ICE for a standard ATX layout, or the B840M GAMING X WIFI6E for a lower price.
