GIGABYTE B850M GAMING X WIFI6E AMD B850 Micro ATX Motherboard AM5 DDR5 PCIe 5.0 M.2 2.5GbE Ryzen 9000
Brand:
GigaByte
GIGABYTE B850M GAMING X WIFI6E AMD B850 Micro ATX Motherboard AM5 DDR5 PCIe 5.0 M.2 2.5GbE Ryzen 9000
€220.33 inc. VAT
B850M GAMING X WF6E
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
GIGABYTE B850M GAMING X WIFI6E — AMD B850 Micro ATX for Socket AM5 with Triple Display Output
AMD B850 / Socket AM5PCIe 5.0 x16 + PCIe 5.0 M.2Triple display: HDMI + 2 x DPWi-Fi 6E + 2.5GbE

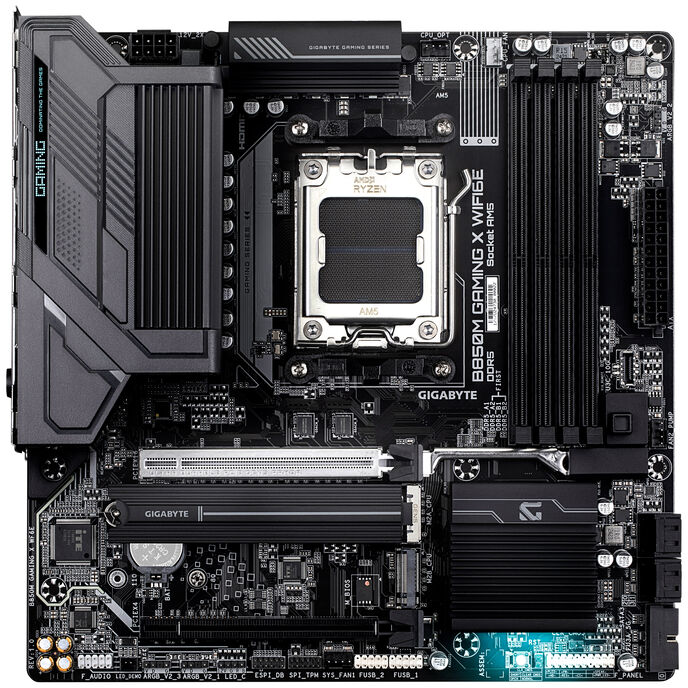

The GIGABYTE B850M GAMING X WIFI6E is a micro ATX motherboard on the AMD B850 chipset for Socket AM5, combining a PCIe 5.0 graphics slot and a PCIe 5.0 M.2 slot with an unusually generous set of display outputs for a compact board. It carries the part number B850M GAMING X WIFI6E (EAN 4719331866433) and supports AMD Ryzen 9000, 8000 and 7000 Series processors, with four DDR5 DIMM slots taking up to 256 GB at a rated DDR5-8200 when overclocked. One HDMI 2.1 and two DisplayPort 1.4 outputs drive up to three displays from a processor with integrated graphics, while a Realtek Wi-Fi 6E module with Bluetooth 5.3 and a Realtek 2.5GbE controller handle networking. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
This board has two M.2 slots, both CPU-attached: M2A_CPU is PCIe 5.0 x4 with Ryzen 9000 and 7000 Series processors, and M2B_CPU is PCIe 4.0. If you need three or four NVMe slots, look at a larger ATX board. PCIe 5.0 on the graphics slot requires a Ryzen 9000 or 7000 Series CPU — Ryzen 8000 Phoenix 1 chips run it at PCIe 4.0 x8 and Phoenix 2 at PCIe 4.0 x4. The secondary x16-length slot is PCIe 3.0 x4 only. Wireless is Wi-Fi 6E, not Wi-Fi 7. Socket AM5 means DDR5 only; DDR4 and AM4 processors do not fit. The three display outputs need a CPU with integrated graphics — with a discrete card fitted you use the card’s outputs instead. The board is micro ATX at 24.4 x 24.4 cm, the full-depth micro ATX size.
Best For
✓ Compact Ryzen 9000 builds that still want PCIe 5.0
✓ Multi-monitor desks driven from the CPU integrated graphics
✓ Trading and office setups needing three screens without a card
✓ Micro ATX gaming systems with a Gen 5 NVMe boot drive
✓ Homes on a Wi-Fi 6E router using the 6 GHz band
✓ Builders planning a later expansion to 256 GB of DDR5
Key Features
Three displays from one HDMI and two DisplayPorts

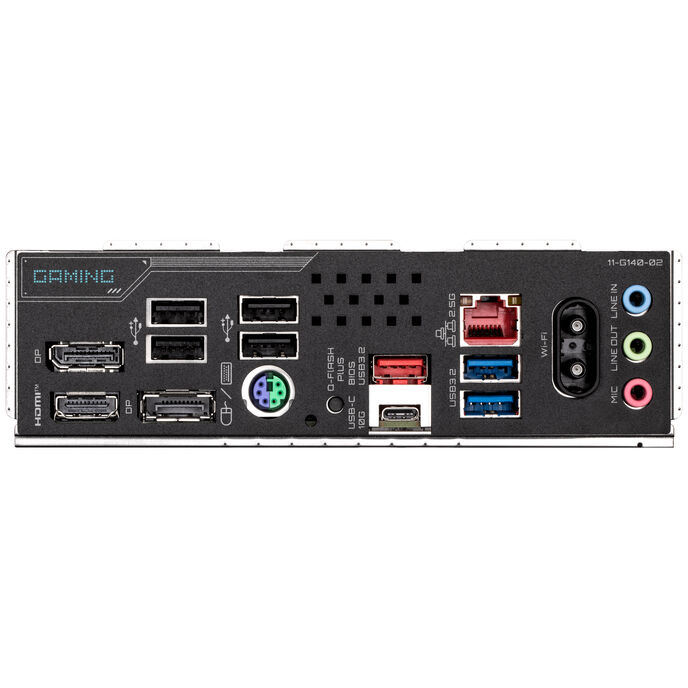

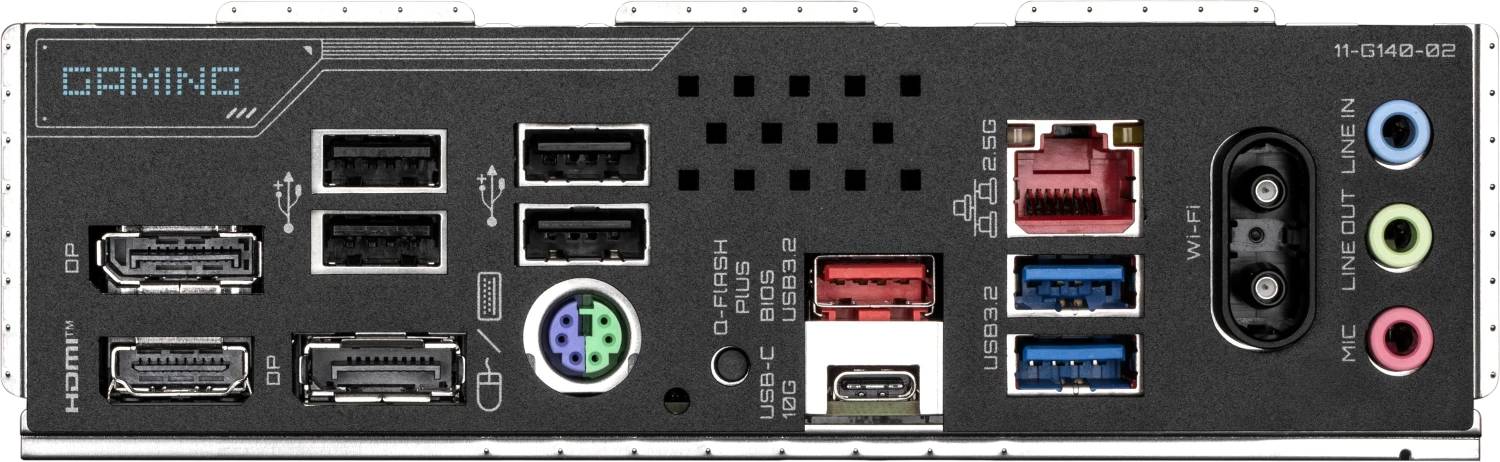

One HDMI 2.1 output runs up to 4096 x 2160 at 60 Hz with HDCP 2.3 and HDR, and two DisplayPort 1.4 outputs run up to 3840 x 2160 at 144 Hz, with three displays supported simultaneously. On a micro ATX board that is a genuinely useful amount of video output.
PCIe 5.0 for graphics and the primary M.2
The CPU-attached x16 slot runs PCIe 5.0 x16 with Ryzen 9000 and 7000 Series processors, and M2A_CPU runs PCIe 5.0 x4 for a Gen 5 NVMe drive, accepting lengths from 2280 up to 25110. M2B_CPU adds a PCIe 4.0 slot and four SATA 6 Gb/s ports handle bulk storage.
Four DDR5 slots to 256 GB with EXPO
Four DIMM sockets in dual channel take 64 GB modules to a 256 GB ceiling, with one-click AMD EXPO and Intel XMP profiles and rated speeds from DDR5-4400 up to DDR5-8200 when overclocked. Four slots on micro ATX is not universal and it preserves an upgrade path.
Wi-Fi 6E with Bluetooth 5.3 and 2.5GbE
A Realtek RTL8852CE module covers the 2.4, 5 and 6 GHz bands with 160 MHz channels and Bluetooth 5.3, and a Realtek 2.5GbE controller handles wired networking at up to 2.5 Gbps. Both are onboard, so no expansion slot is consumed.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The display outputs are what make this board interesting. Three video connectors on a micro ATX B850 board means you can build a genuinely capable three-screen workstation around a Ryzen APU with no graphics card at all — and later drop in a Gen 5 card when you want gaming performance, because the x16 slot is PCIe 5.0. That dual-purpose quality is rarer than it sounds. The compromise is storage: two M.2 slots, both CPU-attached, with no chipset slot to fall back on, so plan your NVMe drives before you buy. Wi-Fi 6E rather than Wi-Fi 7 is the other trade, and an honest one at this price. Use a matched two-module DDR5 memory kit to keep the rated speeds high and leave two slots for later.
Buyer's Guide
Buy it if
You want a compact AM5 board that drives three monitors from the CPU integrated graphics today and takes a PCIe 5.0 graphics card and Gen 5 NVMe drive tomorrow, with Wi-Fi 6E and 2.5GbE built in.
Skip it if
You need three or four M.2 slots, Wi-Fi 7, USB4, or a full-bandwidth second expansion slot for a capture card or HBA.
Also consider
The GIGABYTE B850M FORCE if a third M.2 slot matters more than the extra display outputs, or the ASUS TUF Gaming B850M-PLUS WIFI7 W for Wi-Fi 7 and three M.2 slots in white.
Features - GigaByte - B850M GAMING X WF6E
CPU Socket
- Socket AM5
Colour
black
More Details
Product Code
03:259962
EAN Code
4719331866433
Manufacturer
GigaByte
