Gigabyte B860M D3W — business-ready Micro-ATX for Intel Core Ultra
Intel B860 · LGA1851DDR5 up to 9066 MT/s (OC)PCIe 5.0 x16HDMI 2.1 + 2x DP 2.1

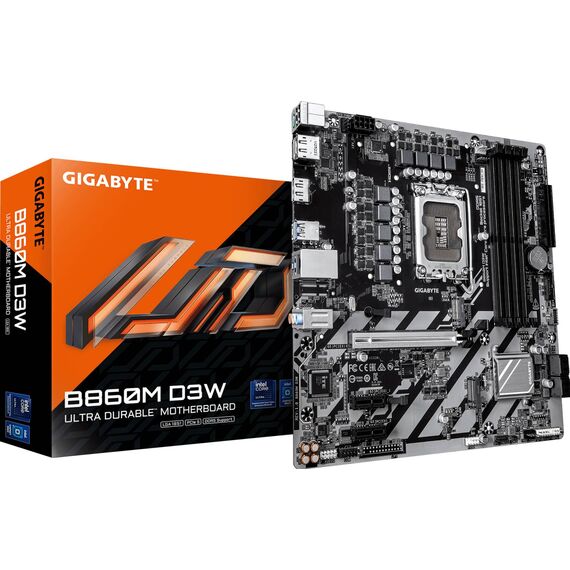

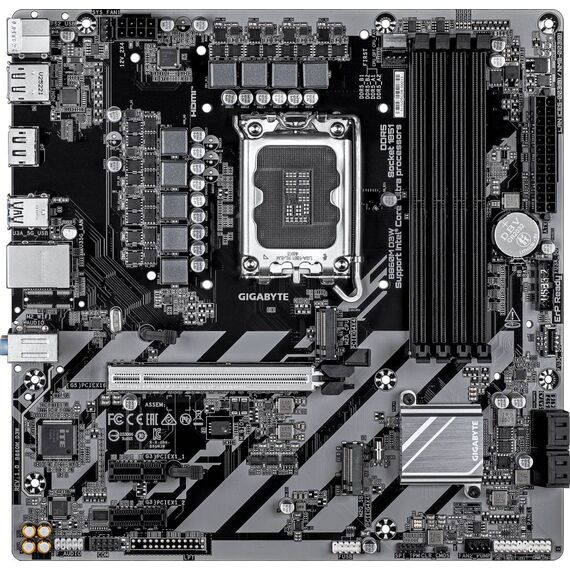

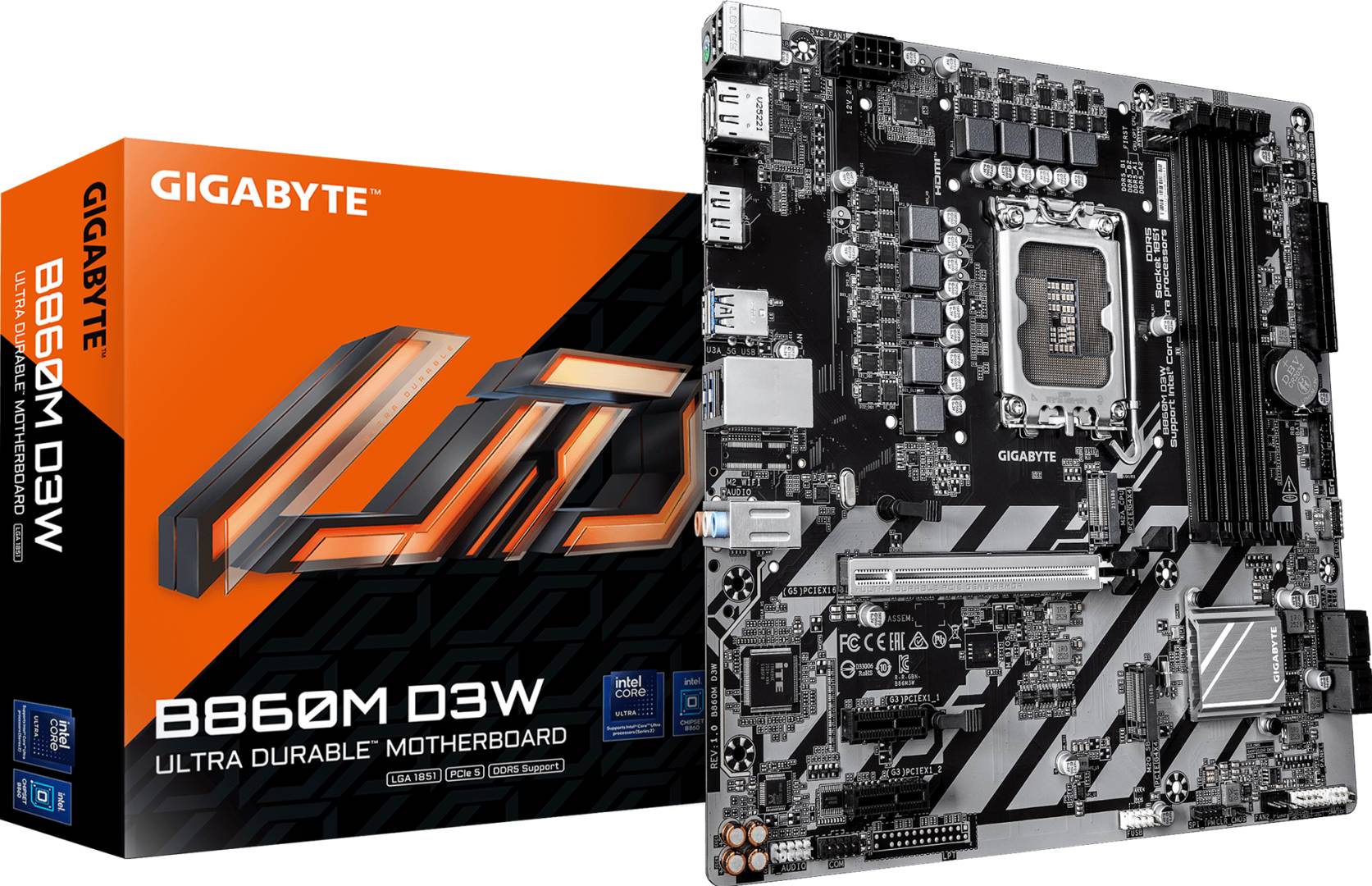

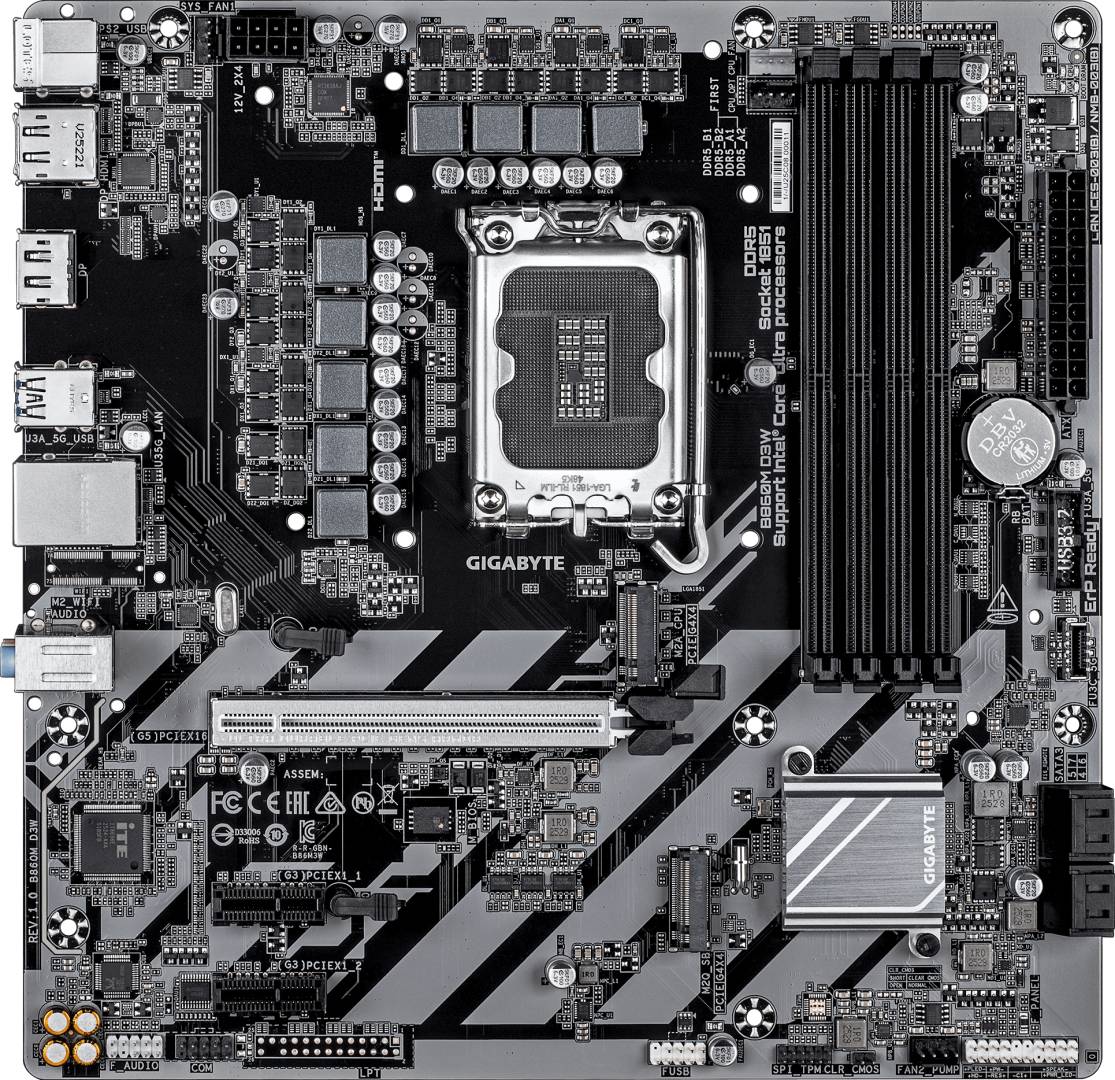

The Gigabyte B860M D3W (part number B860M D3W) is a Micro-ATX motherboard for Intel Core Ultra (Series 2) processors on Socket LGA1851, based on the Intel B860 chipset — a practical base for office, business and entry workstation PCs.
A 4+1+2 hybrid VRM powers mainstream Core Ultra 5 and Core Ultra 7 chips, and four DDR5 slots take up to 256GB, with XMP kits up to 9066 MT/s (OC). ECC unbuffered DIMMs are accepted but run in non-ECC mode.
The graphics slot runs PCIe 5.0 x16, and two M.2 slots (one from the CPU, one from the chipset) support PCIe 4.0 x4 SSDs, alongside four SATA ports. Business-friendly touches include a PS/2 port, a serial (COM) header and three display outputs — HDMI 2.1 plus two DisplayPort 2.1.
Compatibility note: Rear USB is limited to 5 Gbps (USB 3.2 Gen 1) and USB 2.0, LAN is 1 Gbps and there is no Wi-Fi. The B860 chipset does not allow CPU overclocking, and the modest 4+1+2 VRM is best matched with Core Ultra 5/7 rather than a sustained-load Core Ultra 9. Display outputs require a CPU with integrated graphics (not F models).
Best For
✓ Business and office desktops on Intel Core Ultra
✓ Multi-monitor productivity (3 displays)
✓ Legacy peripherals via PS/2 and COM header
✓ Budget Core Ultra 5 gaming with a PCIe 5.0 GPU
✓ Education and lab PCs
✓ System integrators building wired fleets
Key Features
PCIe 5.0 graphics slot
The CPU-attached x16 slot runs PCIe 5.0, ready for current and next-generation graphics cards.
Two PCIe 4.0 M.2 slots
M2A_CPU and M2Q_SB both take 2280 PCIe 4.0 x4 NVMe SSDs, plus four SATA ports with RAID 0/1/5/10.
Business connectivity
PS/2 keyboard/mouse port, internal serial (COM) header and TPM header for GC-TPM2.0 SPI V2 — useful in corporate and industrial setups.
Triple display with DP 2.1
HDMI 2.1 (4096x2160@60) and two DisplayPort 2.1 (3840x2160@144) drive up to three monitors from Intel integrated graphics.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The B860M D3W is a sensible, no-frills board for Core Ultra office and business PCs — PS/2, a COM header and three display outputs make it easy to deploy with existing peripherals. Gamers and enthusiasts will want Z890 boards with stronger VRMs, faster USB and 2.5GbE. Add DDR5 from our DDR5 memory range.
✓ Buy it if you are building Intel Core Ultra office, business or integrator PCs that need wired LAN, triple display and legacy ports.
✕ Skip it if you want Wi-Fi, fast rear USB, 2.5GbE or a Core Ultra 9 under heavy sustained loads.
→ Also consider the Z890 EAGLE WIFI7 PLUS or Z890 AORUS ELITE WIFI7 PLUS for enthusiast Core Ultra builds.
Features - GigaByte - B860M D3W
CPU Socket
- Socket 1851
More Details
Product Code
04:590443
EAN Code
4719331880613
Manufacturer
GigaByte
