GIGABYTE B860M EAGLE V2 — LGA1851 with PCIe 5.0
Intel B860LGA1851DDR52.5GbE

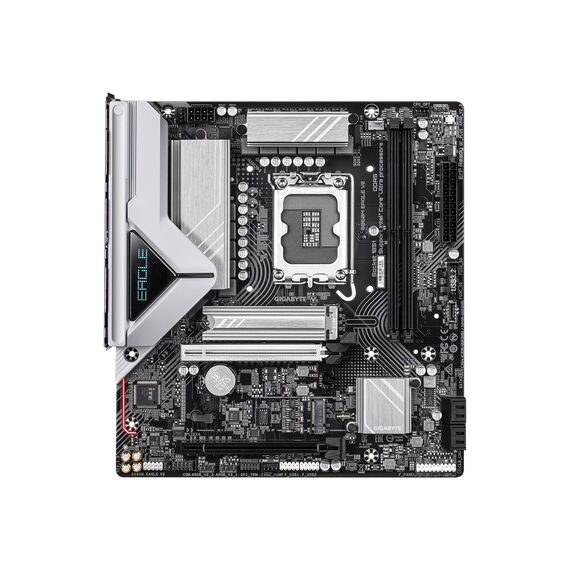

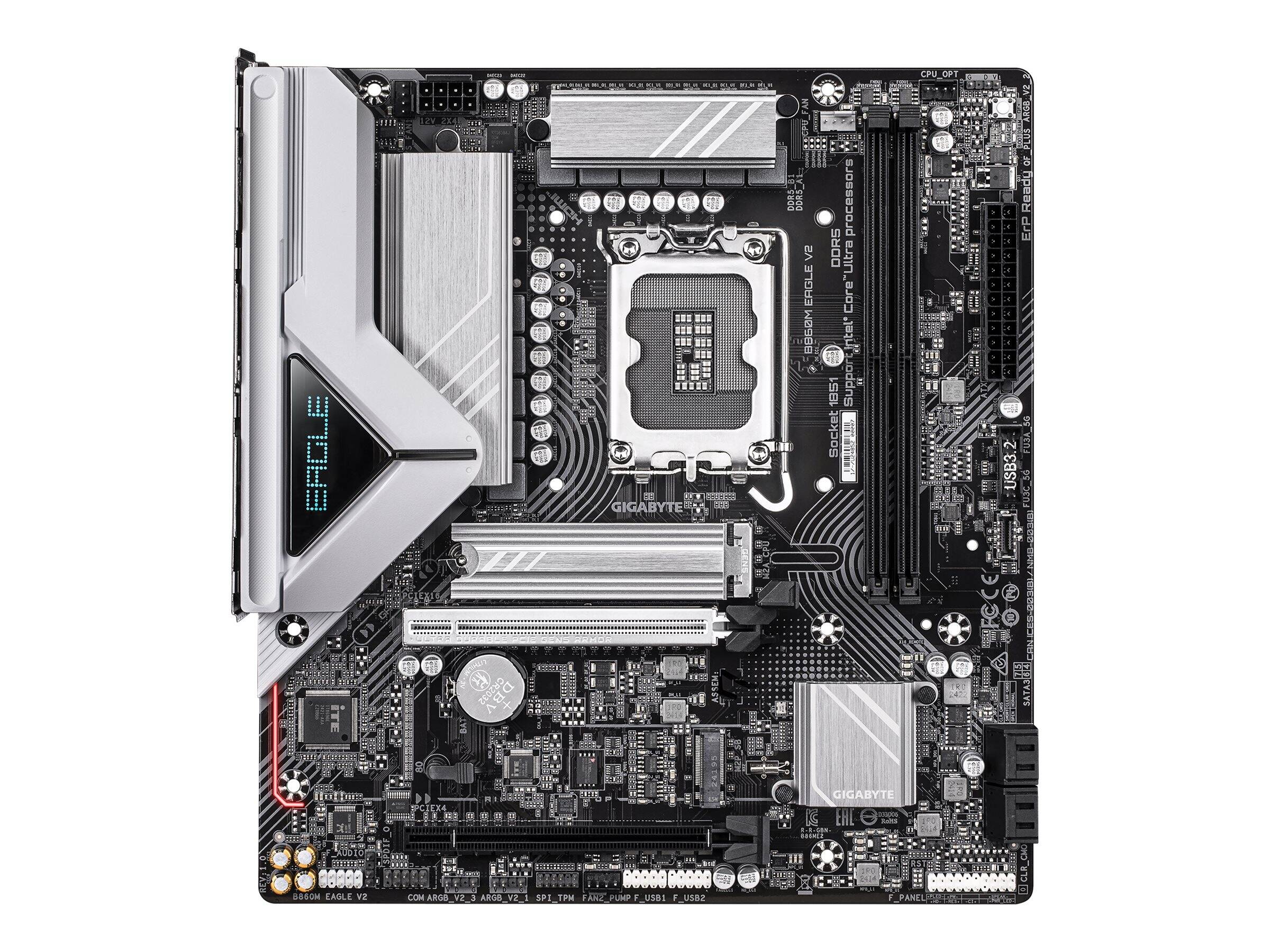

The GIGABYTE B860M EAGLE V2 is a Micro-ATX motherboard built around the Intel B860 Express chipset and LGA1851 socket for supported Intel Core Ultra processors. It combines two DDR5 DIMM slots with up to 128GB capacity, a PCIe 5.0 x16 graphics slot, one PCIe 5.0 M.2 socket, one PCIe 4.0 M.2 socket, four SATA 6Gb/s ports and Realtek 2.5GbE wired networking.
Compatibility — check before buying:
This motherboard uses the LGA1851 socket and DDR5 memory. It is not compatible with LGA1700 processors or DDR4 DIMMs. GIGABYTE lists support for Intel Core Ultra processors; check the current CPU support list for the exact processor you intend to install. HDMI and DisplayPort output capabilities also depend on the installed CPU.
Best For
✓ Intel Core Ultra desktop builds
✓ Compact Micro-ATX gaming and work PCs
✓ Builds using PCIe 5.0 graphics and NVMe storage
✓ Wired networks faster than standard Gigabit Ethernet
Key Features
LGA1851 with Intel B860
The B860M EAGLE V2 uses the Intel B860 Express chipset and LGA1851 socket, with GIGABYTE listing support for Intel Core Ultra processors.
DDR5 up to 128GB
Two DDR5 DIMM sockets support dual-channel memory with up to 128GB total capacity. GIGABYTE lists standard DDR5-6400 and DDR5-5600 support plus overclocked memory profiles reaching up to DDR5-9066, subject to CPU and memory configuration.
PCIe 5.0 graphics and M.2
The main CPU-connected expansion slot operates at PCIe 5.0 x16. Storage includes one CPU-connected type 2280 PCIe 5.0 x4/x2 M.2 socket and one chipset-connected type 2280 PCIe 4.0 x4/x2 M.2 socket.
2.5GbE and front USB-C support
Realtek 2.5GbE LAN supports 2.5Gbps, 1Gbps and 100Mbps connections. An internal USB Type-C header provides USB 3.2 Gen 1 connectivity for compatible case front panels.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The B860M EAGLE V2 is a practical LGA1851 board for users who want current-generation connectivity without paying for features they may not use. Its strongest points are the PCIe 5.0 x16 graphics slot, one PCIe 5.0 M.2 socket, a second PCIe 4.0 M.2 socket and 2.5GbE networking. The main trade-off is memory expansion: there are only two DDR5 slots, although each supports up to 64GB for a 128GB maximum. There is also no onboard Wi-Fi, so wireless users should plan for a separate adapter.
Buyer’s Guide
Buy it if
You want a compact LGA1851 motherboard with DDR5, PCIe 5.0 graphics, PCIe 5.0 NVMe storage and 2.5GbE wired networking.
Skip it if
You need built-in Wi-Fi, more than two memory slots, rear USB-C or a larger number of high-speed expansion and storage connections.
Check first
Confirm your processor uses LGA1851, your memory is DDR5 and your case supports a 24.4 x 22.5cm Micro-ATX motherboard. Verify CPU graphics support if you plan to use the onboard display outputs.
Features - GigaByte - B860M EAGLE V2
CPU Socket
- Socket 1851
More Details
Product Code
04:548579
EAN Code
4719331869656
Manufacturer
GigaByte
