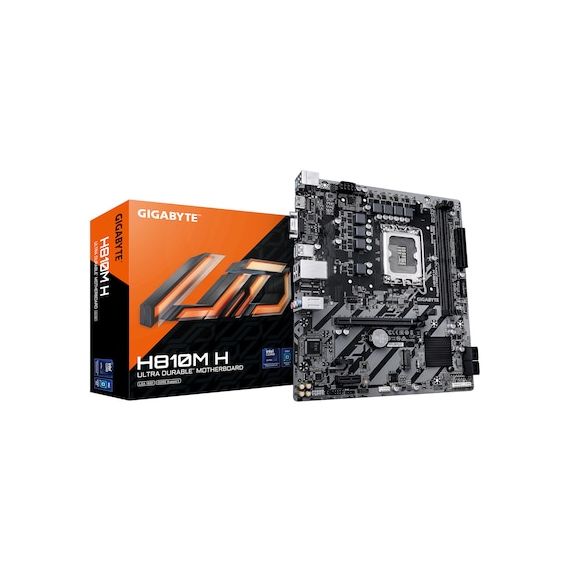

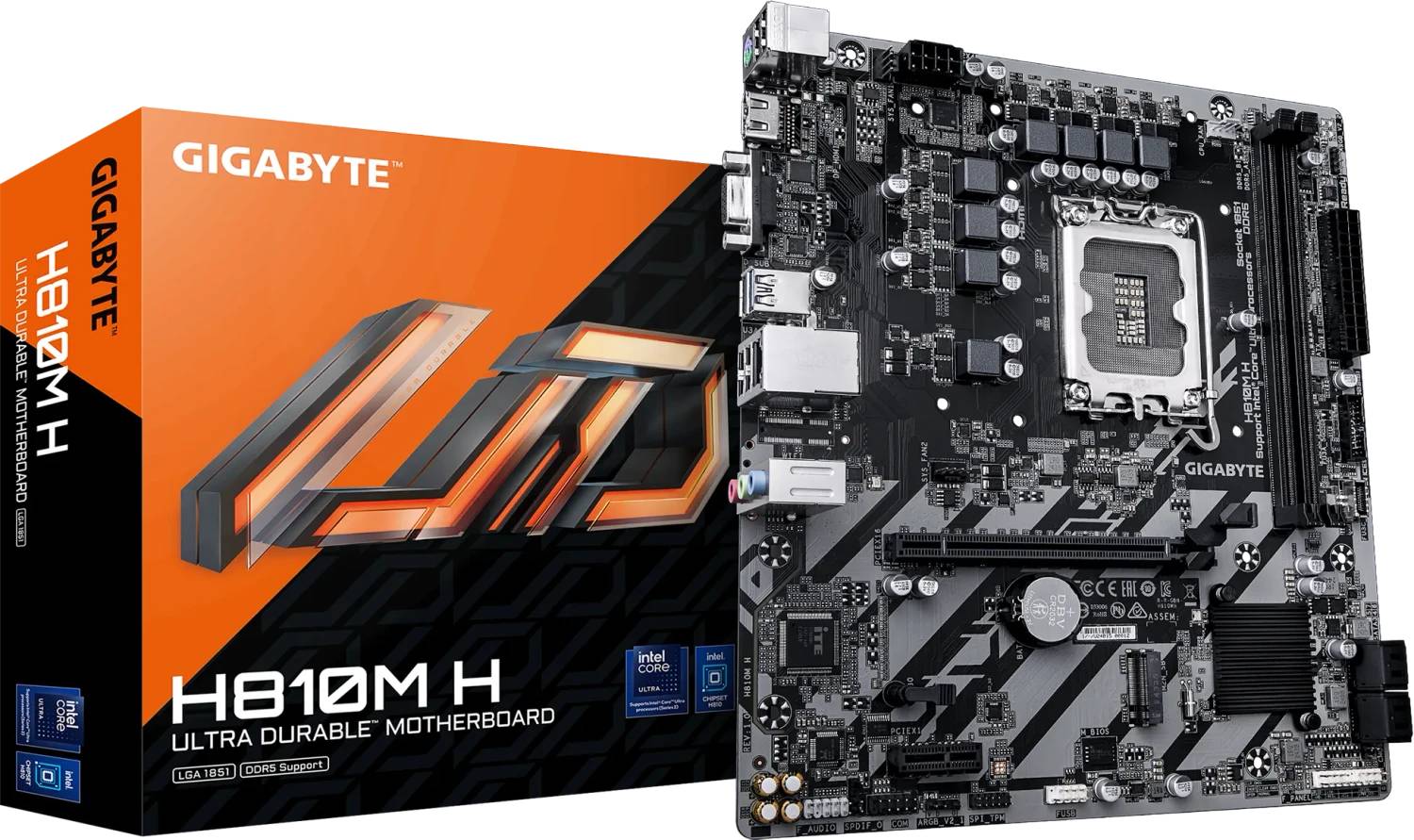

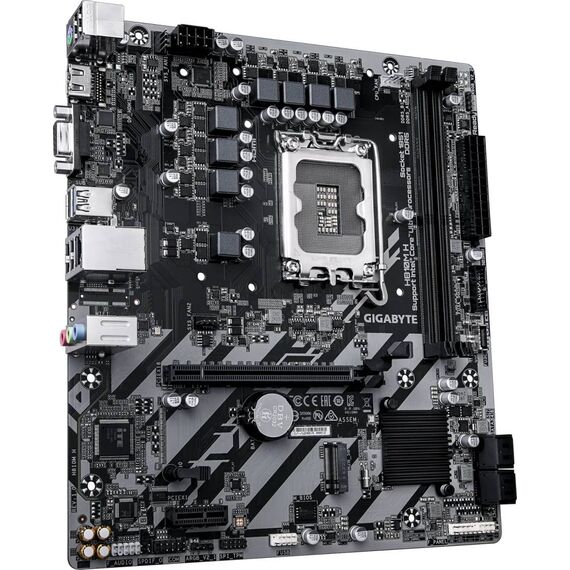

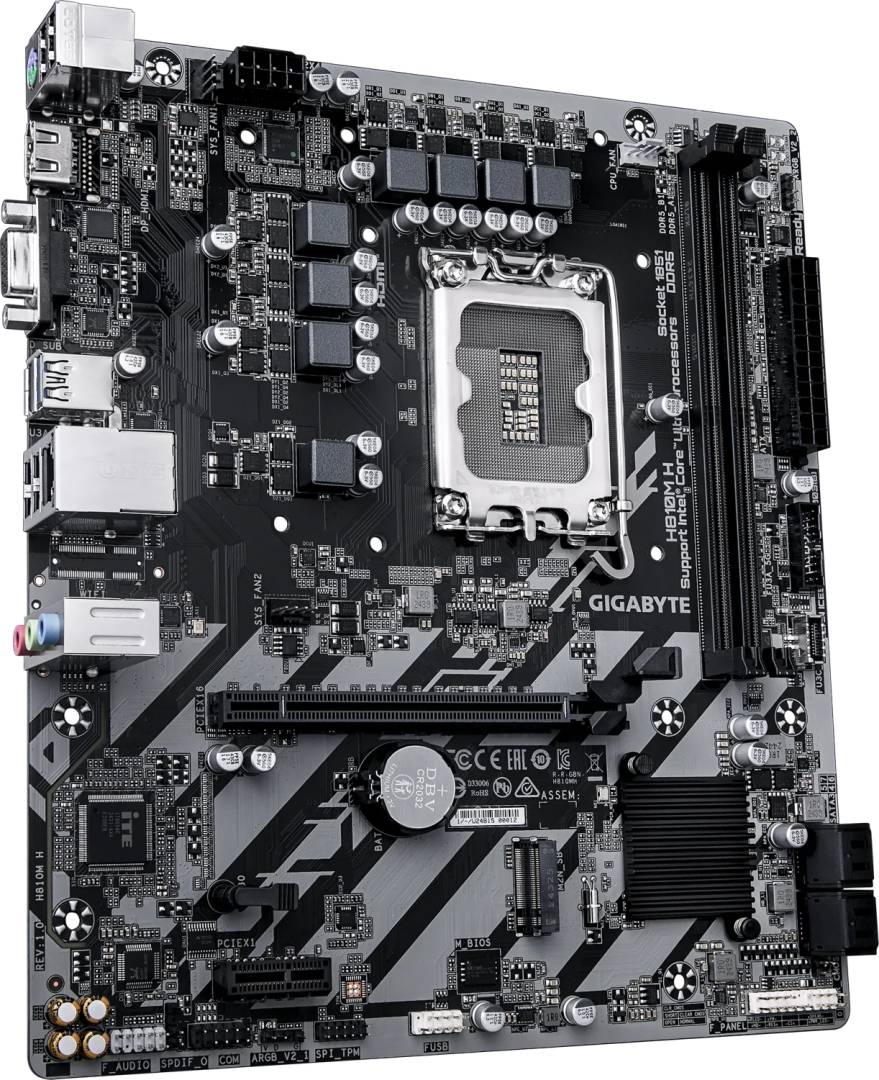

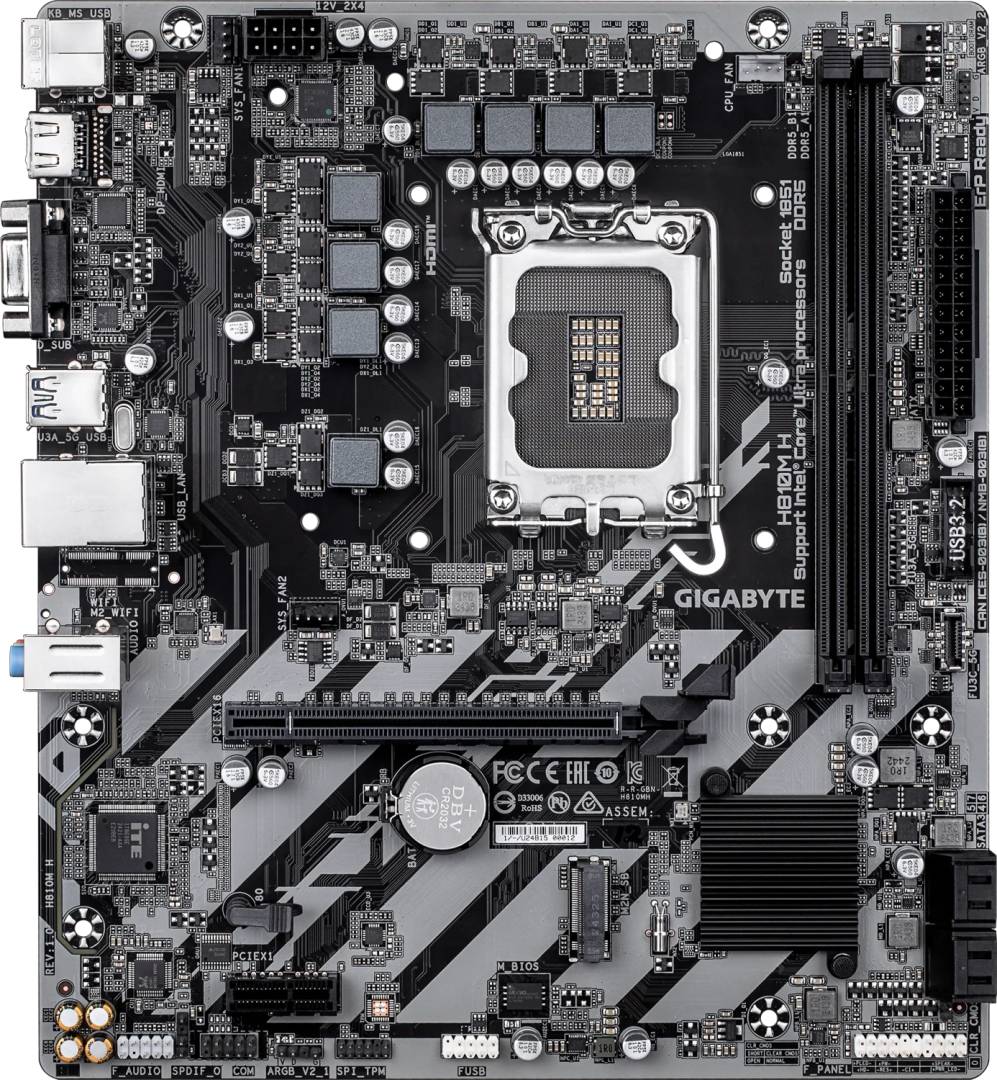

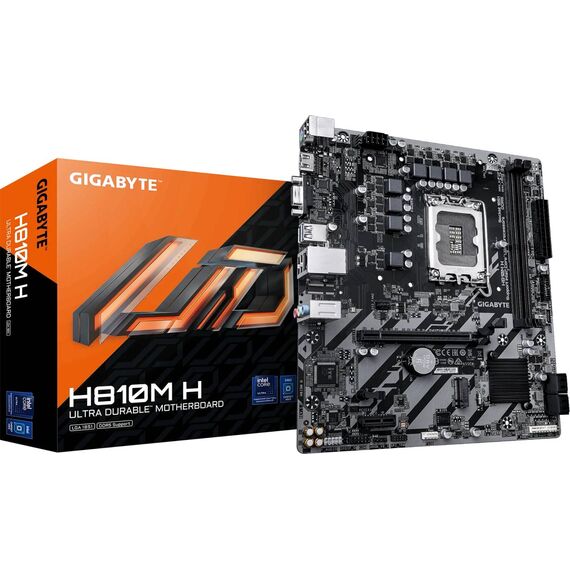

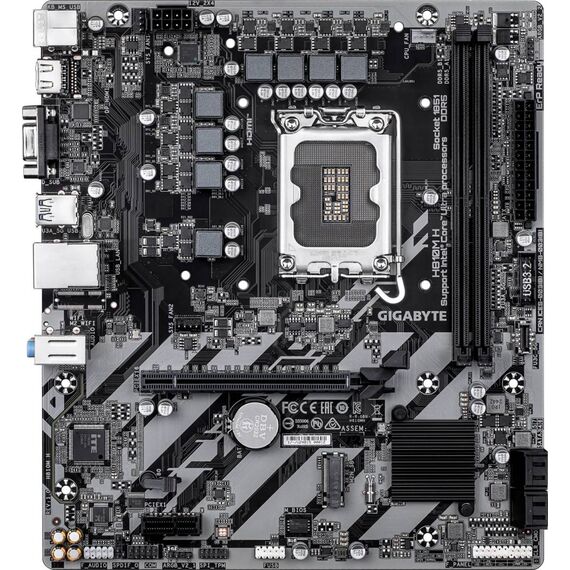

Gigabyte H810M H / Motherboard / micro ATX / LGA1851 Socket / H810 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | H810M H
Gigabyte H810M H / Motherboard / micro ATX / LGA1851 Socket / H810 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | H810M H
€134.22 inc. VAT
H810M H
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust power design
The motherboard features a 4+2+1 Phase Power Design along with solid pin power connectors, ensuring stable and reliable power delivery for optimal performance. - Extensive connectivity options
With a combination of USB 3.2 Gen 1, USB 2.0, HDMI, and VGA ports, the motherboard provides a range of connections for peripherals and additional hardware. - Advanced cooling features
Incorporating M.2 Thermal Guard and GIGABYTE Smart Fan 6 technology, this motherboard maintains optimal operating temperatures, enhancing overall system stability. - Flexible storage capabilities
Supports RAID configurations with 4 x SATA-600 and 1 x M.2 socket, allowing for versatile storage solutions tailored to user needs. - Upgradable and user-friendly
With a DIY-friendly design and features like PCIe EZ Latch, this motherboard is designed for easy upgrades, catering to both enthusiasts and casual users.
Special Features
- Supports Intel Core Ultra processors
- Dual-channel memory architecture with DDR5 SDRAM support
- Multiple storage options including M.2 and SATA ports
- Equipped with various connectivity options for expansion
- Enhanced cooling and RGB customization features
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H810 Express |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 3200 MHz, 2800 MHz |
| Supported RAM Integrity Check | ECC (operate in non-ECC mode), non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture, supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 |

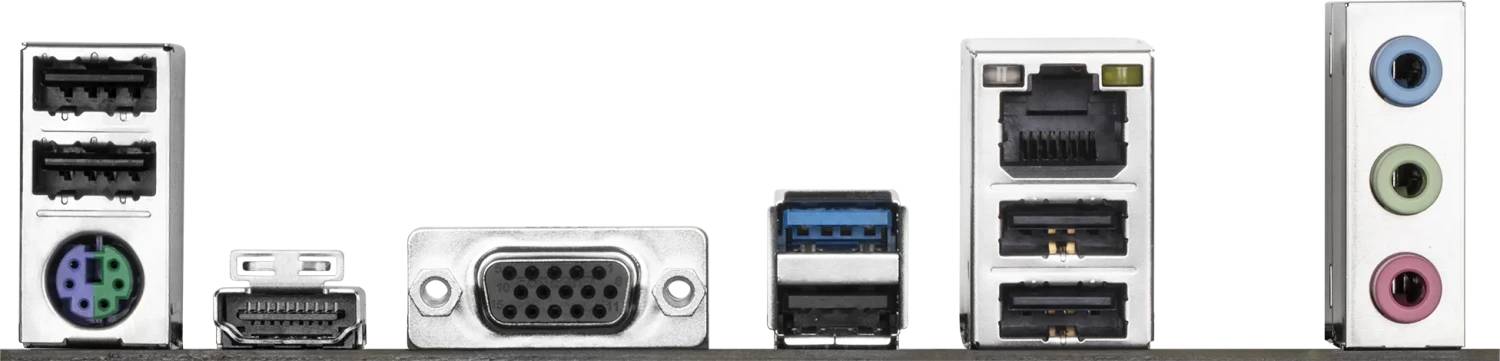

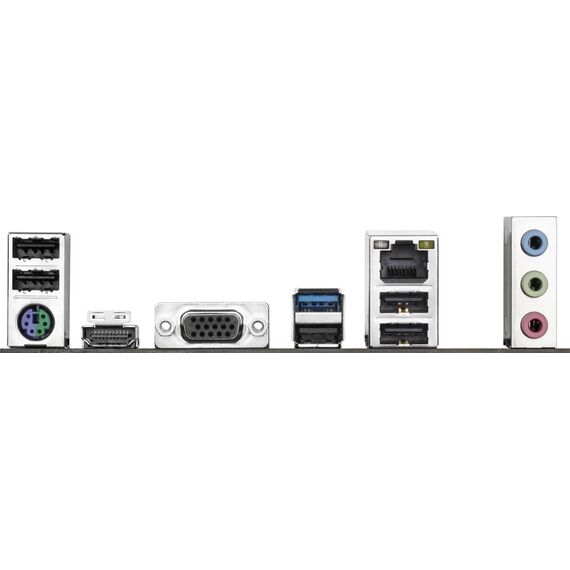

| Interfaces | 1 x USB 3.2 Gen 1 5 x USB 2.0 1 x HDMI 1 x VGA 1 x PS/2 keyboard / mouse 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x audio - header 1 x SPDIF out - header 1 x SPI - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection, water cooling flow rate |
| Hardware Features | 4+2+1 Phase Power Design, Q-Flash, DIY Friendly Design, chipset heatsink, RGB FUSION, PCIe EZ Latch, EZ Debug LED, VRM heatsink design, GIGABYTE Smart Fan 6, Ultra Durable, M.2 Thermal Guard, Solid Pin Power Connectors |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager |
| Width | 24.4 cm |
| Depth | 21.5 cm |
Features - GigaByte - H810M H
CPU Socket
- Socket 1851
More Details
Product Code
04:521328
EAN Code
4719331869540
Manufacturer
GigaByte
