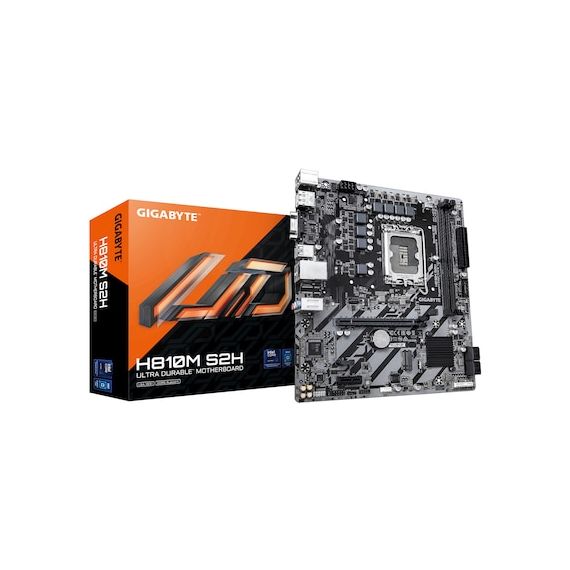

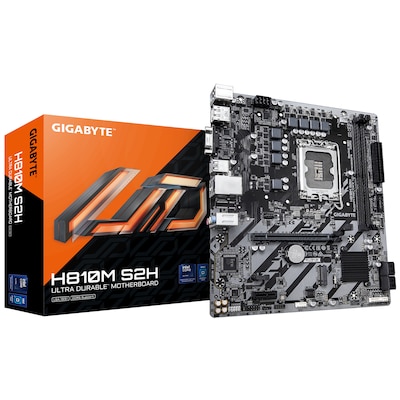

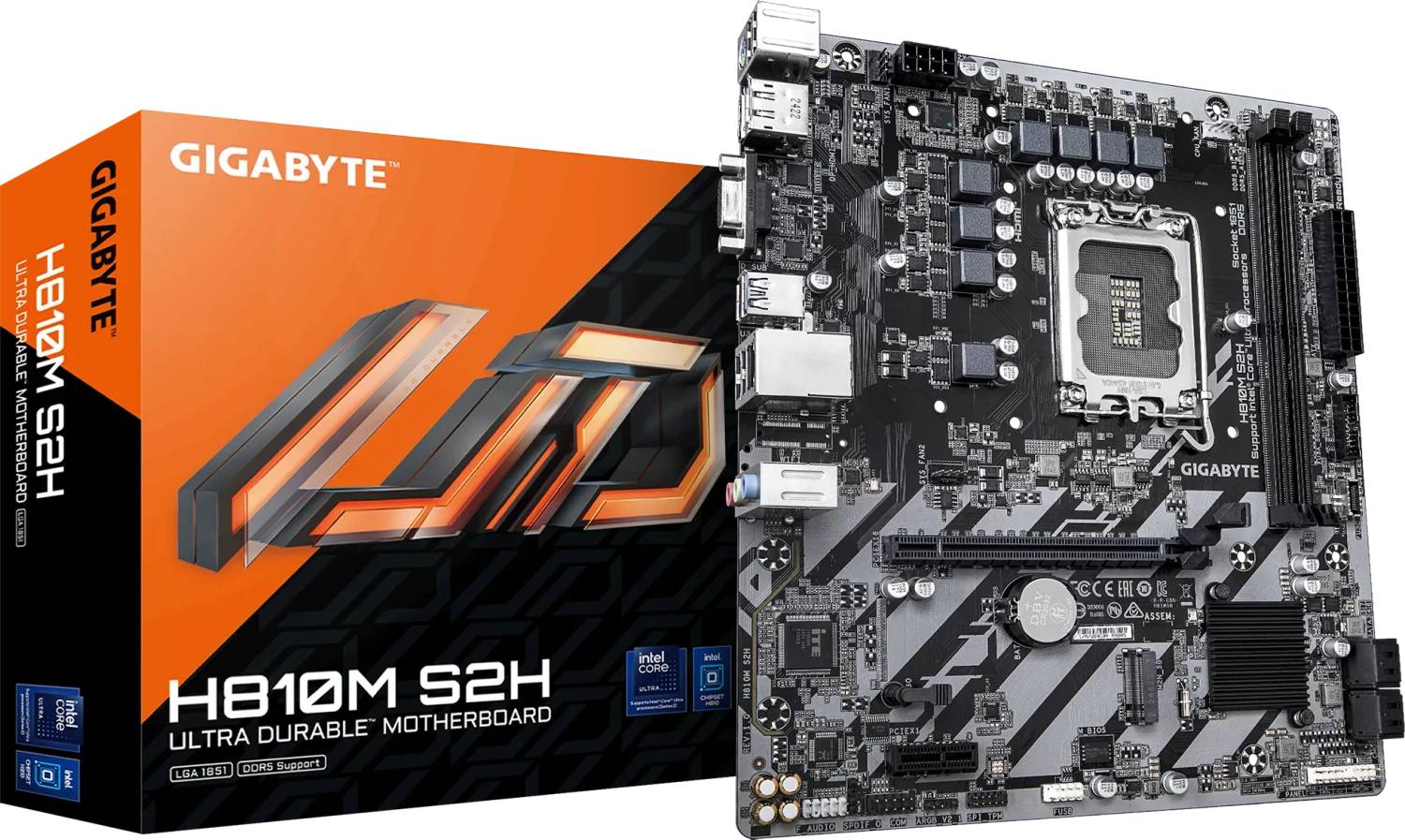

Gigabyte H810M S2H Micro-ATX Motherboard LGA 1851 Intel H810 DDR5 PCIe 4.0 M.2 HDMI DisplayPort GbE Black

Brand:
GigaByte
GIGABYTE H810M S2H Intel H810 DDR5 Micro ATX Motherboard
Gigabyte H810M S2H Micro-ATX Motherboard LGA 1851 Intel H810 DDR5 PCIe 4.0 M.2 HDMI DisplayPort GbE Black
€122.71 inc. VAT
Buy
H810M S2H
€103.12 €114.58
€122.71 inc. VAT
Ships from EU stock: 41 item(s)
+ −
Add to wish list Ask a question
Product Code
04:521330
EAN Code
4719331869168
Manufacturer
GigaByte
Quick Specs
Socket
Intel LGA 1851
Chipset
Intel H810
Memory
2× DDR5, up to 128GB
Form Factor
Micro-ATX
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Gigabyte H810M S2H — Essential Micro-ATX for Intel Core Ultra

LGA 1851 · Intel H8102× DDR5 up to 128GBPCIe 4.0 x16 + M.2HDMI · DisplayPort · GbE

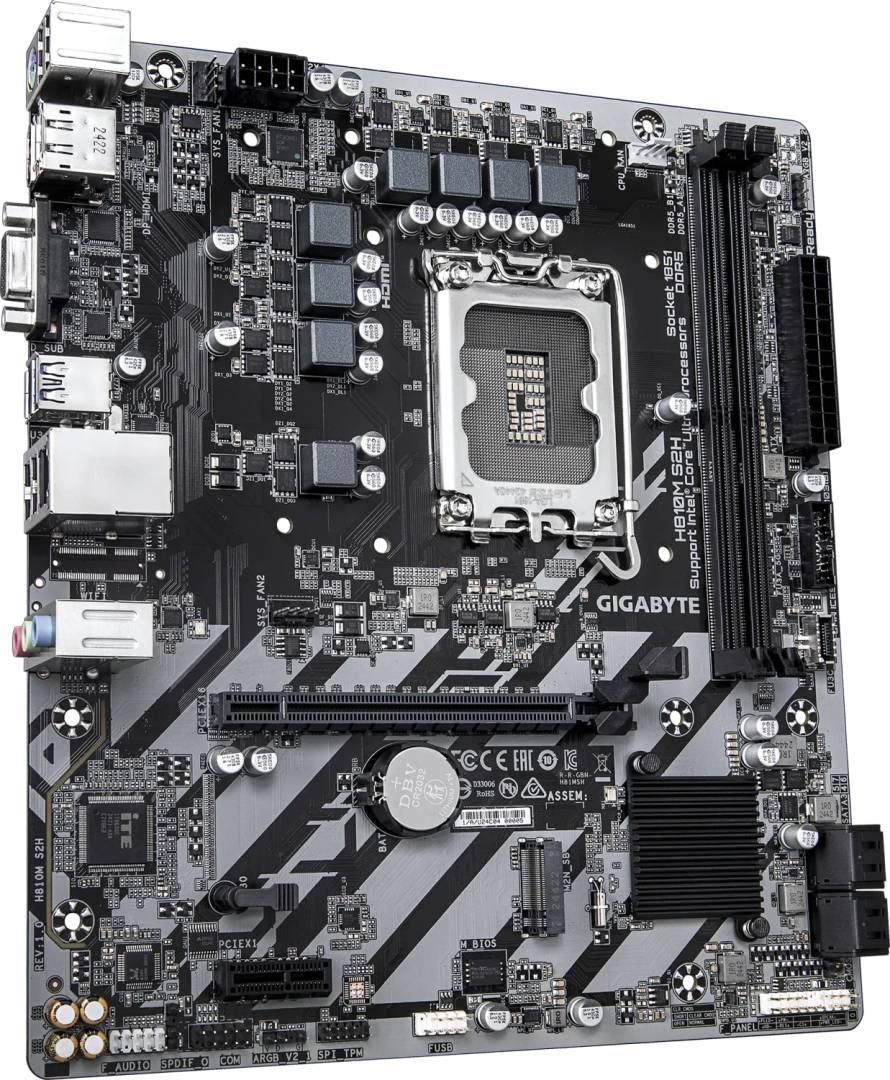

The Gigabyte H810M S2H is an entry-level micro-ATX motherboard built on the Intel H810 chipset and the LGA 1851 socket, supporting Intel Core Ultra Series 2 (Arrow Lake) desktop processors. Sold under Gigabyte part number H810M S2H (EAN 4719331869168), it offers DDR5 memory, a PCIe 4.0 x16 graphics slot, a PCIe 4.0 M.2 and four SATA ports — a dependable, budget-friendly base for home, office and everyday computing. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying
This is an LGA 1851 board supporting only Intel Core Ultra Series 2 (Arrow Lake) desktop CPUs — not LGA 1700 (12th/13th/14th Gen). It uses DDR5 memory only (no DDR4), has two DIMM slots (max 128GB), and runs graphics/storage at PCIe 4.0 (the H810 chipset does not provide PCIe 5.0).

Best For

✓Home and office Intel Core Ultra builds
✓Budget-conscious everyday computing
✓Compact Micro-ATX systems
✓Builds using integrated graphics (HDMI/DP/VGA out)
✓Single NVMe + multiple SATA storage
✓First-time and value PC builders

Key Features


Intel Core Ultra ready
The LGA 1851 socket and Intel H810 chipset support Intel Core Ultra Series 2 (Arrow Lake) processors for modern, efficient performance on a budget.

DDR5 memory
Two DDR5 DIMM slots support up to 128GB of dual-channel memory at 6400/5600 MT/s for smooth multitasking.

M.2 + 4× SATA storage
A PCIe 4.0 x4 M.2 slot (2280) for a fast NVMe SSD, plus four SATA 6Gb/s ports for additional drives.

Flexible display output
Onboard HDMI (up to 4096×2160@60Hz), DisplayPort (up to 4K@60Hz) and D-Sub (VGA) make it easy to connect modern or legacy monitors using integrated graphics.

Technical Specifications

Identification
Part Number H810M S2H
EAN / GTIN 4719331869168
Brand Gigabyte
Platform
Chipset Intel H810
Socket LGA 1851
CPU Support Intel Core Ultra Processors (Series 2) — Arrow Lake desktop
Form Factor Micro-ATX
Memory
Slots 2× DDR5 DIMM (Dual-Channel)
Max Capacity 128GB (64GB per DIMM)
Speed DDR5 6400 / 5600 MT/s
Expansion & Storage
PCIe Slot 1× PCIe 4.0 x16
M.2 1× M.2 PCIe 4.0 x4 (2280)
SATA 4× SATA 6Gb/s

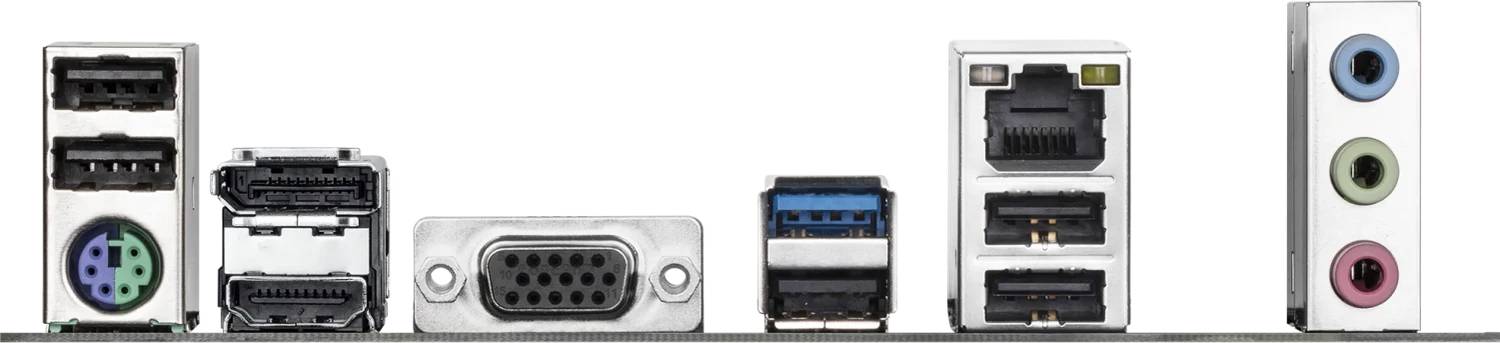

Connectivity & I/O
LAN GbE LAN (RJ-45)
Display Out 1× HDMI (4K@60) + 1× DisplayPort (4K@60) + 1× D-Sub (VGA)
Rear USB USB 3.2 Gen 1 Type-C + Type-A, USB 2.0
Audio HD Audio
Other
Colour Black
Operating System Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the Gigabyte H810M S2H?
It supports Intel Core Ultra Series 2 (Arrow Lake) desktop processors on the LGA 1851 socket. Older LGA 1700 chips (12th/13th/14th Gen Core) are not compatible.
Does it support PCIe 5.0?
No. The Intel H810 chipset provides PCIe 4.0 for both the x16 graphics slot and the M.2 slot. For PCIe 5.0 graphics and storage, step up to a B860 board.
How much memory can I install?
Two DDR5 DIMM slots support up to 128GB of dual-channel memory at 6400/5600 MT/s. DDR4 is not supported.
Can I connect an older VGA monitor?
Yes. In addition to HDMI and DisplayPort, the H810M S2H includes a D-Sub (VGA) output for legacy displays when using integrated graphics.
Singular Expert Insight
The H810M S2H is the practical, no-frills choice for an Intel Core Ultra build where value matters more than cutting-edge speed — it sticks to PCIe 4.0, a single M.2 and GbE LAN to keep the price low, while still adding legacy VGA output for older monitors. If you want PCIe 5.0 graphics, a second M.2 and faster 2.5GbE, the Gigabyte B860M D3HP or ASUS Prime B860M-K are the natural step up. Pair it with a reliable internal NVMe SSD for a snappy everyday system.

Buyer's Guide

Buy it if
You want an affordable, reliable micro-ATX board for a home or office Intel Core Ultra build, with HDMI/DP/VGA output and DDR5.
Skip it if
You want PCIe 5.0 graphics or storage, dual M.2, 2.5GbE or built-in Wi-Fi — choose a B860 board instead.
Also consider
The Gigabyte B860M D3HP or ASUS Prime B860M-K for PCIe 5.0 and faster networking.
