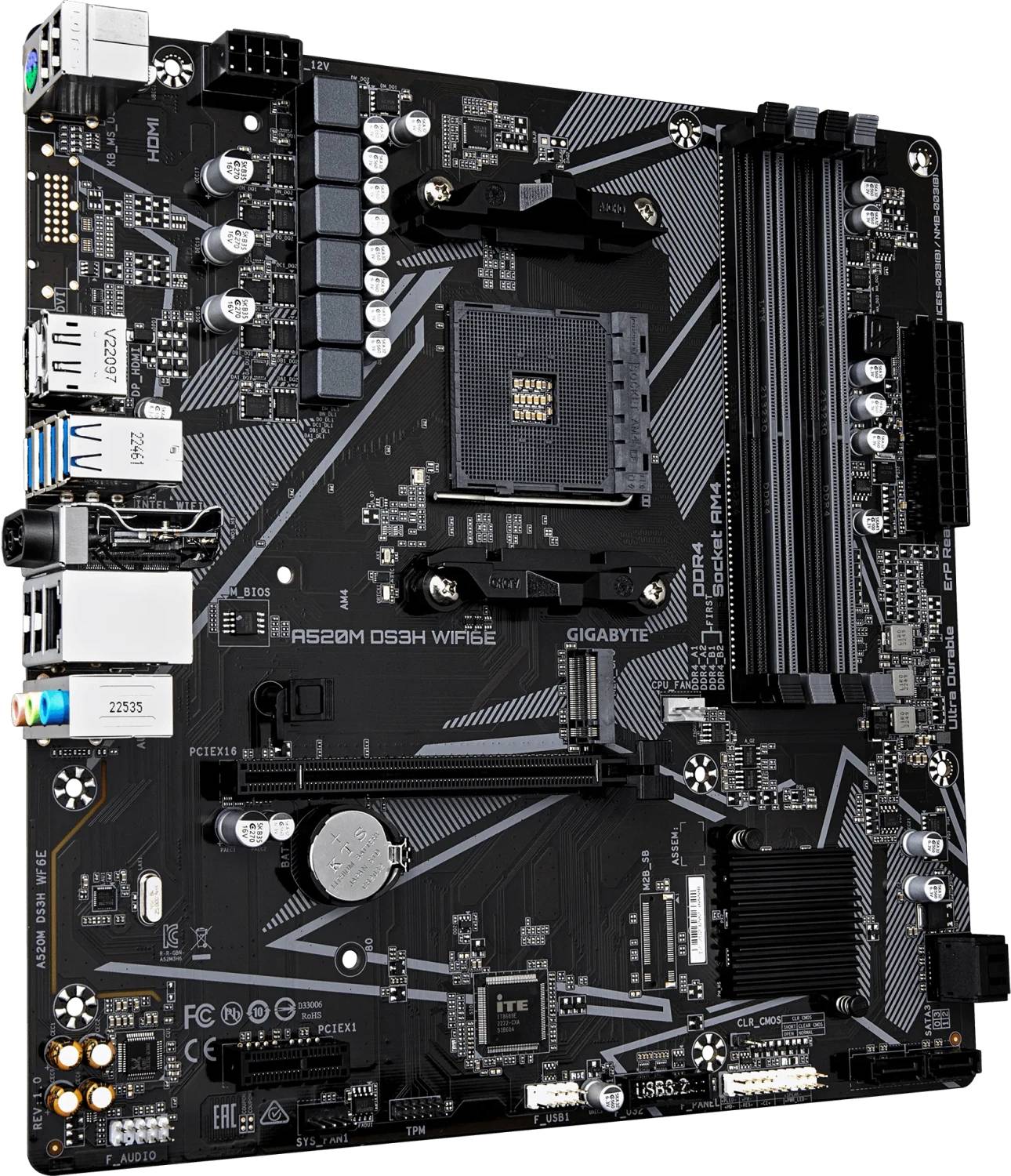

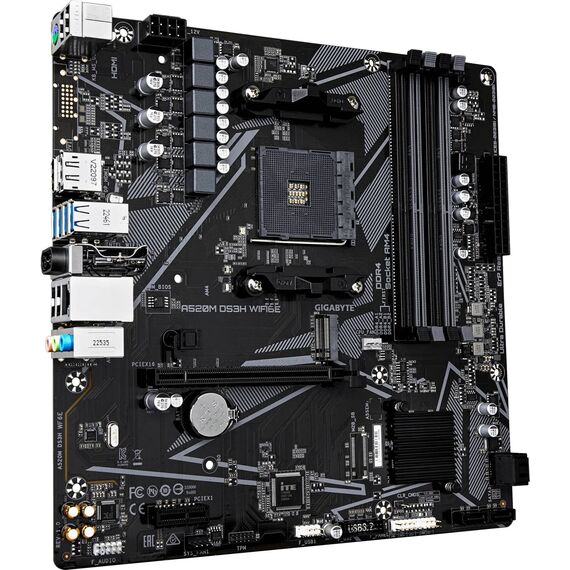

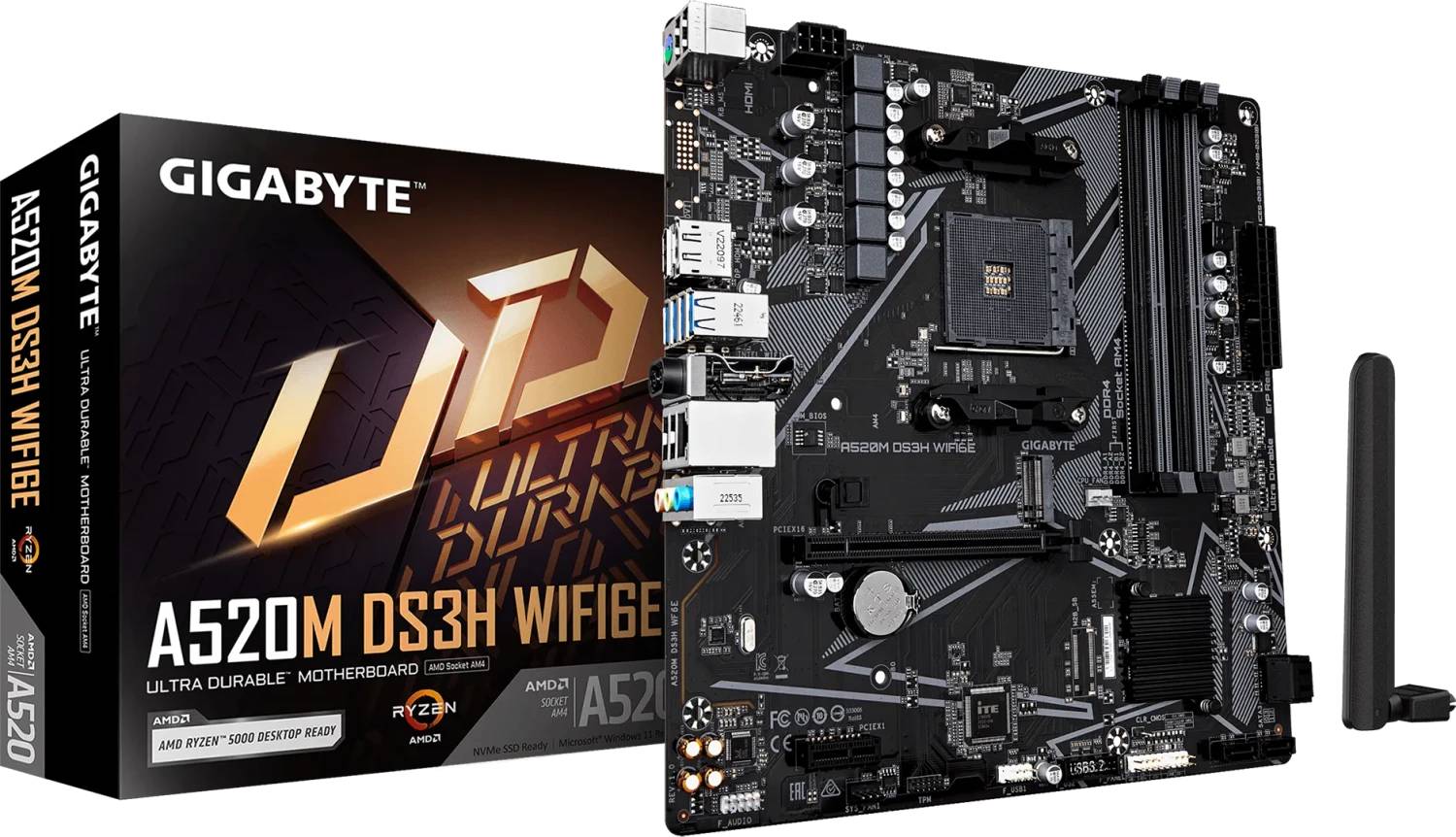

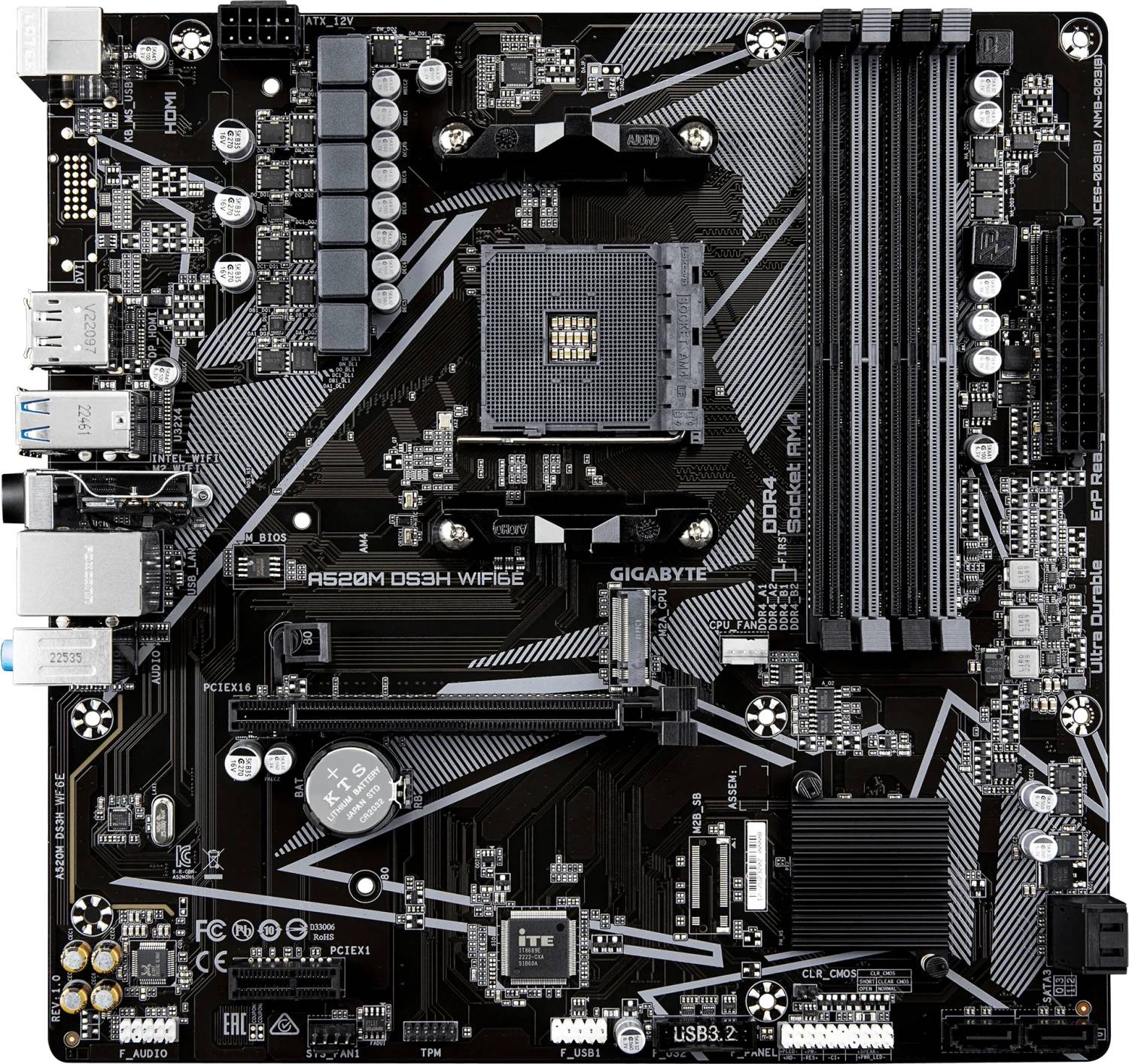

Gigabyte A520M DS3H WIFI6E AM4 Micro-ATX Motherboard
AMD Socket AM4Wi-Fi 6E4x DDR4M.2 PCIe 3.0
The Gigabyte A520M DS3H WIFI6E is a micro-ATX AMD A520 motherboard for Socket AM4 Ryzen processors, adding built-in Wi-Fi 6E to a reliable, value-focused foundation for everyday and home-office builds. It offers four DDR4 DIMM slots, an NVMe PCIe 3.0 x4 M.2 slot, four SATA ports and dual-display HDMI and DisplayPort outputs. Part number A520M DS3H WIFI6E. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
This is a Socket AM4 board with the AMD A520 chipset, supporting Ryzen 5000, 5000 G-Series, 4000 G-Series and 3000 / 3000 G-Series processors — it does not support AM5 (Ryzen 7000+) CPUs, and A520 does not support CPU overclocking. A BIOS update may be required for some CPUs. The onboard HDMI and DisplayPort outputs work only with a Ryzen G-Series APU that has integrated graphics; with a non-APU CPU you need a discrete graphics card.
Best For
✓Everyday and home-office AM4 Ryzen builds
✓Compact micro-ATX system builds
✓Adding built-in Wi-Fi 6E without an add-in card
✓Budget-conscious upgrades on Socket AM4
✓NVMe SSD boot drives via M.2 PCIe 3.0
✓APU-based systems using onboard graphics
Key Features
AMD A520, Socket AM4
Built on the AMD A520 chipset for Socket AM4, supporting Ryzen 5000, 5000/4000 G-Series and 3000 series processors for a dependable mainstream platform.
Integrated Wi-Fi 6E
Onboard Wi-Fi 6E (802.11ax) with Bluetooth adds fast, low-latency wireless on the 6GHz band out of the box, alongside Gigabit Ethernet for wired connections.
Fast NVMe and flexible storage
An NVMe PCIe 3.0 x4 M.2 slot plus four SATA 6Gb/s ports let you combine a fast M.2 boot drive with additional SSDs or hard drives.
Four DDR4 slots, dual channel
Four DDR4 DIMM slots support dual-channel memory up to 128GB (ECC and non-ECC unbuffered), giving room to scale RAM as your needs grow.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The A520M DS3H WIFI6E is a sensible, no-frills base for a budget AM4 Ryzen build that still wants modern Wi-Fi 6E — ideal for office PCs and everyday systems rather than overclocked gaming rigs. If you plan to overclock or want PCIe 4.0, choose a B550 board instead. Complete the build with compatible DDR4 memory and, for non-APU CPUs, a graphics card.
Buyer’s Guide
Buy it if
You are building a value AM4 Ryzen micro-ATX PC and want built-in Wi-Fi 6E, DDR4 support and an NVMe M.2 slot without paying for a high-end board.
Skip it if
You want to overclock the CPU, need PCIe 4.0 or DDR5, or are building on the newer AM5 platform — the A520 chipset does not cover these.
Also consider
A B550 board for CPU overclocking and PCIe 4.0, or an AM5 / B650 motherboard if you want to move to Ryzen 7000 and DDR5.
Features - GigaByte - A520M DS3H WF6E
More Details
Product Code
04:590446
EAN Code
4719331880743
Manufacturer
GigaByte
