Gigabyte X870E AORUS ELITE X3D AM5 ATX Motherboard, DDR5, PCIe 5.0, 4x M.2, 2x USB4, Wi-Fi 7, 5GbE LAN

Brand:
GigaByte
Gigabyte X870E A Elite X AM5 Motherboard AMD X870E A ELITE X
Gigabyte X870E AORUS ELITE X3D AM5 ATX Motherboard, DDR5, PCIe 5.0, 4x M.2, 2x USB4, Wi-Fi 7, 5GbE LAN
€453.54 inc. VAT
Buy
X870E A ELITE X
€381.13 €423.48
€453.54 inc. VAT
Ships from EU stock: 34 item(s)
+ −
Add to wish list Ask a question
Product Code
04:568216
EAN Code
4719331876470
Manufacturer
GigaByte

Quick Specs

Type
ATX motherboard, AMD X870E
Connectors/Interface
2x USB4, 5GbE, Wi-Fi 7
Key spec
PCIe 5.0 x16 + 2x PCIe 5.0 M.2
Compatibility
AM5 · Ryzen 9000/8000/7000 · DDR5
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Gigabyte X870E AORUS ELITE X3D — AM5 ATX board with PCIe 5.0, USB4, Wi-Fi 7 and 5GbE

AMD X870E · AM5DDR5 · 4 DIMM · up to 256GBPCIe 5.0 x16 + 2x PCIe 5.0 M.2Wi-Fi 7 · 5GbE · 2x USB4

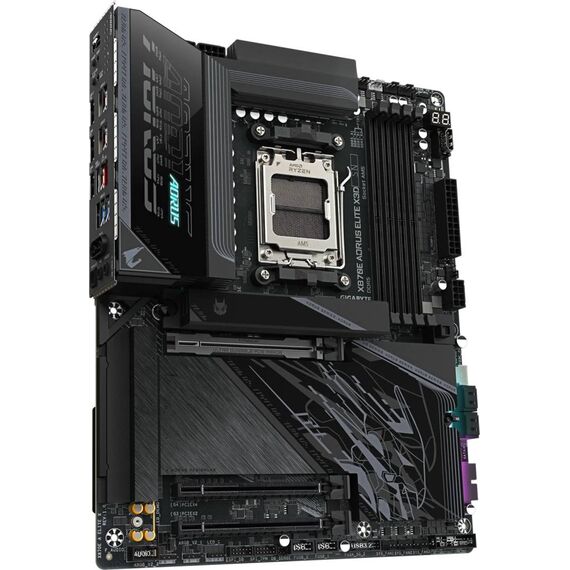

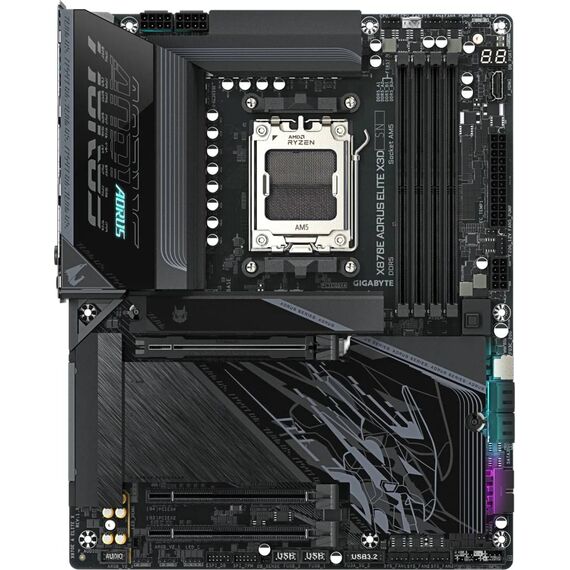

The Gigabyte X870E AORUS ELITE X3D is an ATX motherboard for AMD Socket AM5 with the X870E chipset, built for Ryzen 9000, 8000 and 7000 desktop processors and aimed at gaming and workstation builds that want PCIe 5.0 for both the graphics card and NVMe storage.

It carries four DDR5 slots (up to 256GB, EXPO and XMP profiles), a PCIe 5.0 x16 slot, four M.2 sockets of which two run from the CPU at PCIe 5.0, two USB4 Type-C ports with DisplayPort output, Realtek 5GbE LAN and Qualcomm Wi-Fi 7 with Bluetooth 5.4.

Before you order: Ryzen 8000 (Phoenix) processors reduce the main x16 slot to PCIe 4.0 x8 or x4 and disable the second CPU M.2 socket (M2B_CPU). Using M2B_CPU also shares bandwidth with the USB4 controller (both run at x2). Wi-Fi 7 needs Windows 11 — there is no Windows 10 Wi-Fi driver.

What's in the Box

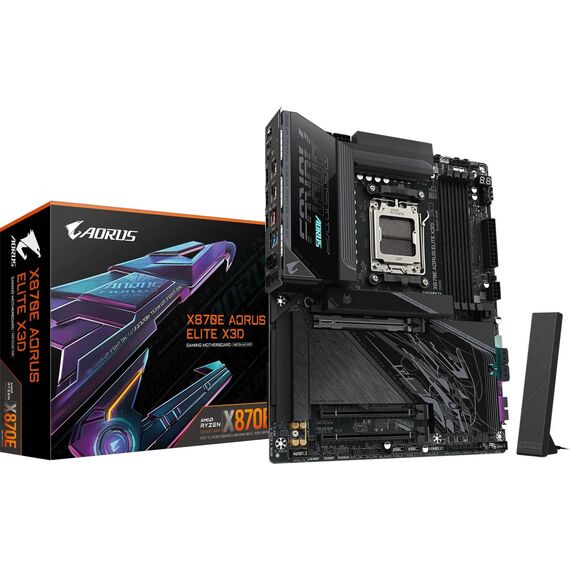

  • Gigabyte X870E AORUS ELITE X3D motherboard (ATX, 30.5 x 24.4 cm)
  • Wi-Fi/Bluetooth antenna for the 2T2R rear connectors
  • Accessories and documentation as packed by Gigabyte — the exact accessory list is not published on the specification page
  • No CPU, memory, cooler or SSD is included

What It Means in Practice

  • Pair a Ryzen 9000 or 7000 CPU with a PCIe 5.0 graphics card and a PCIe 5.0 NVMe SSD in M2A_CPU — both run at full Gen5 x4/x16 speed.
  • Two USB4 Type-C ports (40Gbps class) carry DisplayPort video from the CPU graphics, so a Ryzen with integrated graphics can drive monitors without a GPU.
  • 5GbE LAN plus Wi-Fi 7 (320 MHz channels on 6 GHz) gives fast wired and wireless networking without add-in cards.
  • Four 4-pin system fan headers plus two fan/pump headers make it suitable for AIO and custom-loop cooling.

What Will Not Work

  • Intel processors and older AMD sockets (AM4) — this is AM5 only.
  • DDR4 memory — DDR5 non-ECC unbuffered only.
  • Registered (RDIMM) server memory.
  • PCIe 5.0 speeds with Ryzen 8000 Phoenix CPUs.
  • Wi-Fi 7 under Windows 10.

Key Features


PCIe 5.0 everywhere it counts
CPU-attached PCIe 5.0 x16 slot for the graphics card and two CPU-attached PCIe 5.0 x4 M.2 sockets (M2A_CPU supports up to 25110 length).

USB4 with video
Two rear USB4 Type-C ports with DisplayPort output up to 3840x2160 at 240 Hz, plus 5x USB 3.2 Gen 2 Type-A and a USB 3.2 Gen 2x2 front Type-C header with 65W PD.

5GbE + Wi-Fi 7
Realtek 5GbE LAN and Qualcomm QCNCM865 Wi-Fi 7 (2.4/5/6 GHz) with Bluetooth 5.4.

Builder-friendly I/O
Rear reset, power, Clear CMOS and Q-Flash Plus buttons; BIOS can be updated without CPU or memory installed.

Technical Specifications

Identification
Part Number X870E A ELITE X
EAN / GTIN 4719331876470
Model X870E AORUS ELITE X3D
Brand Gigabyte
Platform
Socket AMD AM5
Chipset AMD X870E
Supported CPUs AMD Ryzen 9000 / 8000 / 7000 Series
Form factor ATX, 30.5 x 24.4 cm
Memory
Slots 4x DDR5 DIMM, dual channel
Maximum 256GB (64GB per DIMM)
Speeds 4800 to 9000 MT/s (OC), AMD EXPO and Intel XMP
Type Non-ECC unbuffered (1Rx8, 2Rx8, 1Rx16)
Expansion and storage
PCIe x16 (CPU) PCIe 5.0 x16 (Ryzen 9000/7000)
PCIe (chipset) 1x PCIe 4.0 x4, 1x PCIe 3.0 x2
M.2 4x M.2 M key: 2x PCIe 5.0 x4 (CPU), 2x PCIe 4.0 x4 (chipset)
SATA 4x SATA 6Gb/s
RAID NVMe RAID 0/1/5/10 (RAID 5 with Ryzen 9000), SATA RAID 0/1/10
Connectivity

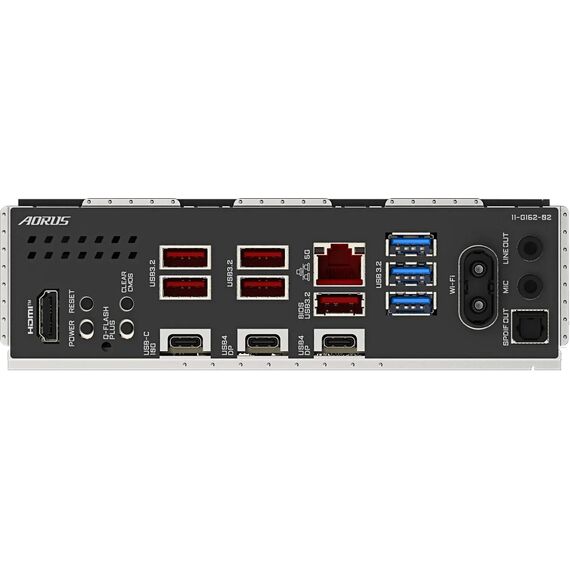

Rear USB 2x USB4 Type-C, 1x USB 3.2 Gen 2 Type-C, 5x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 Type-A
Internal USB 1x USB 3.2 Gen 2x2 Type-C header (65W PD), 2x USB 3.2 Gen 1 headers, 2x USB 2.0 headers
Video 2x USB4 DisplayPort, 1x HDMI 2.1 (rear), 1x HDMI 1.4 (front header)
LAN Realtek 5GbE
Wireless Qualcomm QCNCM865 Wi-Fi 7, Bluetooth 5.4
Audio Realtek ALC1220, 7.1 channel, optical S/PDIF out
Power and cooling
Power connectors 1x 24-pin ATX, 2x 8-pin ATX 12V, 1x PCIe power
Fan headers 1x CPU fan, 1x CPU fan/pump, 4x system fan, 2x system fan/pump
RGB 3x ARGB Gen2, 1x RGB
BIOS 512 Mbit AMI UEFI, Q-Flash, Q-Flash Plus
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Gigabyte regional motherboard warranty (term depends on country) — claims handled through Singular

Frequently Asked Questions

Does it work with a Ryzen 7 9800X3D?
Yes. It supports Ryzen 9000 Series processors on AM5; Gigabyte recommends checking its CPU support list for the minimum BIOS version.
Can I use my DDR4 kit?
No. The board accepts only DDR5 non-ECC unbuffered modules.
Do I need a graphics card?
Only if your Ryzen has no integrated graphics. With integrated graphics, video comes out of the USB4 ports and HDMI.
Singular Expert Insight · Buyer's Guide
The X3D edition is the sensible AM5 choice when you want two Gen5 M.2 sockets, USB4 and 5GbE without paying for flagship extras. Budget for fast DDR5 memory — EXPO kits around 6000 MT/s are the usual sweet spot for Ryzen.
✓ Buy it if you are building a Ryzen 9000/7000 gaming or creator PC and want PCIe 5.0 for GPU and SSD plus USB4.
✕ Skip it if you are on a Ryzen 8000 APU only, or you need a compact Micro-ATX case.
→ Also consider MSI MAG B850 TOMAHAWK MAX WIFI II if you can live without USB4.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
