Gigabyte X870E AORUS XTREME X3D AI TOP AMD AM5 E-ATX Motherboard DDR5 9000 OC 5" LCD Wi-Fi 7 Dual 10GbE

Brand:
GigaByte
Gigabyte X870E AORUS XTREME X3D AI TOP AM5 Motherboard
Gigabyte X870E AORUS XTREME X3D AI TOP AMD AM5 E-ATX Motherboard DDR5 9000 OC 5" LCD Wi-Fi 7 Dual 10GbE
€1513.72 inc. VAT
Buy
X870E A XTR X AI TOP
€1,272.03 €1,413.37
€1,513.72 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
03:276790
EAN Code
4719331878061
Manufacturer
GigaByte

Quick Specs

Socket & Chipset
AMD AM5 · X870E
Memory
DDR5 9000 OC · 256GB Max
PCIe & Storage
2× PCIe 5.0 x16 + 5× M.2
Display & Network
5" LCD · Wi-Fi 7 · 2× 10GbE
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Gigabyte X870E AORUS XTREME X3D AI TOP AM5 E-ATX Motherboard

The flagship X870E enthusiast board: 24+2+2 phase 110A VRM, DDR5-9000 OC, 5" built-in LCD, USB4, dual 10GbE and 5 M.2 slots — tuned for Ryzen X3D and 9000 series.
28-Phase 110A VRMDDR5-9000 OCBuilt-in 5" LCDUSB4 + Wi-Fi 7

The Gigabyte X870E AORUS XTREME X3D AI TOP is the flagship AM5 motherboard tuned for AMD Ryzen X3D processors and the broader Ryzen 9000 / 8000 / 7000 family. It pairs a 24+2+2 phase digital VRM with 110A Smart Power Stages, a built-in 5" LCD for telemetry and custom artwork, DDR5 OC up to 9000 MT/s with AMD EXPO, dual PCIe 5.0 x16, five M.2 slots, dual USB4, Wi-Fi 7 with a directional ARGB antenna, dual 10 GbE LAN and an ES9280A audio DAC with bundled USB ESSential DAC — all in an E-ATX layout designed for serious overclockers, system integrators and AI / creator workstations.

Compatibility Note: Requires an AMD Ryzen 7000, 8000 or 9000-series CPU on Socket AM5 (LGA 1718). E-ATX form factor — please confirm your case supports E-ATX (typically ≤ 305 mm wide). Premium cooling and a high-current 24-pin + dual 8-pin EPS PSU are strongly recommended for X3D and Ryzen 9 9950X-class loads.

Key Features


24+2+2 Phase 110A VRM
A 28-stage digital VRM with 110 A Smart Power Stages on Vcore, a UD Nanocarbon backplate, Thermal Armor Advanced and an 8-layer 2× copper PCB delivers stable, cool power even under extreme X3D overclocking.

DDR5-9000 OC + EXPO
Four DIMM slots support AMD EXPO and DDR5 overclocking up to 9000 MT/s, paired with active DDR Wind Blade memory cooling for ultra-fast 24/7 high-frequency profiles.

Built-in 5" AORUS LCD
A 5" sensor LCD displays CPU temperature, clock speed, fan curves, voltages and custom logos or animations — turning the I/O zone into a live system telemetry dashboard.

AI TOP & X3D Optimisation
AI TOP Utility 2.0 supports local LLM training up to 236B parameters across multiple GPUs, while X3D-specific BIOS tuning unlocks the best performance from Ryzen X3D cache-rich CPUs.

Technical Specifications

Part Number X870E AORUS XTREME X3D AI TOP (X870E A XTR X AI TOP)
Form Factor E-ATX
Socket AMD Socket AM5 (LGA 1718)
CPU Support AMD Ryzen 9000 / 8000 / 7000 series (X3D optimised)
Chipset AMD X870E
Memory 4x DDR5 DIMM, Dual Channel, up to 256 GB, OC up to 9000 MT/s, AMD EXPO
VRM 24+2+2 phases, 110 A Smart Power Stage on Vcore
PCIe Slots 2x PCIe 5.0 x16 (x16 / x8+x8) + 1x PCIe 4.0 x4 (Titanium PCIe UD Slot X)
M.2 Slots 5x M.2: 1x PCIe 5.0 x4 + 4x PCIe 4.0 x4 (M.2 Thermal Guard XL with backplate)
SATA 4x SATA III 6 Gb/s
Onboard Video 1x HDMI (Sensor Panel Link) + DisplayPort via USB4 DP-Alt

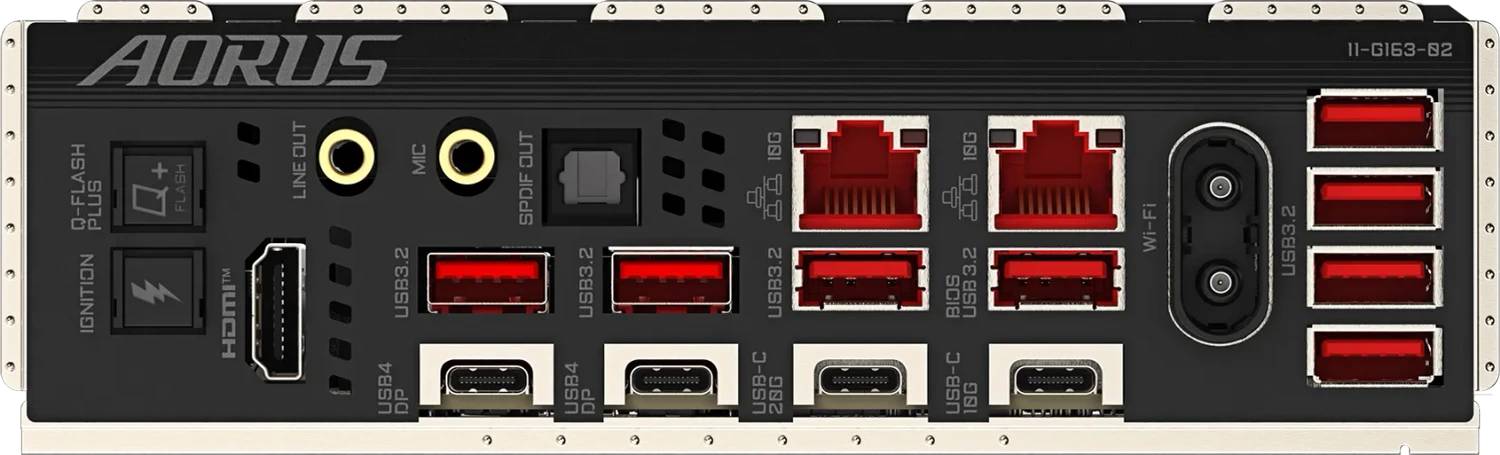

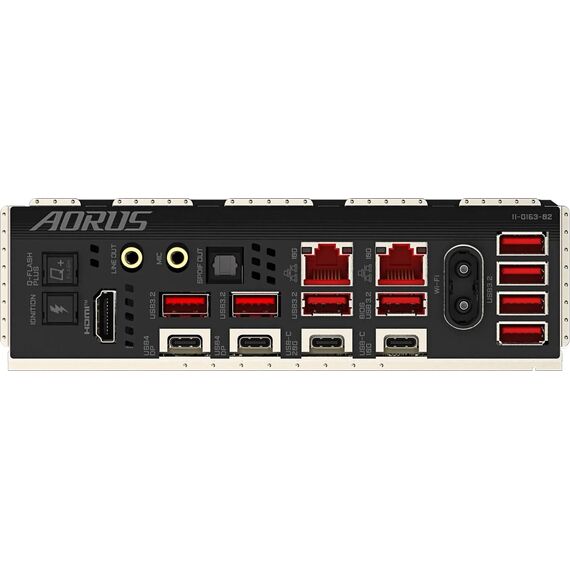

USB — Rear 2x USB4 Type-C 40 Gbps with DP-Alt + 6x USB 3.2 Gen 2 (10 Gbps) + 2x USB 2.0
USB — Internal 1x USB 3.2 Gen 2x2 Type-C front-panel header (20 Gbps) + USB 3.2 Gen 1 + USB 2.0 headers
LAN Dual 10 GbE
Wireless Wi-Fi 7 (320/160 MHz, 4K-QAM, MLO) + Bluetooth 5.4, ARGB directional antenna
Audio DTS:X Ultra + ESS SABRE ES9280A DAC + bundled Front ESSential USB DAC (ES9080A)
Built-in Display 5" LCD sensor panel + Sensor Panel Link HDMI for in-chassis monitor
Power Connectors 24-pin ATX + 8+8-pin EPS (UD Solid Pins)
Fan Headers 10 PWM/DC fan headers (24 W per header)
RGB Headers 1x RGB + 4x ARGB Gen 2
Quality-of-Life Q-Flash Plus, Clear CMOS, Power button, POST code display, EZ-Debug LEDs, M.2 EZ-Latch, PCIe EZ-Latch Plus, WIFI EZ-Plug
AI / OC AI TOP Utility 2.0, AORUS AI SNATCH, Active OC Tuner, HWiNFO Power Monitor, Smart Fan 6
OS Support Windows 11 64-bit
EAN 4719331878061

Frequently Asked Questions

What is the difference between this X3D AI TOP and the non-X3D Xtreme AI TOP?
The X3D variant adds a stronger 24+2+2 phase VRM (vs 18+2+2), a built-in 5" LCD sensor panel, DDR5-9000 OC support (vs 8800), five M.2 slots (vs four), an upgraded ESS ES9280A audio DAC with bundled USB ESSential DAC, and X3D-specific BIOS tuning for AMD's 3D V-Cache CPUs.
Are there any lane-sharing trade-offs I should know about?
Yes — the PCIe 5.0 M.2 slot (M2B) shares lanes with the USB4 controller, so using a USB4 device may drop M2B to x2. Additionally, M2D shares lanes with the PCIe 4.0 x4 expansion slot — populating one disables the other.
Does the 5" LCD require extra cables?
No. The LCD is built into the I/O shroud and connects internally. You can drive additional in-chassis panels via the Sensor Panel Link HDMI port if you want a separate large display for telemetry.
What CPUs benefit most from this board?
It is tuned for AMD Ryzen 7 9800X3D, Ryzen 9 9900X3D, Ryzen 9 9950X3D and the rest of the Ryzen 9000 / 8000 / 7000 series — particularly when paired with high-end DDR5 EXPO kits and premium cooling.
Singular Expert Insight
Choose the X870E AORUS XTREME X3D AI TOP if you are building a flagship Ryzen X3D PC, a high-end creator workstation or a local LLM training rig and want the largest VRM, the highest DDR5 OC headroom, a built-in 5" LCD and the X3D-tuned BIOS. If you do not run X3D-specific workloads or LLM training and prefer to save budget, the regular Gigabyte X870E AORUS XTREME AI TOP (non-X3D) covers most enthusiasts; for more value, the X870E AORUS MASTER X3D ICE offers similar X3D tuning without the 5" LCD and at a lower price.

Buyer's Guide

Buy it if
You are building a flagship Ryzen X3D system, a creator workstation or an AI / LLM training rig and want top-tier VRM, DDR5-9000 OC, dual 10GbE and a built-in 5" LCD.
Skip it if
You are on a tighter budget, do not run X3D workloads or LLM training, or your case cannot accommodate E-ATX boards.
Also consider
X870E AORUS XTREME AI TOP (non-X3D, same flagship tier without 5" LCD), or X870E AORUS MASTER X3D ICE for X3D tuning at a lower price.
