GIGABYTE B850M FORCE rev 1.1 AMD B850 Micro ATX Motherboard AM5 DDR5 PCIe 5.0 M.2 2.5GbE Ryzen 9000 7000
Brand:
GigaByte
GIGABYTE B850M FORCE rev 1.1 AMD B850 Micro ATX Motherboard AM5 DDR5 PCIe 5.0 M.2 2.5GbE Ryzen 9000 7000
€165.61 inc. VAT
B850M FORCE
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
GIGABYTE B850M FORCE rev. 1.1 — AMD B850 Micro ATX for Socket AM5, DDR5 and PCIe 5.0
AMD B850 / Socket AM5PCIe 5.0 x16 + PCIe 5.0 M.23 x M.2 with Thermal Guard2.5GbE LAN

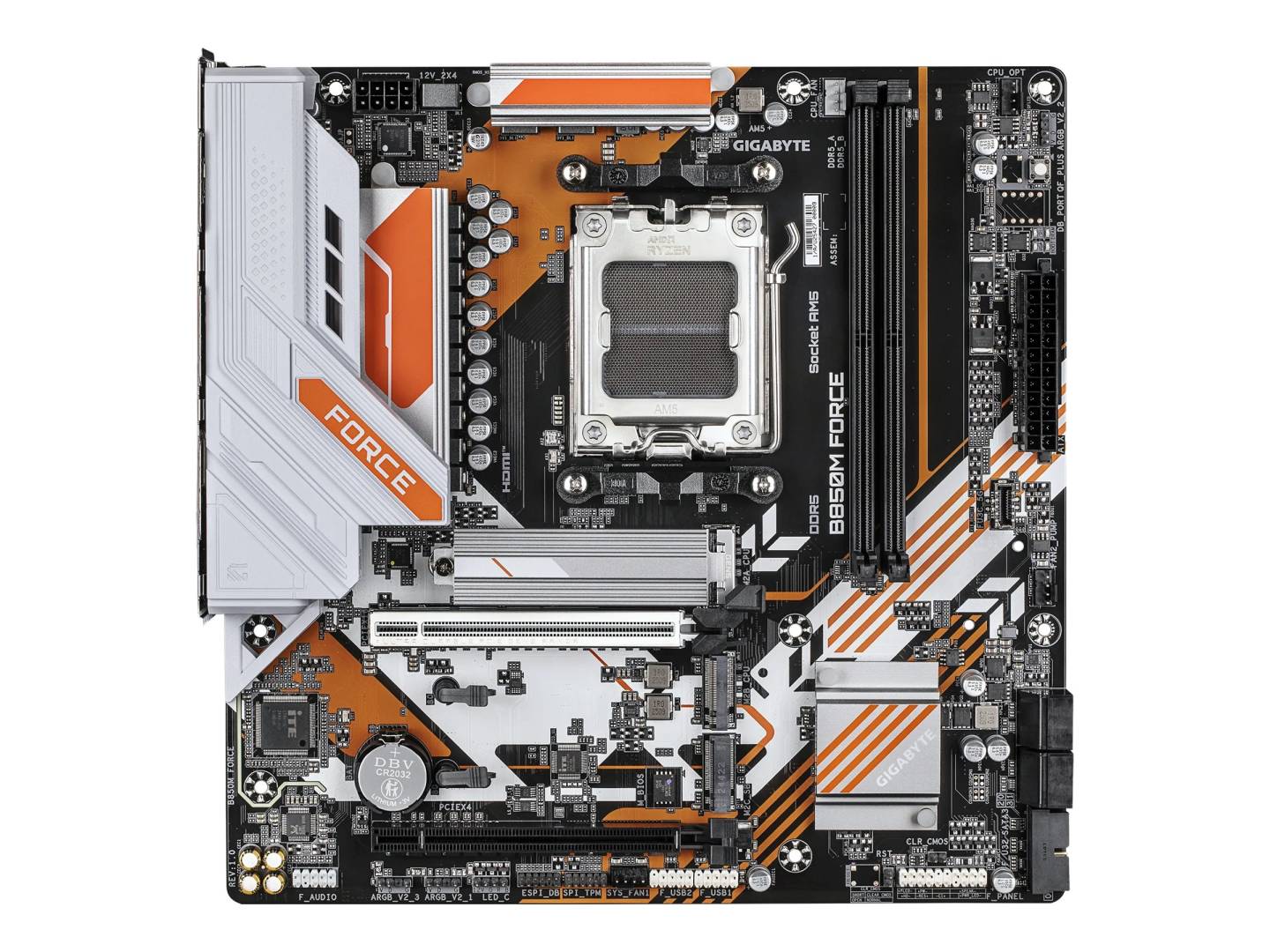

The GIGABYTE B850M FORCE rev. 1.1 is a micro ATX motherboard built on the AMD B850 chipset for Socket AM5, pairing a PCIe 5.0 x16 graphics slot with three M.2 slots in a 24.4 x 24.4 cm board aimed at compact Ryzen gaming and workstation builds. It carries the part number B850M FORCE rev. 1.1 (EAN 4719331874322) and supports AMD Ryzen 9000, 8000 and 7000 Series processors with dual-channel DDR5 up to 128 GB. An 8+2+2 phase digital VRM with DrMOS and a fully covered MOSFET heatsink handle sustained loads, while Realtek 2.5GbE handles networking. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
This is the plain B850M FORCE — it has no Wi-Fi and no Bluetooth. The B850M FORCE WIFI6E is a separate part number; if you need wireless, buy that model or add a PCIe or USB adapter. The board takes Socket AM5 processors only (Ryzen 9000, 8000 and 7000 Series); AM4 chips do not fit. There are only 2 DDR5 slots, so 128 GB means two 64 GB modules, and DDR4 is not supported. PCIe 5.0 x16 and the PCIe 5.0 CPU M.2 slot require a Ryzen 9000 or 7000 Series CPU — on Ryzen 8000 Series both drop to PCIe 4.0. The HDMI and DisplayPort outputs only work with a CPU that has integrated graphics. Check your case supports micro ATX (24.4 x 24.4 cm), and note the board uses a single 8-pin ATX 12V connector alongside the 24-pin.
Best For
✓ Compact micro ATX Ryzen 9000 gaming builds
✓ Workstations that need three NVMe drives on one board
✓ Upgrades from AM4 that move to DDR5 and PCIe 5.0
✓ Systems using wired 2.5GbE rather than Wi-Fi
✓ Builders who want EXPO memory overclocking headroom
✓ Quiet builds using Smart Fan 6 curve control
Key Features
8+2+2 digital VRM with full MOSFET heatsink
An 8+2+2 phase digital PWM and DrMOS power stage design feeds the AM5 socket, covered by a fully covered MOSFET heatsink with a 3x larger surface area. That is the part of a B850 board that decides whether a Ryzen 9 holds its boost clocks under a long render or a full-load game session rather than backing off.
Three M.2 slots, one of them PCIe 5.0
M2A_CPU runs at PCIe 5.0 x4 on Ryzen 9000 and 7000 Series CPUs, M2B_CPU at PCIe 4.0 x4 and M2C_SB at PCIe 4.0 x2, all under M.2 Thermal Guard heatsinks that keep high-speed NVMe drives out of thermal throttling. Four SATA 6 Gb/s ports remain for hard disks and 2.5-inch SSDs.
DDR5 up to 9600 MT/s with AMD EXPO
Two DIMM sockets run dual-channel DDR5 to a rated 9600 MT/s when overclocked, with one-click AMD EXPO and XMP profiles and support for up to 128 GB. A two-slot layout keeps trace lengths short, which is generally why 2-DIMM boards clock higher than 4-DIMM ones.
2.5GbE LAN, PCIe EZ-Latch and Q-Flash Plus
A Realtek 2.5GbE controller gives 2.5 Gbps wired networking, PCIe EZ-Latch releases the graphics card with a single click, and Q-Flash Plus lets you update the BIOS from a USB stick with no CPU, memory or graphics card installed — useful when fitting a newer Ryzen to an older BIOS revision.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
B850 sits in a useful spot: you get the PCIe 5.0 graphics slot and a PCIe 5.0 CPU M.2 slot that B650 boards often omit, without paying X870 prices for USB4. The FORCE line is the value end of that stack, and the honest trade is the missing wireless — if your desk has an Ethernet run, skipping Wi-Fi here is free money that GIGABYTE has spent on the 8+2+2 VRM and the M.2 heatsinks instead. Two DIMM slots is the other thing to weigh: it caps you at 128 GB, but it is also why this board is rated all the way to DDR5-9600, so pick a fast 2-module DDR5 memory kit rather than planning to add sticks later. Pair it with a PCIe 5.0-ready card from our graphics cards range if you want the x16 slot doing what it was built for, and keep the second x16 slot in mind for a capture card or HBA — it is wired for PCIe 4.0 x4.
Buyer's Guide
Buy it if
You want a compact AM5 build with PCIe 5.0 for both graphics and a primary NVMe drive, three M.2 slots with heatsinks, and 2.5GbE wired networking, on a board that keeps DDR5 overclocking headroom.
Skip it if
You need Wi-Fi or Bluetooth built in, you want four DIMM slots or more than 128 GB, you need USB4 or Thunderbolt, or your case only takes full ATX and you would rather have extra PCIe slots.
Also consider
The GIGABYTE B850M FORCE WIFI6E for the same board with Wi-Fi 6E and Bluetooth, or a B650 micro ATX board if PCIe 5.0 is not a requirement and budget matters more.
Features - GigaByte - B850M FORCE
CPU Socket
- Socket AM5
Colour
black
More Details
Product Code
03:276796
EAN Code
4719331874322
Manufacturer
GigaByte
