Gigabyte B860M AORUS ELITE WIFI6E ICE LGA1851 Micro-ATX Motherboard, DDR5, PCIe 5.0, USB4, Wi-Fi 6E, White
Brand:
GigaByte
Gigabyte B860M AORUS ELITE WIFI6E ICE LGA1851 Micro-ATX Motherboard, DDR5, PCIe 5.0, USB4, Wi-Fi 6E, White
€271.2 inc. VAT
B860M A ELT WF6E ICE 1.0
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Gigabyte B860M AORUS ELITE WIFI6E ICE — white LGA1851 Micro-ATX with PCIe 5.0 and USB4
Intel B860 · LGA1851White ICE design · Micro-ATXPCIe 5.0 x16 + PCIe 5.0 M.2USB4 · Wi-Fi 6E · 2.5GbE

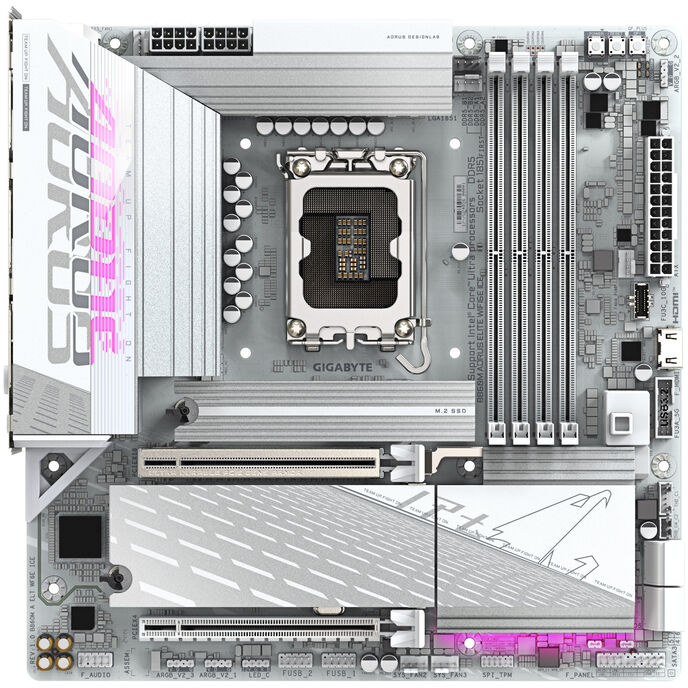

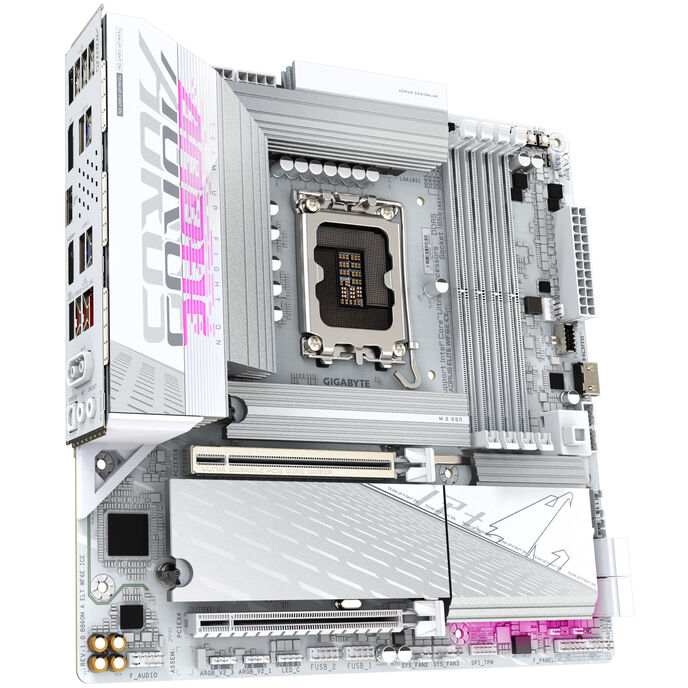

The Gigabyte B860M AORUS ELITE WIFI6E ICE (rev. 1.0) is a white Micro-ATX motherboard with the Intel B860 chipset and LGA1851 socket, made for Intel Core Ultra (Series 2) desktop processors in compact gaming and white-themed builds.

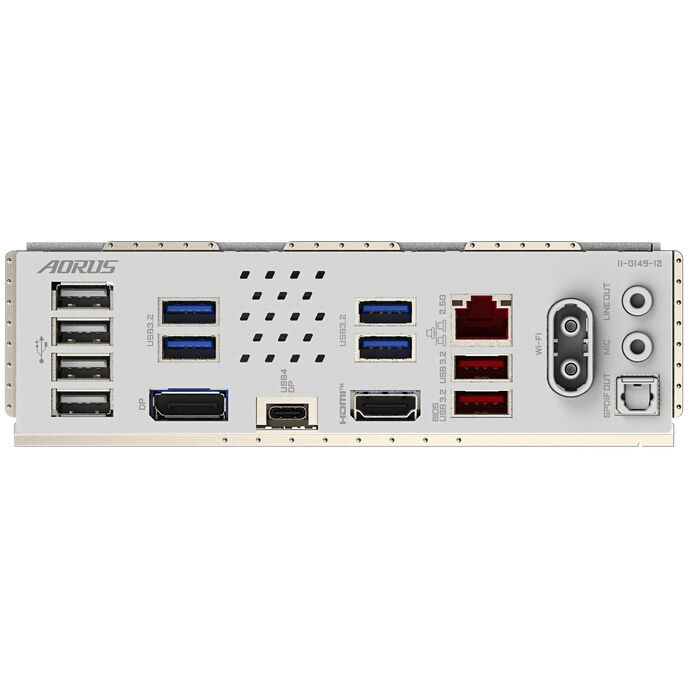

It has four DDR5 slots (up to 256GB, up to 9200 MT/s OC with XMP), a PCIe 5.0 x16 slot, three M.2 sockets with one PCIe 5.0 x4 from the CPU, a rear USB4 Type-C port, DisplayPort 2.1 and HDMI 2.1, Realtek 2.5GbE and Intel Wi-Fi 6E AX211 with Bluetooth 5.3.
Before you order: This is the rev. 1.0 board with Intel AX211 Wi-Fi; rev. 1.1 uses a Realtek Wi-Fi 6E module. LGA1851 only: 12th–14th gen Core processors (LGA1700) do not fit.

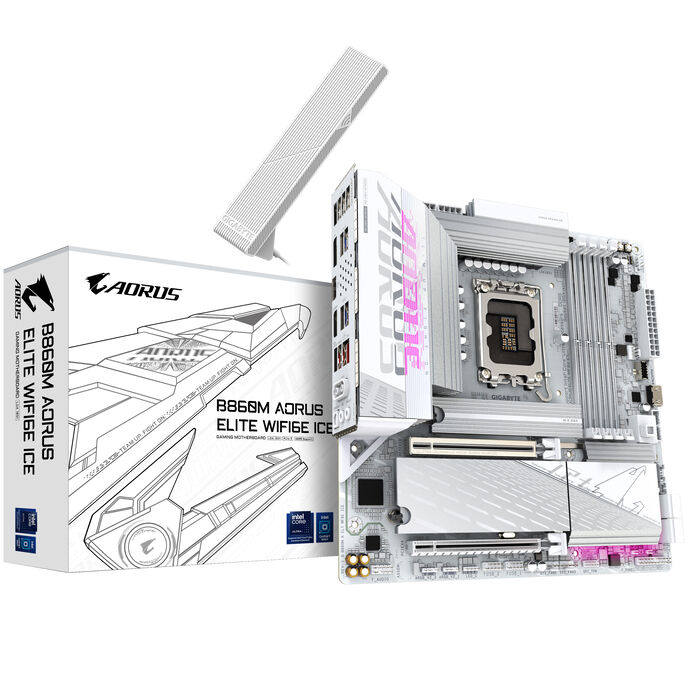

What's in the Box
- Gigabyte B860M AORUS ELITE WIFI6E ICE motherboard (Micro-ATX, 24.4 x 24.4 cm), white
- Wi-Fi/Bluetooth antenna for the 2T2R connectors and accessories as packed by Gigabyte — the exact accessory list is not published on the specification page
- No CPU, memory, cooler or SSD is included
What It Means in Practice
- Matches white cases, coolers and graphics cards for an all-white build.
- The CPU-attached PCIe 5.0 x4 M.2 (M2A_CPU) and PCIe 5.0 x16 slot give full Gen5 speed for SSD and graphics card.
- USB4, DisplayPort 2.1 and HDMI 2.1 support up to four displays with the processor graphics.
- 2.5GbE plus Wi-Fi 6E covers both wired and 6 GHz wireless networking.
What Will Not Work
- Intel 12th/13th/14th gen Core (LGA1700) or AMD processors.
- DDR4 memory.
- Video output from a Core Ultra F model without integrated graphics.
- Wi-Fi 7 — this is Wi-Fi 6E.
Key Features
Gen5 for GPU and SSD
PCIEX16 PCIe 5.0 x16 and M2A_CPU PCIe 5.0 x4 from the CPU; two more chipset M.2 at PCIe 4.0 x4 (M2N_SB up to 25110).
USB4 and modern video
Rear USB4 Type-C with DisplayPort, DisplayPort 2.1 and HDMI 2.1; quad-display support.
Fast memory
4x DDR5 up to 256GB with XMP, overclocked speeds up to 9200 MT/s depending on CPU and kit.
Builder extras
Q-Flash Plus, two Thunderbolt add-in card connectors and 6 fan/pump headers.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A strong compact Core Ultra board: Gen5 for graphics and SSD, USB4 and DP 2.1, in white. Choose matching white DDR5 memory if the look matters, and check that your case is Micro-ATX or larger.
✓ Buy it if you are building a white Core Ultra PC in a Micro-ATX or larger case.
✕ Skip it if you have an LGA1700 processor or want Wi-Fi 7.
→ Also consider Gigabyte X870E AORUS ELITE X3D for an AMD Ryzen build.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - GigaByte - B860M A ELT WF6E ICE 1.0
CPU Socket
- Socket 1851
Colour
white
More Details
Product Code
04:518938
EAN Code
4719331867164
Manufacturer
GigaByte
