Gigabyte B860M D3HP Micro-ATX Motherboard LGA 1851 Intel B860 DDR5 PCIe 5.0 Dual M.2 HDMI DisplayPort Black
Brand: GigaByte
Gigabyte B860M D3HP Micro-ATX Motherboard LGA 1851 Intel B860 DDR5 PCIe 5.0 Dual M.2 HDMI DisplayPort Black
€163.41 inc. VAT
B860M D3HP
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Gigabyte B860M D3HP — Micro-ATX Foundation for Intel Core Ultra
LGA 1851 · Intel B8604× DDR5 up to 9066 MT/s OCPCIe 5.0 x16 + Dual M.2HDMI 2.1 · DisplayPort 2.1

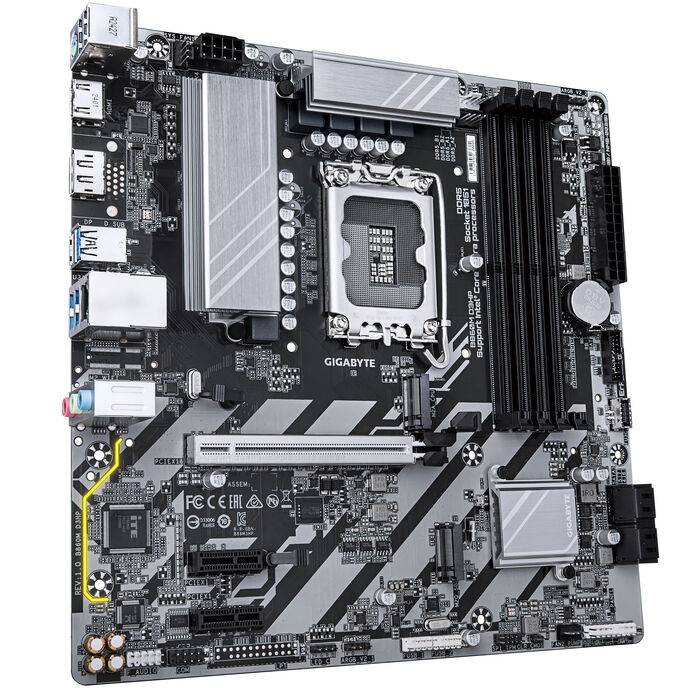

The Gigabyte B860M D3HP is a micro-ATX motherboard built on the Intel B860 chipset and the LGA 1851 socket, supporting Intel Core Ultra Series 2 (Arrow Lake) desktop processors. Sold under Gigabyte part number B860M D3HP (EAN 4719331866860), it combines four DDR5 slots, a PCIe 5.0 x16 graphics slot and dual PCIe 4.0 M.2 storage in a compact, value-focused board ideal for mainstream productivity and gaming builds. Typically in stock with fast delivery across Cyprus.
Compatibility — read before buying
This is an LGA 1851 board supporting only Intel Core Ultra Series 2 (Arrow Lake) desktop CPUs — it does not work with LGA 1700 (12th/13th/14th Gen) processors. It uses DDR5 memory only (no DDR4) and fits Micro-ATX or larger cases.
Best For
✓Mainstream Intel Core Ultra productivity builds
✓Value-oriented gaming PCs with a PCIe 5.0 GPU
✓Builders needing dual NVMe + four SATA drives
✓Large DDR5 capacity (up to 256GB) workloads
✓Compact Micro-ATX chassis
✓First-time builders wanting modern connectivity on a budget
Key Features
PCIe 5.0 graphics ready
A PCIe 5.0 x16 slot with Gigabyte’s reinforced UD Slot supports next-generation graphics cards, plus two PCIe 4.0 x1 slots for add-in cards.
Dual PCIe 4.0 M.2 + 4× SATA
Two PCIe 4.0 x4 M.2 slots (2280) — one from CPU, one from chipset — plus four SATA 6Gb/s ports with RAID 0/1/5/10 for flexible storage.
High-capacity DDR5
Four DDR5 DIMM slots support up to 256GB in dual channel, with overclocked speeds reaching 9066 MT/s for fast, future-proof memory.
Modern display & audio

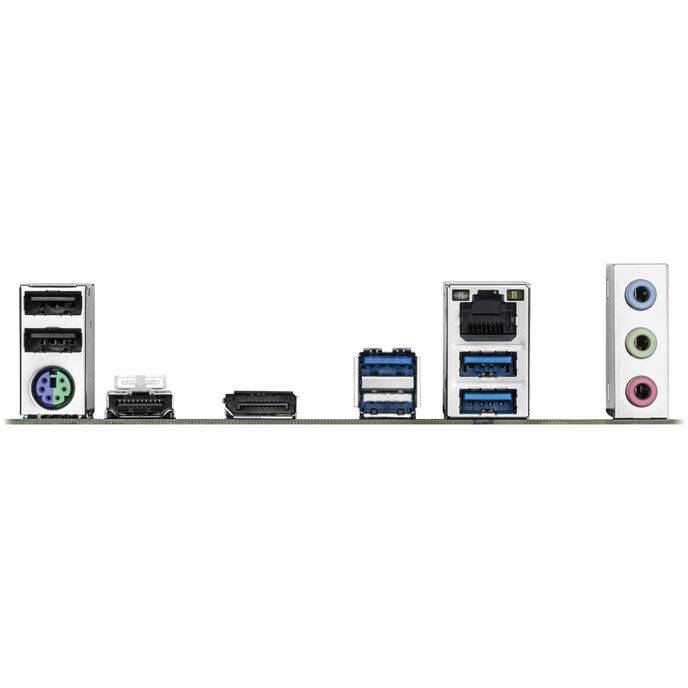

HDMI 2.1 (HDCP 2.3) and DisplayPort 2.1 (up to 3840×2160 @144Hz) for integrated graphics, with 8-channel HD audio and high-end audio capacitors.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The B860M D3HP is Gigabyte’s practical, value-focused B860 micro-ATX board — it covers the essentials (PCIe 5.0 x16, dual Gen4 M.2, four DDR5 slots, GbE LAN) without paying for Wi-Fi or premium VRMs. If you want built-in Wi-Fi, look at the B860M DS3H WIFI6E instead; if you need a flagship VRM and Thunderbolt for a small build, the MSI MPG B860I Edge Ti WiFi is a step up. Pair it with a fast internal NVMe SSD to make the most of the M.2 slots.
Buyer's Guide
Buy it if
You want an affordable, full-featured micro-ATX board for an Intel Core Ultra build with PCIe 5.0, dual M.2 and up to 256GB DDR5.
Skip it if
You need built-in Wi-Fi/Bluetooth, Thunderbolt, or a flagship VRM for heavy overclocking — choose a higher-tier B860 or Z890 board.
Also consider
The Gigabyte B860M DS3H WIFI6E for integrated Wi-Fi, or a Z890 board if you want CPU overclocking headroom.
Features - GigaByte - B860M D3HP
CPU Socket
- Socket 1851
Colour
black
Interface
- USB3.0
- M.2
- Ethernet
More Details
Product Code
03:260872
EAN Code
4719331866860
Manufacturer
GigaByte
