GIGABYTE B760 DS3H DDR4 Intel B760 LGA1700 ATX Motherboard
Brand:
GigaByte
B760 DS3H DDR4
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
GIGABYTE B760 DS3H DDR4 — LGA1700 ATX Platform
Intel B760LGA1700DDR4ATX
The GIGABYTE B760 DS3H DDR4 is an ATX motherboard based on the Intel B760 Express chipset for LGA1700 processors. It supports Intel Core 14th, 13th and 12th Generation processors together with compatible Pentium Gold and Celeron models, while retaining DDR4 memory support for practical upgrades and new builds. Two PCIe 4.0 M.2 connectors, four SATA 6Gb/s ports, rear USB-C at up to 20Gbps and Gigabit Ethernet provide a balanced set of expansion and connectivity options.
Compatibility — check before buying:
This is specifically the DDR4 version of the B760 DS3H. It does not accept DDR5 modules. The board uses the LGA1700 socket, so it is intended for supported 12th, 13th and 14th Generation Intel processors rather than newer LGA1851 CPUs. CPU and memory support can depend on BIOS revision and the exact processor installed, so check GIGABYTE's current support lists before purchase.
Best For
✓ 12th, 13th and 14th Gen Intel desktop builds
✓ Systems reusing existing DDR4 memory
✓ PCs needing two PCIe 4.0 M.2 SSDs
✓ Full-size ATX cases with multiple expansion cards
Key Features
LGA1700 with Intel B760
GIGABYTE lists support for Intel Core 14th, 13th and 12th Generation processors, along with compatible Pentium Gold and Celeron CPUs. Check the current CPU support list for the BIOS version required by your exact processor.
Four DDR4 slots
Four DDR4 DIMM sockets provide dual-channel memory support with up to 128GB total capacity. GIGABYTE lists native DDR4 speeds up to 3200 MT/s and higher overclocked memory data rates up to DDR4-5333 through compatible XMP configurations.
Dual PCIe 4.0 M.2 storage
The board provides two M.2 Socket 3 connectors for PCIe 4.0 x4/x2 NVMe SSDs. The CPU-connected socket accepts type 22110 and 2280 drives, while the chipset-connected socket supports type 2280 drives. Four SATA 6Gb/s connectors handle additional storage.
Rear USB-C at up to 20Gbps

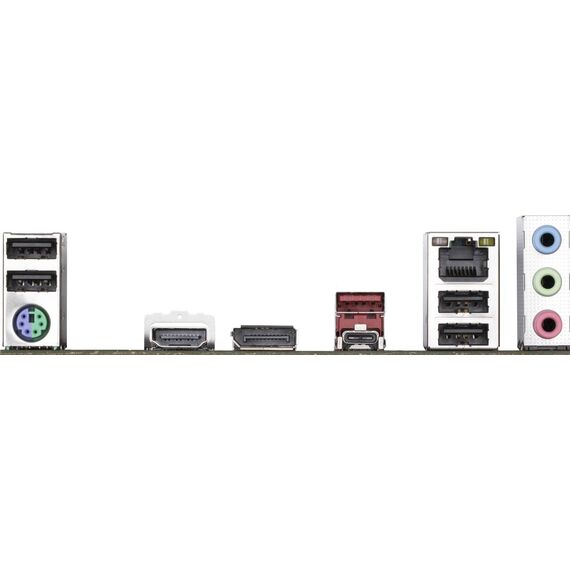

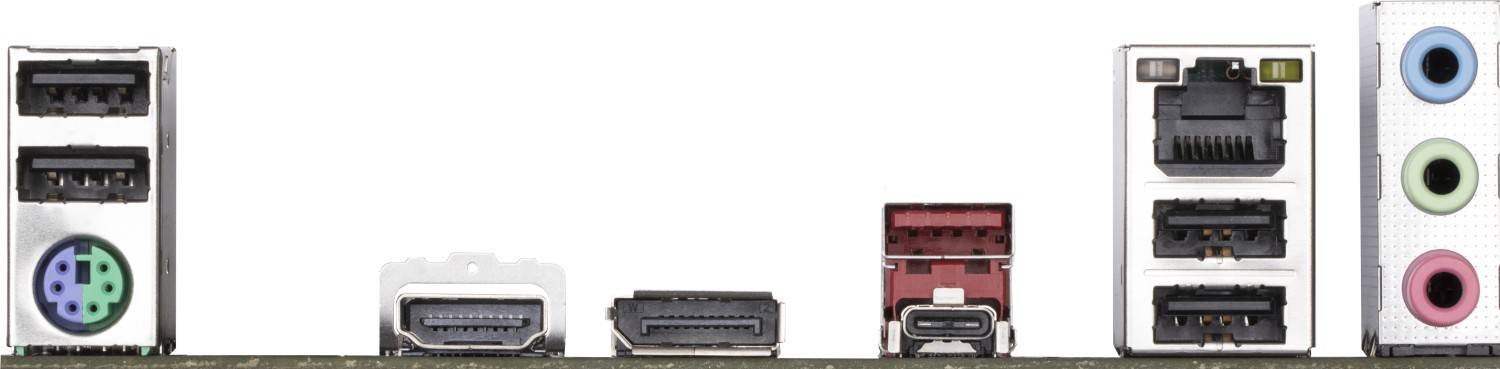

A rear USB Type-C port supports USB 3.2 Gen 2x2 at up to 20Gbps. The back panel also provides one USB 3.2 Gen 2 Type-A port, four USB 2.0 ports, HDMI, DisplayPort, Gigabit Ethernet and audio connections.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The B760 DS3H DDR4 makes the most sense when you want to stay with DDR4 while moving to an LGA1700 platform with modern storage and connectivity. Four DIMM slots give more upgrade flexibility than basic two-slot boards, and the two PCIe 4.0 M.2 sockets let you run separate system and data SSDs without relying on SATA. Rear USB-C at 20Gbps is also a useful inclusion on a mainstream board. The important distinction is the exact memory version: this EAN corresponds to the DDR4 model, so DDR5 modules are not compatible.
Buyer’s Guide
Buy it if
You need an ATX LGA1700 motherboard with DDR4, four memory slots, dual PCIe 4.0 M.2 storage and a fast rear USB-C connection.
Skip it if
You specifically want DDR5, built-in Wi-Fi, 2.5GbE networking or an LGA1851 motherboard for newer Intel Core Ultra desktop processors.
Check first
Confirm the BIOS supports your exact CPU, use DDR4 memory, and make sure your case accepts the full ATX 30.5 x 24.4cm board size.
Features - GigaByte - B760 DS3H DDR4
CPU Socket
- Socket 1700
More Details
Product Code
04:420582
EAN Code
4719331850746
Manufacturer
GigaByte
