Gigabyte AORUS Gen5 14000 SSD 4TB M.2 2280 PCIe 5.0 x4 NVMe Internal SSD (AG514K4TB)

Brand:
GigaByte
Gigabyte AORUS Gen5 14000 4TB M.2 PCIe 5.0 NVMe SSD
Gigabyte AORUS Gen5 14000 SSD 4TB M.2 2280 PCIe 5.0 x4 NVMe Internal SSD (AG514K4TB)
€941.39 inc. VAT
Buy
AG514K4TB
€791.08 €878.98
€941.39 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:520078
EAN Code
4719331862596
Manufacturer
GigaByte
Quick Specs
Capacity
4TB (4000 GB)
Interface
PCIe 5.0 x4 · NVMe 2.0
Speed
14,100 / 12,600 MB/s read/write
Form factor
M.2 2280 · bare (no heatsink)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

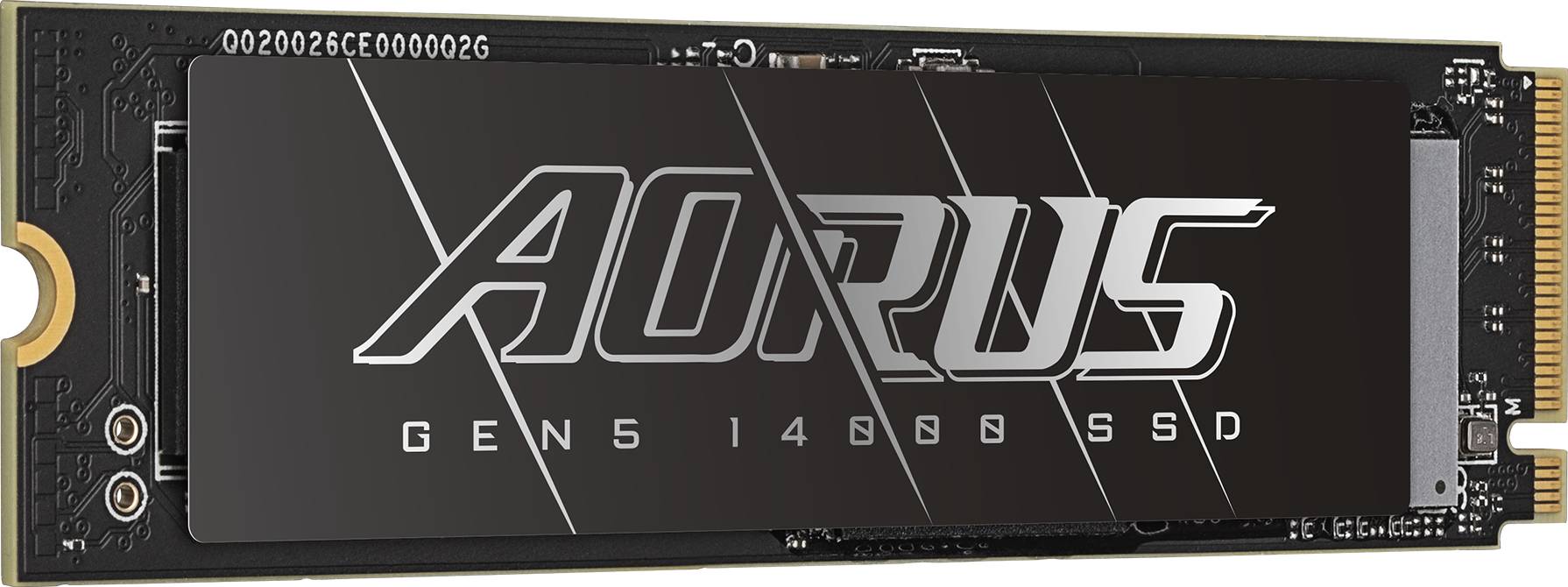

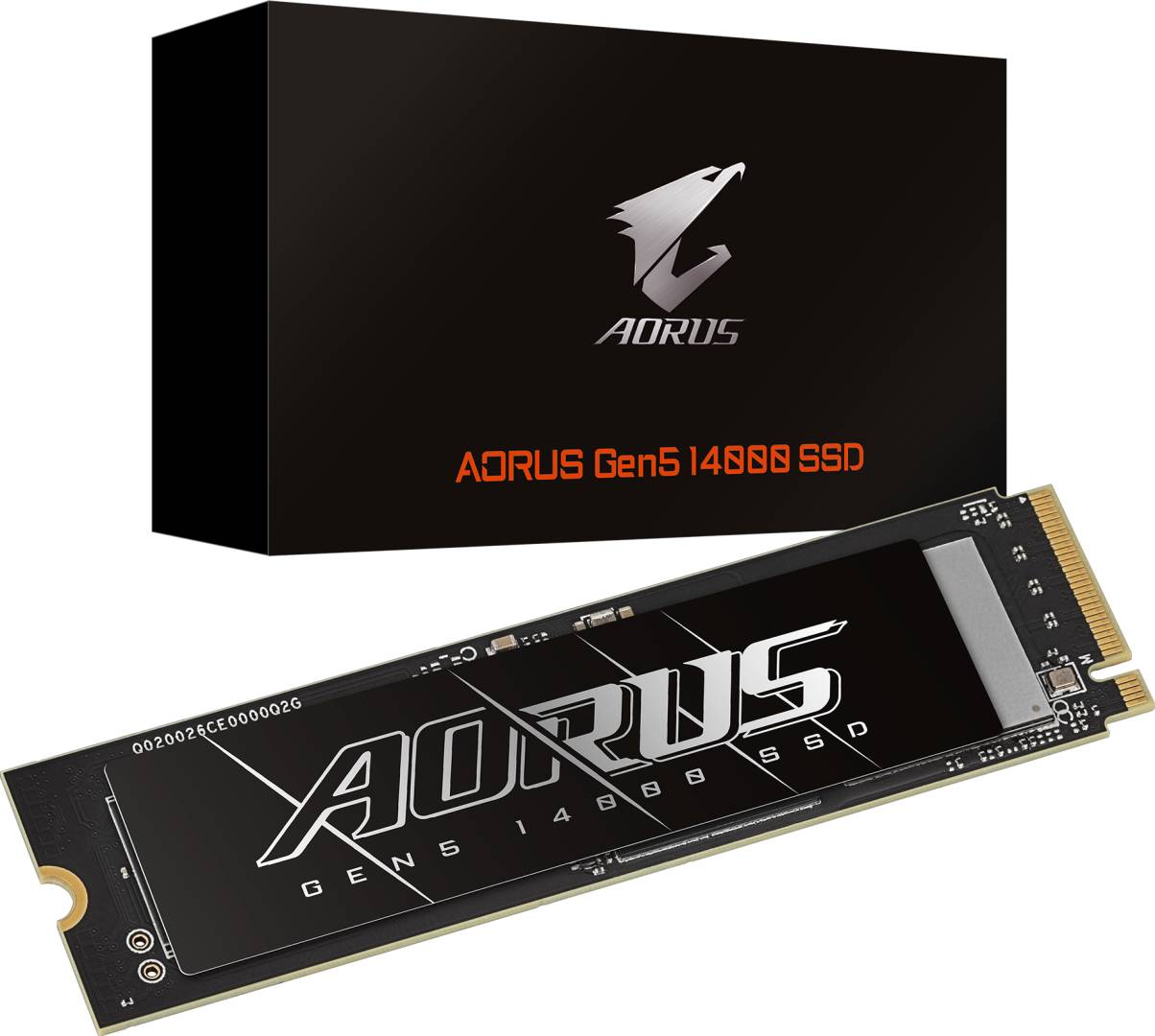

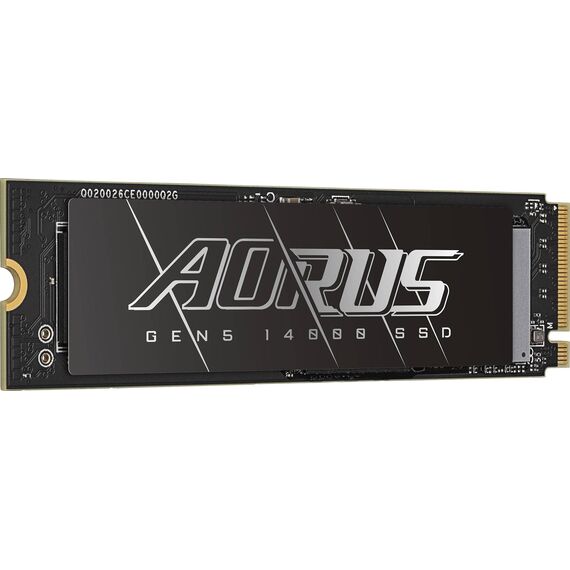

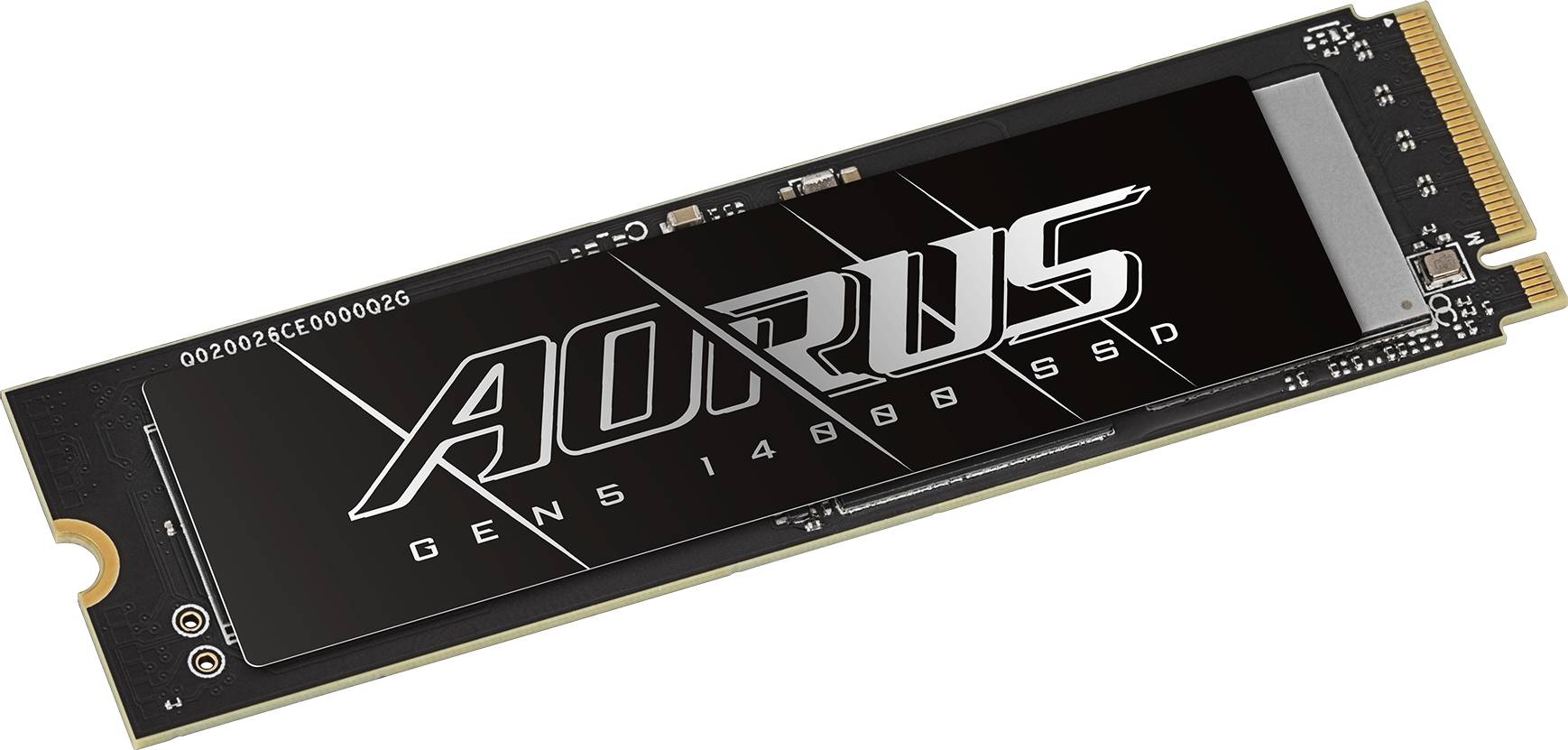

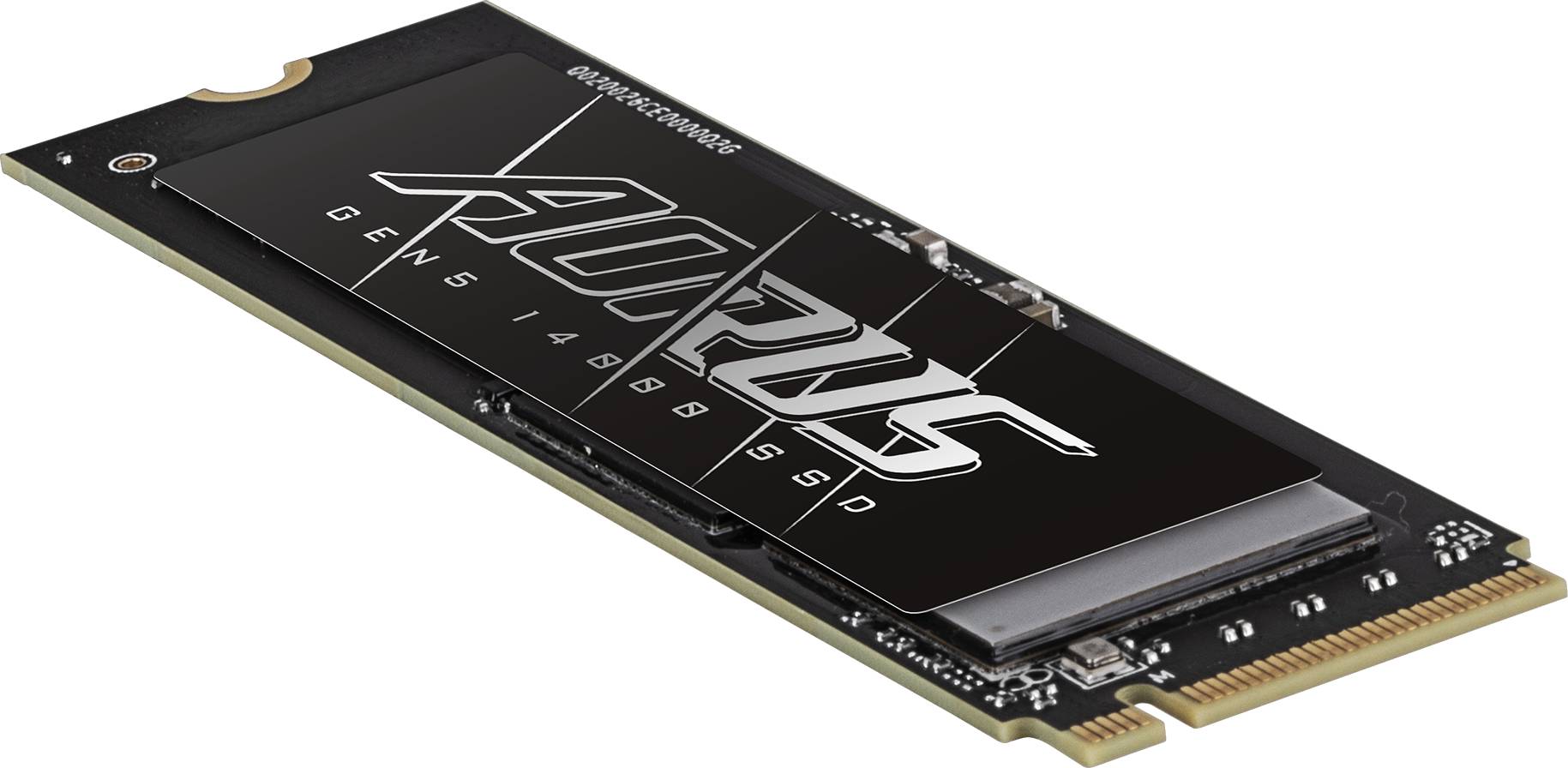

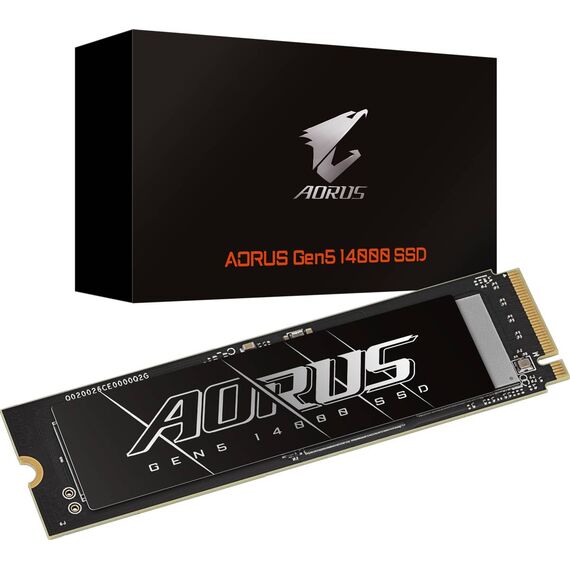

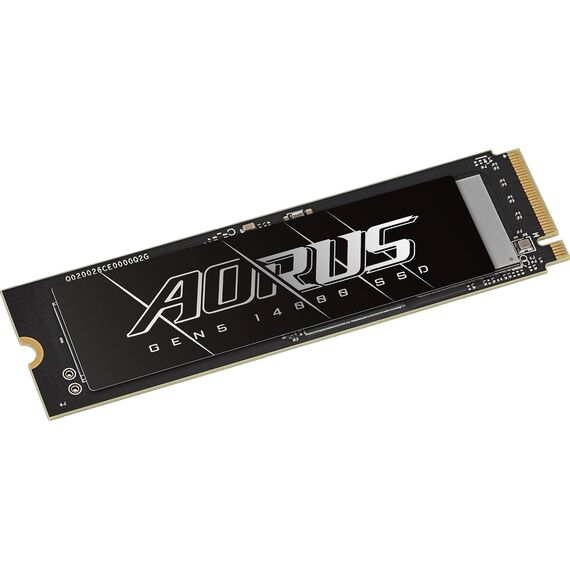

Gigabyte AORUS Gen5 14000 SSD 4TB — PCIe 5.0 x4 NVMe M.2 2280

PCIe 5.0 x4 · NVMe 2.0Up to 14,100 MB/s read4TB · 3D TLC5-year / 3000 TBW

The Gigabyte AORUS Gen5 14000 SSD 4TB (part number AG514K4TB) is a PCIe 5.0 x4 NVMe M.2 2280 drive with sequential reads up to 14,100 MB/s, aimed at gamers, content creators and workstation builders who want Gen5 speed and a large capacity in one slot.

It pairs the Phison PS5026-E26 controller with 232-layer 3D TLC NAND and an 8GB LPDDR4 DRAM cache, so sustained transfers, large project files and game installs stay fast. Endurance is rated at 3000 TBW with a limited 5-year warranty.

Compatibility note: The drive ships bare, without its own heatsink — Gigabyte states it must be used under a motherboard M.2 heatsink to avoid thermal throttling. Full speed needs a PCIe 5.0 M.2 slot (e.g. AMD X870/X870E/B850/B650E or Intel Z890); in a PCIe 4.0 slot it works at Gen4 speeds.

Key Features


Phison E26 Gen5 controller
12 nm PCIe 5.0 x4 controller with 8 NAND channels and NVMe 2.0 support — roughly double the bandwidth of a fast PCIe 4.0 drive.

8GB DRAM cache + TLC NAND
A dedicated 8GB LPDDR4 cache and 232-layer 3D TLC NAND keep random access and long writes consistent, unlike DRAM-less budget drives.

High endurance
3000 TBW and 1.6 million hours MTBF, backed by a limited 5-year warranty (whichever limit comes first) and monitored via GIGABYTE Control Center / SSD Toolbox.

Technical Specifications

Identification
Part Number AG514K4TB
EAN/GTIN 4719331862596
MPN AG514K4TB
Brand Gigabyte (AORUS)
Model AORUS Gen5 14000 SSD 4TB
Performance
Sequential read Up to 14,100 MB/s
Sequential write Up to 12,600 MB/s
Controller Phison PS5026-E26 (12 nm)
NAND 3D TLC NAND (232-layer) — TLC stores 3 bits per cell
DRAM cache 8GB LPDDR4
Interface & Physical
Interface PCIe 5.0 x4, NVMe 2.0
Form factor M.2 2280 (80 x 22 x 3.5 mm)
Heatsink Not included — use motherboard M.2 heatsink
Capacity 4000 GB (1 GB = 1 billion bytes)
Power & Environment
Max operating power 11.5 W (read / write)
Idle (PS3) < 144 mW
L1.2 (PS4) < 85 mW
Operating temperature 0 °C to 70 °C
Storage temperature -40 °C to 85 °C
Reliability
MTBF 1.6 million hours
Endurance 3000 TBW (JEDEC workload)
Warranty Limited 5 years or 3000 TBW, whichever comes first

Frequently Asked Questions

Does the AORUS Gen5 14000 4TB work in a PCIe 4.0 motherboard?
Yes. PCIe is backward compatible, so the drive runs in any M.2 2280 NVMe (M-key) slot, but in a PCIe 4.0 slot it is limited to Gen4 bandwidth of roughly 7,000 MB/s.
What is the difference between the 4TB and the 2TB AORUS Gen5 14000?
The 2TB model (AG514K2TB) is rated slightly higher at 14,500 / 12,700 MB/s, while the 4TB model trades a few hundred MB/s for double the capacity and higher total endurance — the better choice for large game libraries and 4K/8K video projects.
Is the AORUS Gen5 14000 suitable for a PlayStation 5?
It is not recommended: the PS5 slot is PCIe 4.0 and the console requires a drive with a heatsink or cover-compatible cooling, while this model ships bare and is designed for PC motherboard heatsinks.

Singular Expert Insight

This is one of the fastest consumer Gen5 drives with a proper DRAM cache, and the 4TB size makes it a sensible single boot-plus-library drive for a new AM5 or Intel Z890 build. If your board lacks a Gen5 M.2 slot or a heatsink, a PCIe 4.0 drive gives almost the same real-world gaming feel for less money — see our internal SSD range.
✓ Buy it if you have a PCIe 5.0 M.2 slot with a heatsink and want 4TB of top-tier sequential speed for games, video or AI datasets.
✕ Skip it if your motherboard only has PCIe 4.0 slots or no M.2 heatsink — you would pay for speed you cannot use.
→ Also consider the 2TB AG514K2TB for a smaller, slightly faster boot drive, or a PCIe 4.0 NVMe SSD for older platforms.
