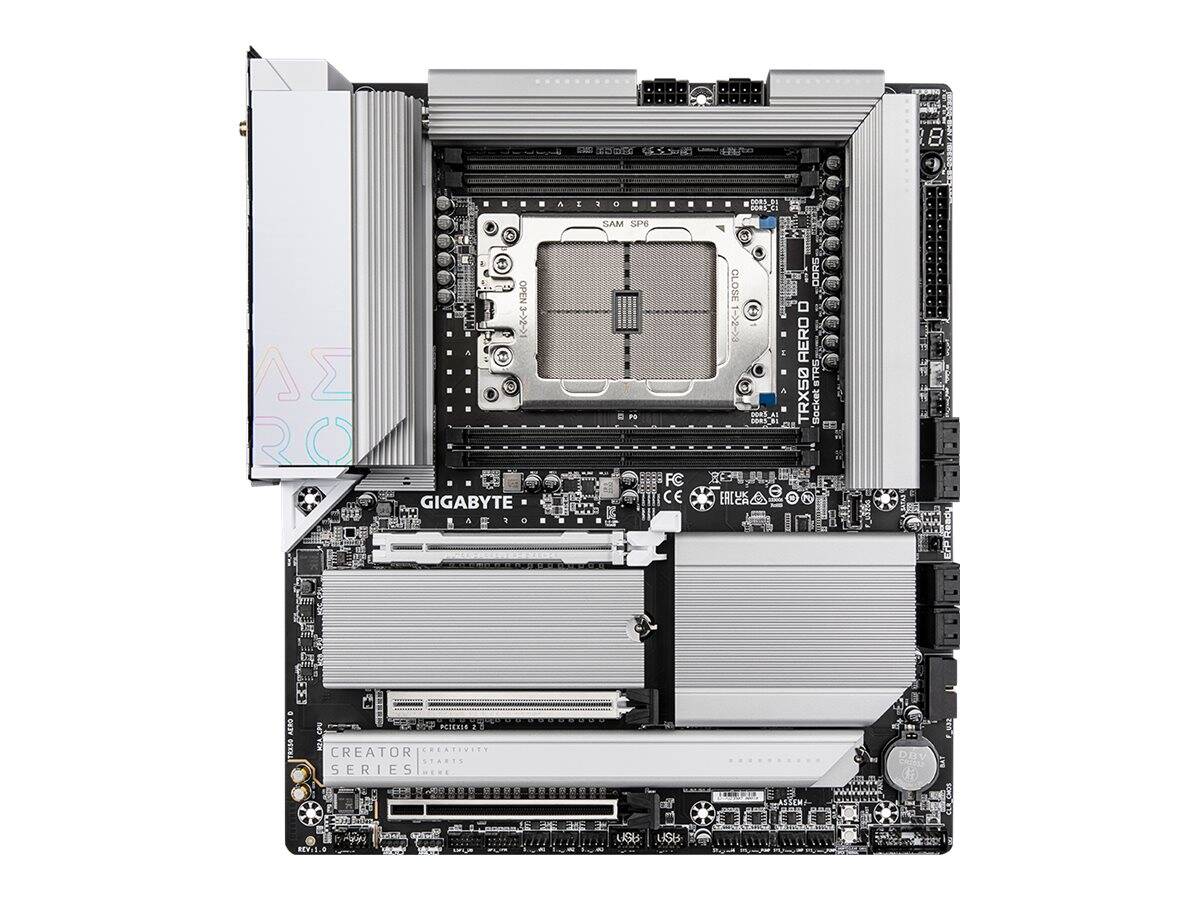

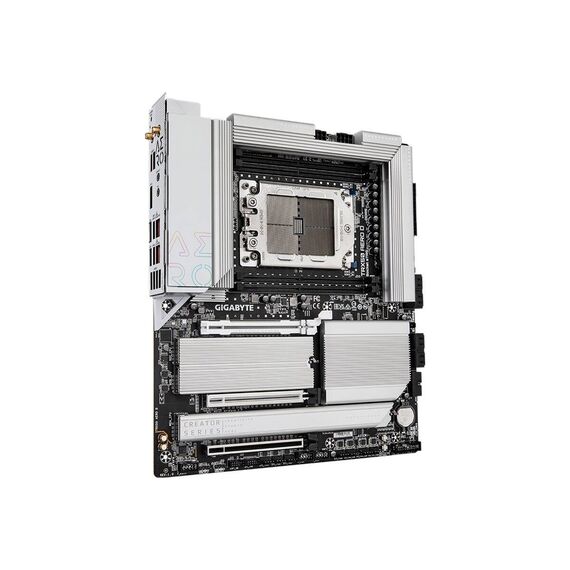

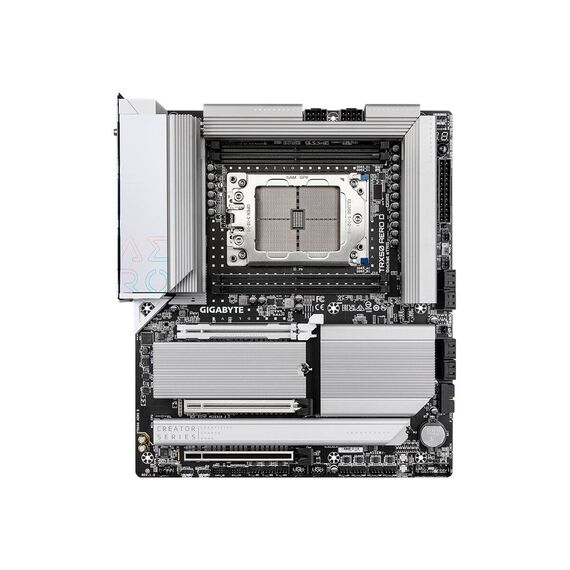

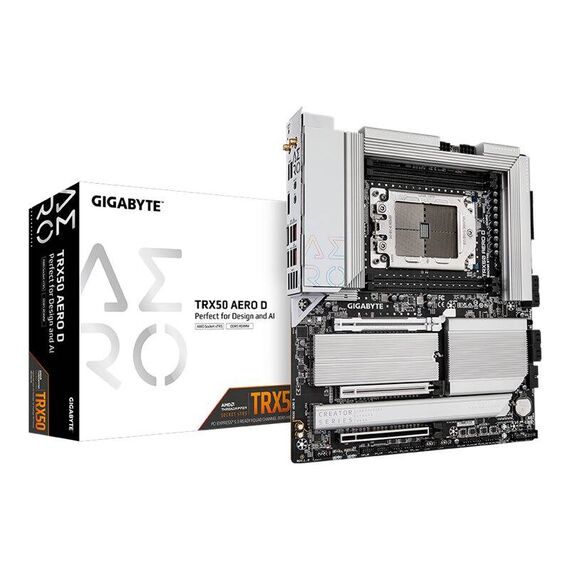

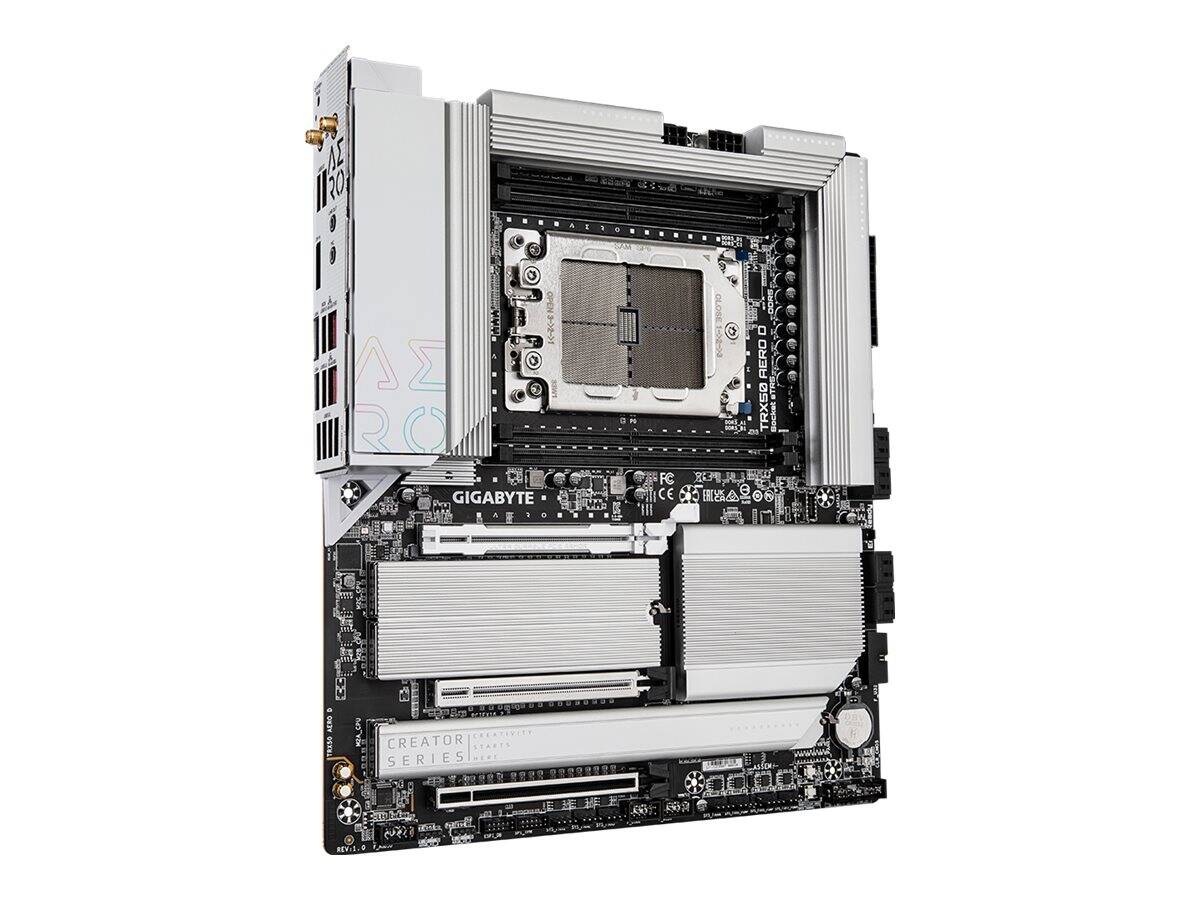

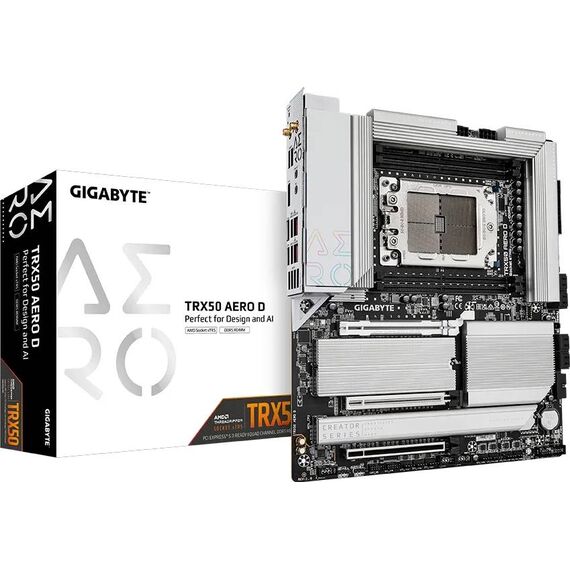

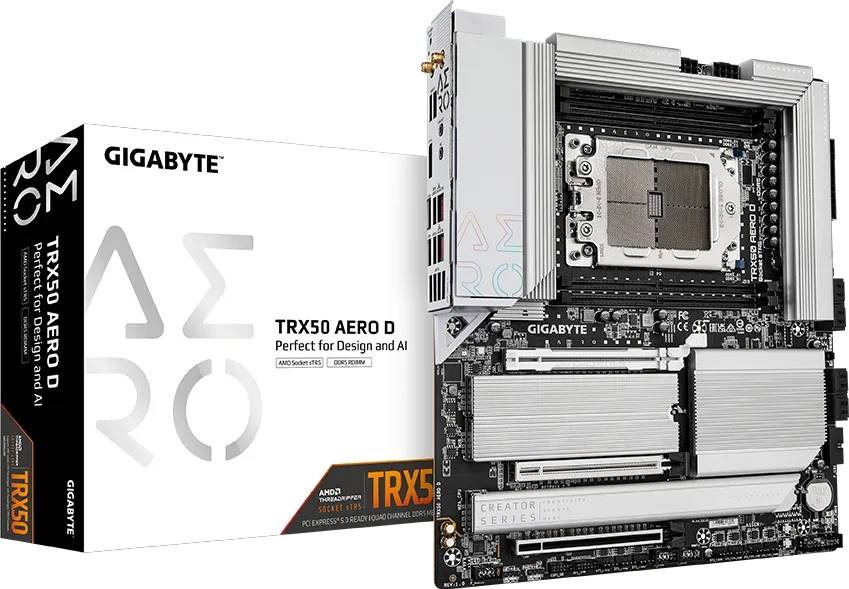

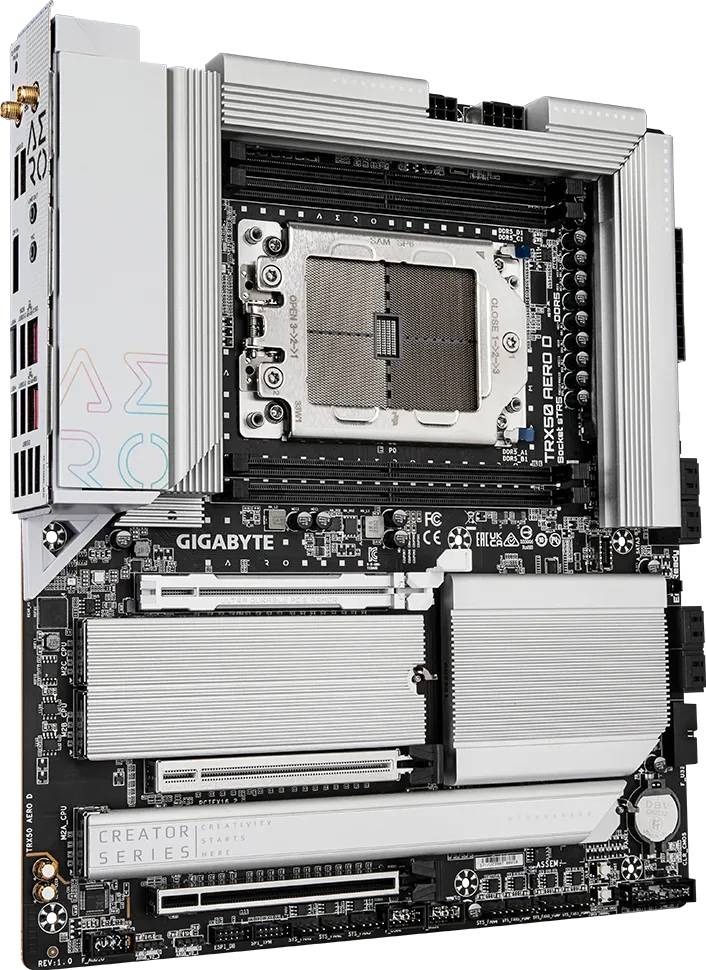

Gigabyte TRX50 AERO D - 1.0 - motherboard - extended ATX - Socket sTR5 - AMD TRX50 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 - 10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi - HD Audio (8-channel) | TRX50 AERO D
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | AMD TRX50 |
| Processor Socket | Socket sTR5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen ThreadRipper, Ryzen ThreadRipper PRO (supports Ryzen Threadripper PRO 7000 Series / 7000 Series) |
| Supported RAM | |
| Max Size | 1 TB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6400 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz, 7600 MHz (O.C.), 7800 MHz (O.C.) |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, 3DS-RDIMM |
| Features | Intel Extreme Memory Profiles (XMP), quad channel memory architecture, AMD EXPO technology |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 / Realtek ALC897 |
| Compliant Standards | High Definition Audio, DTS:X Ultra |
| LAN | |
| Network Interfaces | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 ¦ 3 x M.2 socket (2280/25110 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 3 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2 |

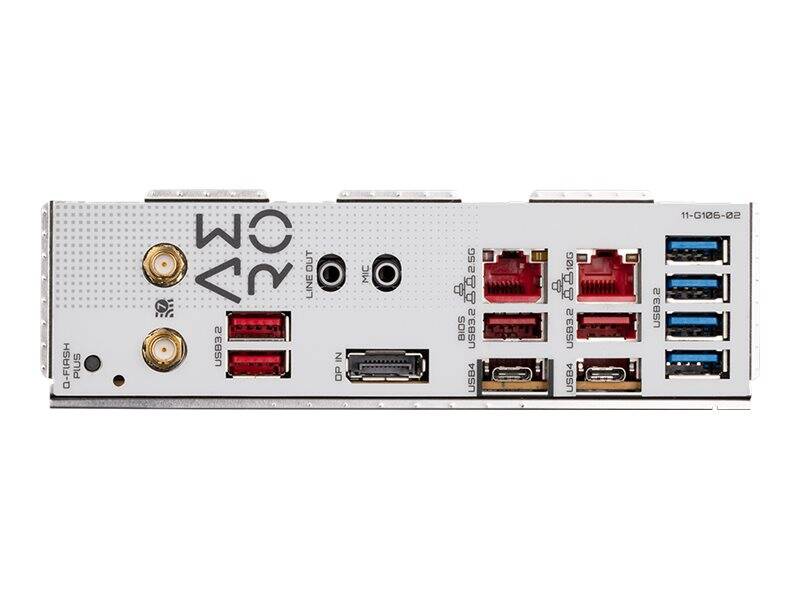

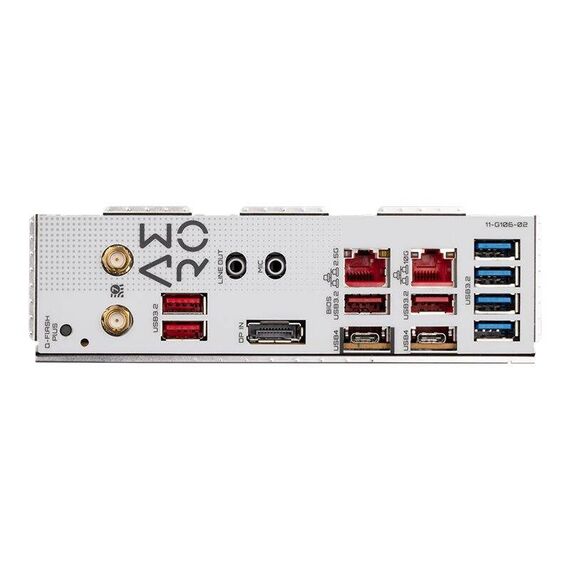

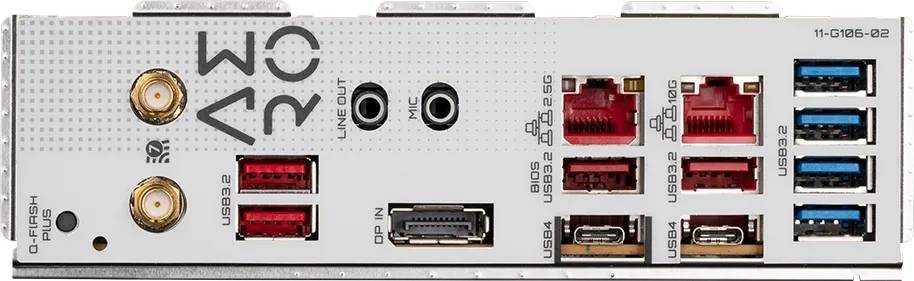

| Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x aerial ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB4 ¦ 1 x USB4/DisplayPort |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Chassis temperature, system voltage, water cooling flow rate, fan fail warning, noise detection, fan speed detection |
| Hardware Features | Q-Flash, 2x Copper PCB, Q-Flash Plus, RGB FUSION, M.2 Thermal Guard, pre-mounted I/O shield, 12 Layer PCB, GIGABYTE Smart Fan 6, MultiKey, PCIe EZ Latch, M.2 EZ Latch click, M.2 EZ Latch plus, 16+8+4 Phase Power Design, VRM Thermal Armor Advanced, PCIe Ultra Durable Slot X, 108A Power Stage |
| Miscellaneous | |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Width | 30.5 cm |
| Depth | 26.4 cm |
Features - GigaByte - TRX50 AERO D
More Details
Product Code
03:224686
EAN Code
4719331859480
Manufacturer
GigaByte
