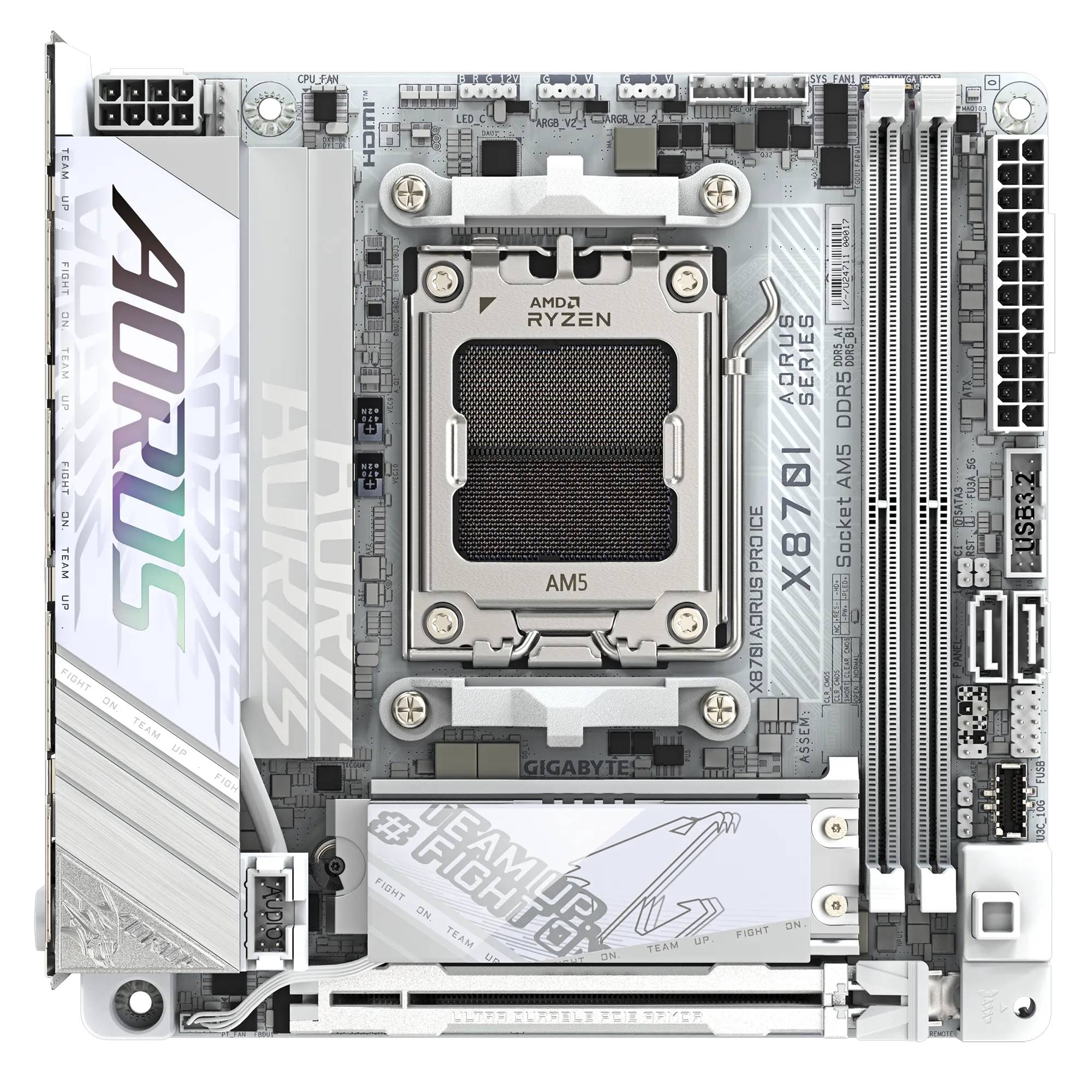

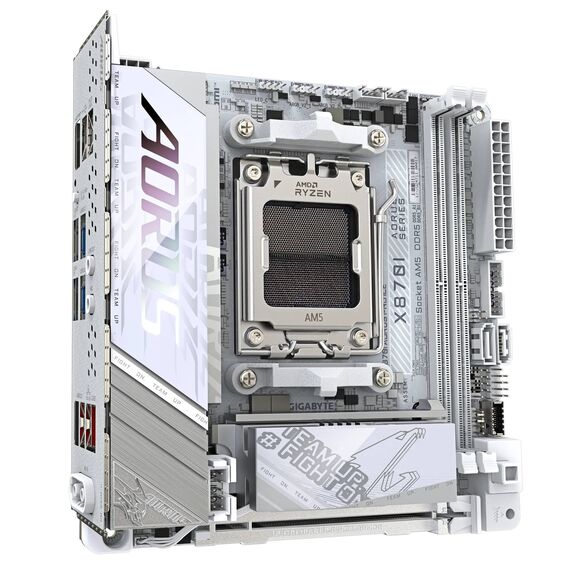

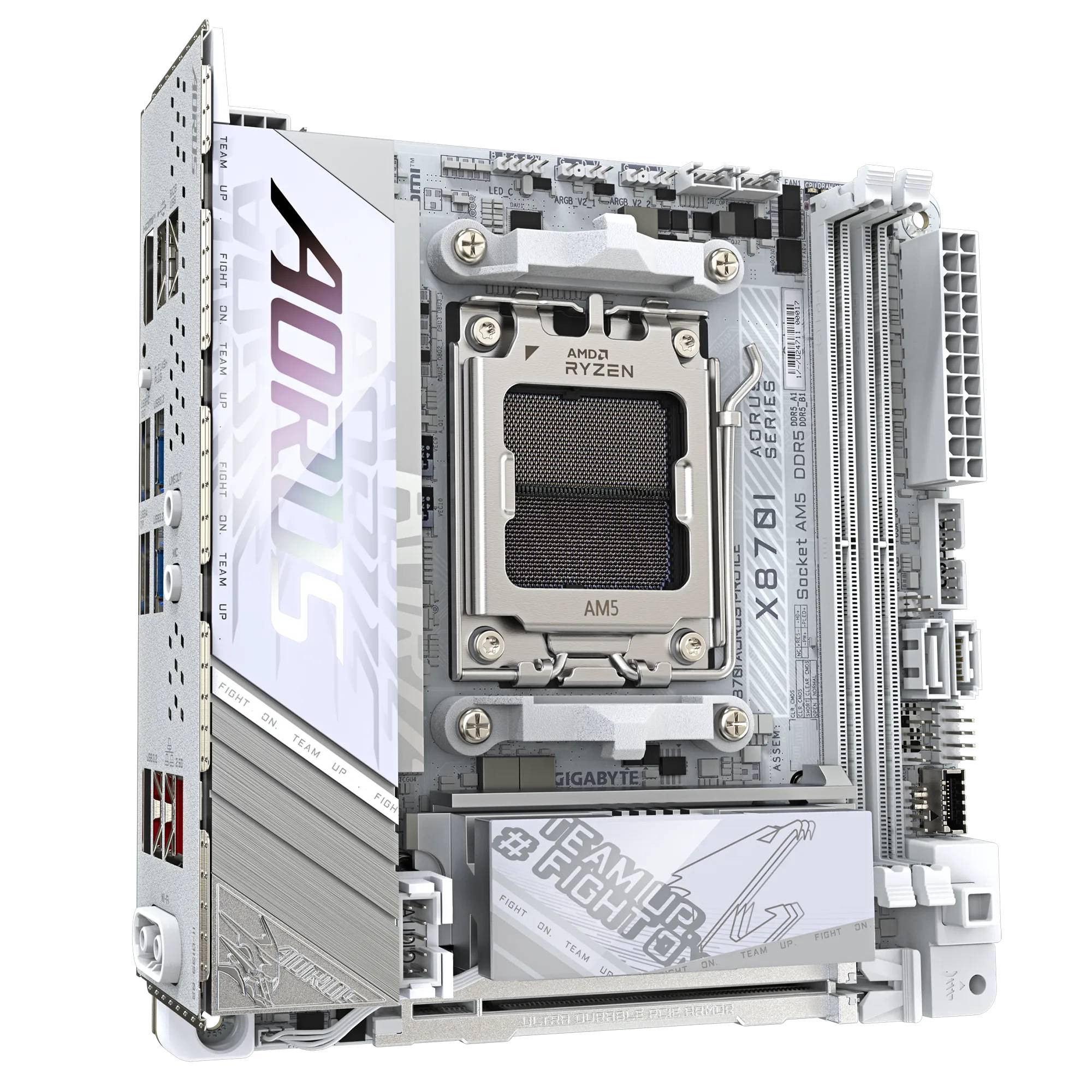

AORUS X870I PRO ICE / Motherboard / mini ITX / Socket AM5 / AMD X870 Chipset / USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 / Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | X870I AORUS PRO ICE
AORUS X870I PRO ICE / Motherboard / mini ITX / Socket AM5 / AMD X870 Chipset / USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 / Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | X870I AORUS PRO ICE
€428.14 inc. VAT
X870I AORUS PRO ICE
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Optimized Connectivity
The motherboard provides a variety of connection options, including USB 4.0, USB-C 3.2 Gen 2, and multiple USB 3.2 and USB 2.0 ports, ensuring compatibility with a wide array of devices. - Advanced Thermal Solutions
M.2 Thermal Guard and thermal armor help maintain optimal temperatures, allowing components to perform efficiently and extend their lifespan. - High-Definition Audio
Integrated Realtek ALC4080 audio codec delivers high definition audio output with support for 8-channel audio, enhancing the overall multimedia experience. - Versatile Expansion Options
Includes multiple expansion slots such as PCIe 5.0 x16 and M.2 sockets, providing flexibility for future upgrades and expansions. - Robust Build Quality
Designed with a 6 layer PCB and ultra-durable PCIe Armor, this motherboard ensures durability and stability even under high-performance conditions.
Special Features
- Supports AMD Ryzen 7000/8000/9000 Series processors
- Compatible with DDR5 SDRAM and multiple RAM speeds up to 4200 MHz
- Offers extensive connectivity options including USB 4.0 and 2.5 Gigabit Ethernet
- Features robust hardware monitoring for system performance
- Includes M.2 Thermal Guard and PCIe Armor for enhanced reliability
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | AMD X870 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4200 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8922AE |
| Network Interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x8 1 x PCIe 4.0 x4 2 x M.2 socket (2280 M.2 slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

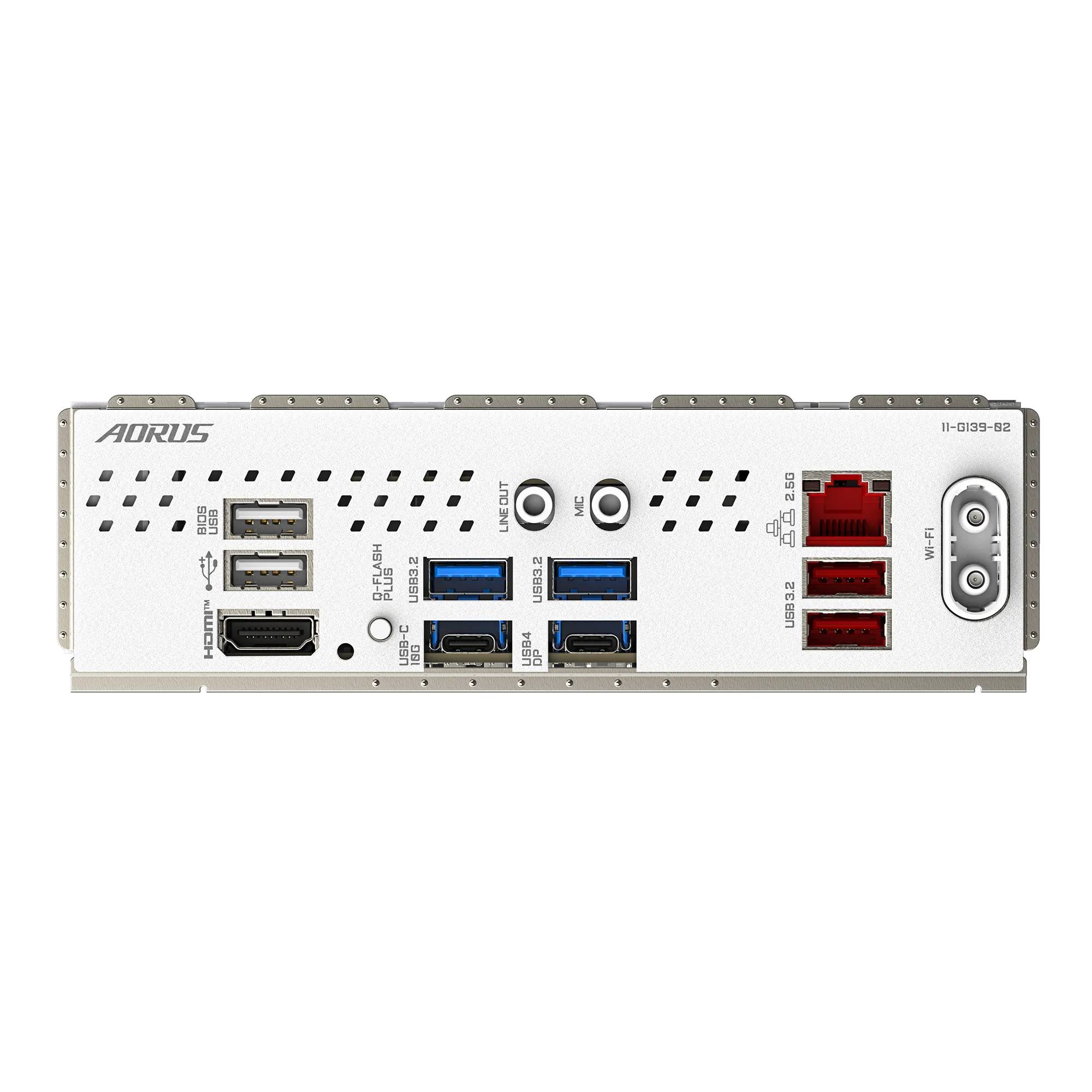

| Interfaces | 1 x USB4 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x HDMI 2 x aerial 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection, water cooling flow rate |
| Hardware Features | 8+2+1 Phase Power Design, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 Thermal Guard L, PCIe EZ Latch Plus, VRM Thermal Armor Advanced, 2x Copper PCB, 6 Layer PCB, DIY Friendly Design, GIGABYTE Smart Fan 6, M.2 Thermal Guard Ext., pre-mounted I/O shield, RGB FUSION, WIFI EZ Plug, Q-Flash Plus button, AORUS AI SNATCH, VRM Thermal Armor Fins-Array, Ultra Durable PCIe Armor |
| Miscellaneous | Miscellaneous |

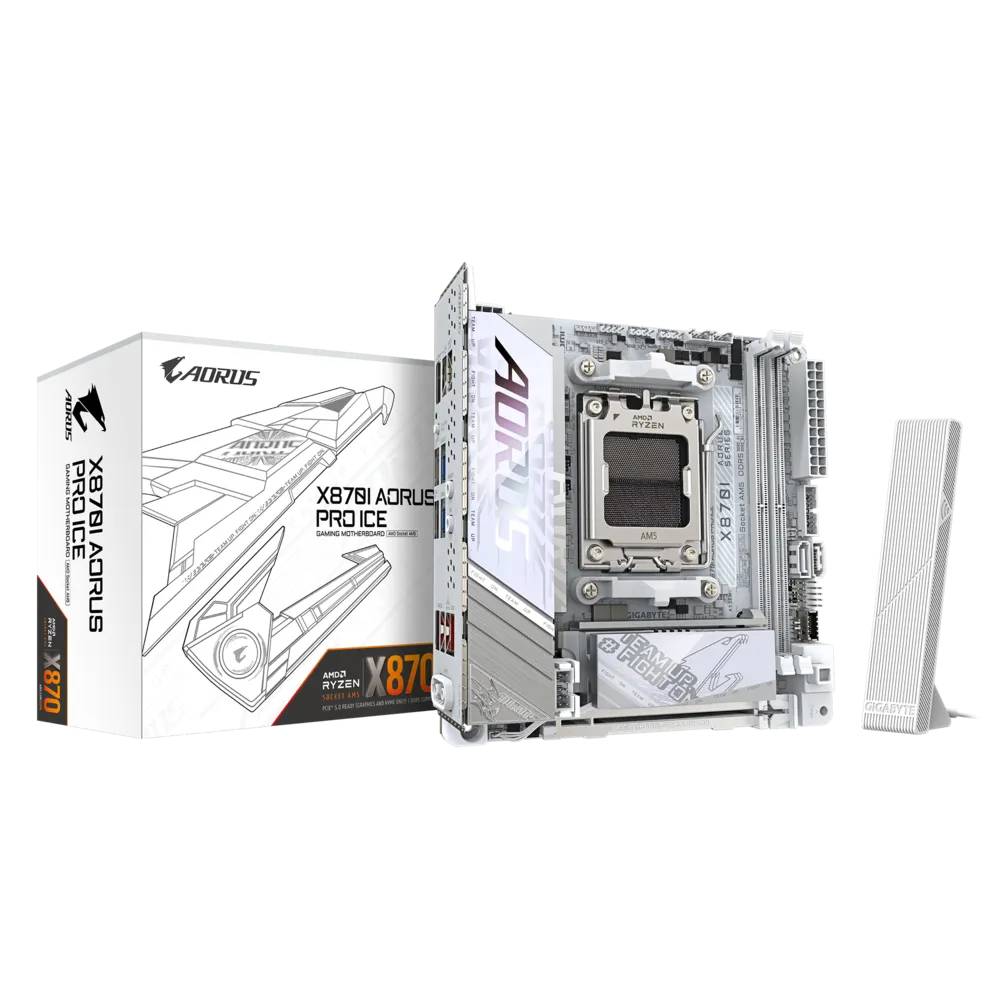

| Included Accessories | 2 x fan extension power cables, Wi-Fi aerial, 1 x M.2 screw, 2 x thermal pads for M.2 SSD |
| Cables Included | 2 x Serial ATA cable |
| Width | 17 cm |
| Depth | 17 cm |
