GIGABYTE Z890 AORUS MASTER Intel Z890 LGA1851 ATX DDR5 Motherboard

Brand:
GigaByte

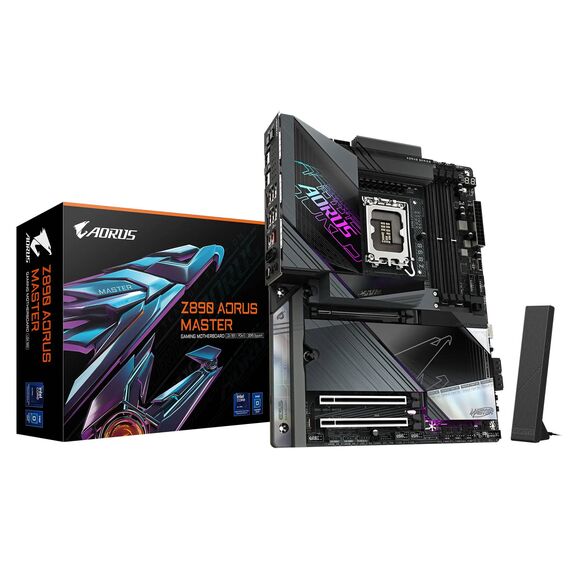

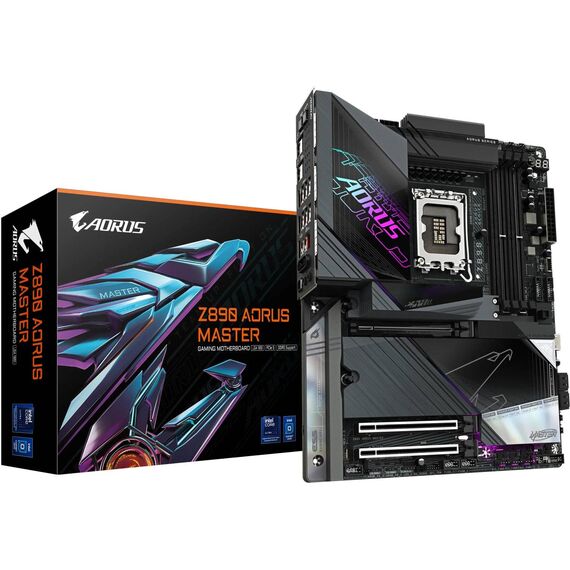

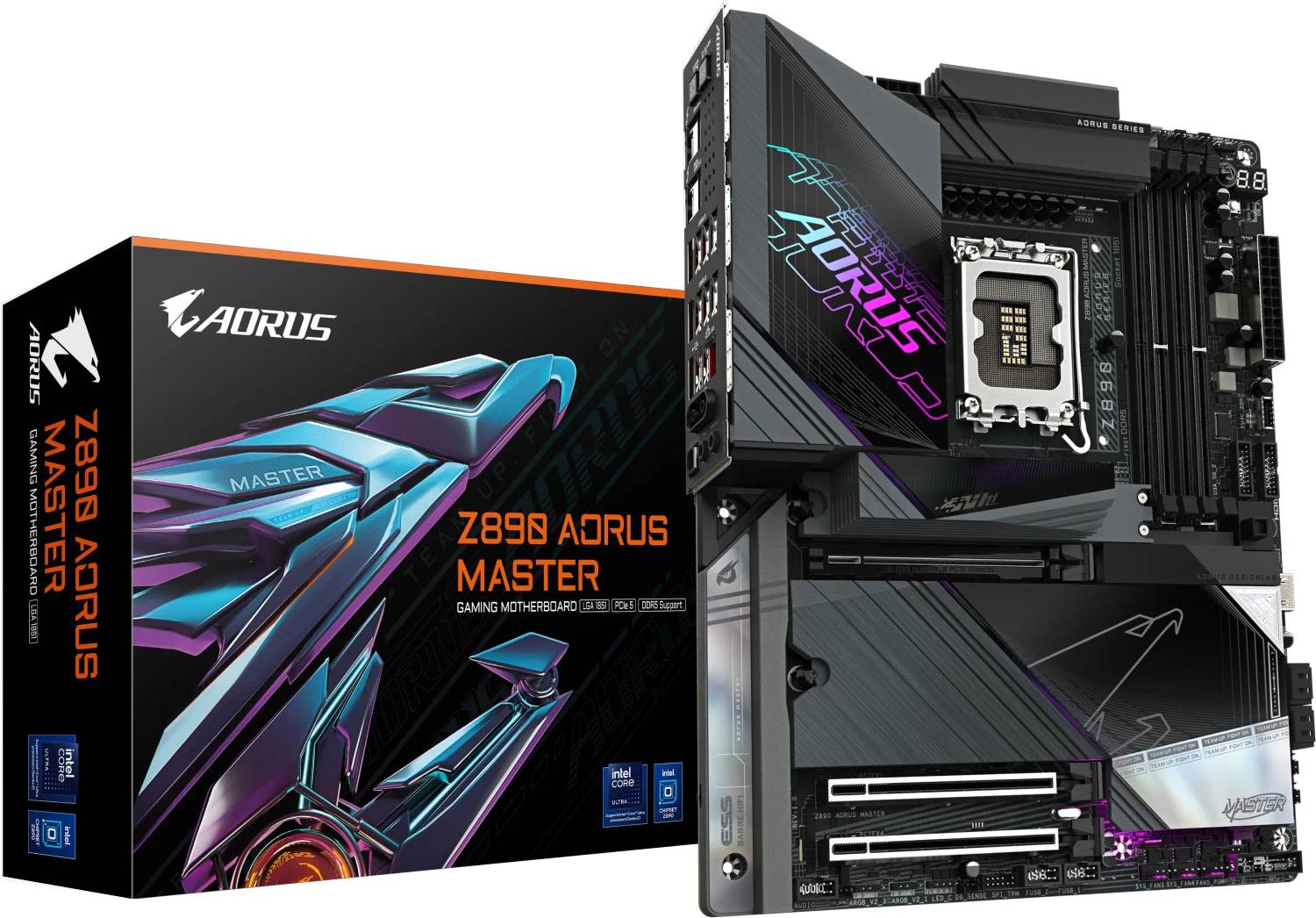

GIGABYTE Z890 AORUS MASTER Motherboard
GIGABYTE Z890 AORUS MASTER Intel Z890 LGA1851 ATX DDR5 Motherboard
€597.24 inc. VAT
Buy
Z890 AORUS MASTER
€501.88 €557.64
€597.24 inc. VAT
Ships from EU stock: 19 item(s)
+ −
Add to wish list Ask a question
Product Code
04:504684
EAN Code
4719331864903
Manufacturer
GigaByte

Quick Specs

CPU Platform
Intel LGA1851 Core Ultra
Chipset
Intel Z890 Express
Memory
4 x DDR5 DIMM up to 256GB
Network & I/O
10GbE + Wi-Fi 7 + Thunderbolt 4
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

GIGABYTE Z890 AORUS MASTER Motherboard

A premium Intel Z890 ATX motherboard for Core Ultra desktop builds with DDR5, PCIe 5.0, five M.2 slots, 10GbE LAN, Wi-Fi 7 and dual Thunderbolt 4.
Intel Z890LGA1851DDR5 9500 OC10GbE + Wi-Fi 7

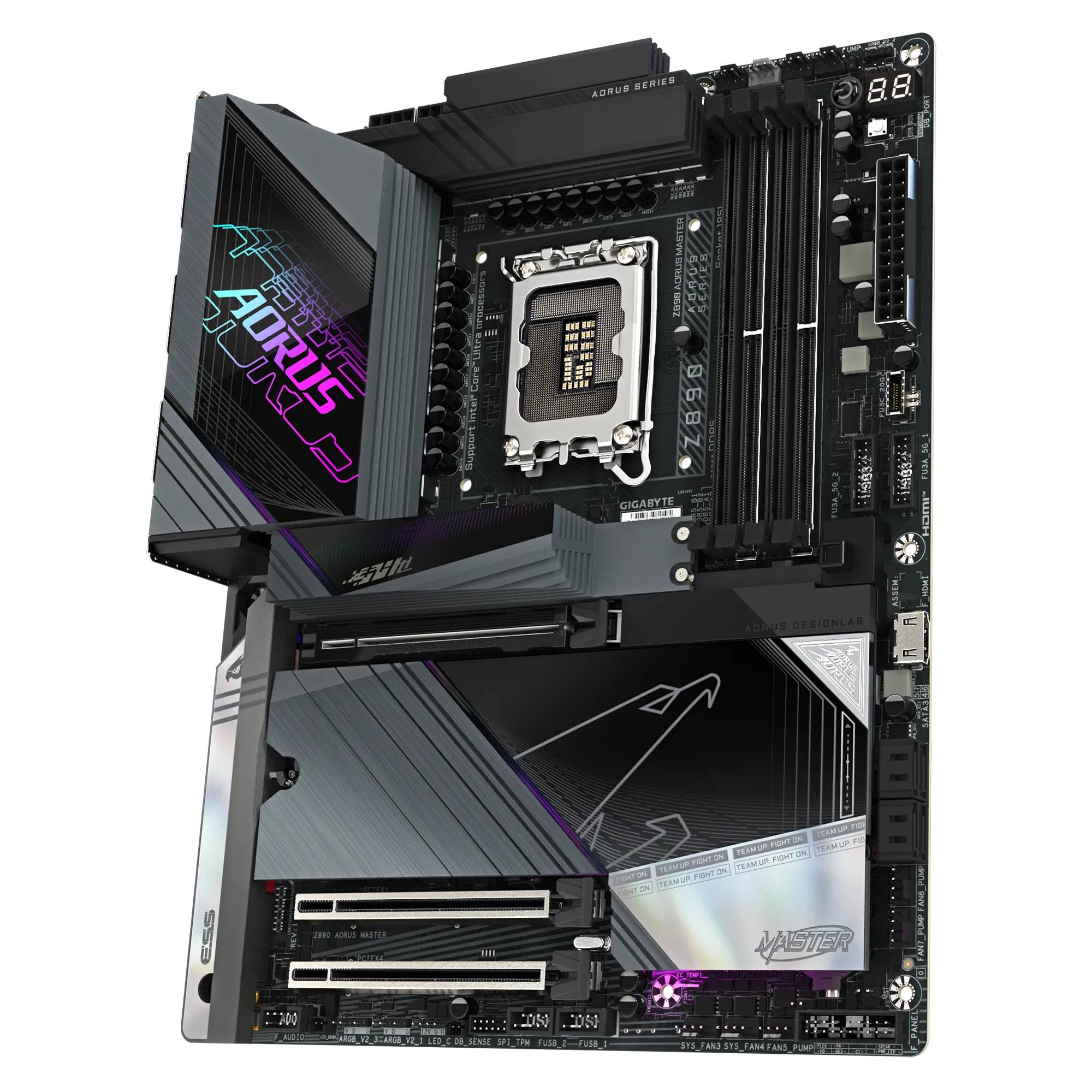

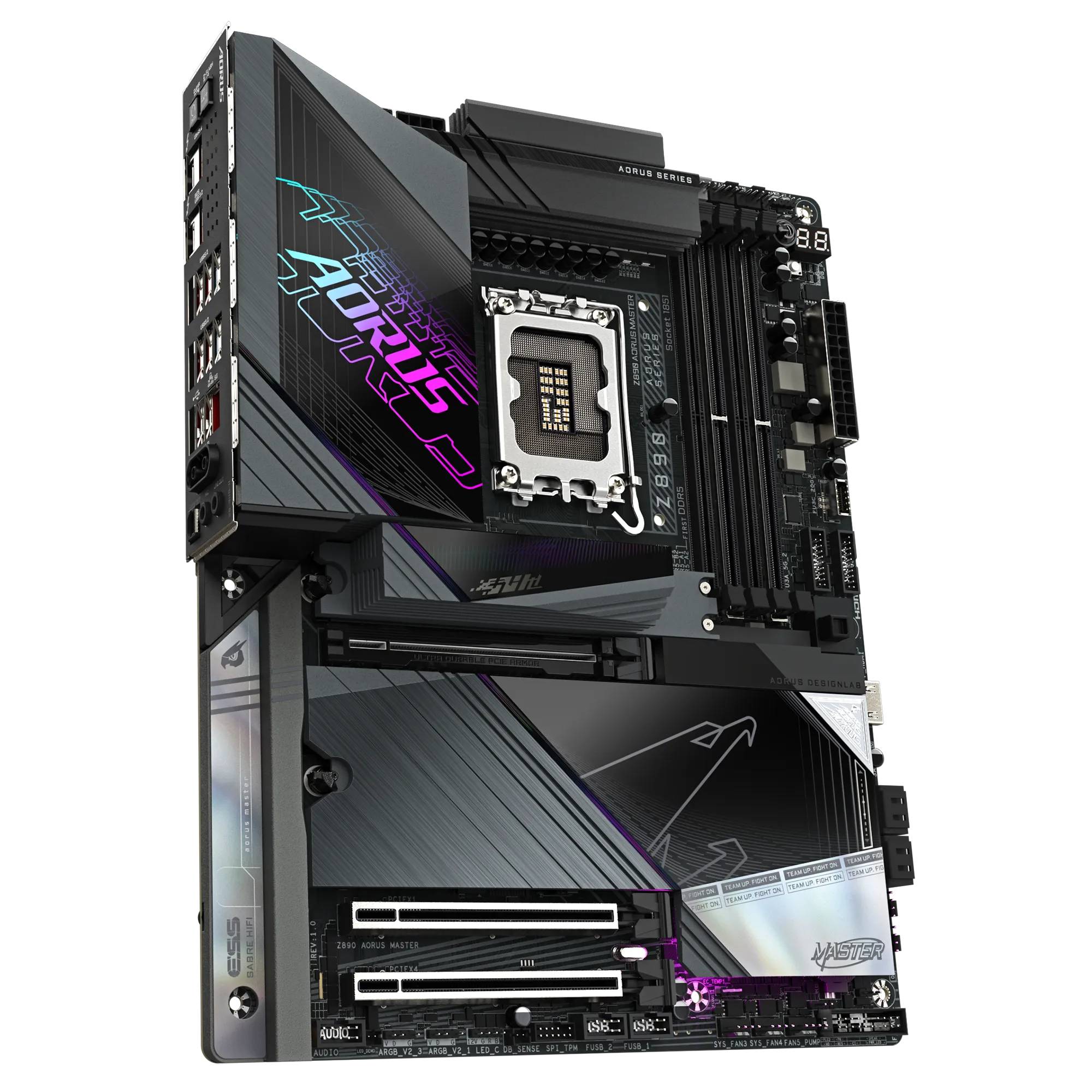

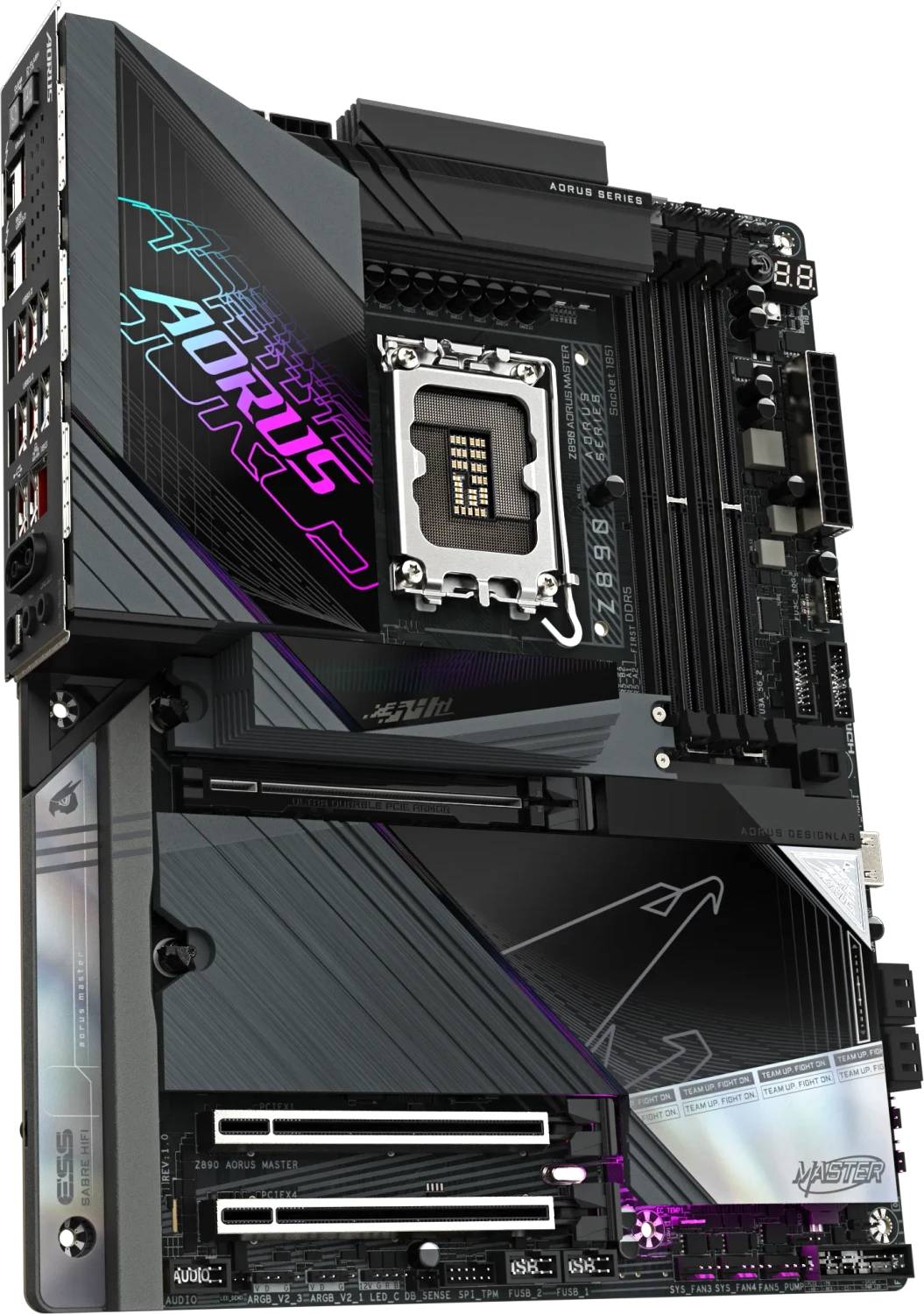

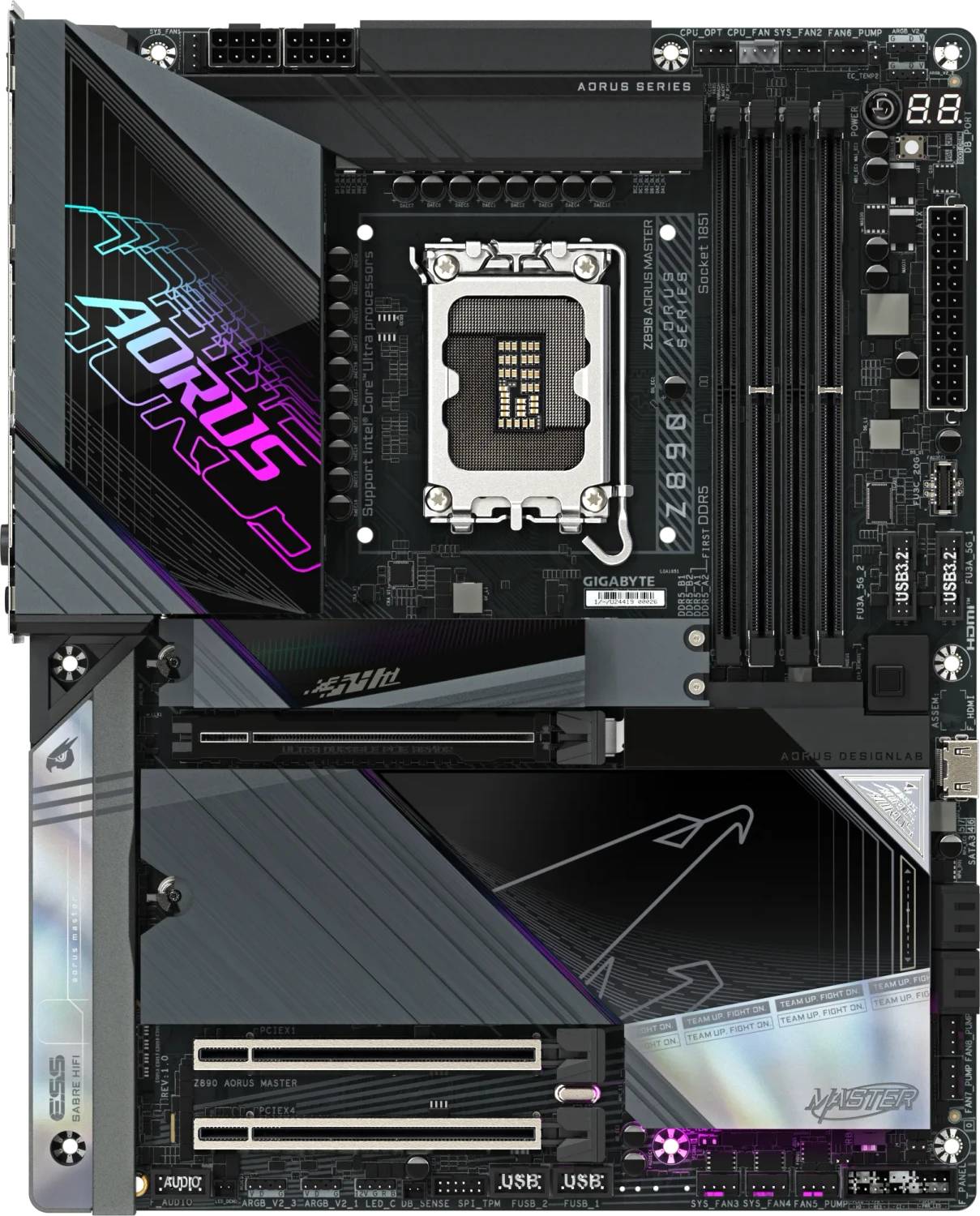

The GIGABYTE Z890 AORUS MASTER is an ATX motherboard for Intel Core Ultra processors on the LGA1851 socket, built for high-performance gaming PCs, creator workstations and enthusiast desktop systems that need DDR5 memory, PCIe 5.0 graphics and storage, premium networking and advanced cooling support.

Compatibility Note: Please confirm Intel LGA1851 CPU support, DDR5 memory compatibility, ATX case clearance, PSU connectors, cooler fitment and PCIe/M.2 lane sharing before purchase. This motherboard is not compatible with Intel LGA1700 processors or DDR4 memory.
Best For
✓ Intel Core Ultra enthusiast builds
✓ PCIe 5.0 graphics and SSD upgrades
✓ High-speed wired and wireless networking
✓ Premium gaming and creator desktops

Key Features


Intel Z890 Performance Platform
Built for Intel Core Ultra processors on LGA1851, the Z890 AORUS MASTER targets premium systems that need modern CPU support, DDR5 memory and next-generation platform connectivity.

Advanced Power and Cooling
The 18+1+2 twin digital VRM design, advanced VRM thermal armor, M.2 heatsinks and multiple fan/pump headers make it suitable for demanding desktop builds.

PCIe 5.0 and Five M.2 Slots
A PCIe 5.0 x16 graphics slot and five M.2 connectors, including two PCIe 5.0 M.2 slots, provide strong expansion for high-speed GPUs and NVMe SSD storage.

Premium Connectivity
10GbE LAN, Intel Wi-Fi 7, Bluetooth 5.4, dual Thunderbolt 4 Type-C, USB 20Gbps front Type-C and high-quality ALC1220 audio with ESS DAC support demanding gaming and creator setups.

Technical Specifications

Brand GIGABYTE
Model Z890 AORUS MASTER
Manufacturer SKU Z890 AORUS MASTER
EAN 4719331864903
Form Factor ATX 30.5 cm x 24.4 cm
CPU Socket Intel LGA1851
Processor Support Intel Core Ultra processors
Chipset Intel Z890 Express Chipset
Power Design 18+1+2 twin digital VRM design with 110A Smart Power Stage
Memory 4 x DDR5 DIMM sockets, up to 256GB, DDR5 9500 OC, dual-channel architecture, XMP and CUDIMM support
Memory Type Non-ECC un-buffered DIMM and ECC un-buffered DIMM operating in non-ECC mode
Expansion Slots 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot running at x4, 1 x PCIe 4.0 x16 slot running at x1
PCIe Bandwidth Note PCIe 5.0 x16 slot operates up to x8 mode when a device is installed in the M2D_CPU connector
Storage 5 x M.2 connectors including 2 x PCIe 5.0 M.2 slots and 3 x PCIe 4.0 M.2 slots, plus 4 x SATA 6Gb/s connectors
RAID Support RAID 0, 1, 5 and 10 support for NVMe SSD and SATA storage devices
Networking Marvell AQtion AQC113C 10GbE LAN, Intel Wi-Fi 7 BE200NGW and Bluetooth 5.4

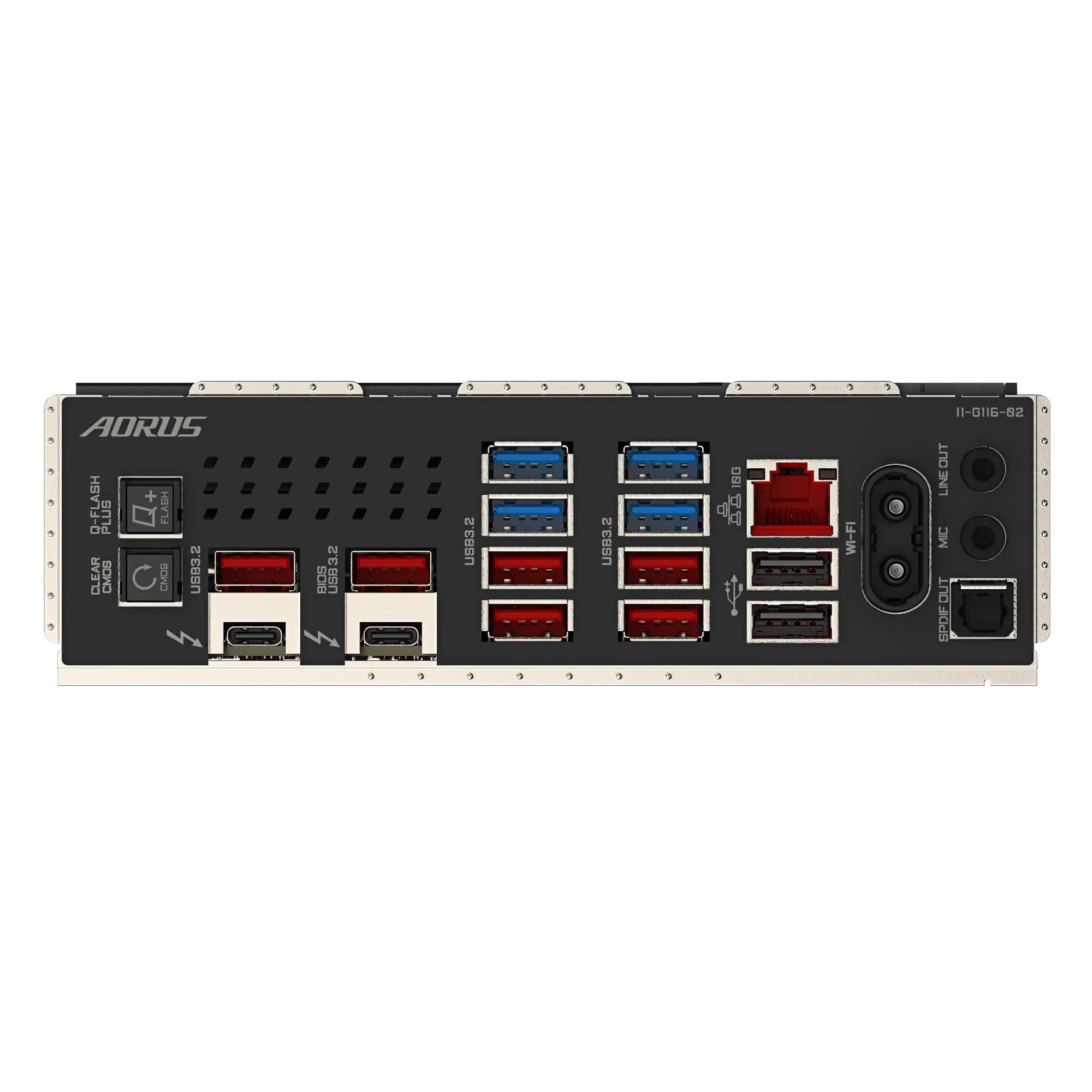

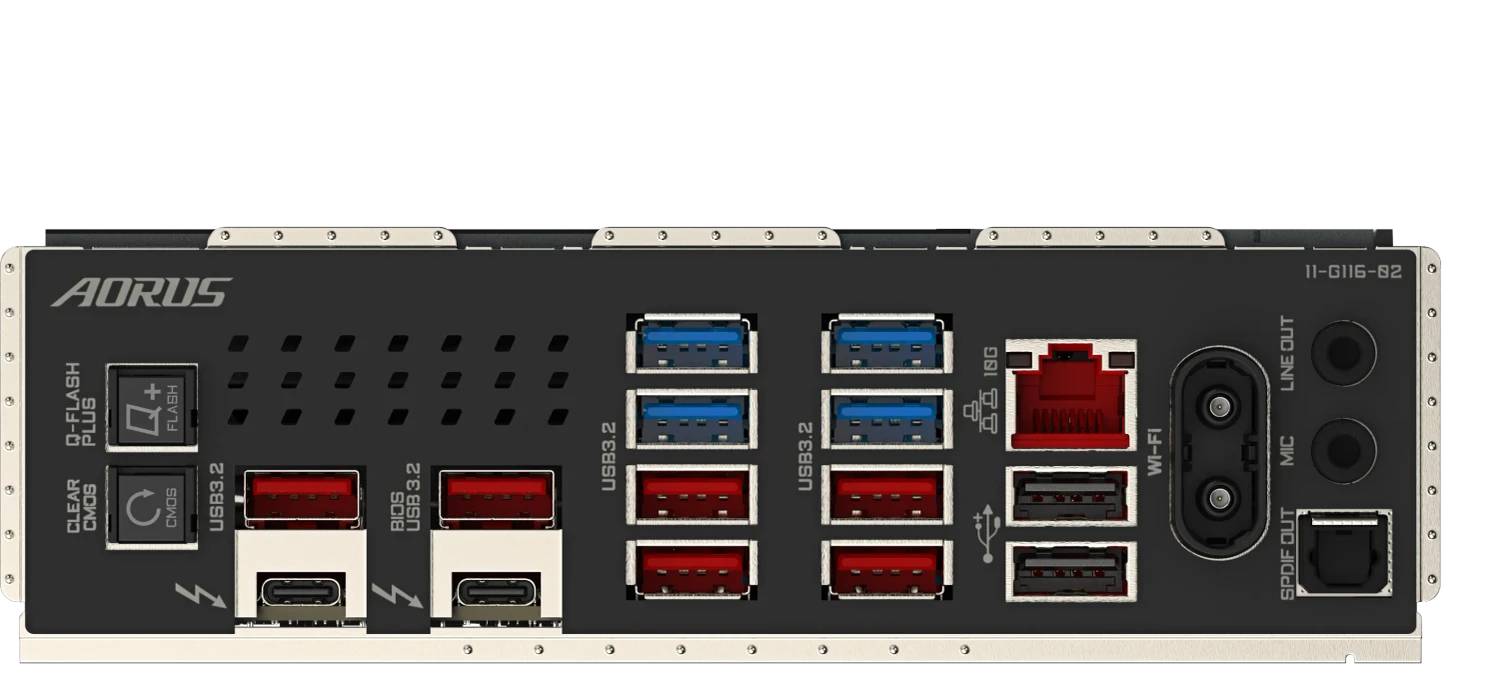

Rear USB Ports 2 x Intel Thunderbolt 4 USB Type-C, 6 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
Front USB Support 1 x internal USB Type-C header with USB 3.2 Gen 2x2 support, 2 x USB 3.2 Gen 1 headers and 2 x USB 2.0/1.1 headers
Display Output 2 x Thunderbolt 4 USB-C ports with DisplayPort/Thunderbolt video output and 1 x internal front HDMI port for sensor panel use
Audio Realtek ALC1220 CODEC, ESS ES9118 DAC, DTS:X Ultra, High Definition Audio and S/PDIF Out support
Cooling Headers CPU fan header, CPU fan/water pump header, 4 x system fan headers and 4 x system fan/water pump headers
RGB Headers 4 x addressable RGB Gen2 LED strip headers and 1 x RGB LED strip header
Power Connectors 1 x 24-pin ATX main power connector and 2 x 8-pin ATX 12V power connectors
DIY Features Q-Flash Plus, Clear CMOS button, EZ-Latch Plus, EZ-Latch Click, onboard power/reset buttons, debug LEDs and integrated I/O shield
Operating System Support Windows 11 64-bit

Frequently Asked Questions

Which CPUs does this motherboard support?
It supports Intel Core Ultra processors on the LGA1851 socket. It does not support older Intel LGA1700 processors.
Does it support DDR4 memory?
No. The Z890 AORUS MASTER uses DDR5 memory only and is not compatible with DDR4 modules.
Is there any PCIe lane sharing to consider?
Yes. The main PCIe 5.0 x16 slot shares bandwidth with the M2D_CPU connector and can operate at up to x8 mode when that M.2 slot is populated.
Singular Expert Insight
Choose the GIGABYTE Z890 AORUS MASTER if you want a premium Intel Core Ultra platform with stronger networking, dual Thunderbolt 4, five M.2 slots and advanced cooling support. If you only need a basic office PC or a lower-cost gaming build, a more affordable Z890 or B860 motherboard may be better value.

Buyer’s Guide

Buy it if
You are building a high-end Intel Core Ultra desktop with DDR5 memory, PCIe 5.0 expansion, multiple NVMe SSDs, 10GbE LAN, Wi-Fi 7 and Thunderbolt 4.
Skip it if
You already have an LGA1700 processor, need DDR4 memory, want a small micro-ATX build or do not need premium Z890 connectivity.
Also consider
Consider a lower-cost B860 motherboard for a simpler Core Ultra build, or a higher AORUS/enthusiast model if you need even more extreme tuning features.
