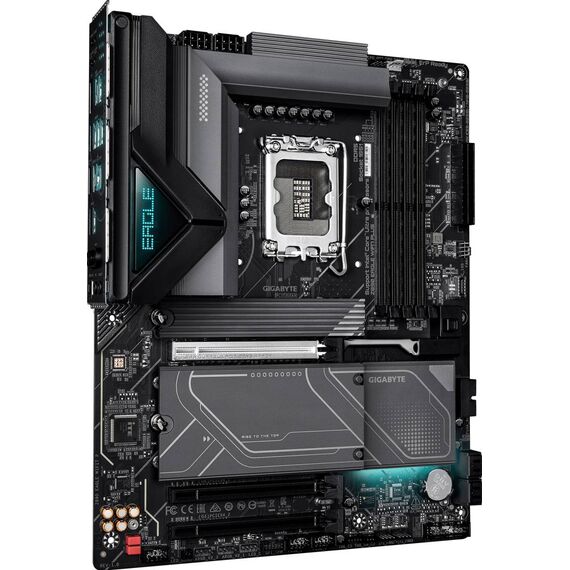

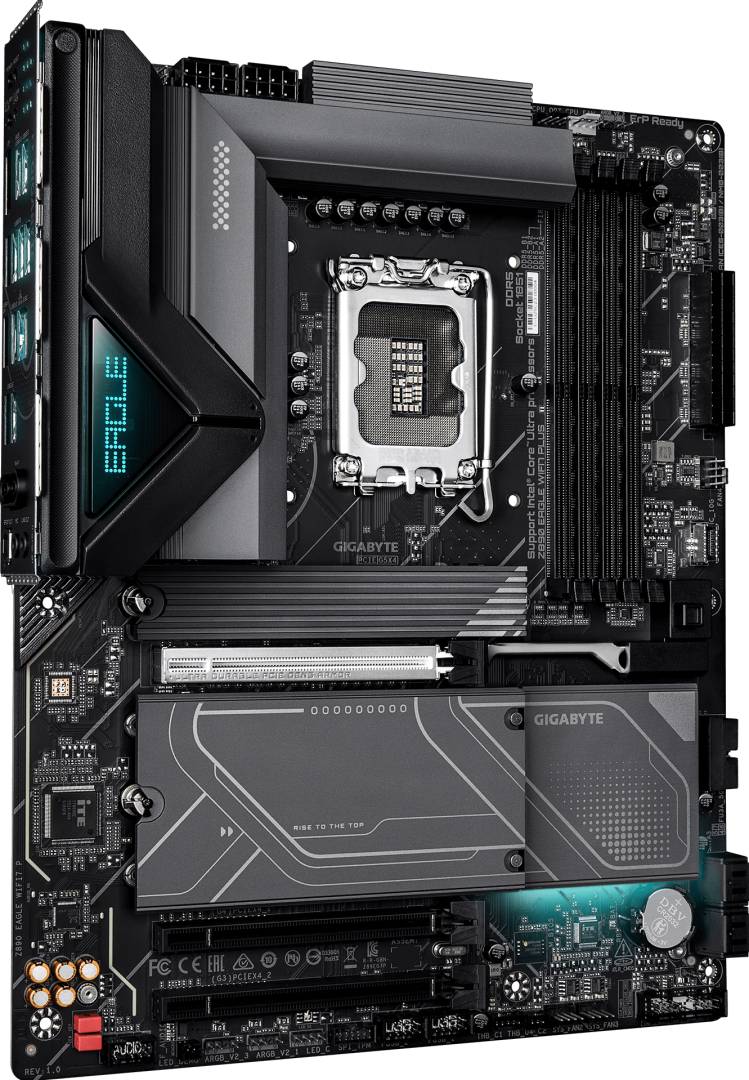

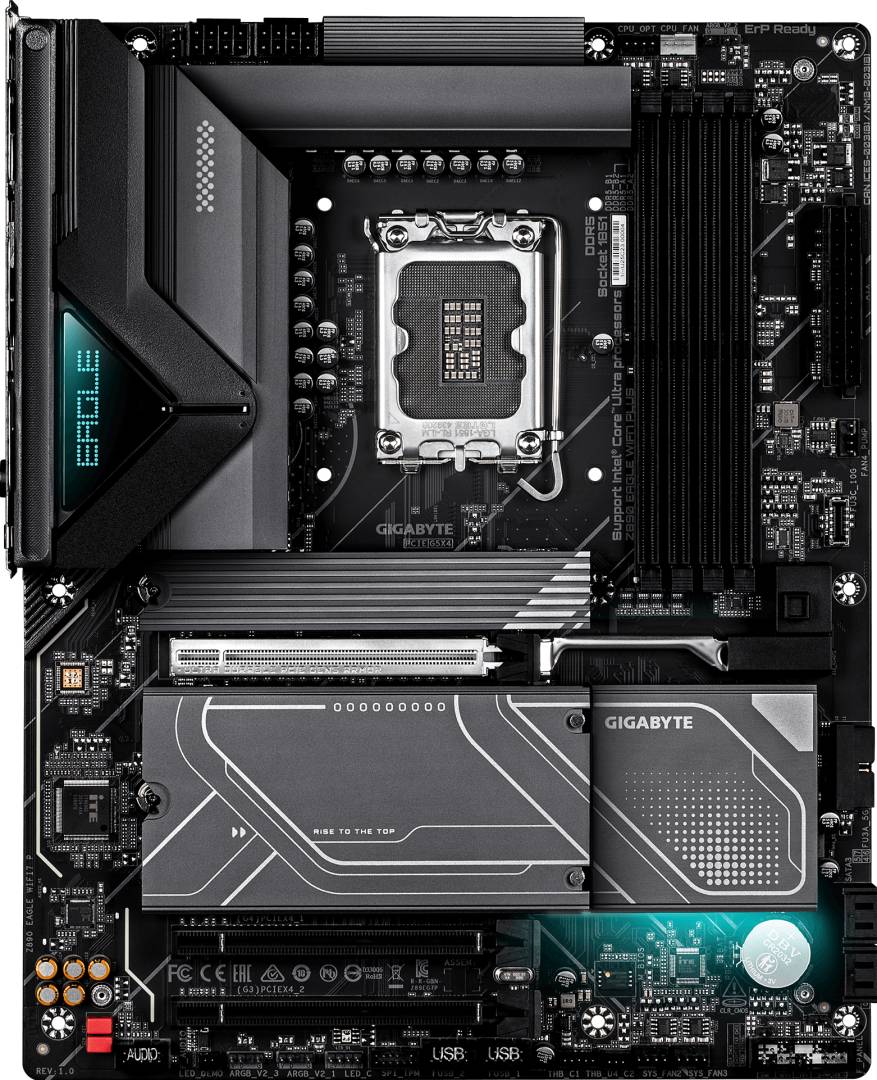

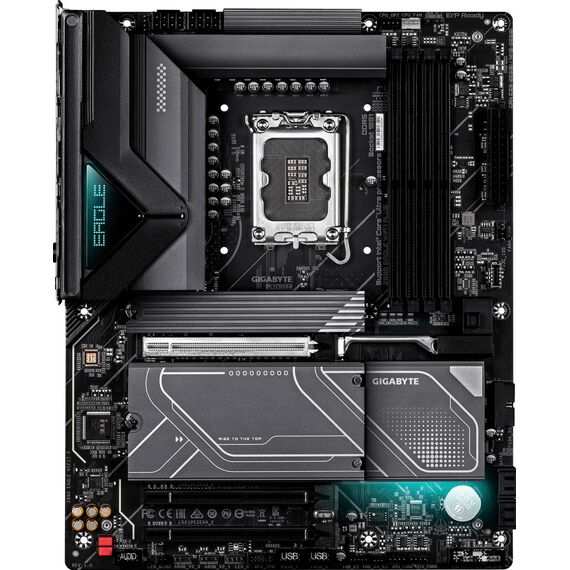

Gigabyte Z890 EAGLE WIFI7 PLUS LGA1851 ATX Motherboard DDR5 Wi-Fi 7 2.5GbE USB4 4x M.2 (Z890 EAGLE WIFI7 P)

Brand:
GigaByte
Gigabyte Z890 EAGLE WIFI7 PLUS LGA1851 ATX DDR5 Wi-Fi 7
Gigabyte Z890 EAGLE WIFI7 PLUS LGA1851 ATX Motherboard DDR5 Wi-Fi 7 2.5GbE USB4 4x M.2 (Z890 EAGLE WIFI7 P)
€324.49 inc. VAT
Buy
Z890 EAGLE WIFI7 P
€272.68 €302.98
€324.49 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
04:601785
EAN Code
4719331880842
Manufacturer
GigaByte
Quick Specs
Socket & chipset
LGA1851 · Intel Z890
Memory
4x DDR5 · up to 256GB · 9466+ MT/s OC
Expansion
PCIe 5.0 x16 · 4x M.2 (1x Gen5)
Connectivity
2.5GbE · Wi-Fi 7 · USB4
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Gigabyte Z890 EAGLE WIFI7 PLUS — value Z890 ATX with Wi-Fi 7 and USB4

Intel Z890 · LGA1851DDR5 9466+ MT/s (OC) · CUDIMM2.5GbE · Wi-Fi 7USB4 · PCIe 5.0 M.2

The Gigabyte Z890 EAGLE WIFI7 PLUS (part number Z890 EAGLE WIFI7 P) is an ATX motherboard for Intel Core Ultra (Series 2) processors on LGA1851, using the Z890 chipset for CPU and memory overclocking — a value-focused entry into the Z890 platform for gaming and creator PCs.

A 14+1+2 twin digital VRM feeds the CPU, four DDR5 slots take up to 256GB with overclocked kits beyond 9466 MT/s (CUDIMM supported), and the PCIe 5.0 x16 graphics slot is joined by four M.2 slots — one PCIe 5.0 x4 (up to 25110) and three PCIe 4.0 x4, one of which also accepts SATA M.2 drives.

Networking combines Realtek 2.5GbE with Intel Wi-Fi 7 (BE202, 160 MHz) and Bluetooth 5.4, while the rear panel offers USB4 Type-C with DisplayPort output, two 10 Gbps USB-A ports, ALC1220 audio with optical S/PDIF, and headers for a Gigabyte Thunderbolt 5 add-in card.

Compatibility note: Rear video is limited to one DisplayPort 2.1 and the USB4 port — there is no HDMI. Wi-Fi 7 needs Windows 11 (no Windows 10 driver). The two x16-length chipset slots run PCIe 4.0 x4. Core Ultra F-series CPUs have no integrated graphics, so the rear display outputs will not work with them.

Best For

✓ High-end Core Ultra 7 / 9 gaming PCs
✓ CPU and DDR5 memory overclocking
✓ Content creation with fast NVMe storage
✓ 2.5GbE LAN and NAS connections
✓ Future Thunderbolt 5 upgrade via add-in card
✓ Wi-Fi 7 desktops

Key Features


Z890 overclocking on a budget
Unlocked CPU and memory tuning on a 14+1+2 twin digital VRM, with CUDIMM support and DDR5 up to 9466+ MT/s (OC).

Gen5 M.2 plus three Gen4
M2A_CPU takes PCIe 5.0 x4 SSDs up to 25110, with three more PCIe 4.0 x4 slots (one SATA-capable) and NVMe/SATA RAID 0/1/5/10.

2.5GbE + Wi-Fi 7
Realtek 2.5GbE wired LAN plus Intel Wi-Fi 7 BE202 (160 MHz channels) with Bluetooth 5.4.

USB4 and TB5-ready
Rear USB4 Type-C with DisplayPort output, two 10 Gbps USB-A, front USB-C 10 Gbps header and two connectors for a Gigabyte Thunderbolt 5 add-in card.

Technical Specifications

Identification
Part Number Z890 EAGLE WIFI7 P
EAN/GTIN 4719331880842
MPN Z890 EAGLE WIFI7 PLUS
Brand Gigabyte
Processor & Chipset
Socket Intel LGA1851
Supported CPUs Intel Core Ultra (Series 2) desktop processors
Chipset Intel Z890 Express
VRM 14+1+2 twin digital (7+7 parallel phases)
CPU power 2x 8-pin ATX 12V + 24-pin ATX
Memory
Slots 4x DDR5 DIMM, dual channel
Maximum 256GB
Speed Up to 9466+ MT/s (OC)
Type Non-ECC unbuffered · CUDIMM · Intel XMP
Expansion & Storage
PCIe x16 (CPU) 1x PCIe 5.0 x16
PCIe x16 (chipset) 2x PCIe 4.0, run x4
M.2 CPU M2A_CPU PCIe 5.0 x4 (25110/22110/2580/2280) · M2B_CPU PCIe 4.0 x4 (22110/2280)
M.2 chipset M2Q_SB PCIe 4.0 x4 · M2M_SB SATA or PCIe 4.0 x4 (22110/2280)
SATA 4x SATA 6Gb/s
RAID NVMe and SATA RAID 0/1/5/10
Networking & Audio
LAN Realtek 2.5GbE
Wireless Intel Wi-Fi 7 BE202 (2.4/5/6 GHz, 160 MHz) + Bluetooth 5.4
Audio Realtek ALC1220 · 7.1-channel · S/PDIF out · DSD on line out

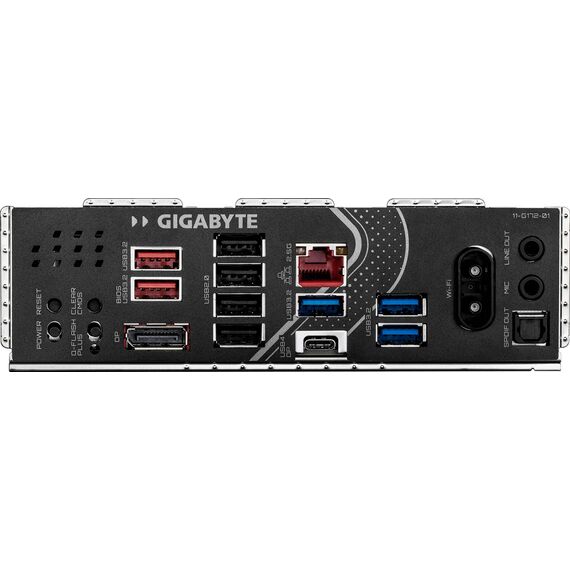

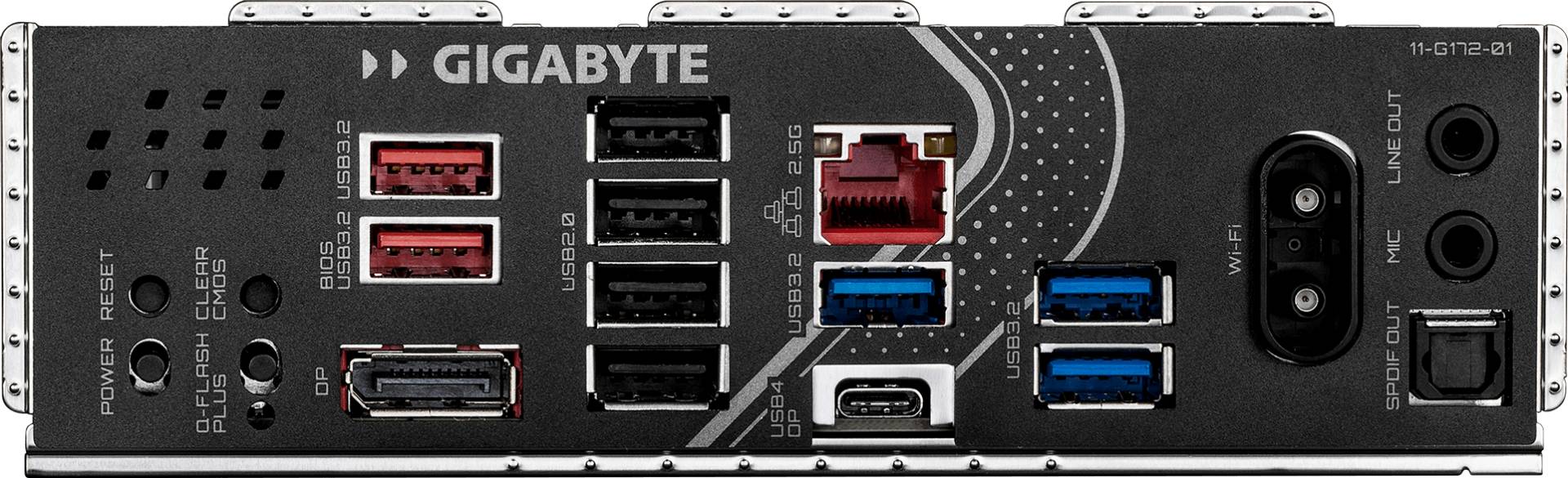

Rear I/O
USB 1x USB4 Type-C (DP out) · 2x USB-A 3.2 Gen 2 · 3x USB-A 3.2 Gen 1 · 4x USB 2.0
Video 1x DisplayPort 2.1 · USB4 DP (3840x2160@144)
Other Power, reset, Q-Flash Plus and Clear CMOS buttons · RJ-45 · 2x antenna (2T2R) · optical S/PDIF · 2 audio jacks
Internal Connectors
USB headers 1x USB-C 3.2 Gen 2 · 1x USB 3.2 Gen 1 · 2x USB 2.0
Fans & RGB CPU fan · CPU fan/pump · 3x system fan · system fan/pump · 3x ARGB Gen2 · 1x RGB
Other 2x Thunderbolt add-in card connectors (Gigabyte TB5 card) · TPM header
General
Form factor ATX, 30.5 x 24.4 cm
BIOS 512 Mbit AMI UEFI · Q-Flash Plus
OS Windows 11 64-bit
Software GIGABYTE Control Center

Frequently Asked Questions

What is the difference between the Z890 EAGLE WIFI7 PLUS and the Z890 AORUS ELITE WIFI7 PLUS?
The AORUS ELITE adds 5GbE instead of 2.5GbE, 320 MHz Wi-Fi 7 (BE200) and a stronger 16+1+2 VRM. Storage, USB4, memory support and expansion are otherwise the same.
What is the difference from the Z890 EAGLE PLUS?
The EAGLE PLUS drops the Wi-Fi 7 / Bluetooth module; the rest of the feature set is aimed at the same value Z890 builds.
Does it have HDMI?
No. Integrated graphics output is through one DisplayPort 2.1 and the USB4 Type-C port. Use a USB-C or DP to HDMI adapter if needed.
Does it support Windows 10?
Gigabyte lists Windows 11 64-bit only, and the Wi-Fi 7 module has no Windows 10 driver.

Singular Expert Insight

The EAGLE WIFI7 PLUS delivers the important Z890 features — a Gen5 M.2 slot, USB4, CUDIMM support and Wi-Fi 7 — at a lower price than AORUS models. Heavy overclockers and 5GbE users should step up to the AORUS ELITE WIFI7 PLUS. Pair it with DDR5 from our DDR5 memory range.
✓ Buy it if you want an affordable Z890 ATX board with Wi-Fi 7, USB4 and a PCIe 5.0 M.2 slot for a Core Ultra build.
✕ Skip it if you need HDMI on the rear, 5GbE or the strongest VRM for extreme overclocking.
→ Also consider the Z890 AORUS ELITE WIFI7 PLUS for 5GbE and a stronger VRM, or the Z890 EAGLE PLUS without Wi-Fi.
