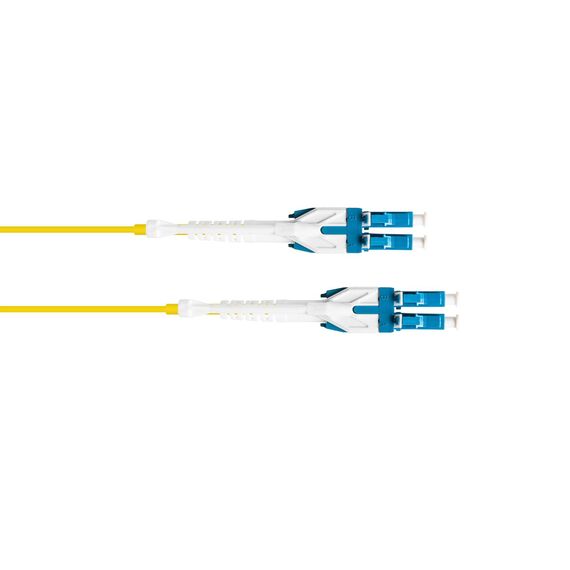

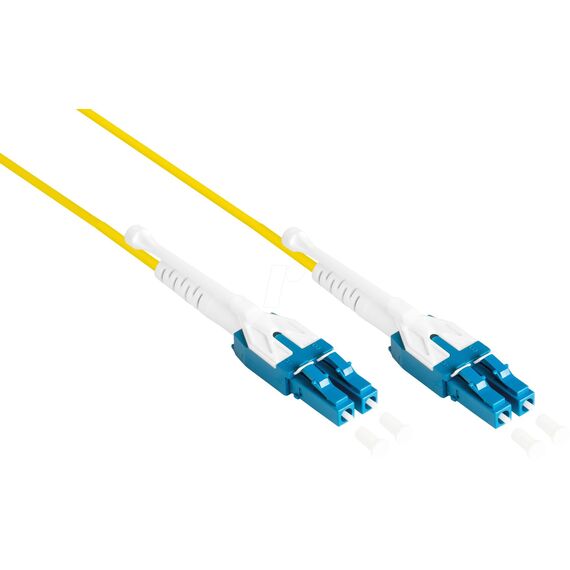

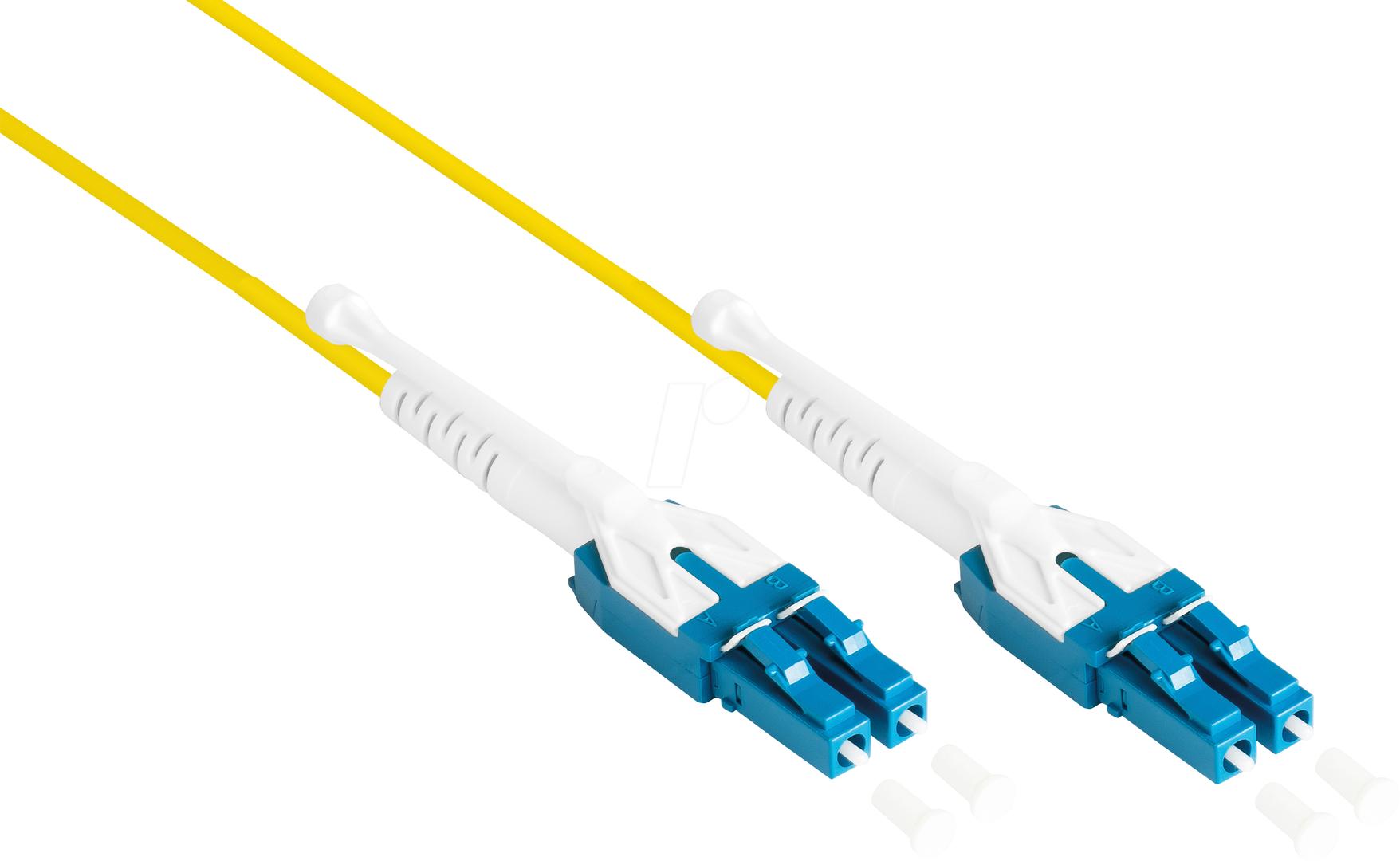

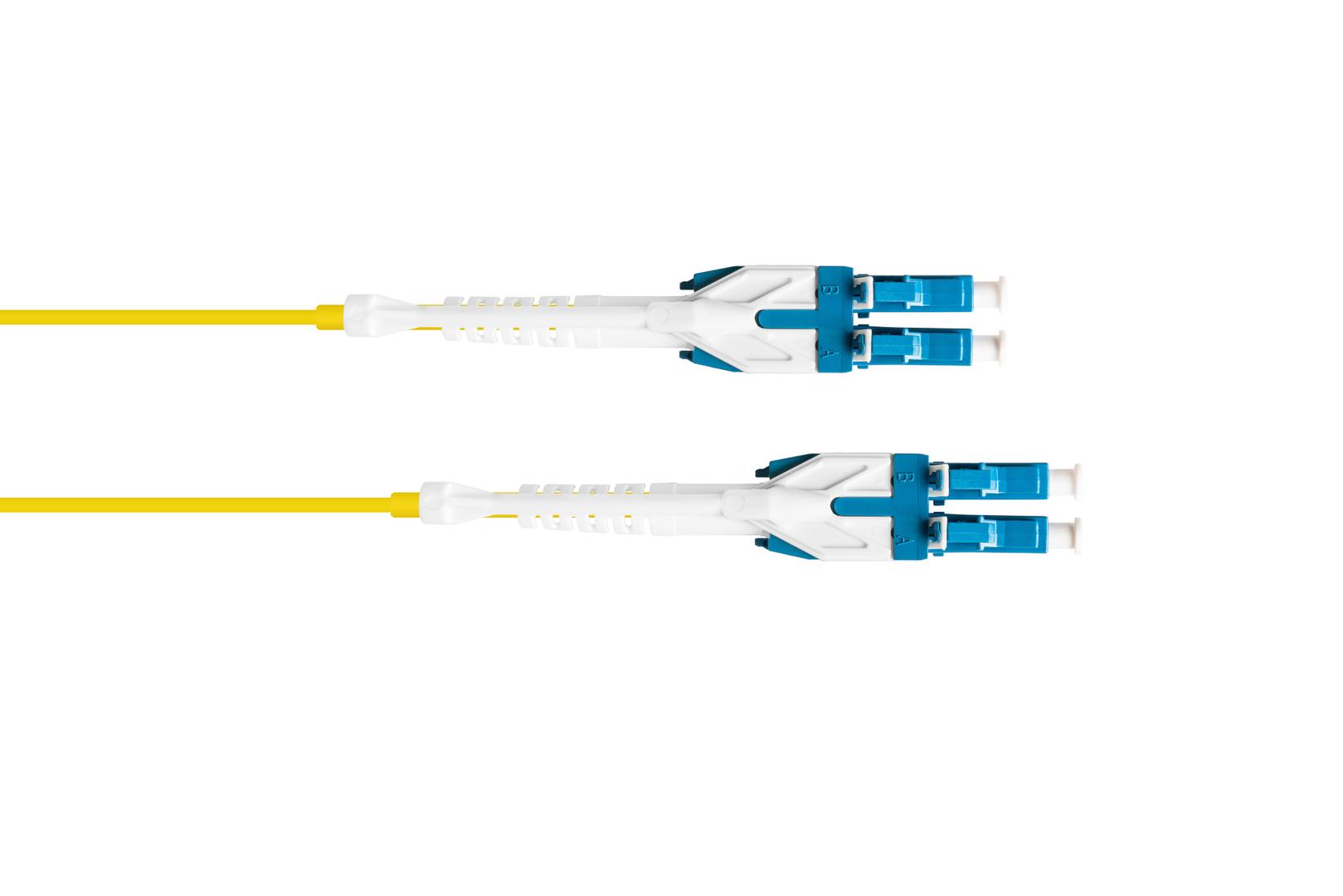

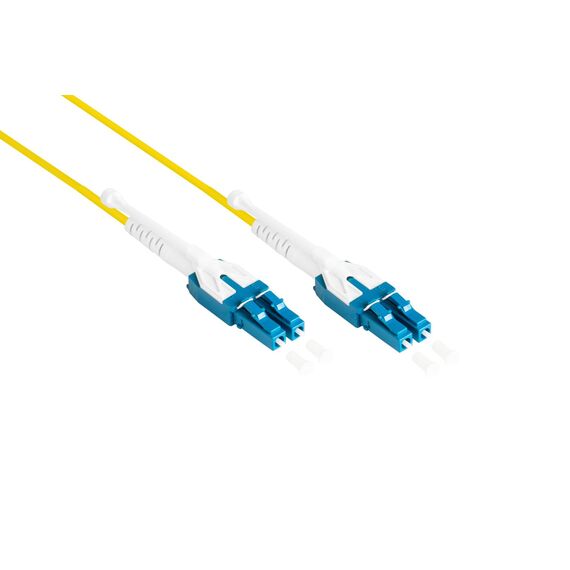

Good Connections Fibre Patch Cable LC/UPC-LC/UPC Duplex Uniboot OS2 Singlemode 9/125 LSZH 10m Yellow
Brand:
GoodConnections
Good Connections Fibre Patch Cable LC/UPC-LC/UPC Duplex Uniboot OS2 Singlemode 9/125 LSZH 10m Yellow
€18.39 inc. VAT
LW-U910LC
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Good Connections LC-LC OS2 Duplex Fibre Patch Cable — 10 m
OS2 SinglemodeLC/UPC – LC/UPC10 mLSZH 3 mm
The Good Connections LW-U910LC is a 10 m duplex fibre optic patch cable with LC/UPC and LC/UPC connectors on OS2 singlemode fibre (9/125 µm, G.652.D), for connecting singlemode transceivers, ONTs, splitters and patch panels in racks, offices and server rooms.
OS2 is 9/125 µm singlemode fibre, the type used for long-reach optics (LX/LR/ER), campus and building backbones, FTTH and carrier hand-offs. The yellow jacket follows the singlemode colour convention.
Before you order: This is OS2 singlemode cable. It only works with singlemode optics (LX/LR, 1310/1550 nm) and singlemode panels, not with SR/SX multimode transceivers.
What's in the Box
- 1 × Good Connections LW-U910LC duplex fibre patch cable, LC/UPC – LC/UPC, 10 m
- Dust caps on the connector ends
- Individual test report (each cable is tested before shipping)
What It Means in Practice
- 10 m reaches across a server room or between racks in different rows; for permanent runs through walls or between floors, an installation cable terminated on panels is the more robust choice.
- Duplex means two fibres (transmit and receive) in one cable, which is exactly what a standard duplex SFP, SFP+ or QSFP transceiver needs.

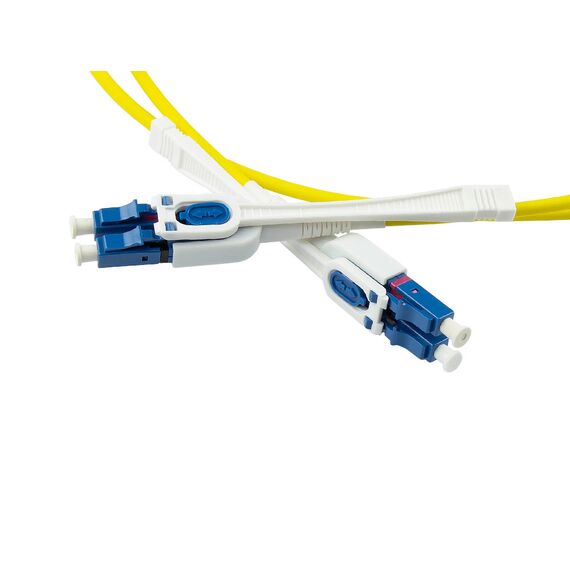

- Uniboot: both fibres run in one round jacket into a single boot, which saves space in dense switches and panels; the release tab lets you unplug it without reaching between neighbouring cables.
- LSZH jacket, 3 mm outer diameter, yellow: halogen-free, the usual requirement for cabling inside offices, public buildings and data rooms.
- Minimum bend radius 15 mm: keep curves in cable managers and trunking wider than this to avoid extra loss or a damaged fibre.
What Will Not Work
- It will not mate correctly with APC (angled, normally green) ports or adapters; those need an APC cable.
- Both ends are LC. It will not plug into SC or ST ports without the matching hybrid cable.
- It is not a copper cable: it does not connect to RJ45 ports or copper (RJ45) SFP modules.
Key Features
Connectors
LC/UPC to LC/UPC, uniboot with release tab.
Fibre
OS2 singlemode, 9/125 µm, G.652.D, 2 fibres.
Jacket
LSZH, 3 mm, yellow.
Quality
Each cable is tested and supplied with its own measurement report.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most fibre problems we see come from three mismatches: multimode vs singlemode, UPC vs APC, and LC vs SC. This Good Connections cable is OS2 singlemode, UPC LC-LC, so match it to your optics and panel first. If you are building the link from scratch, pick the transceivers and switches with SFP ports first, then choose the cable that matches them.
✓ Buy it if your equipment uses OS2 singlemode fibre with LC/UPC and LC/UPC ports and 10 m covers the distance.
✕ Skip it if your transceivers are multimode (SR/SX), or your ports are APC.
→ Also consider the same cable in other lengths, or an LC-SC hybrid version if your ports differ; matching SFP/SFP+ transceivers.
Not sure which cable you need? Send us the model of your switch, transceiver or panel and we will check connectors and fibre type before you order.
Features - GoodConnections - LW-U910LC
Colour
yellow
Length
10m
More Details
Product Code
04:469478
EAN Code
4014619557516
Manufacturer
GoodConnections
