Good Connections Fiber Patch Cable OS2 Singlemode LC/APC to SC/APC Simplex 10m LSZH Yellow
Brand:
GoodConnections
Good Connections Fiber Patch Cable OS2 Singlemode LC/APC to SC/APC Simplex 10m LSZH Yellow
€7.24 inc. VAT
LW-S910LASA
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

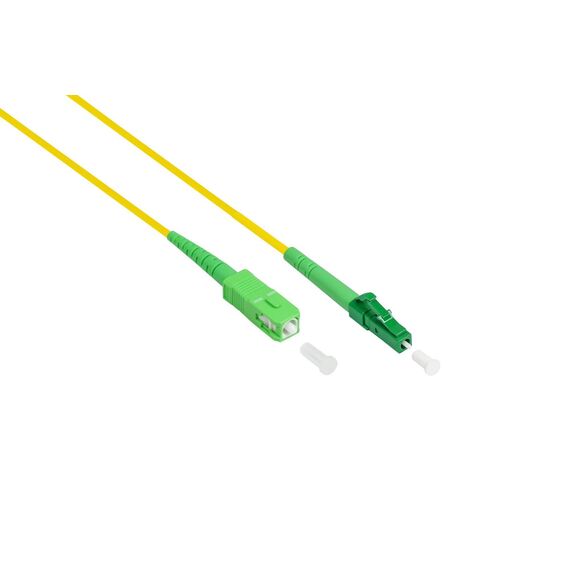

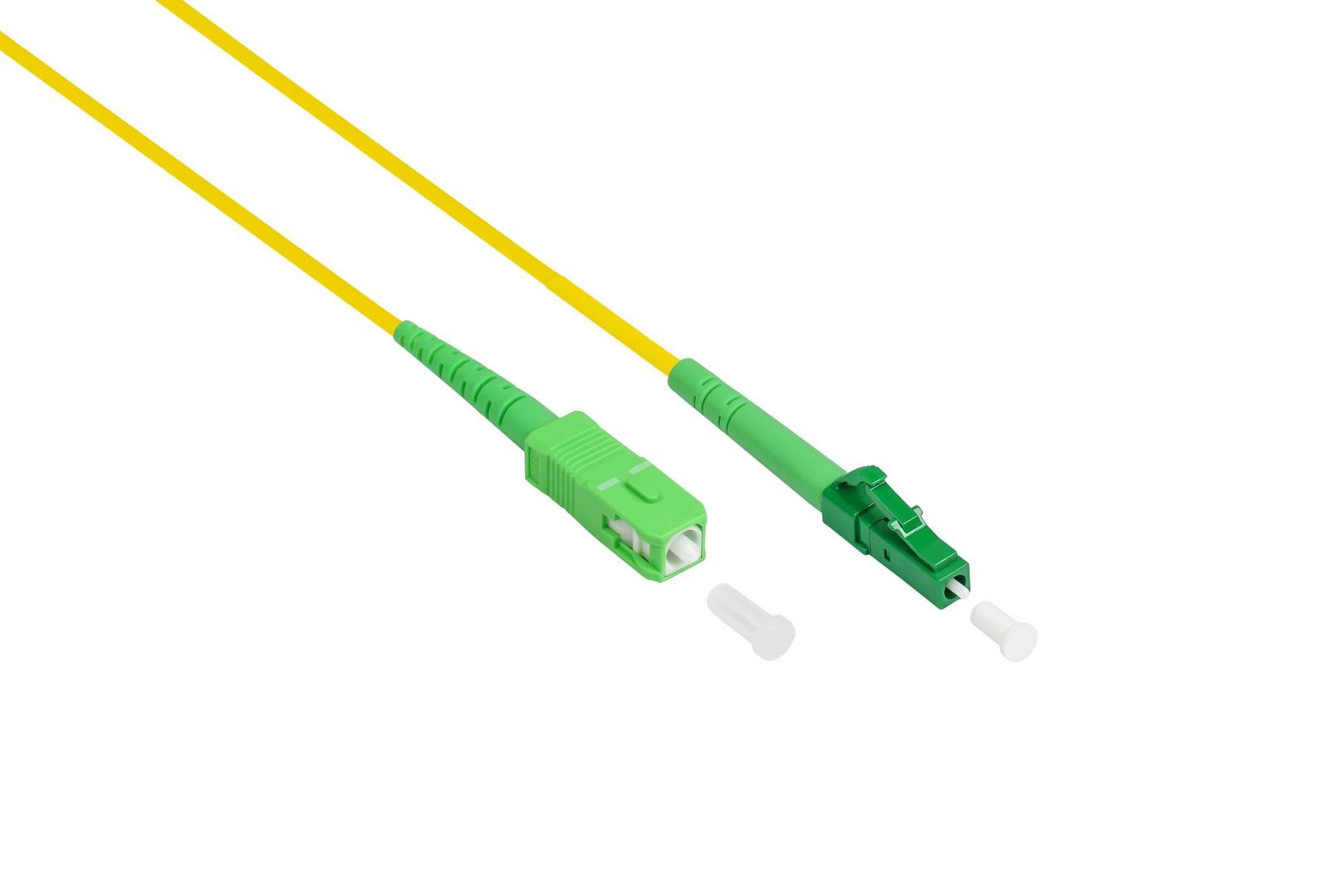

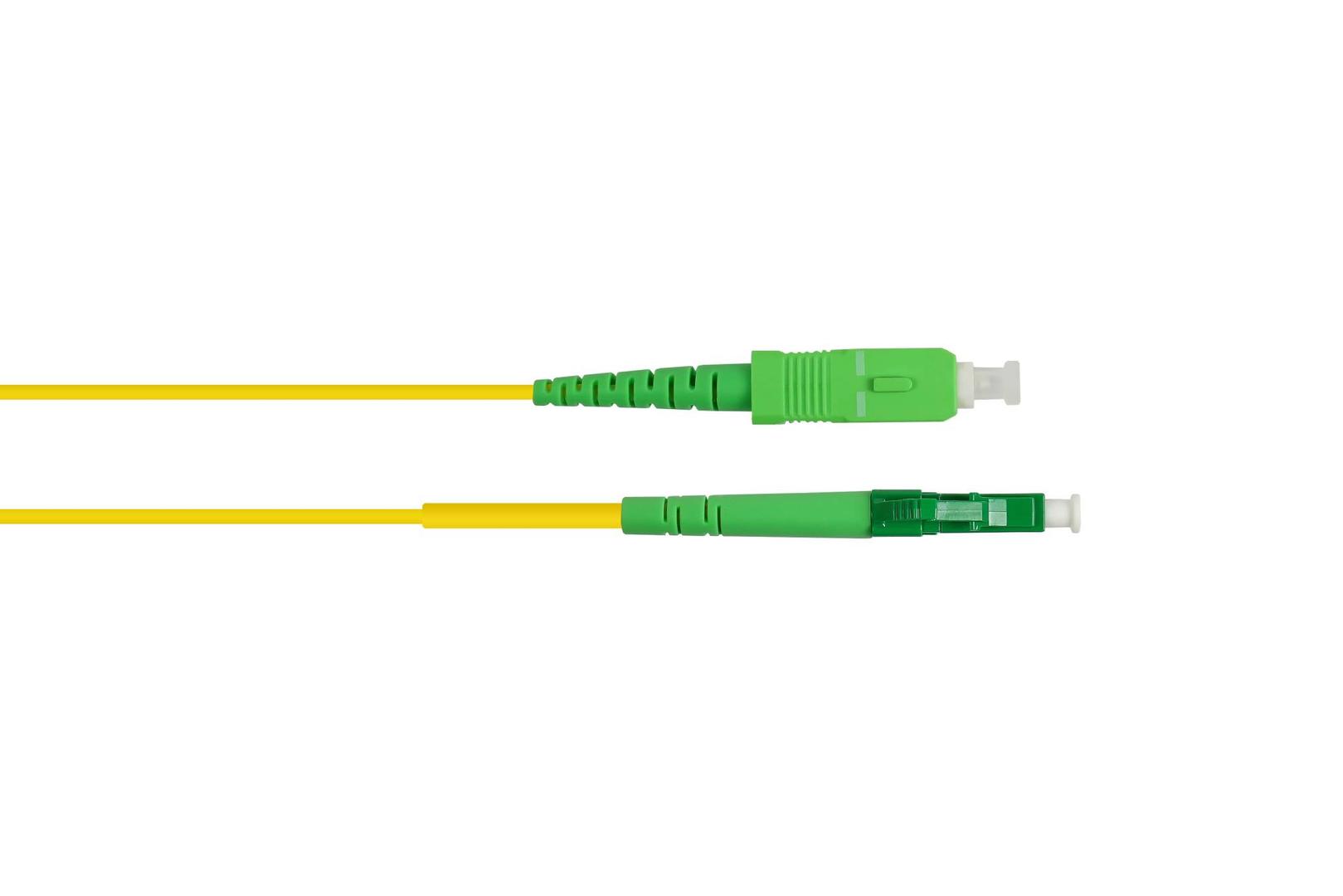

Good Connections OS2 Singlemode Fiber Patch Cable, LC/APC to SC/APC, Simplex, 10 m
OS2 · 9/125 µmLC/APC ↔ SC/APCSimplex10 m
The Good Connections LW-S910LASA is a 10 m simplex OS2 singlemode fibre patch cable with LC/APC on one end and SC/APC on the other, made for singlemode links between switches, SFP/SFP+ optics, patch panels and media converters.
The cable uses an LSZH jacket with a 2.0 mm outer diameter in yellow, the standard colour for singlemode, so it is easy to tell apart in a busy rack. Every cable is tested after assembly and ships with its own measurement report.
Before you order: APC connectors (green, 8° angled end-face) only mate with APC ports and APC couplers. Plugging an APC connector into a UPC port (blue) causes high loss and can damage both end-faces — check that both devices or panels are APC before ordering.
What's in the Box
- 1 × Good Connections OS2 simplex fibre patch cable, 10 m, LC/APC – SC/APC
- Dust caps fitted on every connector
- Individual test report for this cable
- Transceivers, couplers and patch panels are not included
What It Means in Practice
- One fibre only: suited to single-fibre (BiDi) optics, PON equipment and splitter/panel patching, not to standard two-fibre SFP links.
- At 10 m it reaches between neighbouring racks or across a server room; for building backbones use installation cable and patch panels instead.
- Singlemode OS2 is the right choice for 1310/1550 nm optics (1000BASE-LX, 10GBASE-LR and similar) and for links that will be extended later over long distances.
- Respect the minimum bend radius (15 mm): route the cable in gentle loops and do not pinch it in rack doors or cable ties.
- Keep the connectors covered until the moment of connection and clean the end-faces if a link shows high loss — dirt is the most common cause.
What Will Not Work
- Multimode SR/SX transceivers (850 nm) — they need OM3/OM4/OM5 cable.
- UPC ports, UPC couplers or standard SFP modules with UPC receptacles — APC and UPC must never be mated.
- Ports of another connector type (ST, MPO/MTP, E2000) without the right hybrid cable or adapter.
- Standard two-fibre (duplex) SFP/SFP+ links — one fibre cannot carry both directions unless the optics are BiDi.
- Permanent in-wall or outdoor installation — this is a patch cable for racks, desks and equipment rooms.
Key Features
OS2 9/125 µm
Singlemode OS2 for 1310/1550 nm optics and long links.
LC/APC – SC/APC
Hybrid cable: connects an LC port to an SC port without an adapter.
LSZH jacket
Low-smoke, halogen-free jacket, 2.0 mm — suitable for offices and server rooms.
Tested cable
Each cable comes with its own test report.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Singlemode OS2 is the safe default for new fibre links: it handles 1G to 100G and long distances with the right optics. Match three things before ordering: fibre type (OS2), connector at each end (LC/APC / SC/APC) and polish (APC). Typical partners are switches with SFP/SFP+ ports and the matching transceivers.
✓ Buy it if your ports are LC on one side and SC on the other and the link is OS2 with APC polish.
✕ Skip it if your equipment has UPC (blue) ports — order the UPC version instead.
→ Also consider the same cable in other lengths, or the LC-LC version if both ends are LC, or a duplex version for standard SFP links.
Not sure which fibre or connector you have? Send us the model of your switch, transceiver or patch panel and we will check it before you order.
Features - GoodConnections - LW-S910LASA
Colour
yellow
Length
10m
More Details
Product Code
04:480354
EAN Code
4014619602896
Manufacturer
GoodConnections
