Good Connections OS2 LC/UPC to LC/UPC Duplex Uniboot Fibre Patch Cable — 15 m
OS2 9/125 µmLC/UPC ↔ LC/UPCDuplex Uniboot15 m · LSZH

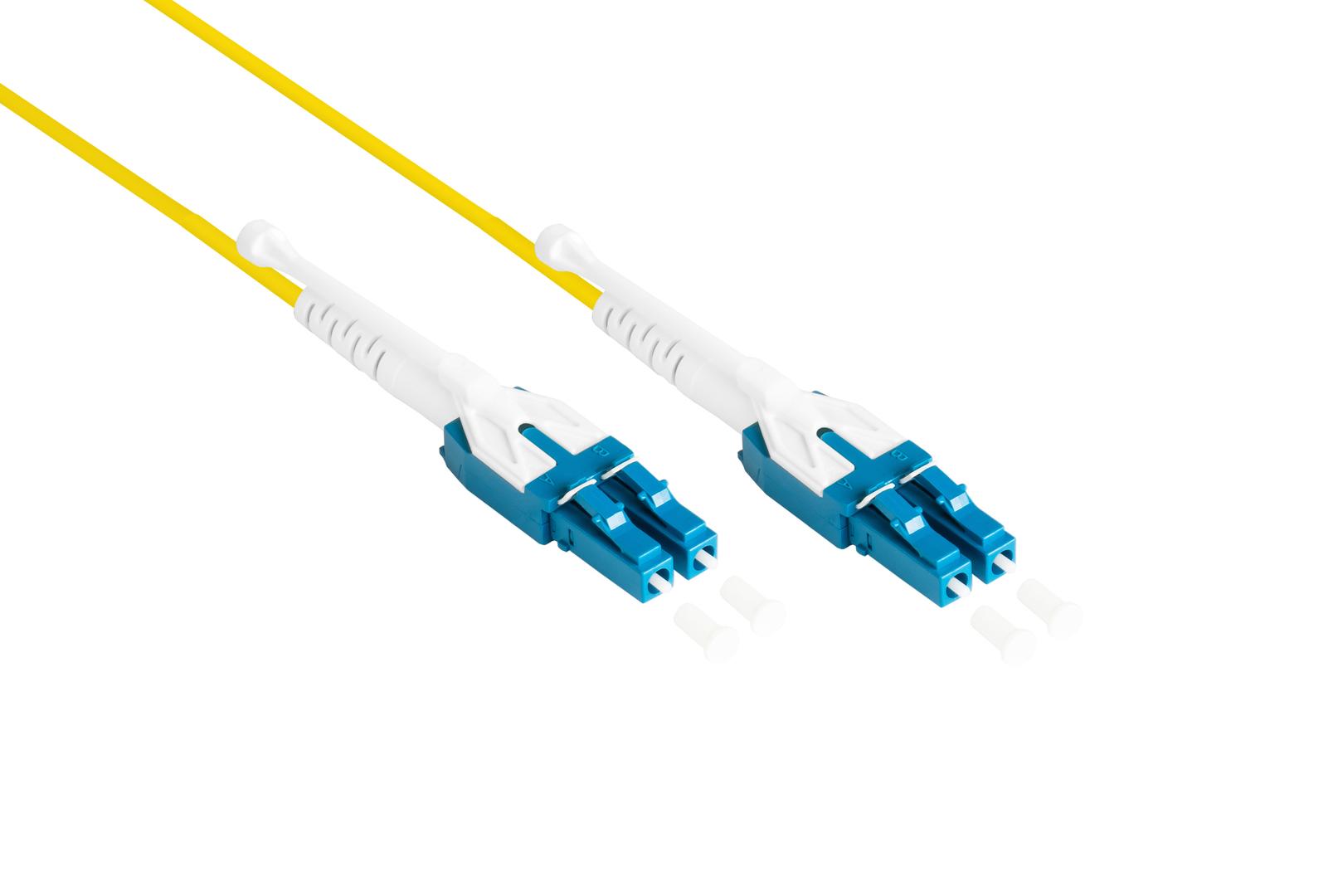

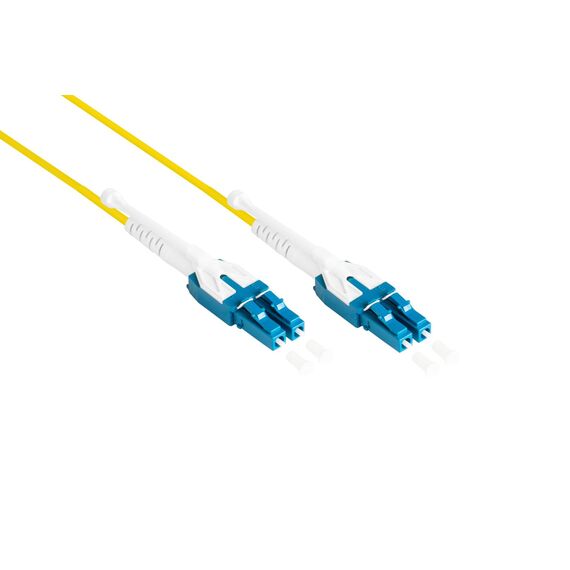

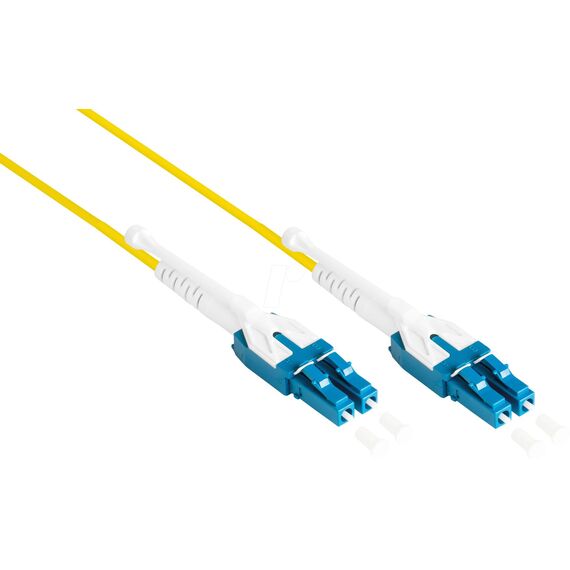

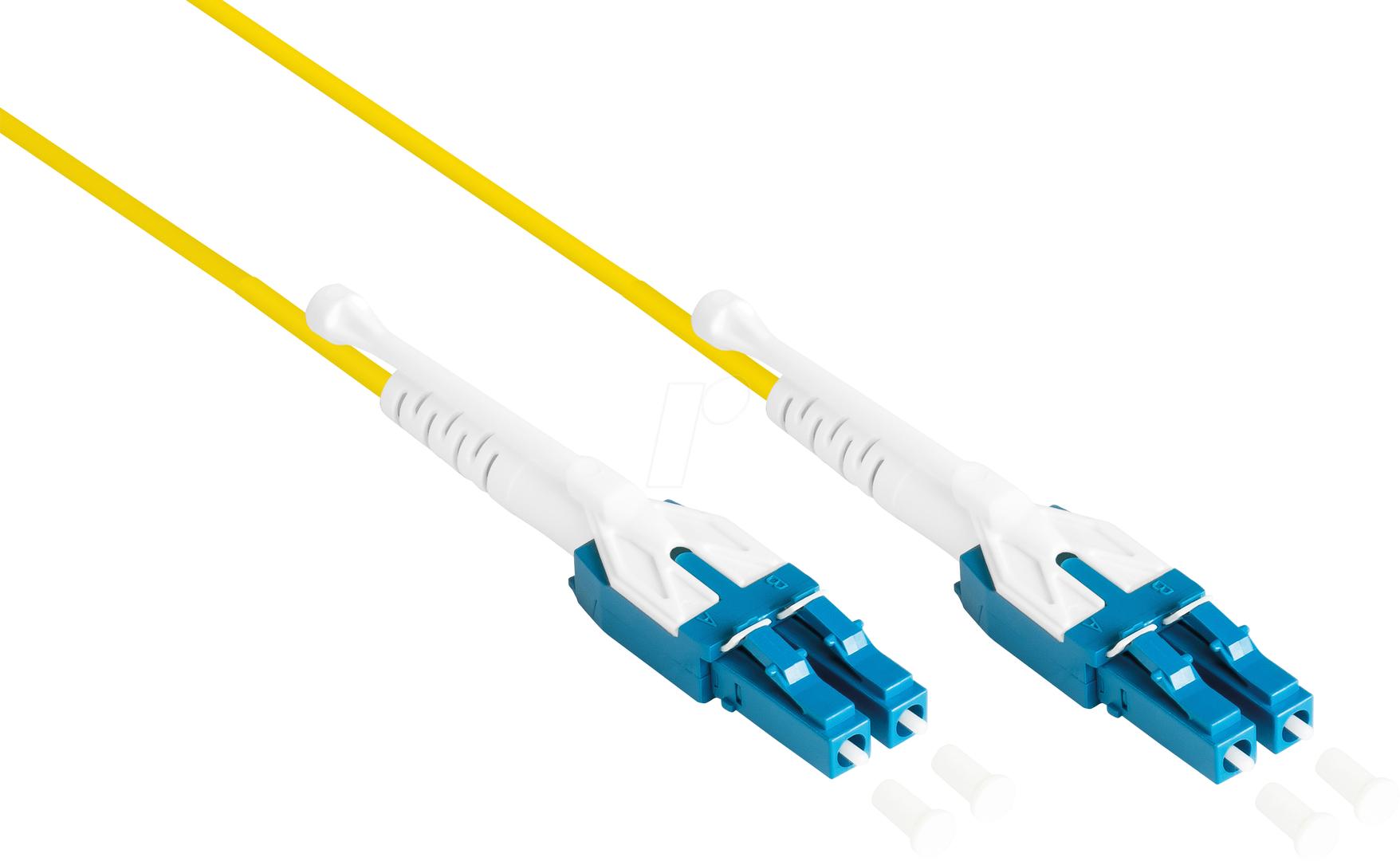

The Good Connections LW-U915LC is a 15 m duplex uniboot OS2 single-mode fibre optic patch cable (9/125 µm) with LC/UPC on one end and LC/UPC on the other, for single-mode optics such as 1000BASE-LX or 10GBASE-LR SFP/SFP+ transceivers, media converters and single-mode patch panels.
The yellow 3.0 mm jacket is LSZH (low smoke, zero halogen), with a minimum bend radius of 15 mm. Every cable is tested and shipped with its own measurement report. OS2 is the current single-mode grade (9/125 µm). It is the choice for runs between floors or buildings, carrier and FTTH connections, and any LX/LR/ER-type optics; the reach is set by the transceiver, not by this short patch cord.
Before you order: This is single-mode (OS2) fibre. It works only with single-mode transceivers (LX, LR, ER and similar) — not with multimode SR optics. Check the label on your SFP module before ordering.
What's in the Box
- 1 × Good Connections OS2 duplex patch cable, LC/UPC to LC/UPC, 15 m
- Dust caps on the connectors
- Individual test / measurement report
- No couplers, adapters or transceivers are included
What It Means in Practice
- Duplex = two fibres, one to transmit and one to receive. A standard SFP/SFP+ module uses both, so one duplex cable makes one link.
- Same connector on both ends: LC (small, latching) — fits SFP/SFP+ modules and high-density panels.

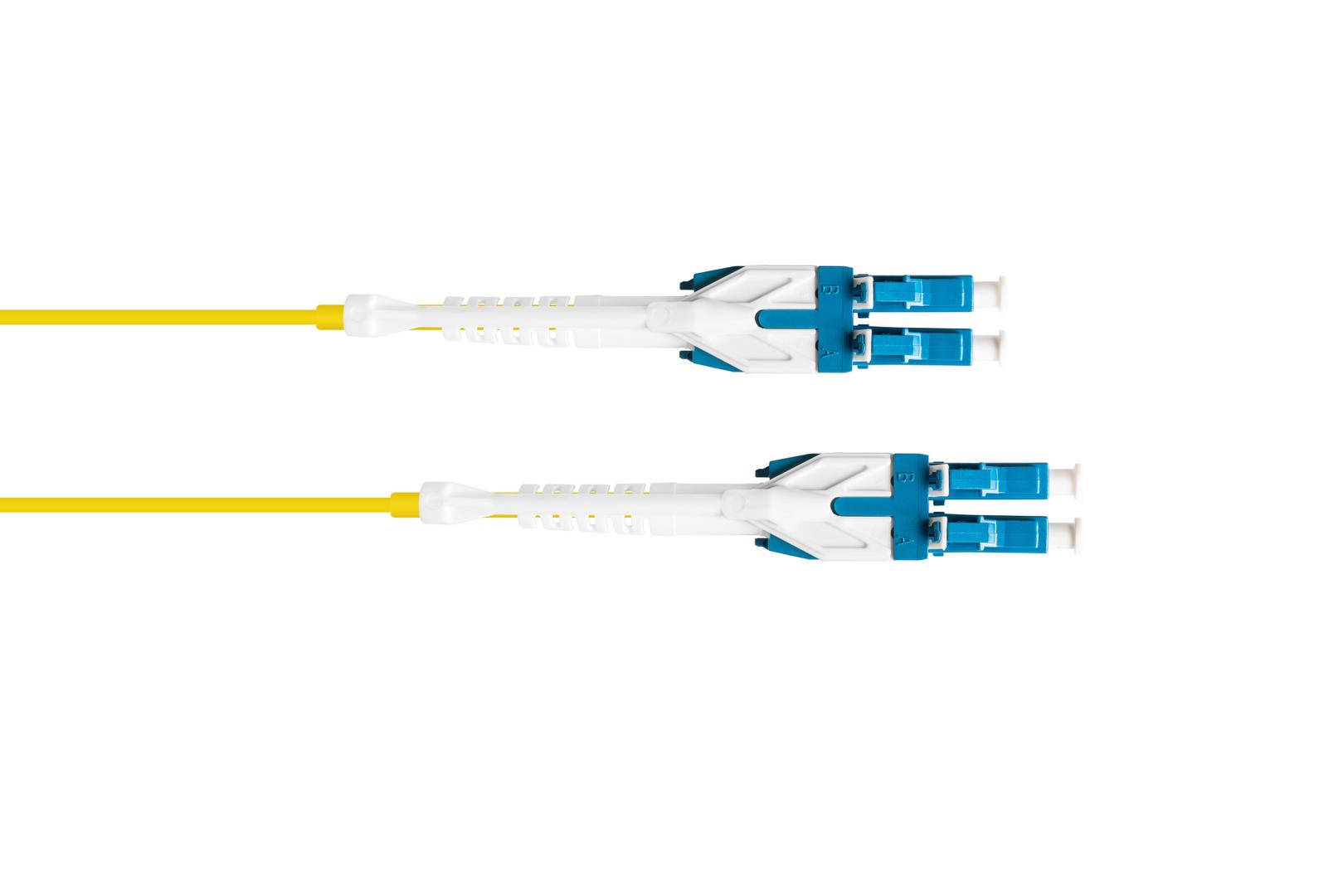

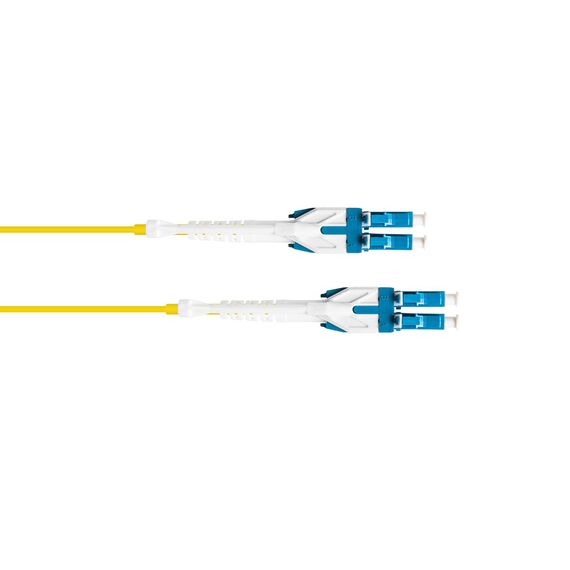

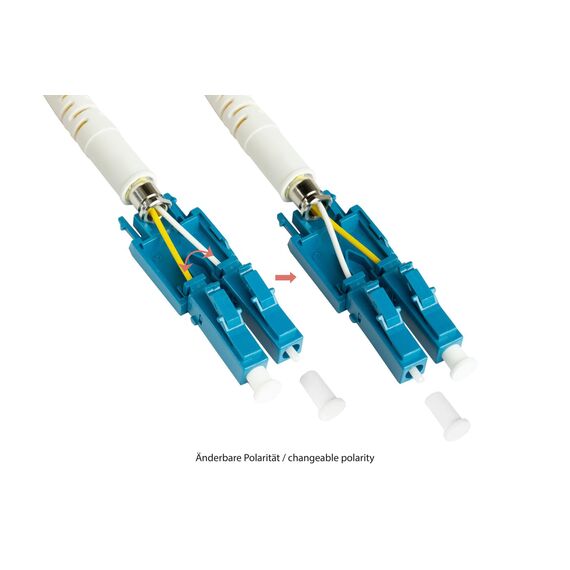

- Uniboot: both fibres run in one round cable with a single boot, which the manufacturer says saves up to 50% space versus a classic duplex cord — useful on crowded switch fronts.

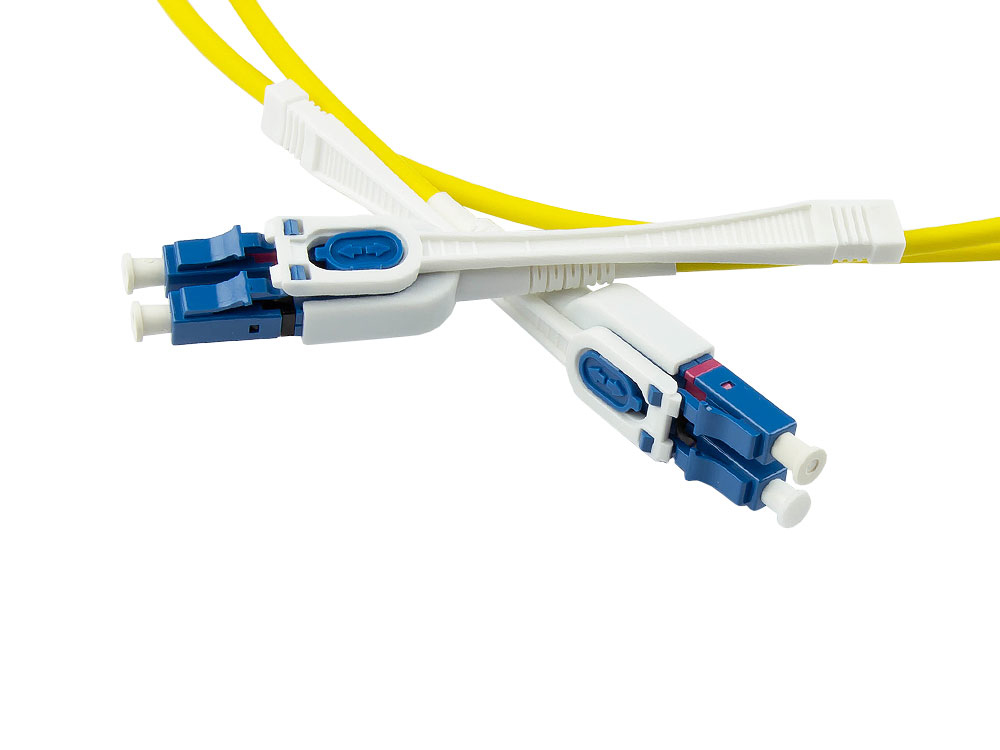

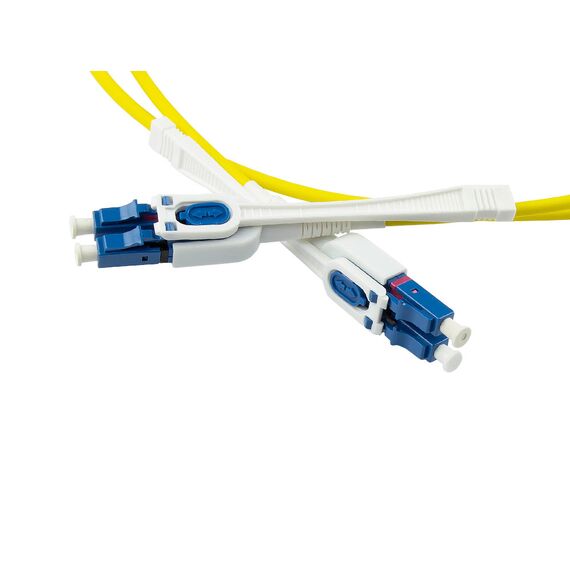

- The pull tab lets you release the LC latch in tightly packed ports without a tool.
- Jacket colour follows the usual convention (yellow single-mode, aqua OM3, violet OM4, lime OM5), so the cable is easy to identify later in the rack.
What Will Not Work
- Multimode SR transceivers or multimode (aqua/violet/lime) cabling — mixing single-mode and multimode fails or gives an unstable link.
- APC (green) ports — many FTTH/GPON ONTs and fibre wall outlets use SC/APC.
- Ports other than LC (e.g. SC, ST, MPO/MTP) — use the matching cable or a suitable coupler.
- It is a passive cable: it does not turn an RJ45 copper port into fibre — that needs an SFP module or a media converter.
Key Features
LSZH 3.0 mm jacket
Low smoke, zero halogen — suitable for offices, public buildings and server rooms where PVC is not wanted.
LC/UPC / LC/UPC
LC on both ends for straight equipment-to-panel or equipment-to-equipment links.
Tested, with report
Each cable is measured before shipping and the report is in the bag — handy for installation documentation.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For fibre patch cords three things decide the order: fibre type (single-mode OS2), connectors on each end (LC/UPC / LC/UPC) and polish (UPC). Match all three to the ports you already have and the cable simply works. Planning a new fibre uplink? See our switches with SFP ports.
✓ Buy it if you need a 15 m OS2 duplex link between LC/UPC and LC/UPC ports.
✕ Skip it if your optics are SR multimode, or your ports are APC (green).
→ Also consider the same cord in other lengths, or the OM3/OM4 multimode version if your optics differ.
Not sure which fibre or connector you have? Send us the switch or SFP module model and we will check it before you order.
Features - GoodConnections - LW-U915LC
Colour
yellow
Length
15m
More Details
Product Code
04:469479
EAN Code
4014619557530
Manufacturer
GoodConnections
