Good Connections Fibre Optic Patch Cable OS2 Singlemode, LC/APC to SC/APC Simplex, 9/125 µm, 3m, LSZH 2.0 mm, Yellow
Brand:
GoodConnections
Good Connections Fibre Optic Patch Cable OS2 Singlemode, LC/APC to SC/APC Simplex, 9/125 µm, 3m, LSZH 2.0 mm, Yellow
€5.8 inc. VAT
LW-S903LASA
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Good Connections OS2 Singlemode Fibre Patch Cable — LC/APC to SC/APC, Simplex, 3 m
OS2 9/125 µmLC – SC APC3 m SimplexLSZH Yellow

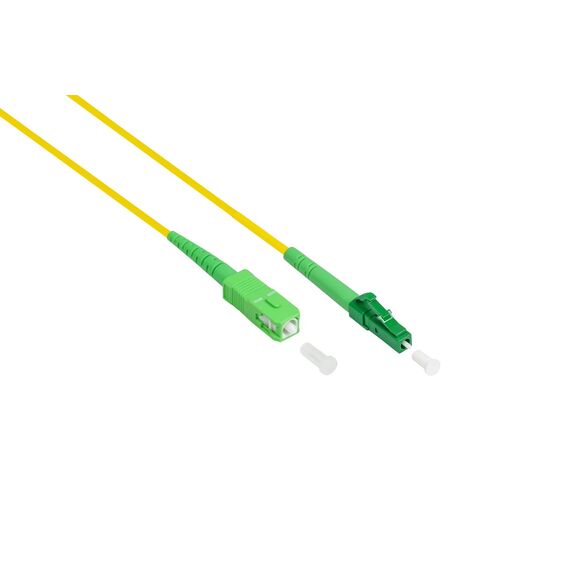

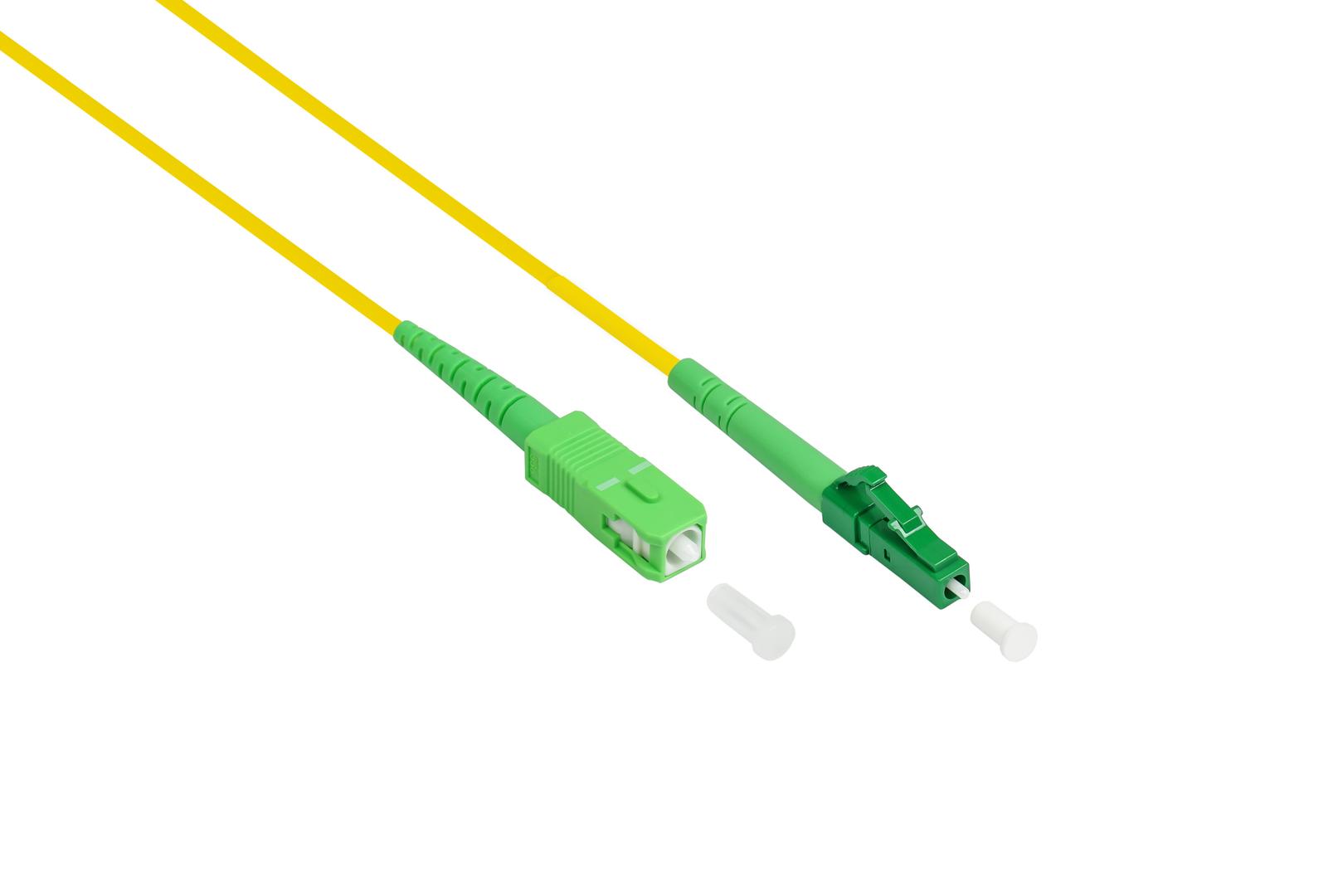

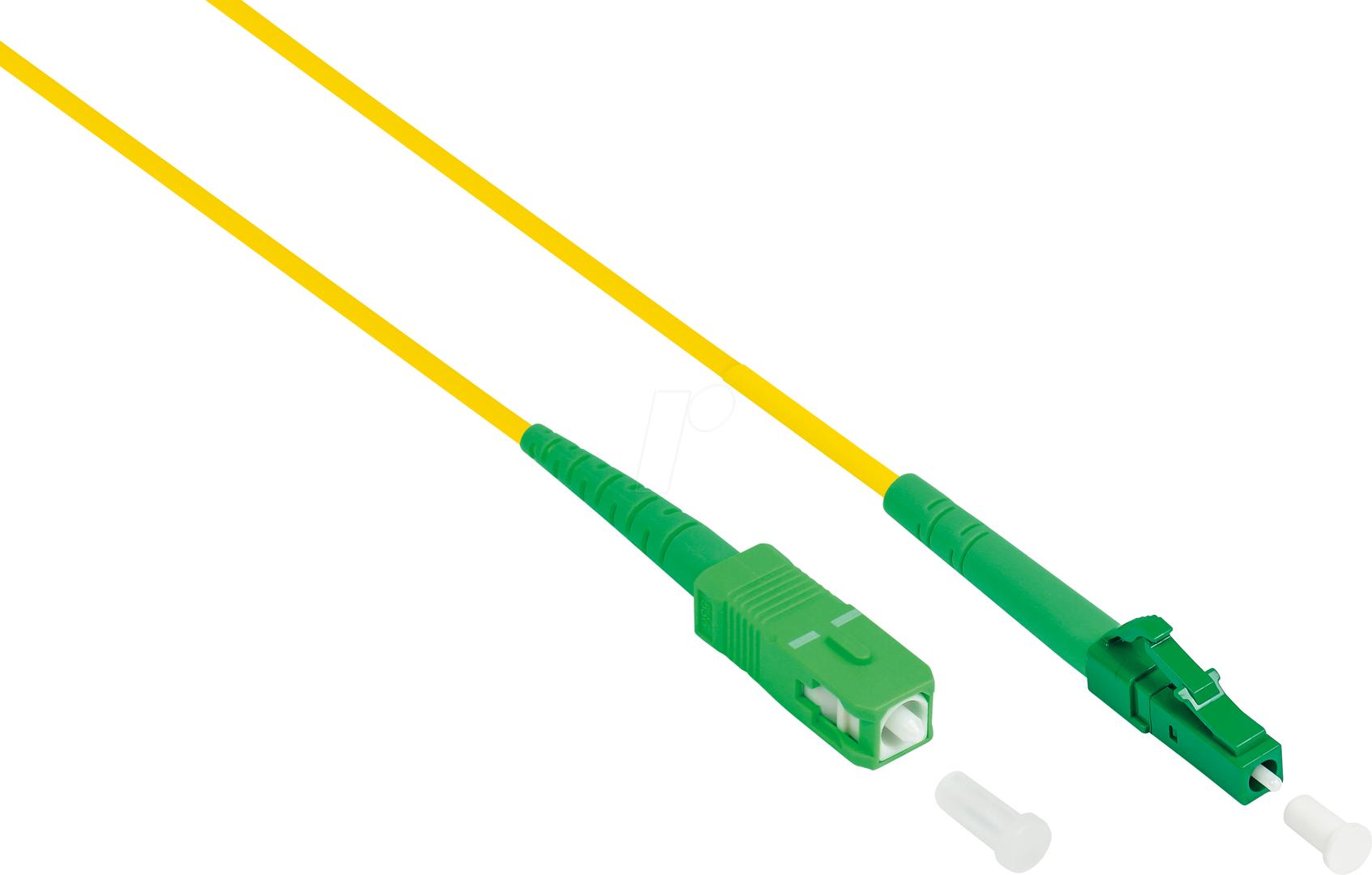

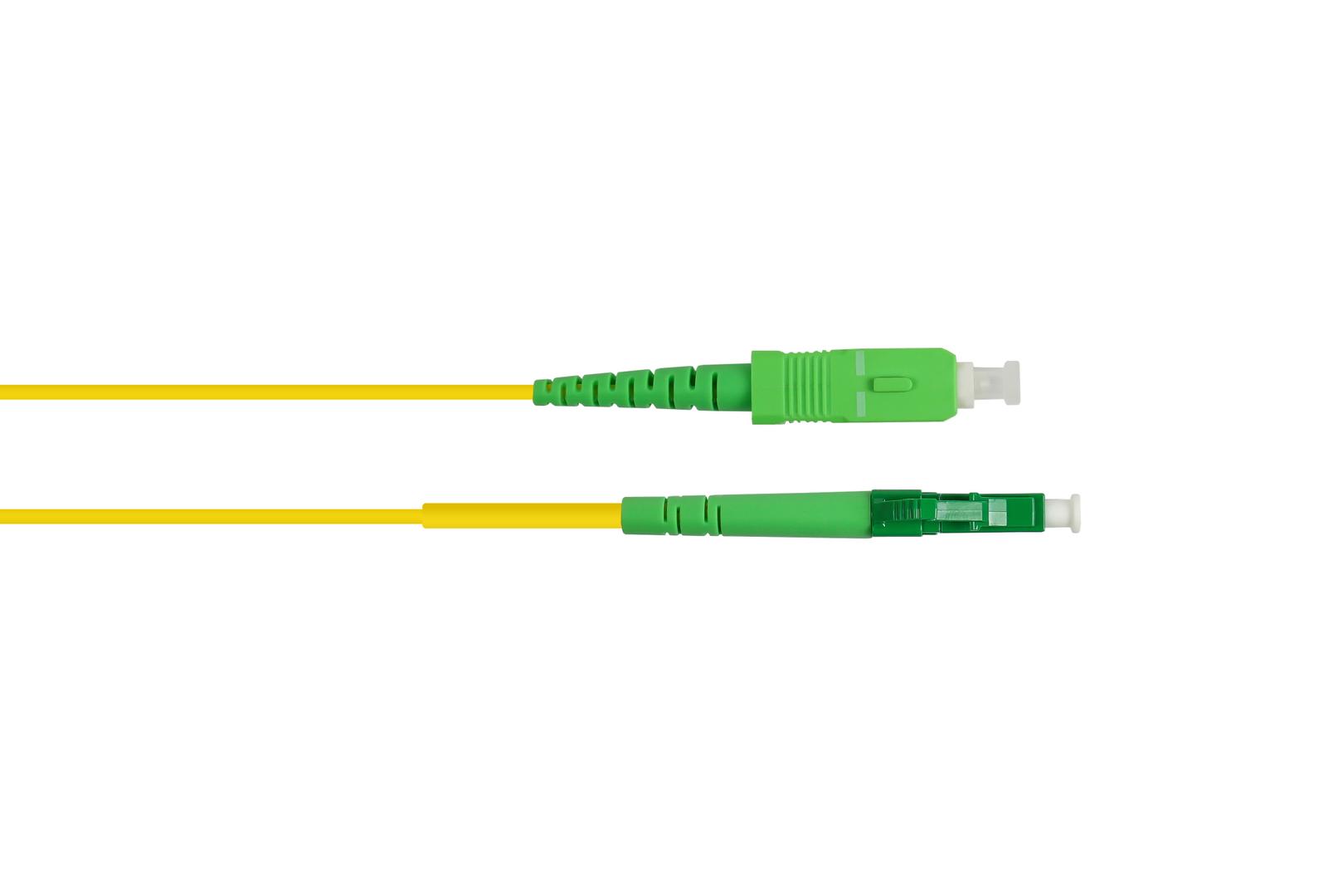

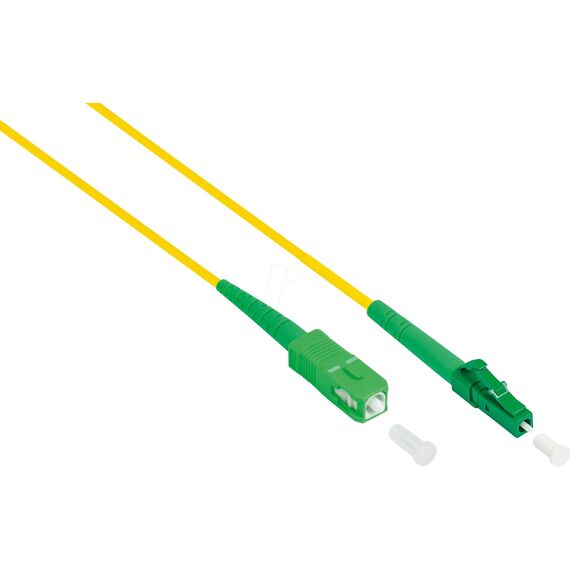

The Good Connections LW-S903LASA is a 3 m simplex OS2 singlemode fibre optic patch cable with LC/APC on one end and SC/APC on the other, built on 9/125 µm fibre (G.652.D) in a LSZH yellow jacket, 2.0 mm in diameter. It is made for FTTH/FTTx and PON installations and single-fibre links, connecting ONTs, splitters, termination boxes and BiDi optics.
LC is the small-form connector used by SFP/SFP+ transceivers and most current switch and media-converter fibre ports. SC is the larger square push-pull connector found on many patch panels, media converters and FTTH ONTs. So this cable bridges an LC port on one side and an SC port on the other — check both ends before ordering.
Before you order: Both ends are APC (angled polish, normally green connectors). APC only mates with APC — do not plug it into UPC (blue) ports or couplers; the mismatch causes high loss and can damage the end-faces.
What's in the Box
- 1 × Good Connections simplex fibre optic patch cable, LC/APC – SC/APC, 3 m
- Dust caps fitted on the connectors
- Individual test report (measurement protocol) for the cable
- Transceivers, couplers and cleaning tools are not included
What It Means in Practice
- Simplex means one fibre. It suits PON/FTTH drops and BiDi transceivers that use a single fibre; for a separate transmit/receive pair you need two simplex cables or a duplex cable.
- 3 m is the end-to-end length. Measure the route including slack in cable managers and trays before ordering — fibre should never be pulled tight or kinked.
- Minimum bend radius is 15 mm — keep loops wider than that in racks, boxes and trays.
What Will Not Work
- It will not work with multimode SR/SX transceivers or multimode fibre runs.
- It will not work in UPC (blue, flat-polish) ports, couplers or patch panels — APC needs APC.
- It does not plug into ST, MPO ports. If one end of your link is different, tell us the ports and we will match the right cable.
- It is an indoor patch cord, not an outdoor or direct-burial cable.
Key Features
Fibre
OS2 singlemode 9/125 µm, G.652.D.
Connectors
LC/APC to SC/APC, simplex.
Jacket
LSZH (low smoke, zero halogen), 2.0 mm, yellow — suited to offices, server rooms and public buildings.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most fibre faults we see come from three mismatches: singlemode versus multimode, UPC versus APC, and the wrong connector at one end. This Good Connections cord is OS2, APC, LC to SC — confirm those three on both devices and it will simply work. For the equipment side, see our modems and ONTs.
✓ Buy it if your link is OS2 singlemode, both ports are LC and SC with APC polish, and 3 m covers the route with a little slack.
✕ Skip it if either end uses a different connector or polish, your transceivers are multimode (SR/SX), or you need an outdoor-rated cable.
→ Also consider a duplex cable if your optics use separate transmit and receive fibres, or a coupler if you are extending an existing drop.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - GoodConnections - LW-S903LASA
Colour
yellow
Length
3m
More Details
Product Code
04:480348
EAN Code
4014619602865
Manufacturer
GoodConnections
