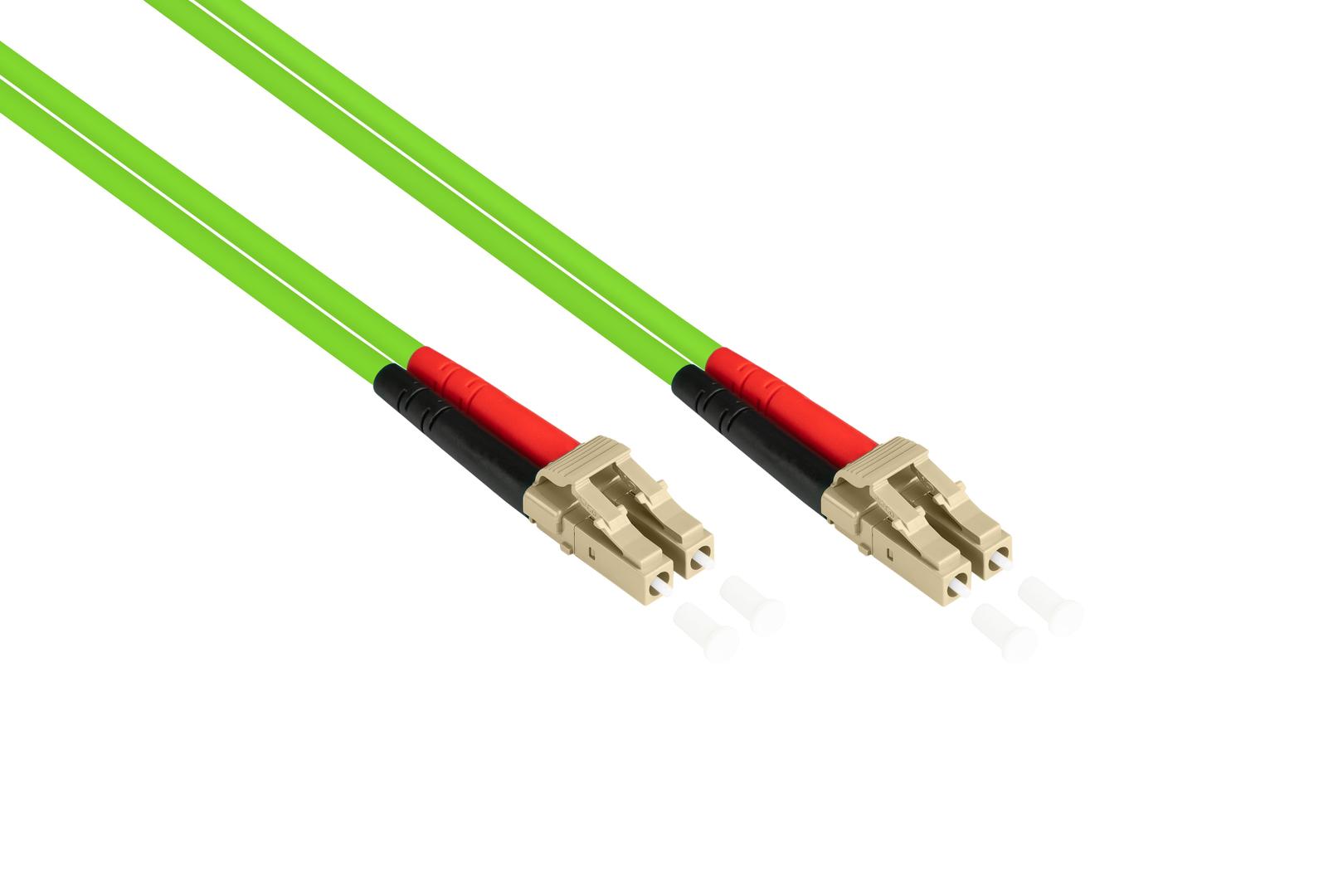

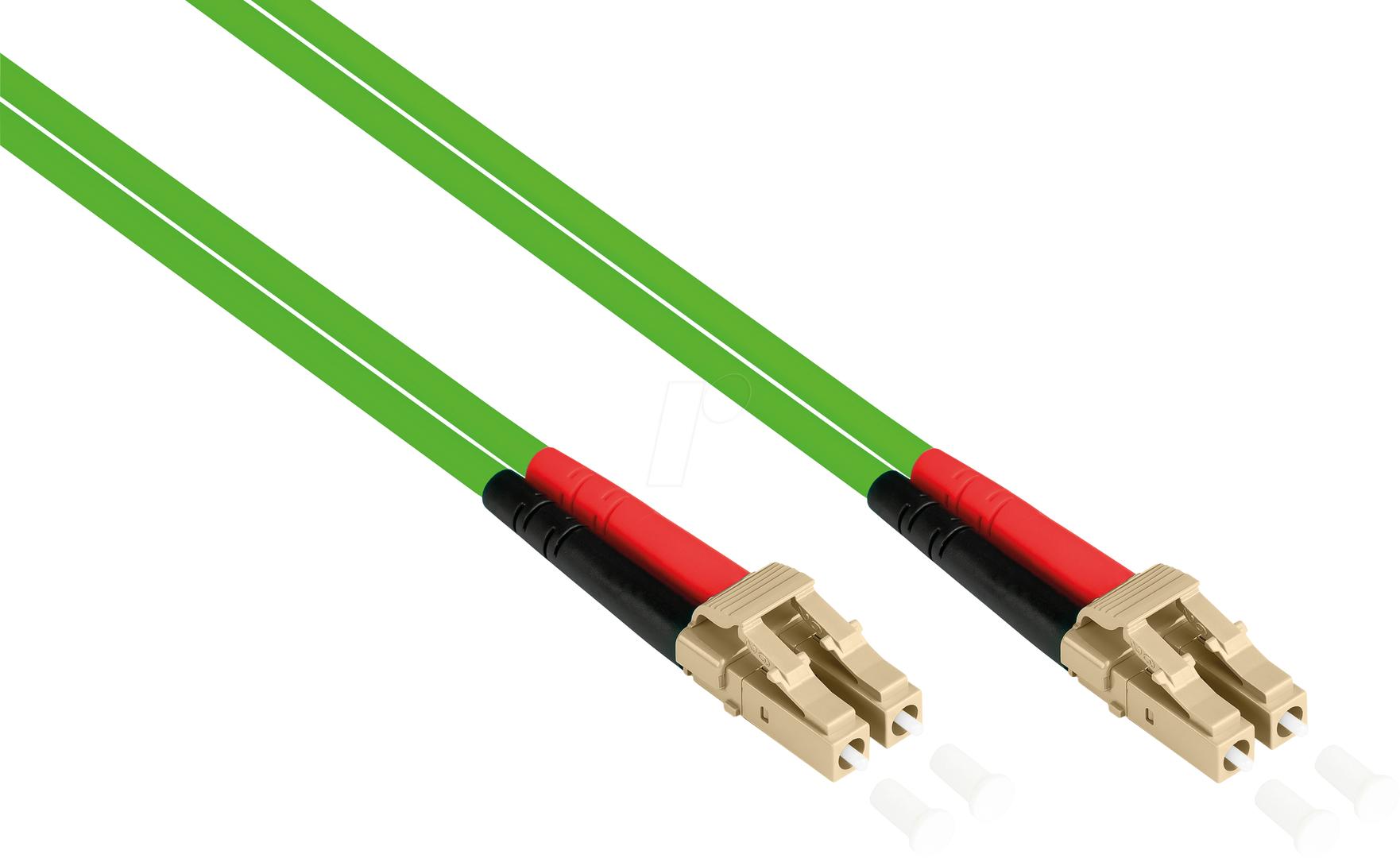

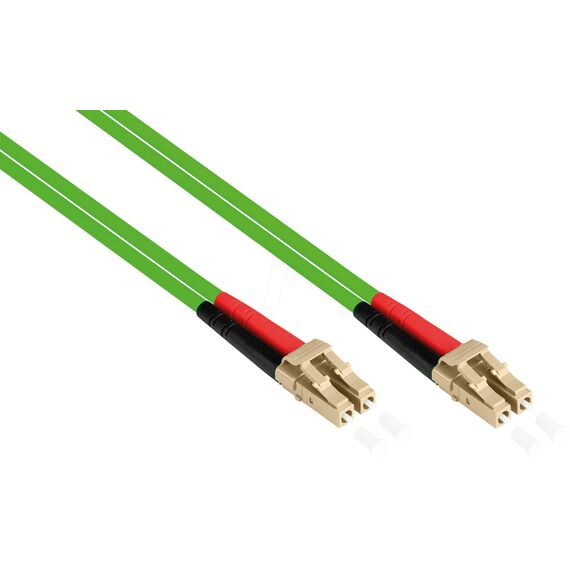

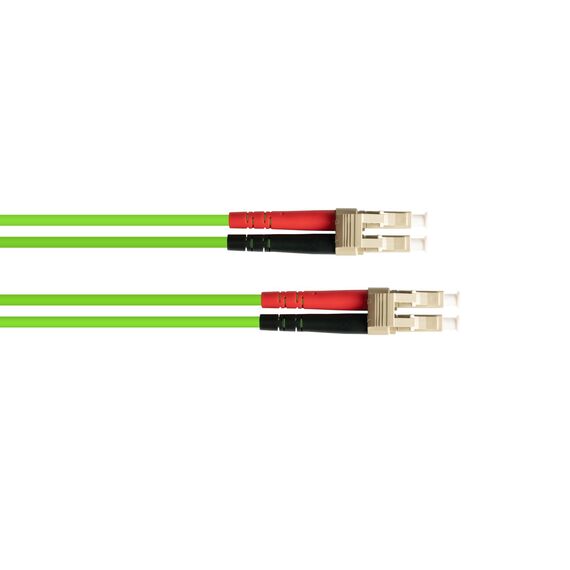

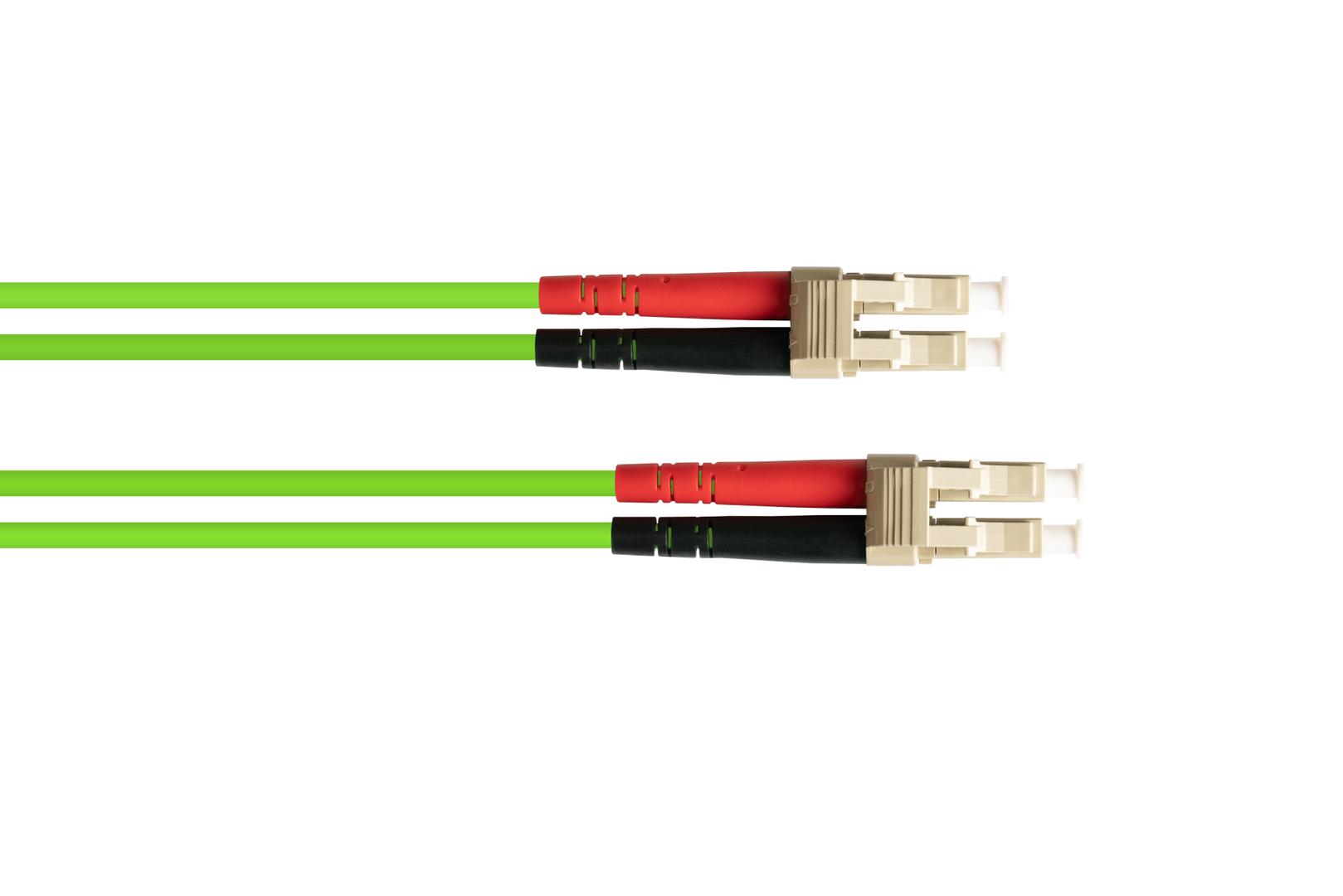

Good Connections Fiber Patch Cable OM5 Multimode LC/UPC to LC/UPC Duplex 3m LSZH Lime Green
Brand:
GoodConnections
Good Connections Fiber Patch Cable OM5 Multimode LC/UPC to LC/UPC Duplex 3m LSZH Lime Green
€16.34 inc. VAT
LW-803LC5
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Good Connections OM5 Multimode Fiber Patch Cable, LC/UPC to LC/UPC, Duplex, 3 m
OM5 · 50/125 µmLC/UPC ↔ LC/UPCDuplex3 m
The Good Connections LW-803LC5 is a 3 m duplex OM5 multimode fibre patch cable with LC/UPC connectors on both ends, made for short-reach 850 nm links today and SWDM-ready multimode links.
The cable uses an LSZH jacket with a 3.0 mm outer diameter in lime green, the colour reserved for OM5, so it is easy to tell apart in a busy rack. The duplex clip can be removed to swap polarity (A/B) on site, so a crossed link can be corrected without a new cable. Every cable is tested after assembly and ships with its own measurement report.
Before you order: OM5 multimode works with 850 nm short-reach (SR/SX) multimode optics only. Singlemode LR/LX transceivers will not work on this cable. Check that both ports are LC.
What's in the Box
- 1 × Good Connections OM5 duplex fibre patch cable, 3 m, LC/UPC – LC/UPC
- Dust caps fitted on every connector
- Individual test report for this cable
- Transceivers, couplers and patch panels are not included
What It Means in Practice
- Two fibres in one cable: one transmits, one receives — the normal setup for SFP, SFP+, SFP28 and most media converters.
- At 3 m it is a rack or desk-side jumper: switch to patch panel, server to top-of-rack switch, or media converter to wall outlet.
- OM5 is laser-optimised 50/125 µm multimode for 850 nm SR optics (10GBASE-SR, 25GBASE-SR, 8/16/32G FC SW) and, as a wideband fibre, for SWDM optics in the 850–950 nm range; it is backward compatible with OM3/OM4.
- Respect the minimum bend radius (7.5 mm): route the cable in gentle loops and do not pinch it in rack doors or cable ties.
- Keep the connectors covered until the moment of connection and clean the end-faces if a link shows high loss — dirt is the most common cause.
What Will Not Work
- Singlemode LR/LX/ER transceivers (1310/1550 nm) — they need OS2 singlemode cable.
- Ports of another connector type (SC, ST, MPO/MTP, E2000) without the right hybrid cable or adapter.
- Permanent in-wall or outdoor installation — this is a patch cable for racks, desks and equipment rooms.
Key Features
OM5 50/125 µm
Laser-optimised multimode for 850 nm SR optics and SWDM.
LC/UPC – LC/UPC
Same connector on both ends.
LSZH jacket
Low-smoke, halogen-free jacket, 3.0 mm — suitable for offices and server rooms.

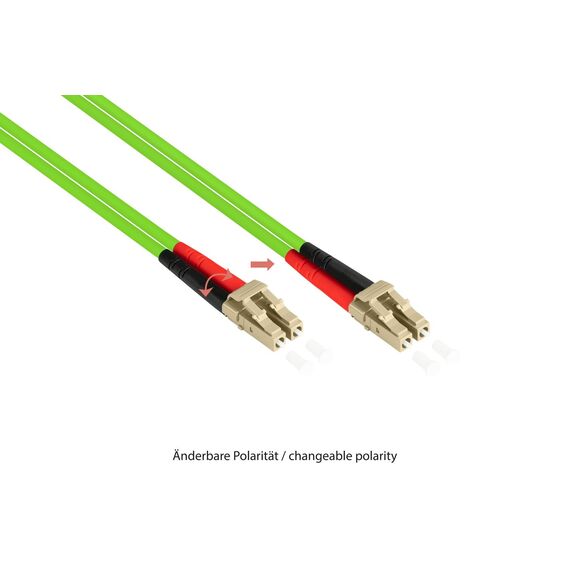

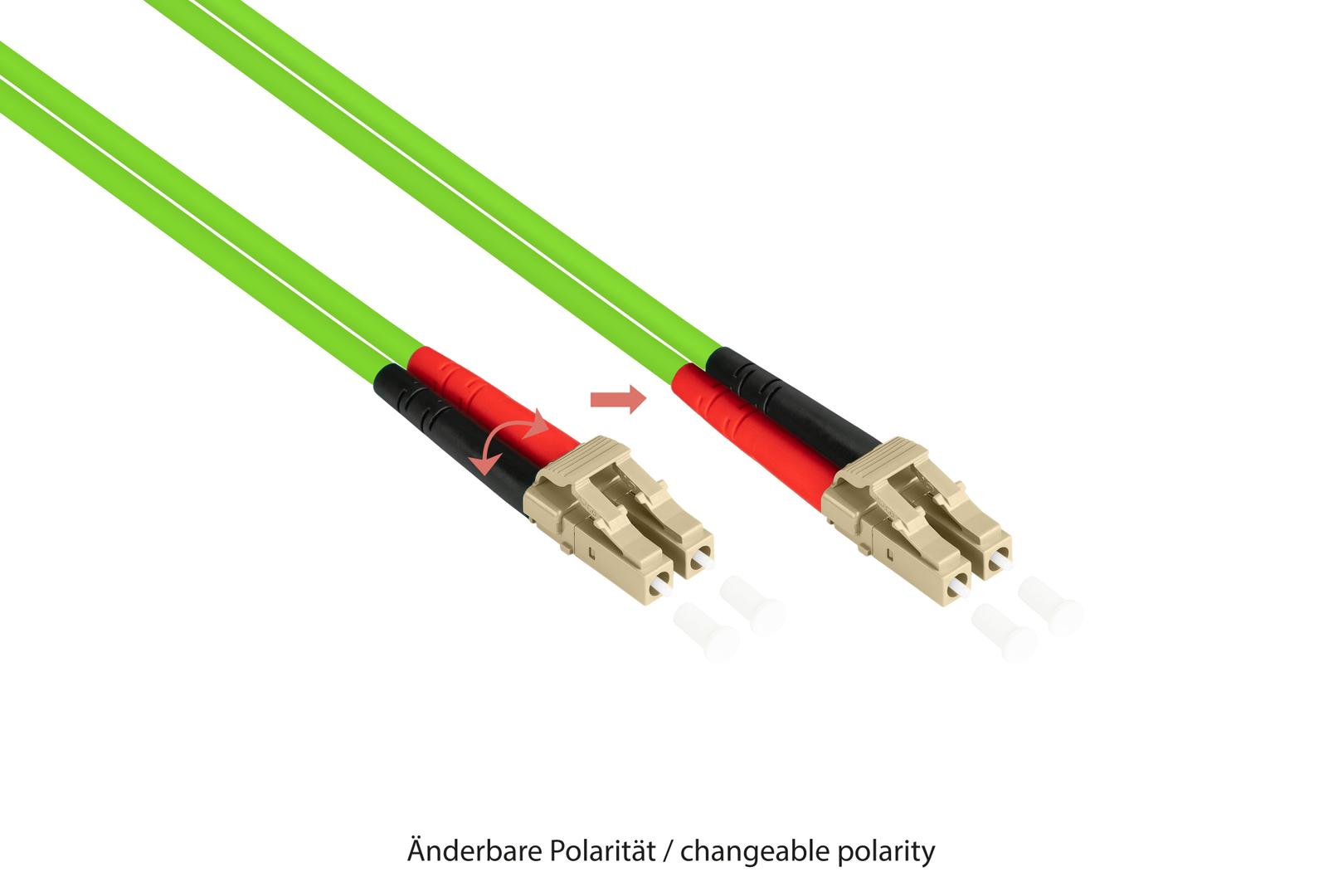

Swappable polarity
Remove the duplex clip to swap A/B on site.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
OM5 costs a little more than OM4 and only pays off if you plan SWDM optics; for plain 10/25G SR, OM4 does the same job. Match three things before ordering: fibre type (OM5), connector at each end (LC/UPC / LC/UPC) and polish. Typical partners are switches with SFP/SFP+ ports and the matching transceivers.
✓ Buy it if your ports are LC on both sides and the link is OM5.
✕ Skip it if your transceivers are singlemode LR/LX — order OS2 instead.
→ Also consider the same cable in other lengths.
Not sure which fibre or connector you have? Send us the model of your switch, transceiver or patch panel and we will check it before you order.
Features - GoodConnections - LW-803LC5
Colour
green
Length
3m
More Details
Product Code
04:480236
EAN Code
4014619741212
Manufacturer
GoodConnections
