Good Connections GC-N0165 Cat.6A Shielded Tool-Free RJ45 Plug, 5 Cable Exit Directions

Brand:
GoodConnections
Good Connections GC-N0165 Shielded Cat6A RJ45 Field Plug Five Cable Exit Directions
Good Connections GC-N0165 Cat.6A Shielded Tool-Free RJ45 Plug, 5 Cable Exit Directions
€11.1 inc. VAT
Buy
GC-N0165
€9.33
€11.10 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:480084
EAN Code
4014619842476
Manufacturer
GoodConnections

Quick Specs

Category / frequency
Cat.6A / 500 MHz
Capability
Up to 10 Gbps
Cable diameter
6.5–8.5 mm
Cable exit
5 directions
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

One RJ45 plug with five cable exit choices

Cat.6A 500 MHzUp to 10 Gbps6.5–8.5 mm

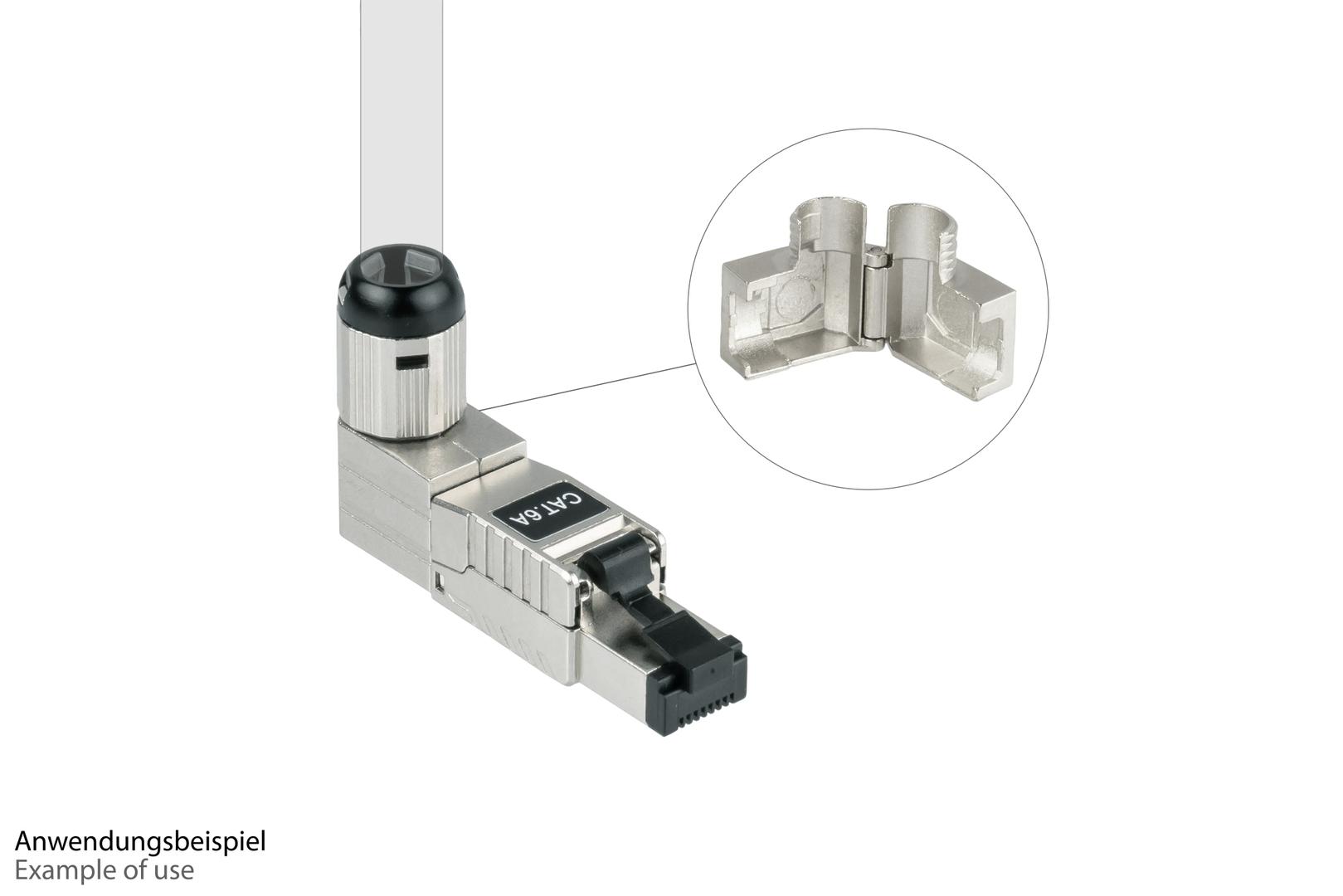

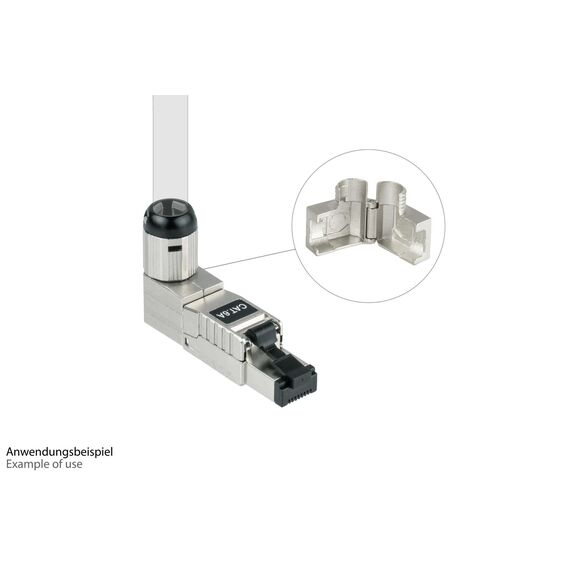

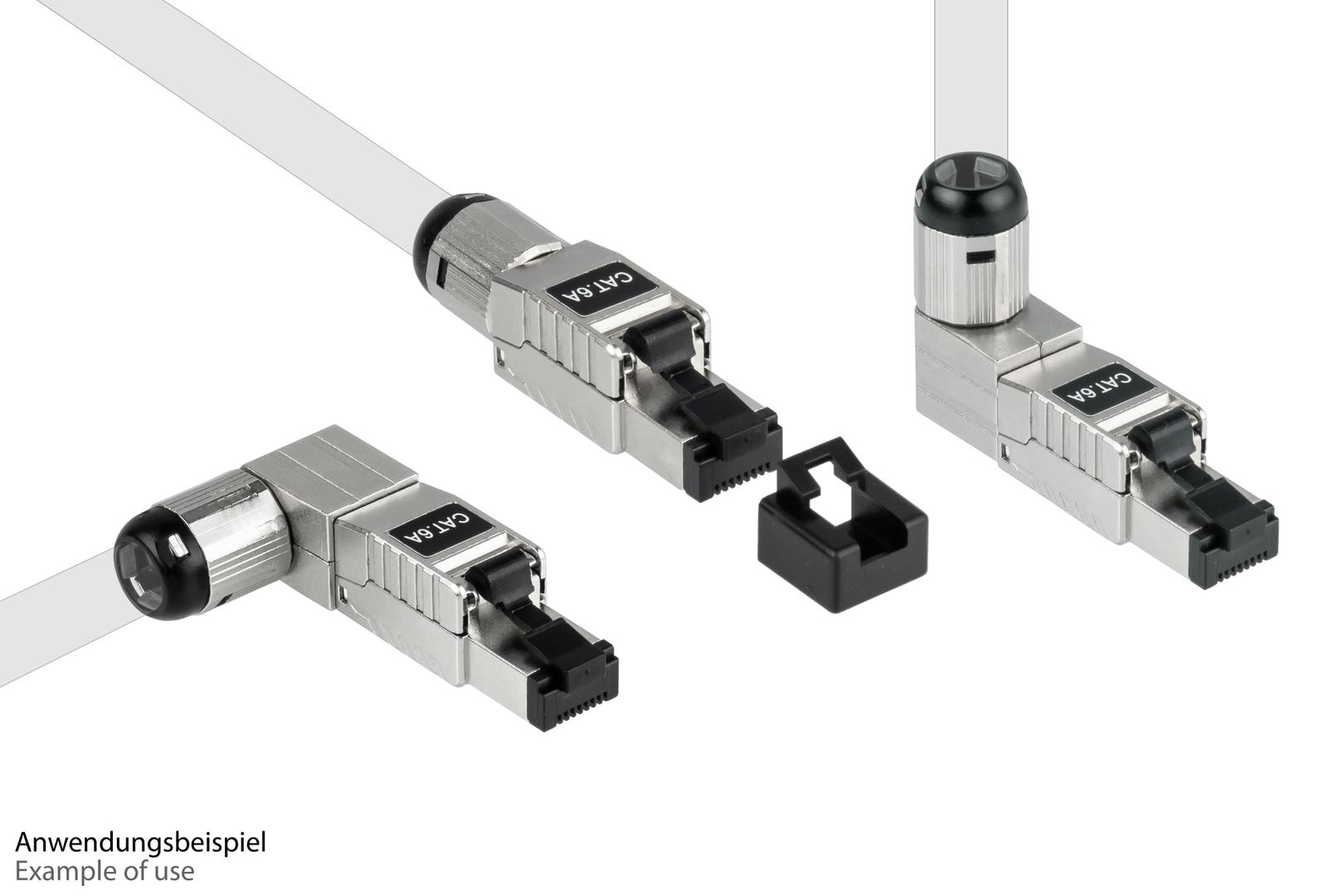

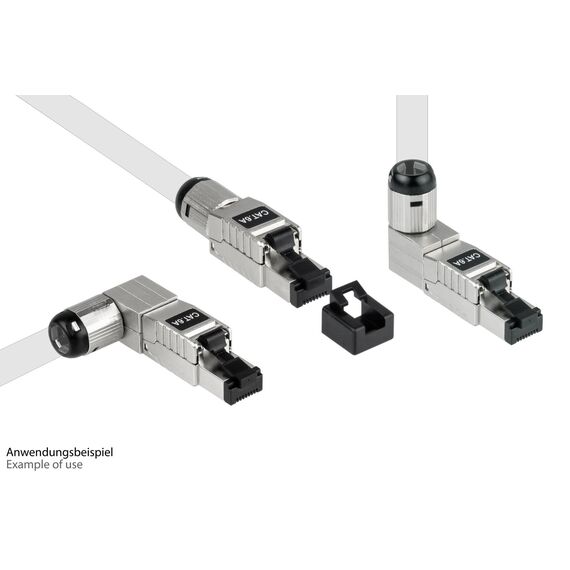

The Good Connections GC-N0165 is a shielded Cat.6A RJ45 plug for tool-free field termination, specified at 500 MHz and up to 10 Gbps. Use a straight rear cable exit or the supplied angled piece to route the cable left, right, up or down. Cable diameter and conductor type must fall within the stated fit ranges.

Key Features


Choose the cable route
Five orientations are possible with the supplied parts. Check the space around adjacent ports and the intended cable bend before terminating.

Match both diameter and AWG
The supported jacket diameter is 6.5–8.5 mm. Solid conductors are AWG 26/1–22/1 and stranded conductors AWG 27/7–22/7.

Shielded metal construction
A shielded zinc die-cast housing, gold-plated phosphor bronze alloy contacts and strain relief are specified. The manufacturer states PoE suitability.

Technical Specifications

Interface and termination
Connector type RJ45 male, field-terminable, tool-free
Category / frequency Cat.6A / 500 MHz
Network capability Up to 10 Gbps
Housing / shielding Zinc die-cast / STP shielded
Contact material / finish Phosphor bronze alloy / gold plated
Solid conductor range AWG 26/1–22/1
Stranded conductor range AWG 27/7–22/7
Cable diameter 6.5–8.5 mm

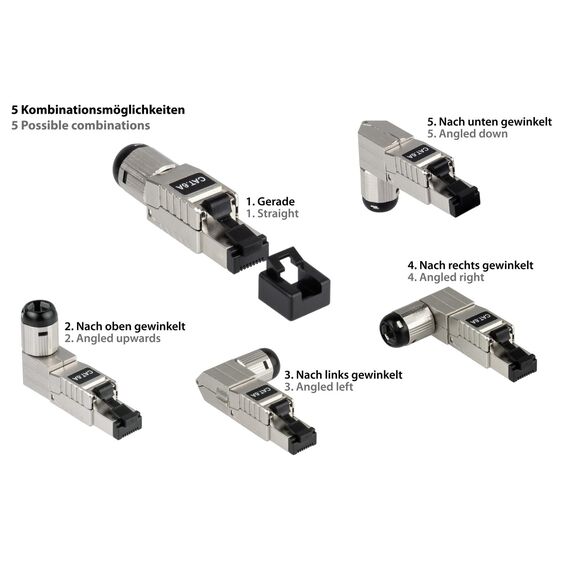

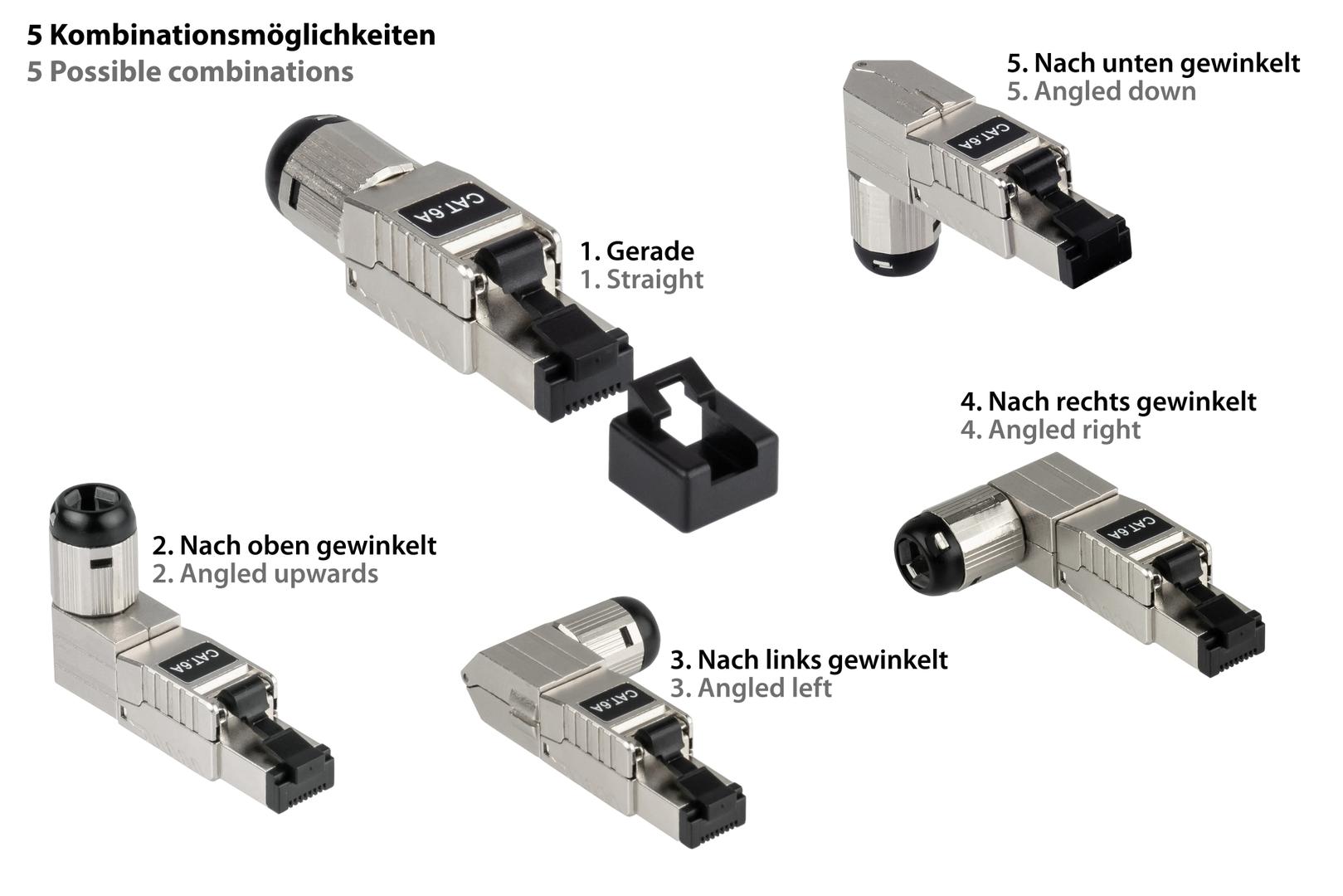

Cable exit positions Rear straight, left, right, up, down; supplied angle cap used for angled exits
Strain relief Included
Power over Ethernet PoE suitable
Operating temperature −40 °C to +70 °C

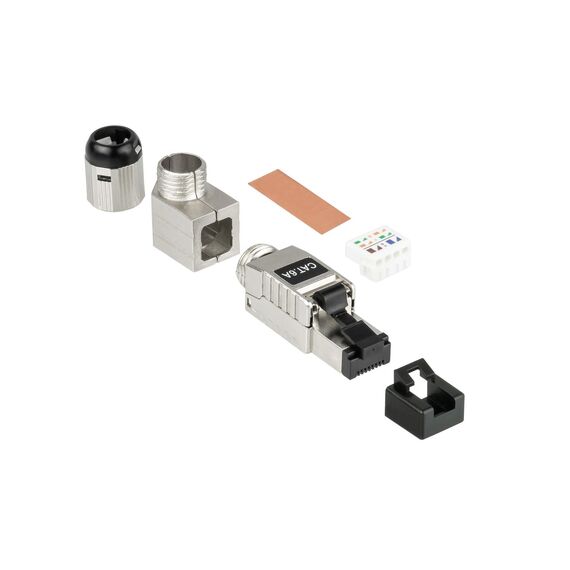

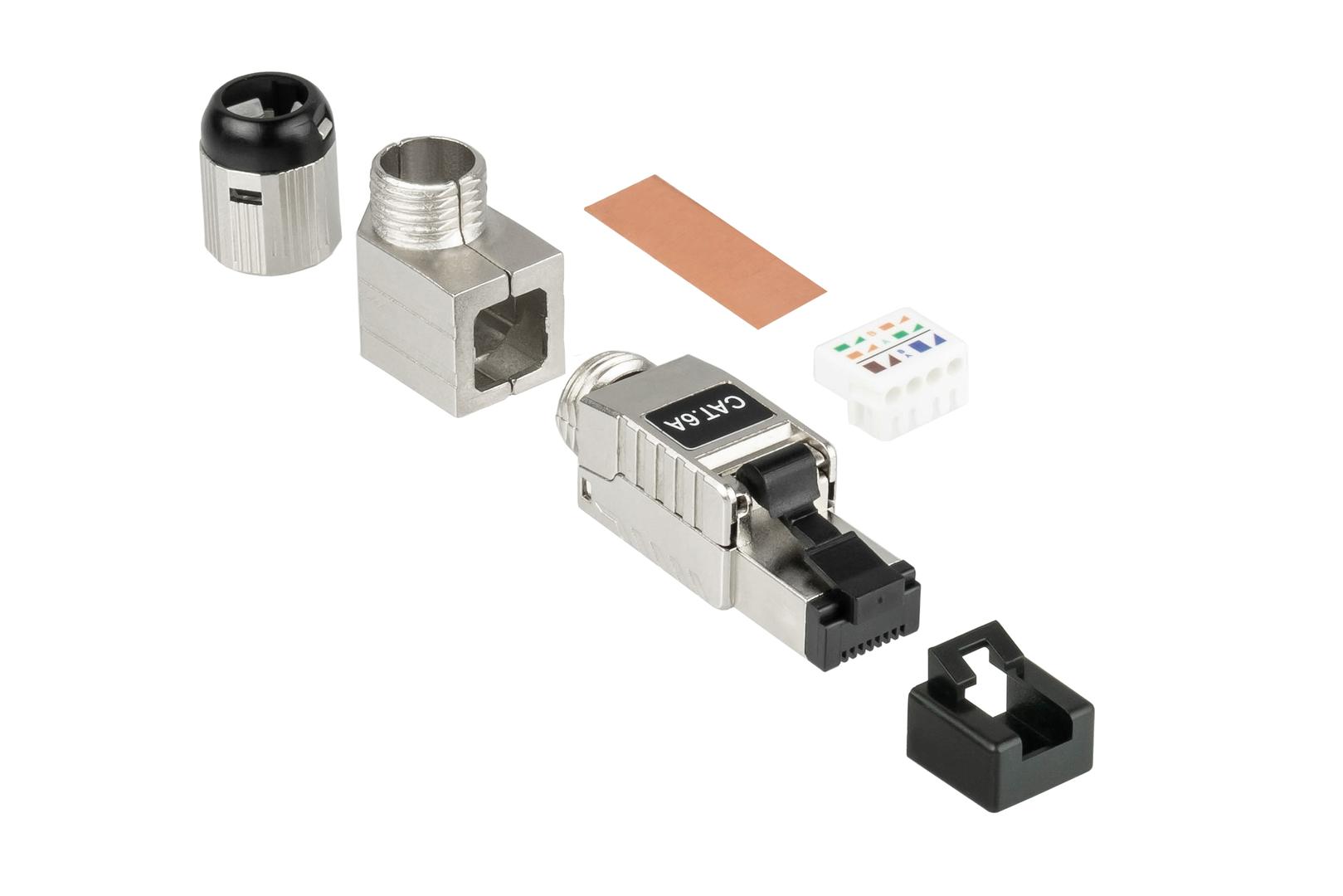

Pack contents 1 plug, 1 threading aid, 1 copper foil, 1 angled piece, 1 dust cap, 1 strain relief, 1 assembly instruction
Model GC-N0165
EAN 4014619842476

What's in the Box

1 × shielded RJ45 plug
1 × threading aid
1 × copper foil
1 × angled piece
1 × dust protection cap
1 × strain relief
1 × assembly instruction

Frequently Asked Questions

Are five plugs included?
No. The pack lists one RJ45 plug and the parts needed to choose among five cable exit orientations.
Can it be fitted to any network cable?
Check both the 6.5–8.5 mm cable diameter and the separate solid or stranded conductor AWG ranges. Category alone does not establish mechanical fit.
Singular Expert Insight
Verify jacket diameter, conductor construction and available port clearance together. Follow the supplied assembly instructions and test the completed link; the plug’s stated capability does not certify the entire installed cabling system. Check cable diameter, AWG and RJ45 exit clearance

Buyer’s Guide

Buy it if

You need a shielded Cat.6A field plug with selectable cable exit and a cable within the specified ranges.

Skip it if

Your cable is outside the diameter or AWG ranges, or you need a female Keystone module.

Also consider

Check the termination instructions, port clearance and complete link requirements.
