Healthcare HP scanning with STAR 433 MHz radio and a matching base
Healthcare housingSTAR 433 MHzHP dual sensorBase + USB kit

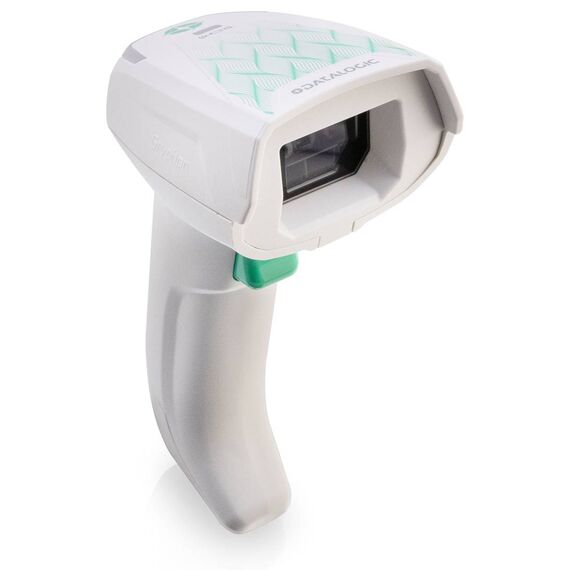

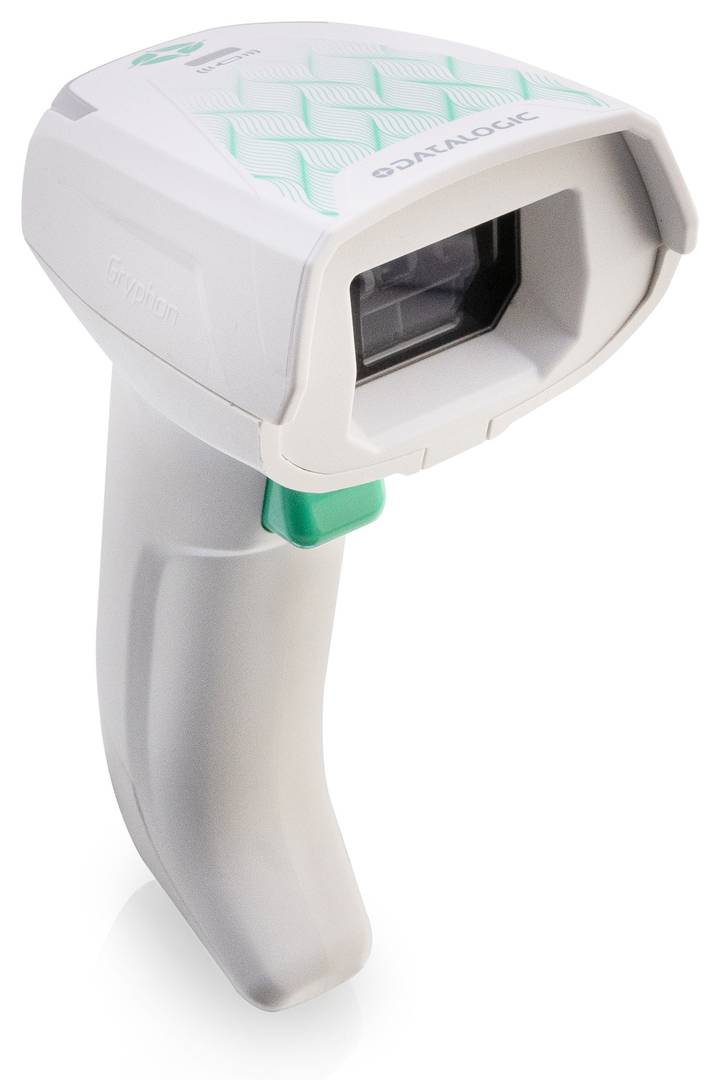

The Datalogic Gryphon GM4600-HC-433K1-HP is a white healthcare cordless scanner kit with HP dual-sensor optics and Datalogic STAR radio at 433 MHz. It includes the battery-equipped GM4600-HC scanner, matching WLC4690-HC-433 base and USB cable 90A052278. The disinfectant-ready housing supports an approved cleaning routine alongside mobile 1D/2D label and screen-code reading.
Best For: Healthcare desks, laboratories and pharmacy workstations needing mobile barcode capture through a matching 433 MHz base and an approved cleaning procedure.
Before you order: This is STAR 433 MHz, not Bluetooth. Use the included matching base and USB cable for the host connection. Follow manufacturer-approved cleaning products and procedures; antimicrobial additives do not make the scanner sterile or replace infection-control practices. An external power adapter is not listed as included.
What's in the Box

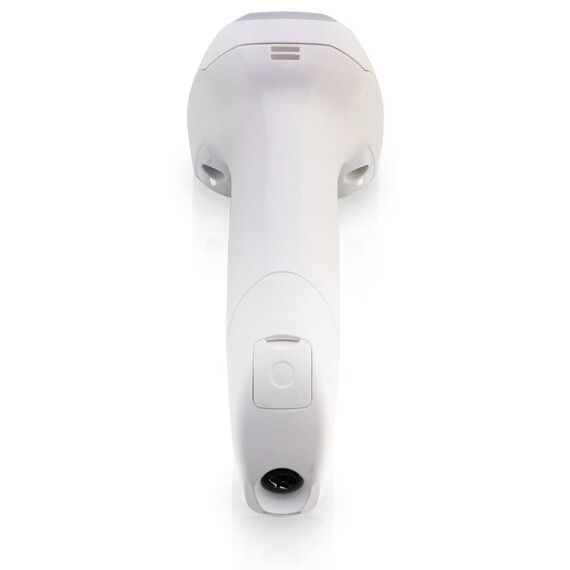

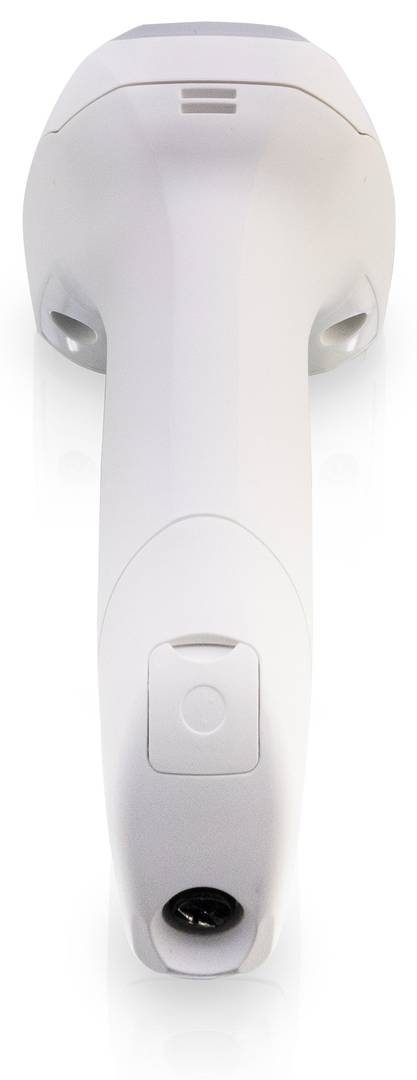

- White healthcare GM4600-HC-433-HP scanner with rechargeable battery.

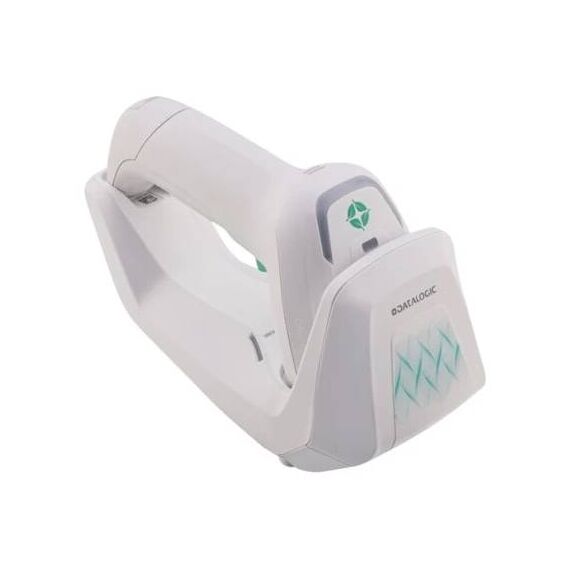

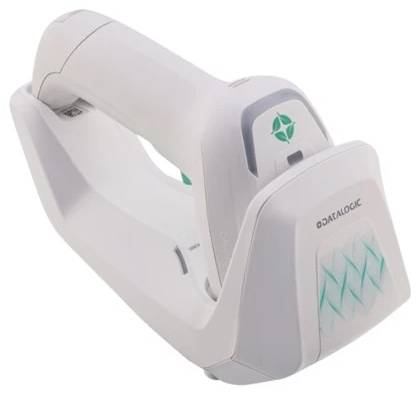

- Matching WLC4690-HC-433 charging/communications base.
- USB cable Datalogic 90A052278.
- Host computer, RS-232 cable and any required external power adapter separate.
What It Means in Practice
- Scan labels and supported mobile-screen codes without a tether to the counter.
- Use the green crosshair and Green Spot/read feedback to target and confirm scans.
- Pair with the supplied 433 MHz base, connect its USB cable and configure the host input settings.
- Plan charging equipment and battery management for the working shift.
- Follow approved cleaning instructions and workplace procedures between uses.
What Will Not Work
- STAR 433 MHz does not pair as a standard Bluetooth peripheral.
- This is the rechargeable-battery configuration, not the SC SuperCap version.
- 50 m open-air radio specification does not guarantee indoor coverage.
- Reading range depends on code size, contrast, format and ambient conditions.
- RS-232 cabling and an external power adapter are not listed in this USB kit.
- IP52 does not permit immersion; do not assume compatibility with every disinfectant.
Key Features
High Performance optics
A 1.5 MP sensor plus VGA sensor supports flexible 1D/2D reading across label densities.
STAR radio connection
433 MHz two-way communication with point-to-point and multipoint configurations.
Clear operator feedback
Green crosshair aiming, dual-colour illumination and visual/audible/vibration feedback.
Healthcare enclosure
Disinfectant-ready white housing with antimicrobial additives, used with approved cleaning procedures.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Plan the complete workflow: test real labels and radio coverage, configure the base-to-host connection and establish approved cleaning. The exact white healthcare scanner and matching 433 MHz base matter; neither Bluetooth compatibility nor a sterile surface should be assumed.
Buyer’s Guide
✓ Buy it if You need mobile healthcare HP scanning with a matching 433 MHz base and USB cable included.
✕ Skip it if You need direct Bluetooth pairing, a scanner-only item or a different radio frequency.
→ Also consider Approved cleaning routine, actual radio coverage, USB host settings and charging power.
Features - Datalogic - GM4600-HC-433K1-HP
Colour
white
Interface
- USB Type-C
More Details
Product Code
CQ54570
Manufacturer
Datalogic
