Corded DPM capture with adaptive industrial lighting
1D / 2D + DPM1280 × 800 CMOSIP64 / 1.8m drop rating2m USB kit + 5V supply

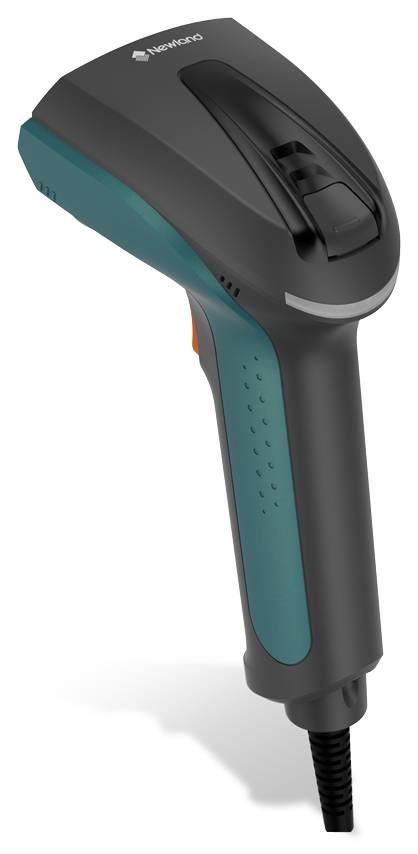

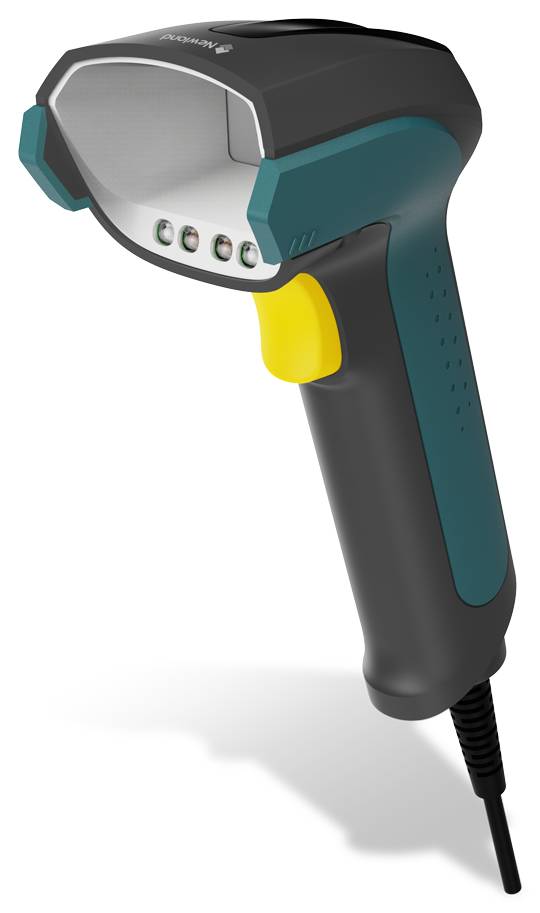

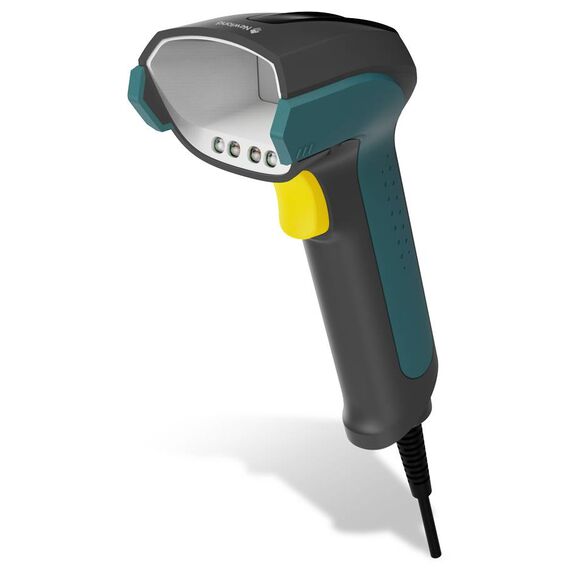

The Newland NVH220 Lophius AI Corded, exact SKU NLS-NVH220-V2-XD, is a handheld industrial barcode scanner for 1D, 2D and direct part marks. Newland UIMG and AI-powered detection work with red and blue direct LEDs and white diffuse lighting to help decode challenging marked surfaces. This corded kit includes a two-metre USB cable and 5V power supply; the scanner also supports RS-232 and Ethernet with the appropriate separate cable and configuration.
Best For: Production, inspection, warehousing and traceability stations reading suitable printed labels or DPM marks on real parts through a connected host system.
Before you order: Test representative marks, materials, curvature, contrast and lighting before deployment. DPM performance depends on the code and surface; no universal-read guarantee applies. Configure the required interface and data format using the supported tools. This exact SKU is corded, not the separate Bluetooth model.
What's in the Box
- Newland NLS-NVH220-V2-XD NVH220 Lophius AI Corded scanner.
- Two-metre straight rugged USB cable.
- 5V power supply per the current exact EMEA SKU box list.
- Manufacturer quick-start and configuration resources.
- Host computer, stand, alternative RS-232/Ethernet cables and Bluetooth charging base separate.
What It Means in Practice
- Connect the supplied USB kit to a compatible host and select the required supported USB mode.

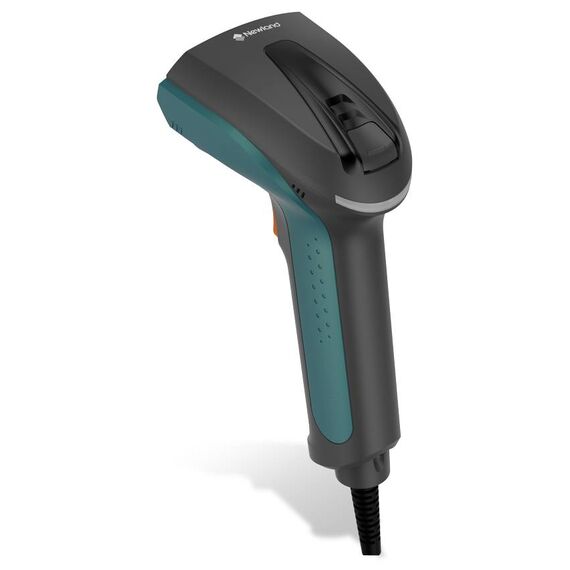

- Use the top learning function to adapt brightness and illumination to representative marks.
- Validate host field mapping, barcode symbology settings and confirmation feedback with actual applications.
- For RS-232 or Ethernet, obtain the appropriate separate cable and configure the connection before use.
What Will Not Work
- No Bluetooth radio, battery or charging base is included in this corded kit.
- USB is documented without an assumed USB generation or USB-C connector.
- RS-232 and Ethernet support does not mean those alternative cables are supplied.
- OCR is optional and is not promised as included.
- IP64 and the 1.8m drop rating are manufacturer protection/test ratings; they do not establish immersion or chemical-cleaning suitability.
Key Features
DPM-oriented capture
Newland describes support for laser-marked and dotted DPM codes, with adaptive illumination for challenging surfaces.
Three lighting approaches
Direct red and blue LEDs plus white diffuse light help tune image capture to different materials.
Industrial feedback
Beep, LED and vibration provide configurable confirmation for connected workflows.
Flexible host interfaces
USB, RS-232 and Ethernet/TCP-IP are supported; the supplied kit uses USB.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Build a small trial set from real production parts rather than relying only on a printed test label. Check the smallest mark, reflective and curved surfaces, expected scan angle and host output. Save a proven illumination and interface configuration so operators can repeat the validated workflow.
Buyer’s Guide
✓ Buy it if You need corded industrial 1D/2D and DPM capture with adaptive illumination and a supplied USB connection.
✕ Skip it if You need wireless roaming, a charging cradle or guaranteed included OCR.
→ Also consider Actual part marks, host integration, working distance, optional cables and mounting needs.
