Hanwha Vision SBP-187WMW Wall and Pole Mount for TNO-7180RLP Camera, Aluminium, 10 kg Load, TR30 Interface, White
Brand:
Peach
Hanwha Vision SBP-187WMW Wall and Pole Mount for TNO-7180RLP Camera, Aluminium, 10 kg Load, TR30 Interface, White
€68.38 inc. VAT
PI500-378
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Hanwha Vision SBP-187WMW Wall & Pole Mount for TNO-7180RLP
Wall & poleAluminium10 kg loadWhite RAL 9003

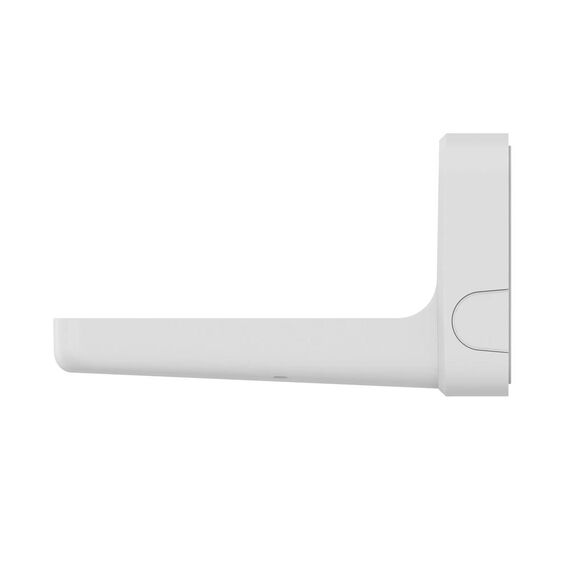

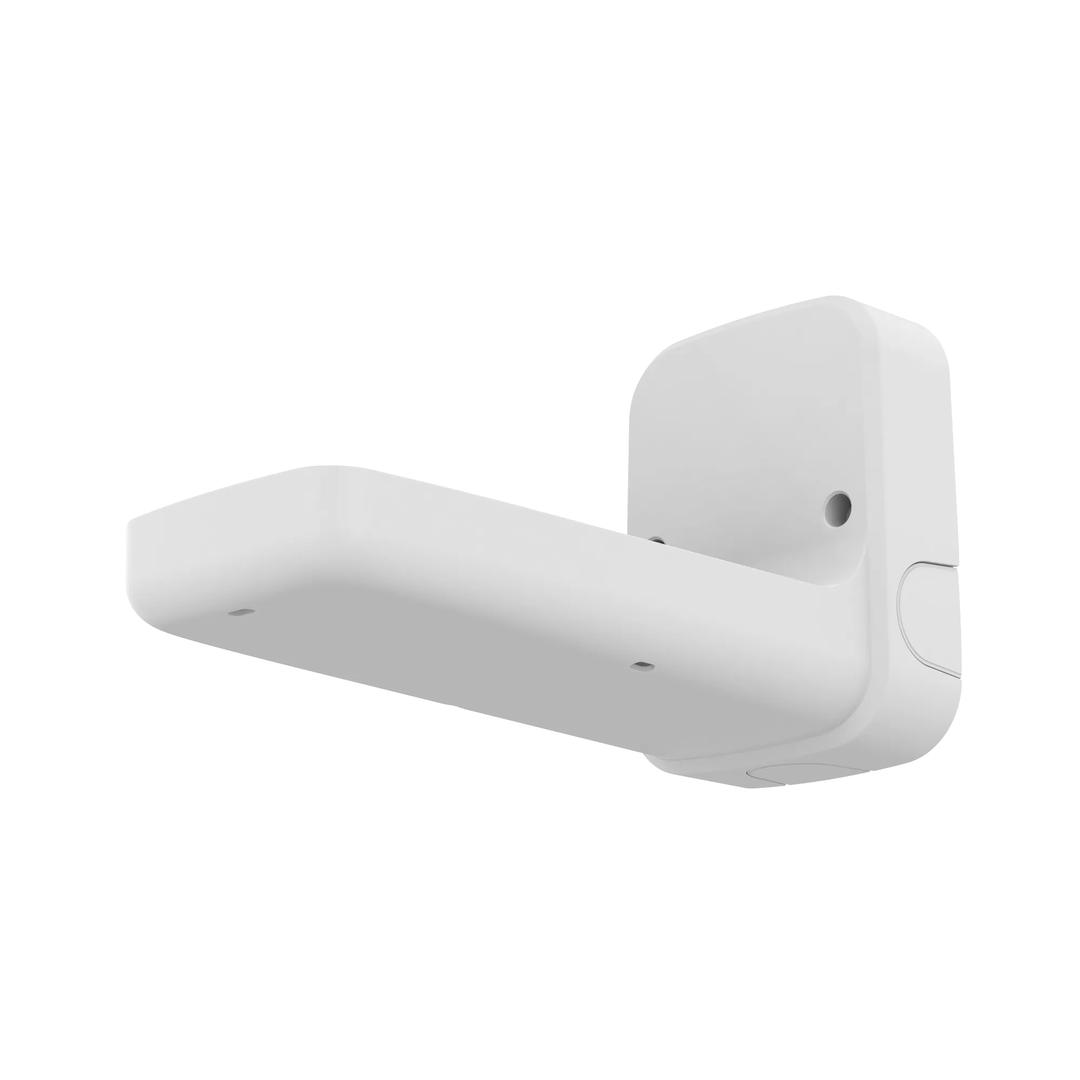

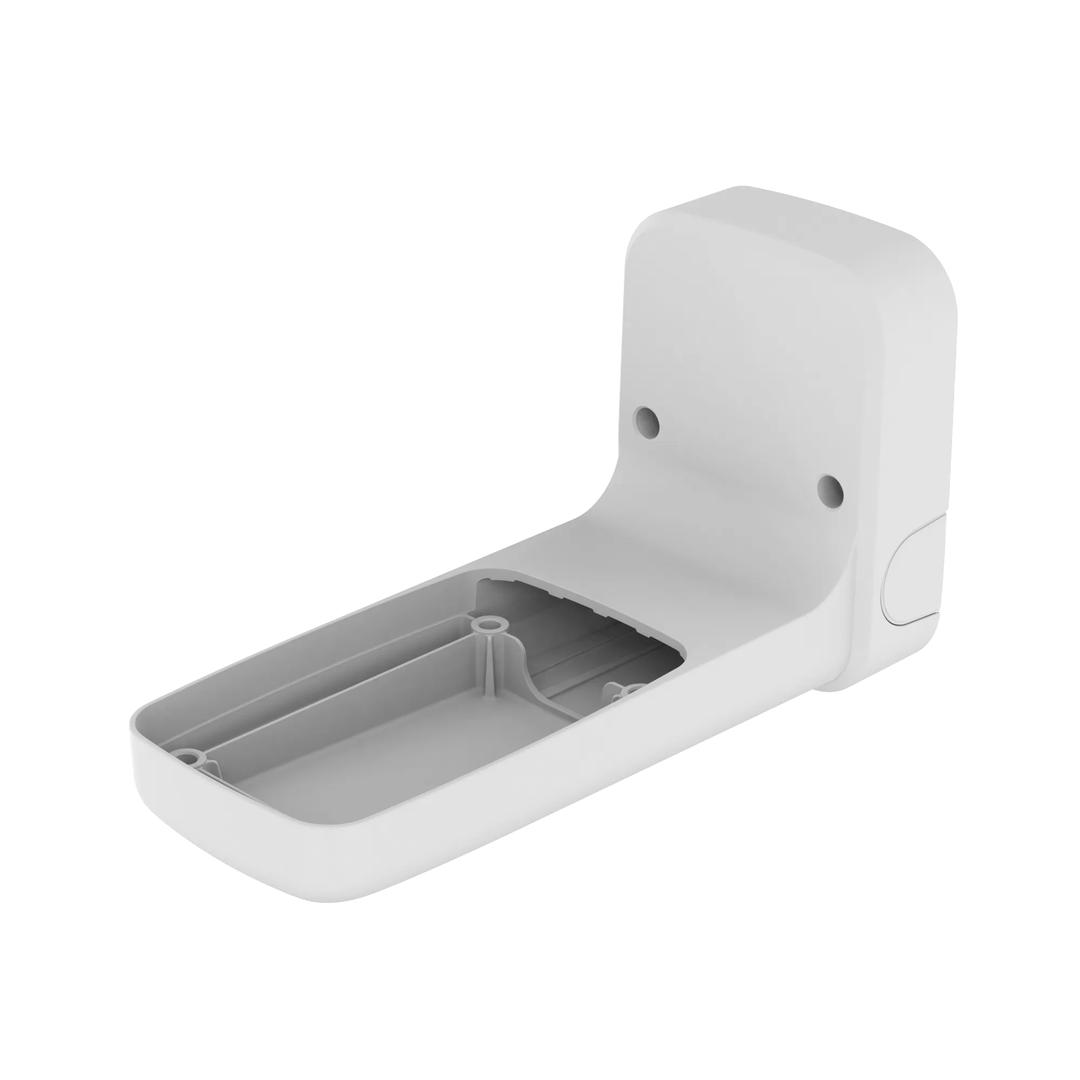

The Hanwha Vision SBP-187WMW is an aluminium Wall & Pole Mount made for the Hanwha Vision TNO-7180RLP camera, rated for loads up to 10 kg and finished in white (RAL 9003). It fixes the camera to a wall — or, as Hanwha’s title says, a pole — through a TR30 mount screw, with a 3/4" (M25) conduit hole for running the cabling protected inside conduit.
The TNO-7180RLP is a heavy, specialised camera, so it needs a mount built for its weight and interface rather than a generic dome bracket. At 318.5 × 135 × 183 mm and 2 kg, the SBP-187WMW is a substantial piece of metal that keeps the camera steady.
Before you order: Hanwha publishes this mount for the TNO-7180RLP and refers to its Toolbox for other models. The 3/4" figure is the conduit hole — the camera interface is TR30. Send us your camera model if it is not the TNO-7180RLP.
What's in the Box
- 1 × Hanwha Vision SBP-187WMW wall & pole mount, white
- Hanwha does not publish the full package contents on the product page — ask us if you need the detail
What It Means in Practice
- Holds the TNO-7180RLP on a wall with up to 10 kg load capacity
- The 3/4" (M25) conduit hole lets cables run inside protective conduit
- White RAL 9003 finish matches a white camera housing
- Wall anchors must suit the 2 kg mount plus the camera weight
What Will Not Work
- Small domes, bullets or other cameras without the TR30 interface
- Pole installation without a suitable pole adapter — Hanwha publishes no pole diameter range
- A 3/4" threaded camera connection — 3/4" is the conduit hole size, not the thread
- Loads above 10 kg
Key Features
Built for TNO-7180RLP
Matches the TR30 interface and weight of Hanwha’s TNO-7180RLP.
10 kg rated
Aluminium construction rated for up to 10 kg.
Conduit ready
3/4" (M25) conduit hole for protected cable runs.
White RAL 9003
Factory white finish, 2 kg mount weight.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For a TNO-7180RLP, the SBP-187WMW is the matching Hanwha mount: aluminium, rated for 10 kg and with a conduit entry for a clean installation. Do not use it as a generic bracket for lighter cameras — the TR30 interface is specific. See our IP cameras for cameras and accessories.
✓ Buy it if you are installing a Hanwha Vision TNO-7180RLP on a wall and want the manufacturer’s mount.
✕ Skip it if your camera is a different model without a TR30 interface, or you need a ready pole mount.
→ Also consider a Hanwha pole-mount adapter for poles, or the mount Hanwha lists for your specific camera.
Not sure it fits? Send us the camera model and the surface you are mounting on and we will check it before you order.
Features - Peach - PI500-378
More Details
Product Code
04:469782
EAN Code
7640366811273
Manufacturer
Peach
