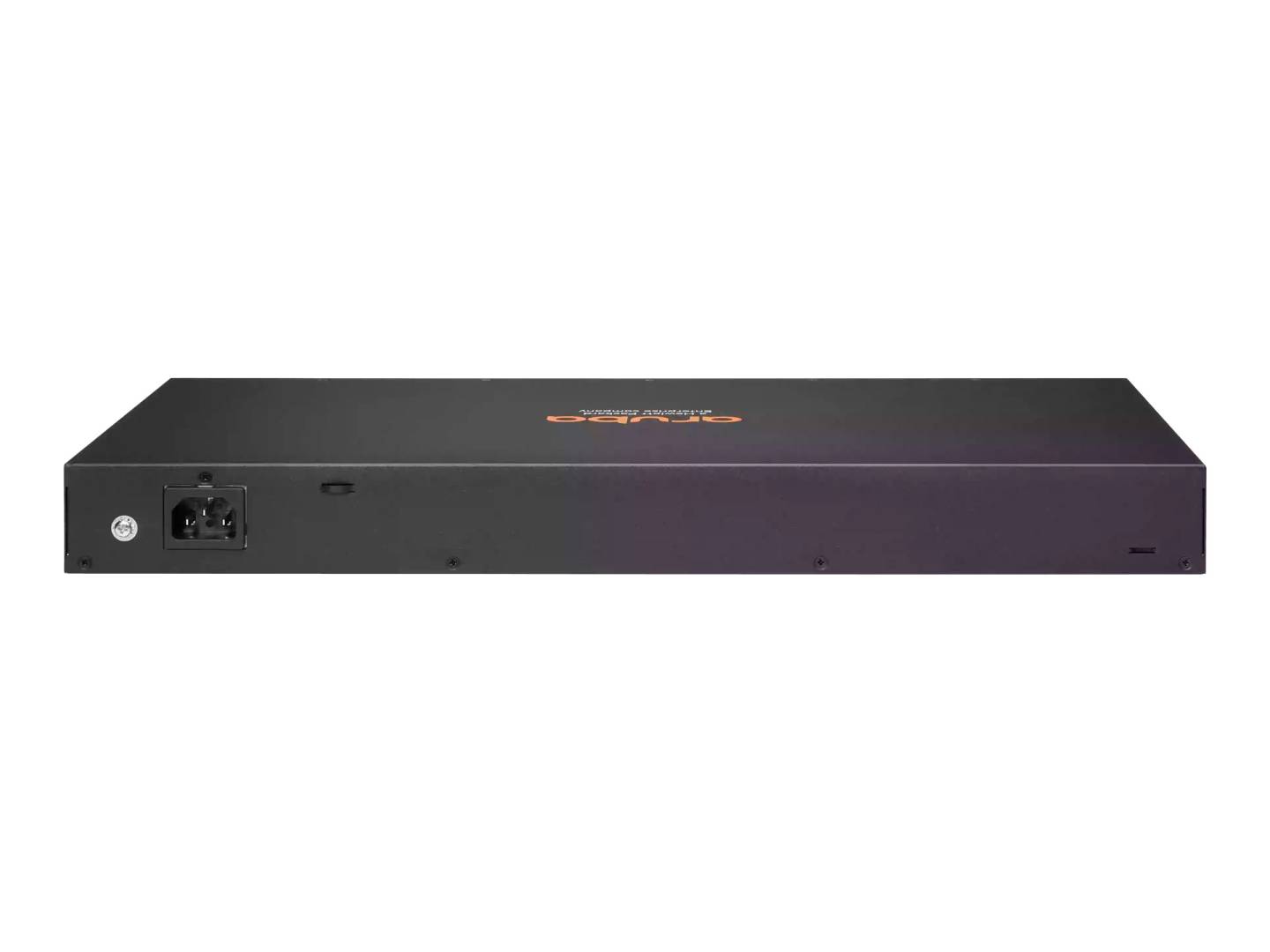

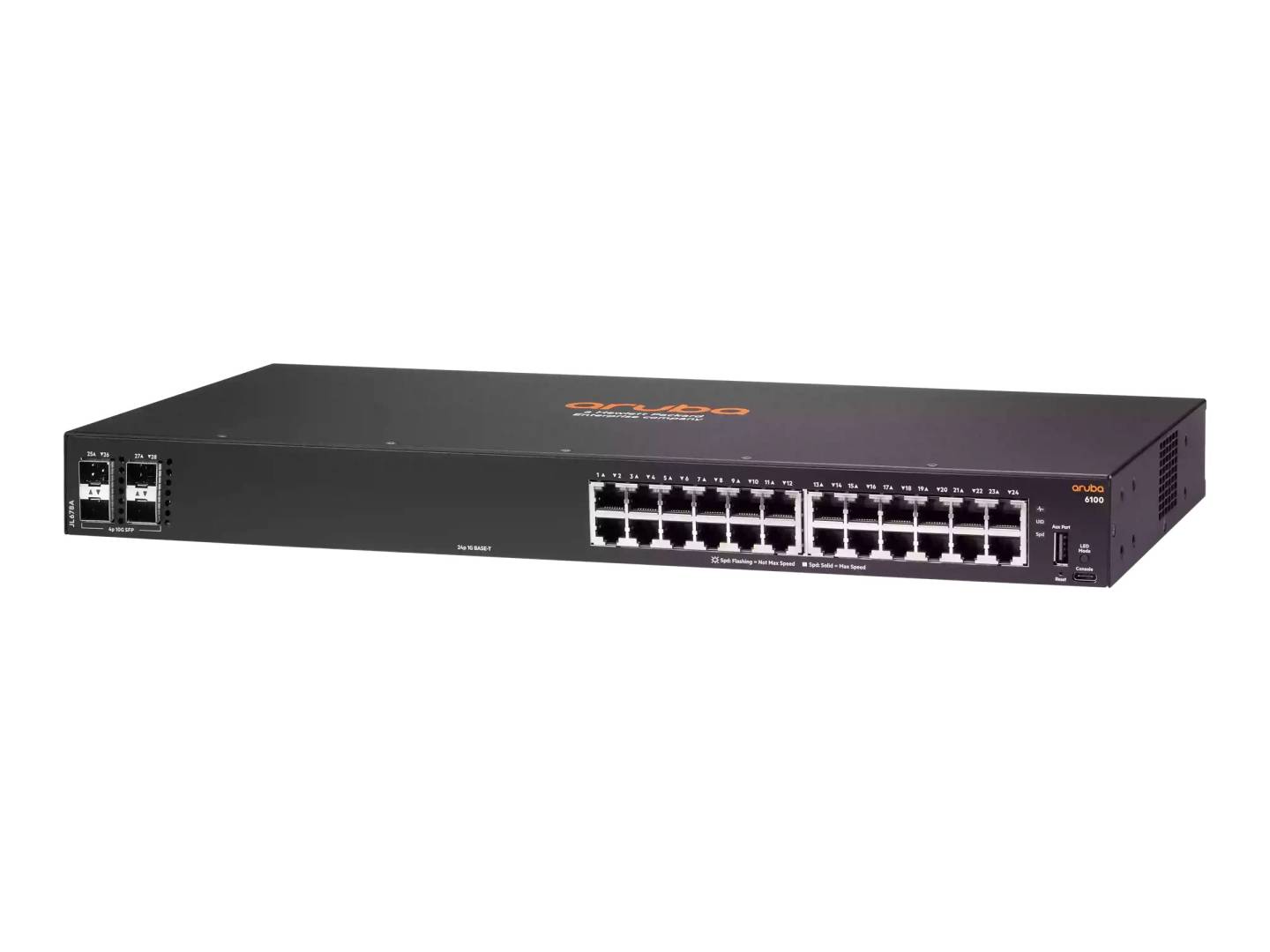

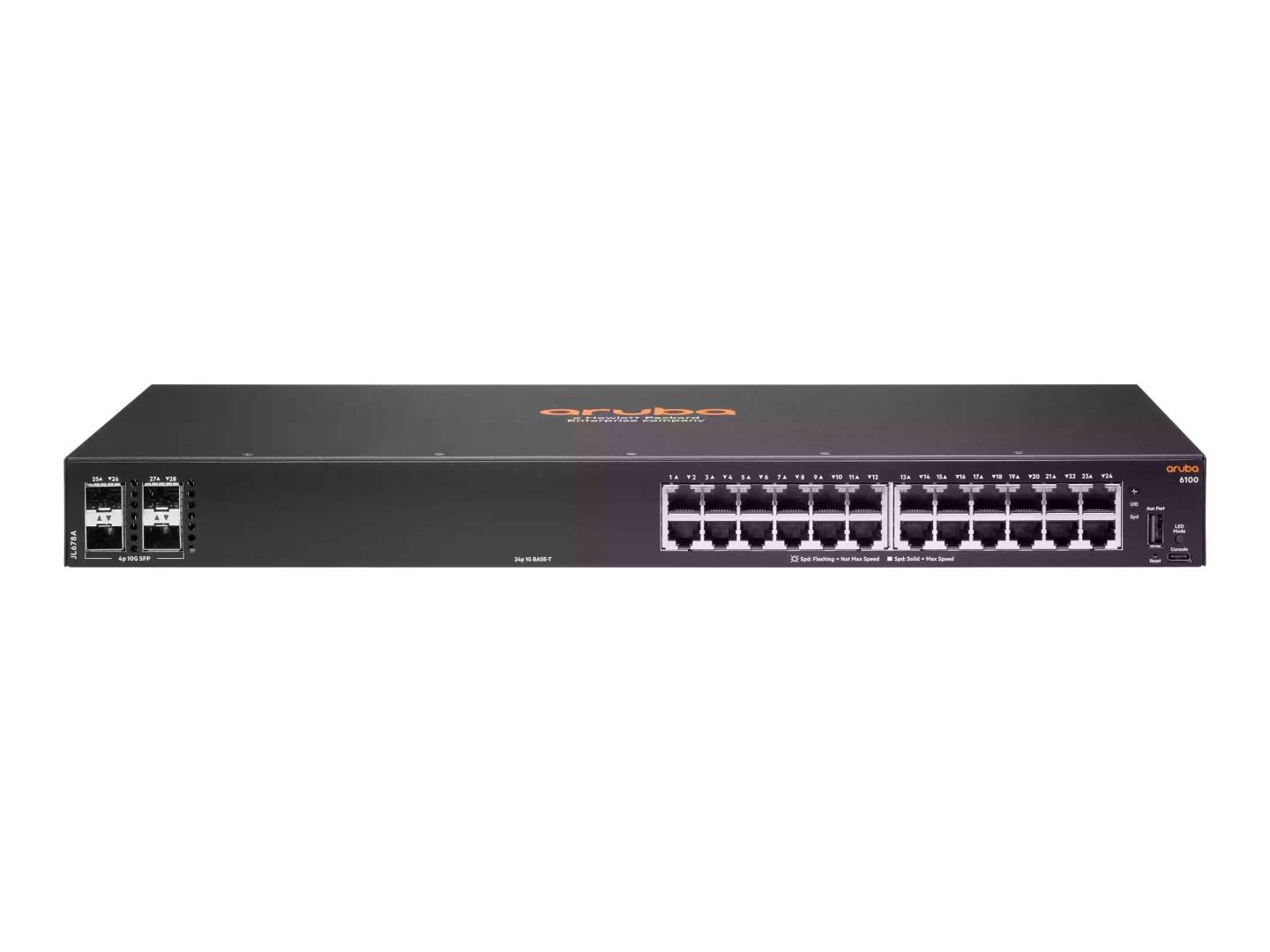

HPE Aruba 6100 24G 4SFP+ Managed Switch
The HPE Aruba 6100 24G 4SFP+ is a managed network switch for wired access in branch, SMB and mid-market environments. It offers 24 Gigabit RJ-45 ports, 4 SFP+ uplinks and a 1U rack-mountable design with side-to-side airflow. The Aruba CX 6100 series is positioned as a simple, secure access platform for enterprise networks.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 28 ports - Managed |
| Ports | 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 | 4 x 1/10Gbit LAN SFP+ | 1 x USB-C console | 1 x USB Type A | 24 x 10/100/1000 Base-T RJ-45 4 x 1/10Gbit LAN SFP+ 1 x USB-C console 1 x USB Type A |
| Device Type | Switch - 28 ports - Managed |
| Subtype | 10 Gigabit Ethernet |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Processor | 1 x ARM A9: 1.016 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash Memory | 16 GB |
| Performance | Switching capacity: 128 Gbps | Throughput: 95.2 Mpps | Latency (1 Gbps): 1.5 µs | Latency (10 Gbps): 1.8 µs |
| Capacity | SVIs: 16 | ARP entries: 1024 | IPv4 routes (Unicast): 512 | IPv6 routes (Unicast): 512 | IGMP groups: 512 | MLD groups: 512 | IPv4 ACL entries (ingress): 256 | IPv6 ACL entries (ingress): 128 | MAC ACL entries (ingress): 256 |
| MAC Address Table Size | 8192 entries |
| Routing Protocol | IGMPv2, IGMPv3 |
| Security | SSL |
| Authentication Method | Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS |
| Features | DNS client, VLAN support, MSTP support, Rapid Reconfiguration of Spanning Tree (RSTP), LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x |
| Power | Internal power supply |
| Power Provided | 65 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 15.4 Watt |
| Width | 44.2 cm |
| Depth | 20.12 cm |
| Height | 4.39 cm |
| Weight | 2.62 kg |
| Service & Support | Limited warranty - lifetime |
| Operating Temperature | 0 °C to 45 °C |
| Operating Humidity | 15 - 95% (non-condensing) |
| Storage Humidity | 15 - 90% (non-condensing) |
| Manufacturer ID | JL678A |
| EAN/UPC | 0190017348698 |
| SKU / EAN | JL678A | 0190017348698 |
SINGULAR RECOMMENDS
For who
Suitable for businesses that need a managed access switch with 24 Gigabit ports, SFP+ uplinks and rack-mount installation for wired network expansion.
Real reason to buy it
A solid Aruba CX access switch choice when you need simple managed connectivity, 10GbE-capable uplinks and a lifetime limited warranty.
Know before
This is a managed switch with an internal power supply and 1U rack-mount design. The listed environment limits are 0 °C to 45 °C and 15-95% non-condensing humidity.
