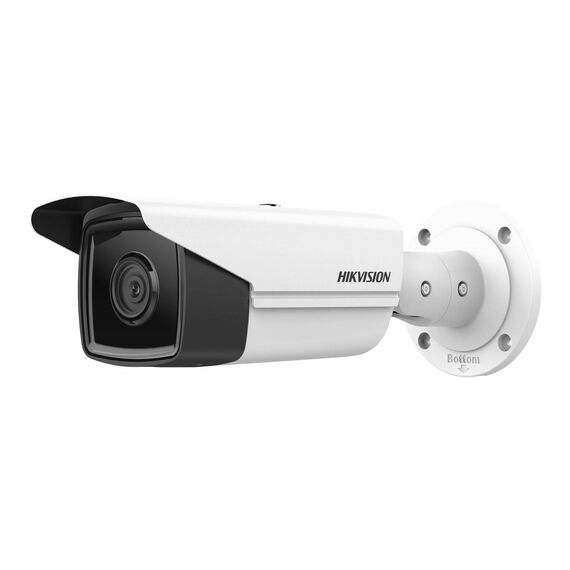

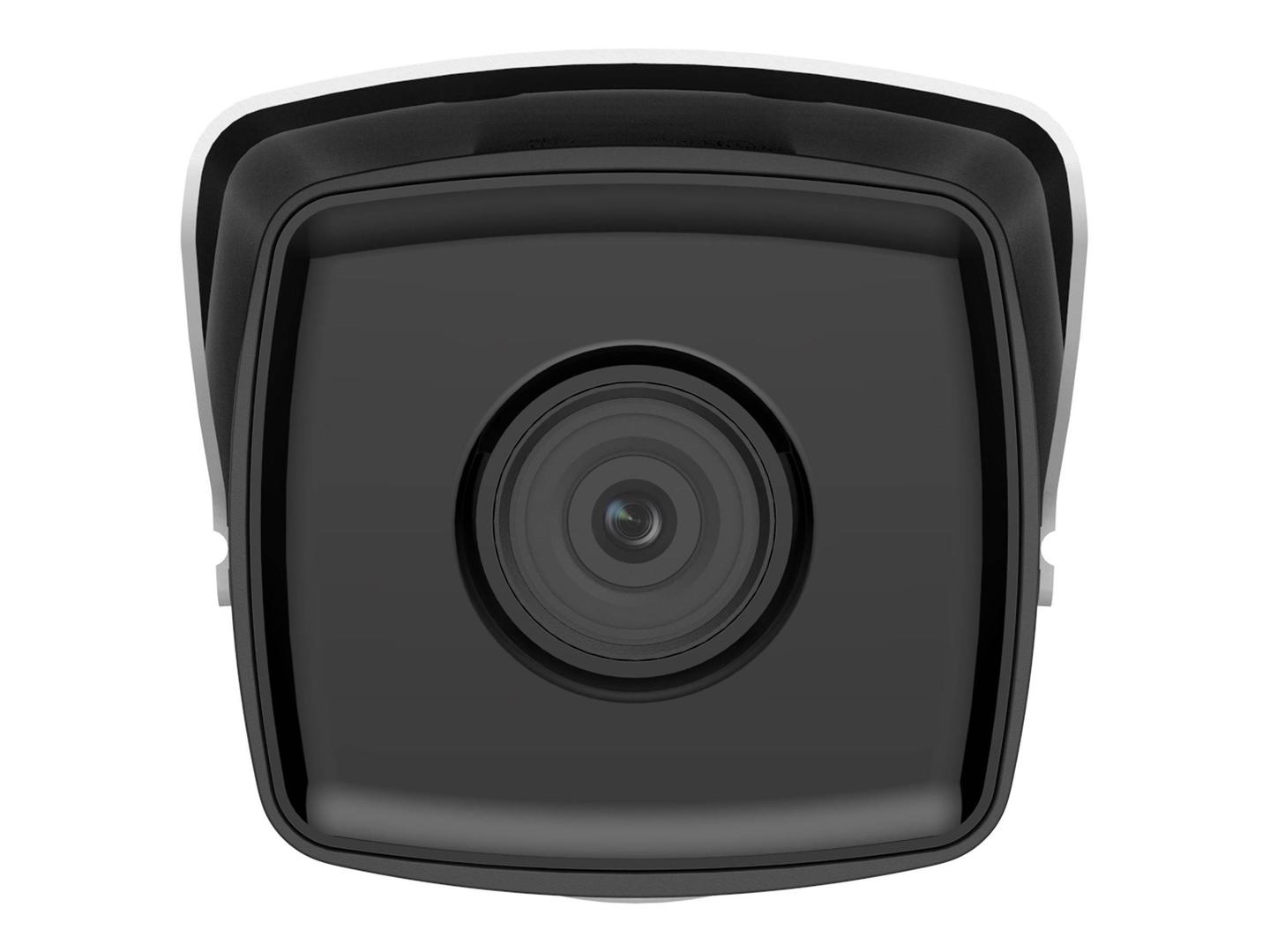

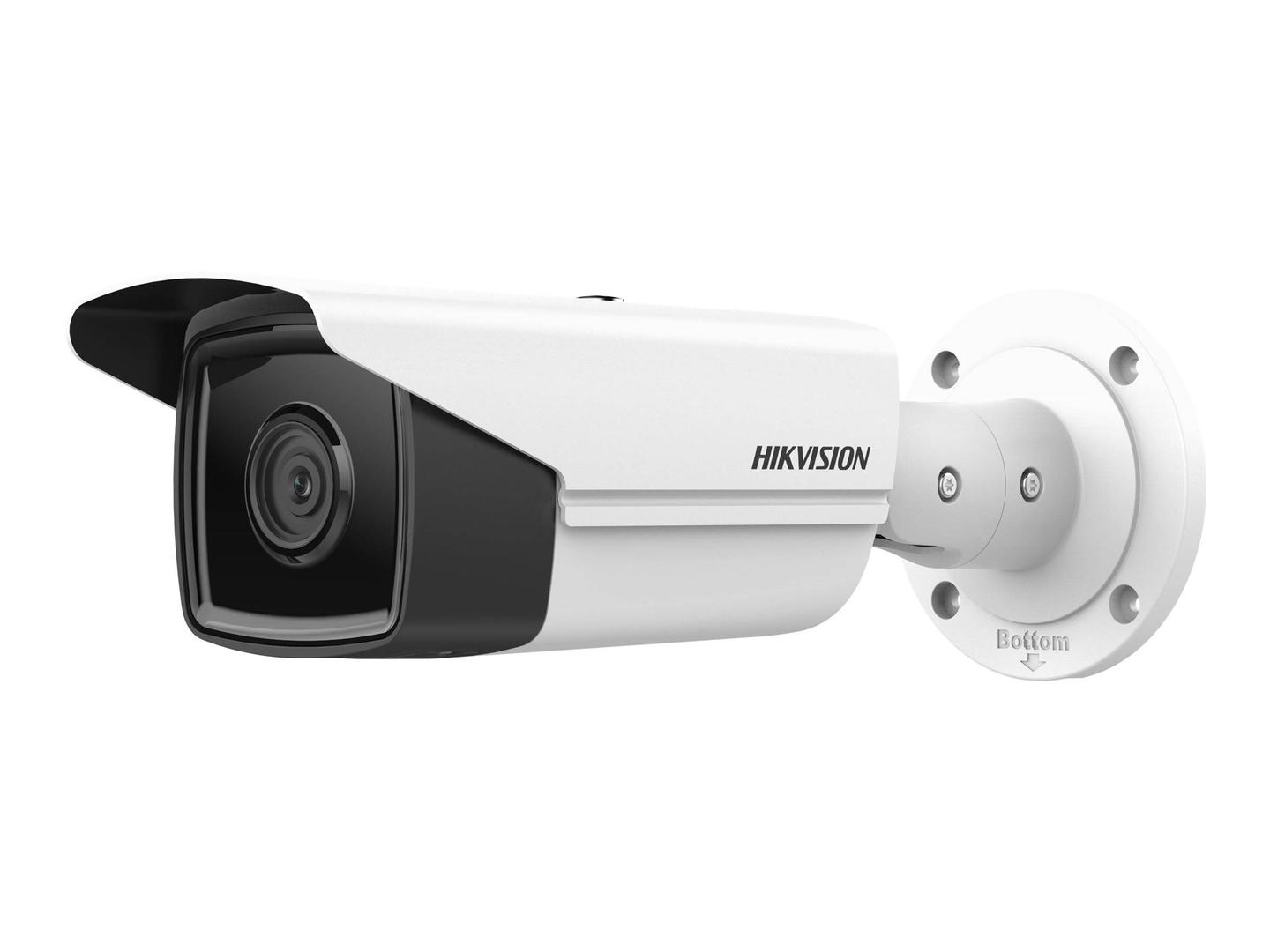

Hikvision Pro Series(EasyIP) DS-2CD2T43G2-2I / Network surveillance camera / dustproof / waterproof / colour (Day&Night) / 4 MP / 2688 x 1520 / 720p, 1080p / M12 mount / fixed focal / LAN 10/100 / MJPEG, H.264, H.265, H.265+, H.2 | DS-2CD2T43G2-2I(2.8MM)
Please sign in so that we can notify you about a reply
Special Features
- High-quality imaging with 4MP resolution
- Clear imaging against strong backlight due to 120dB WDR technology
- Efficient H.265+ compression technology
- Water- and dust-resistant (IP67)
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 10.5 cm |
| Depth | 29.3 cm |
| Height | 10.5 cm |
| Weight | 1.07 kg |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - dustproof / waterproof |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.0005 lux - colour - F1.6 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 60 m |
| Video Capture | 1920 x 1080, 50 Hz @ 25 fps ¦ 1280 x 720, 50 Hz @ 25 fps ¦ 1920 x 1080, 60 Hz @ 30 fps ¦ 1280 x 720, 60 Hz @ 30 fps ¦ 2688 x 1520, 50 Hz @ 25 fps ¦ 2688 x 1520, 60 Hz @ 30 fps |
| Features | Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), face detection, infrared cut filter, Privacy Mask Function, adjustable gain control, Highlight Compensation (HLC), NAS-Ready, tamper-detection, notification picture to E-mail, notification picture to FTP, reset button, password protection, triple video stream, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, heartbeat, anti-flicker, Internet Server Application Programming Interface (ISAPI), DORI coverage, IP address filtering, 3D digital noise reduction (DNR), aluminium housing, up to 6 channels simultaneous live view, Automatic Network Replenishment (ANR), Scalable Video Coding (SVC) |
| Image Sensor | Image Sensor |
| Type | 4 MP PS CMOS 1/3" |
| Lens Construction | Lens Construction |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 103 |
| Vertical Field of View (degree) | 55 |
| Diagonal Field of View (degree) | 122 |
| Panning | Panning |
| Range (degree) | 0 to 360 |
| Tilting | Tilting |
| Range (degree) | 0 to 90 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, PPPoE, SMB, IGMP, SSL, QOS, CIFS, NFS, ISAPI |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | UL, CB, EMC, IC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, REACH, IP67, LVD, KC, RCM, RoHS 2011/65/EU, BIS, EN 61000-3-3:2013, Regulation EC 1907/2006, TLS v1.2, TLS v1.1, WEEE 2012/19/EU, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55032:2015, IEEE 802.3af, IS13252-1 (2010)/A1:2013/A2:2015, IEEE 802.1x, AS/NZS CISPR 32:2015, EN 50130-4:2011+A1:2014, KN32:2015, KN35:2015, IEC 60529:2013, EN 60950-1:2005+Am1:2009+Am 2:2013, ICES-003 issue 6:2016 |
| Power | Power |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 9.5 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 18.6 cm |
| Shipping Depth | 15.6 cm |
| Shipping Height | 15.5 cm |
| Shipping Weight | 1.589 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - Hikvision - DS-2CD2T43G2-2I(2.8MM)
More Details
Product Code
04:376056
EAN Code
6941264070597
Manufacturer
Hikvision
