Honeywell Voyager XP 1470g 1D/2D Barcode Scanner, Black, Scanner Only, Cable Required

Brand:
Honeywell

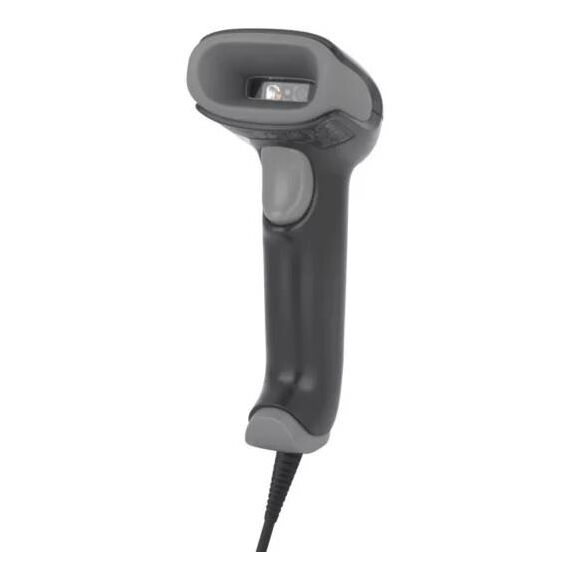

Honeywell Voyager XP 1470g Black 2D Barcode Reader
Honeywell Voyager XP 1470g 1D/2D Barcode Scanner, Black, Scanner Only, Cable Required
€123.13 inc. VAT
Buy
1470G2D-2-R
€103.47
€123.13 inc. VAT
Ships from EU stock: 26 item(s)
+ −
Add to wish list Ask a question
Product Code
1T73083
EAN Code
5704174049739
Manufacturer
Honeywell

Quick Specs

Reading
1D + 2D · QR / PDF417 / Data Matrix
Connection
Corded · USB / RS-232 / KBW
Colour / weight
Black · 130 g
Package
Scanner only · cable separate
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Voyager XP 1470g: Black 2D scanner-only version

1D + 2DScreen scanningCable separateCorded

This black 1470g is supplied as a scanner-only unit. It offers the same wired 1D/2D reading platform as the USB kit, leaving cable and stand selection to an existing or custom POS installation.

Before you order:
No interface cable or stand is included. Order the cable required by your host separately. This wired 1470g has no Bluetooth or battery.

What's in the Box

  • 1470g black scanner

What It Means in Practice

  • Read merchandise labels and phone-displayed coupons.
  • Omnidirectional capture reduces the need to align the code.
  • Use compatible software and the appropriate host interface.

What Will Not Work

  • No cordless movement or battery operation.
  • A cable must be purchased separately before connecting to the host.
  • Advanced decoding features depend on configuration and licences.

Key Features


Paper and screen capture
Area imaging supports traditional labels and supported 2D codes on digital displays.

Daily checkout durability
The manufacturer specifies repeated-drop and tumble testing for retail work.

Configuration tools
EZConfig, scanner management tools and SDKs support deployment. Confirm the application and keyboard layout for your POS.

Technical Specifications

Identification
Manufacturer SKU 1470G2D-2-R
EAN / GTIN 5704174049739
Reading
Sensor / frame rate Area imager · 1040 × 720 pixels · 60 fps
1D formats Code 39/128/93/11/32, EAN, UPC, Codabar, China Post, GS1 DataBar
2D formats Aztec, Data Matrix, QR / Micro QR, MaxiCode, Han Xin, postal codes, PDF417; configuration-dependent
Minimum resolution Code 39: 3 mil · PDF417: 4 mil · QR: 6 mil · Data Matrix: 5 mil
Motion tolerance 70 cm/s for 13 mil UPC at optimal focus
Contrast / field of view 15% · 39.2° H × 27.4° V
Angles Roll ±180° / pitch ±65° / skew ±70°
Illumination / aimer Warm white LED 2700 K · red dot LED 624 nm
Typical reading distances
Code 39 / UPC 5 mil: 20–205 mm · 13 mil: 18–400 mm
PDF417 / Data Matrix / QR 6.7 mil: 15–185 mm · 10 mil: 10–165 mm · 20 mil: 5–325 mm
Range conditions Barcode quality and environment affect performance
Host and power
Interfaces USB / Keyboard Wedge / RS-232; appropriate cable required
Supply / operating power 4–5.5 V DC · 2 W / 400 mA @ 5 V
Standby power 0.45 W / 90 mA @ 5 V
Keyboard / indicators 84 layouts · good-read LED / adjustable beeper
Physical / environment
Dimensions / weight 82 × 62 × 169 mm · 130 g
Colour / package Black · scanner only
Sealing IP52, current manufacturer Rev F specification
Drop / tumble tests 30 × 1.8 m onto concrete · 1000 × 0.5 m tumbles
Operating / storage 0–50°C / −40–60°C
Humidity / light 0–95% RH non-condensing · 0–100000 lux
ESD / vibration ±8 kV indirect / ±15 kV air · 5 G peak, 5–300 Hz

Frequently Asked Questions

Is this the complete USB kit?
No. This SKU is scanner only; cable and stand are separate.
Can it read a phone QR code?
Yes, supported QR and other listed codes can be read from screens as well as paper.
Singular Expert Insight
When comparing the two black 1470g offers, focus on accessories: the USB kit adds the cable and flexible stand; the scanner-only version suits a separately equipped installation. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 You need a wired 2D reader for printed and digital codes.
✕

Skip it if

 You need cable and stand supplied in one package.
→

Also consider

 The 1470g USB stand kit for a new counter.
Tell us your POS model, application and barcode examples so we can check the connection requirements.
