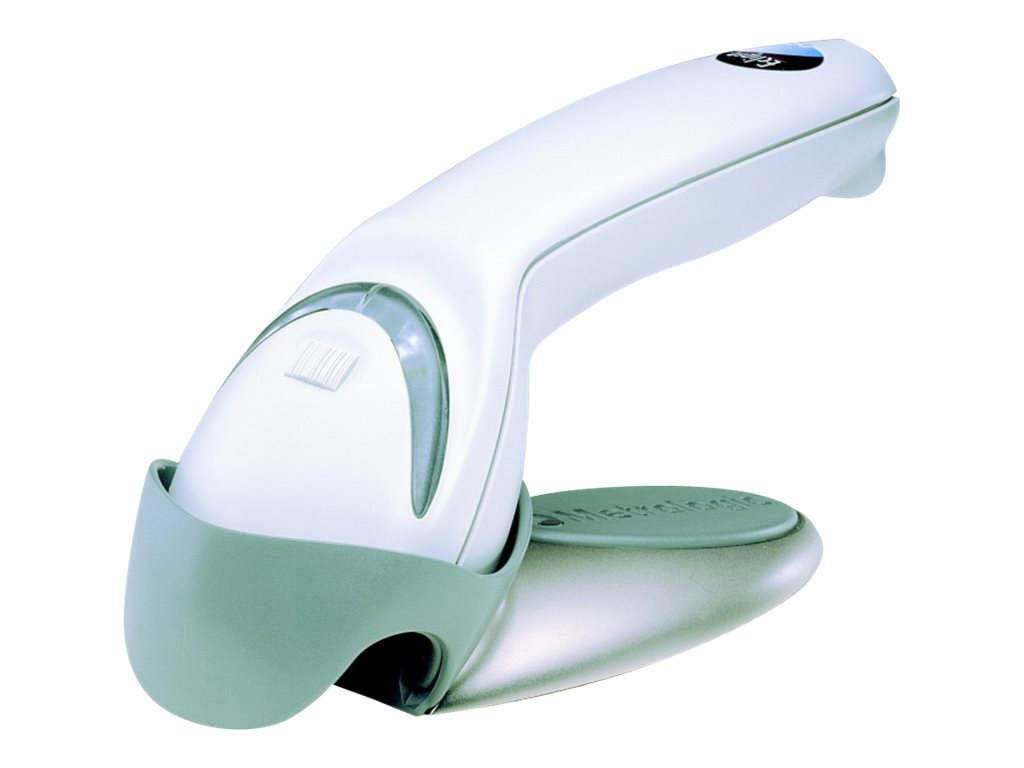

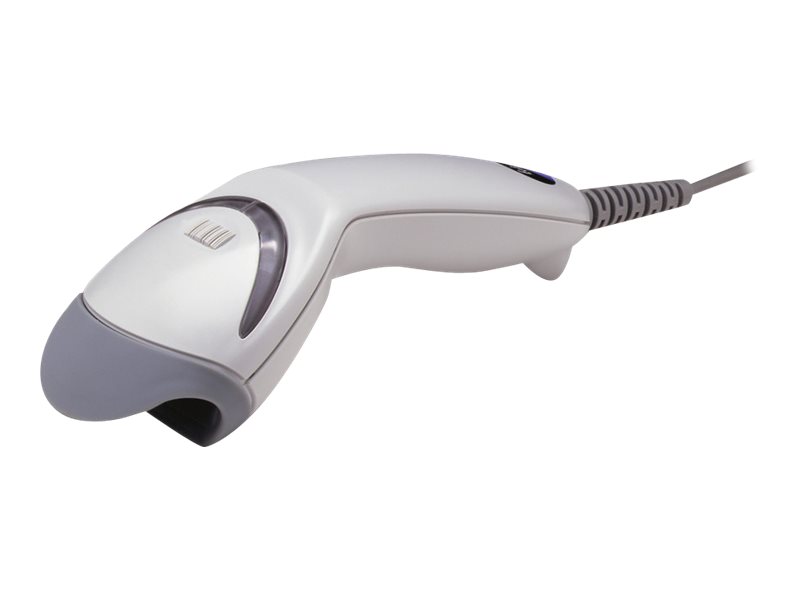

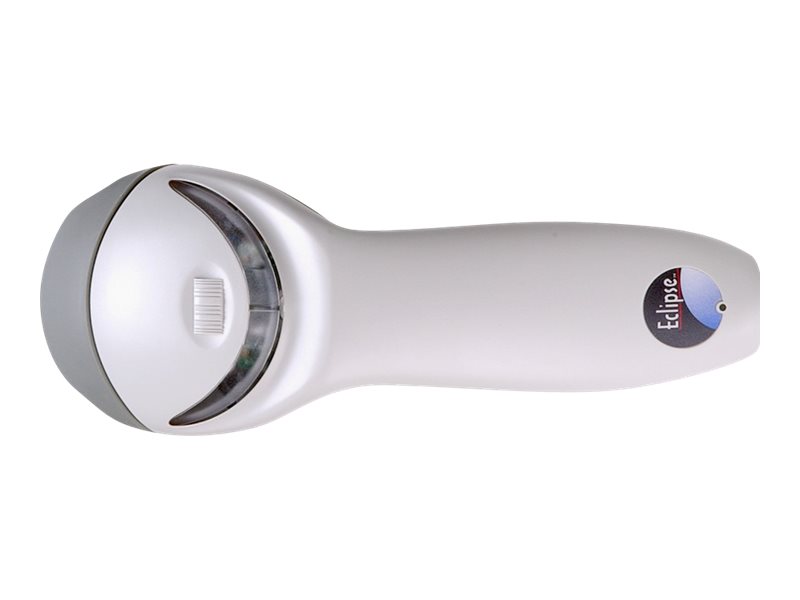

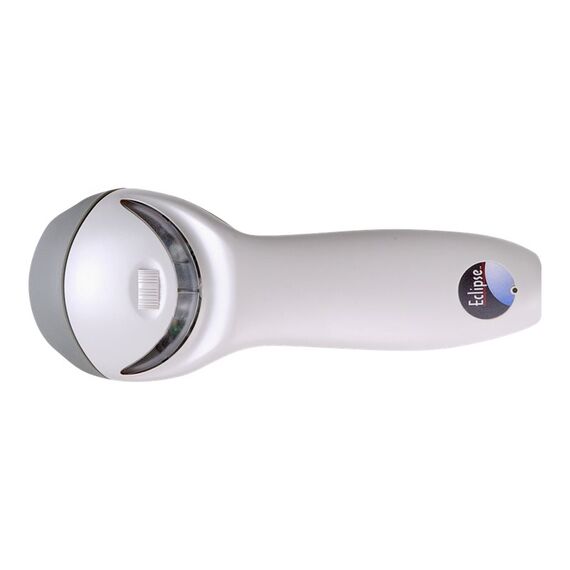

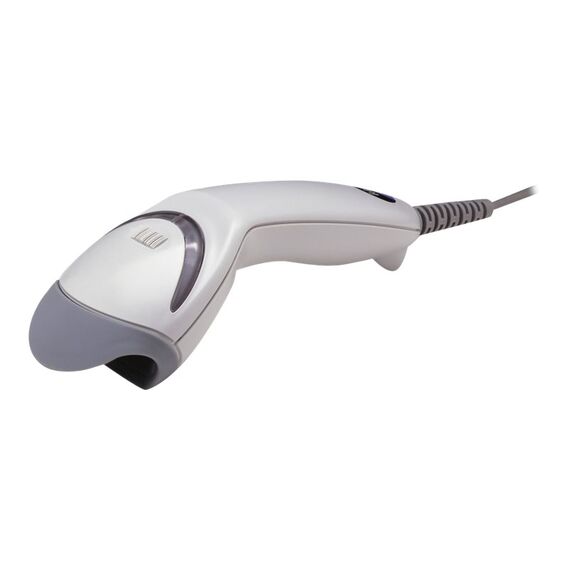

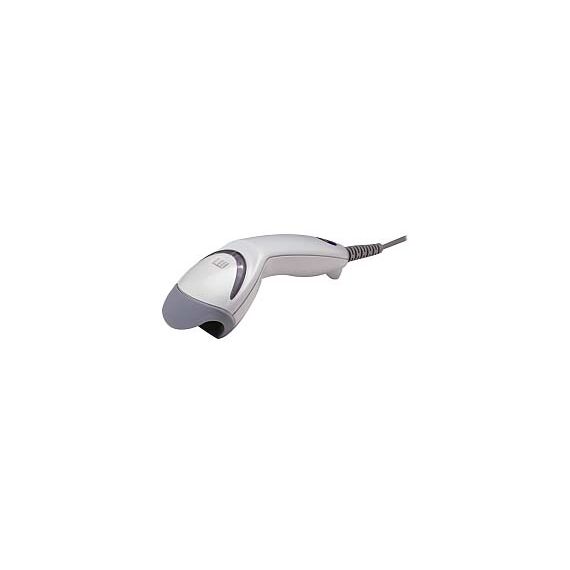

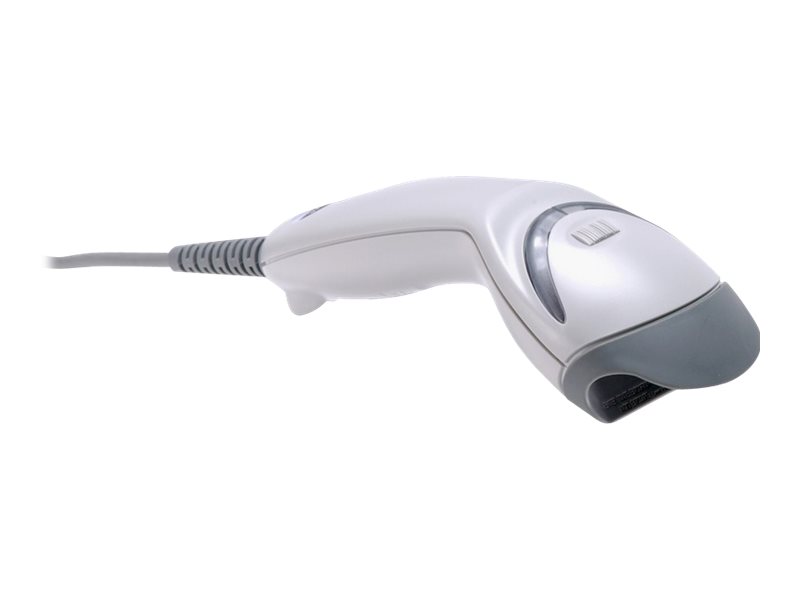

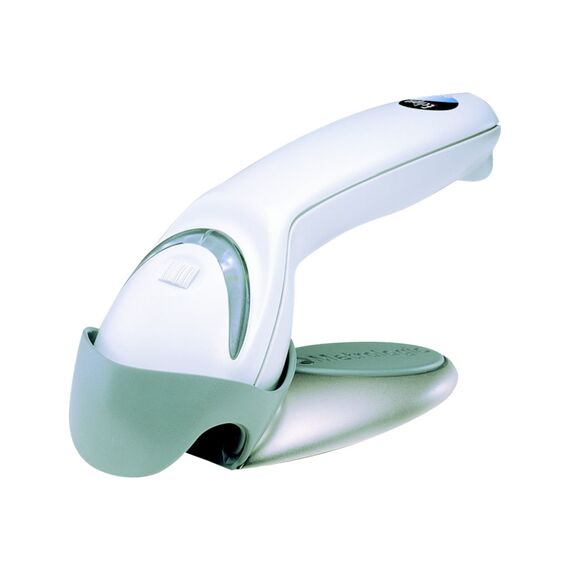

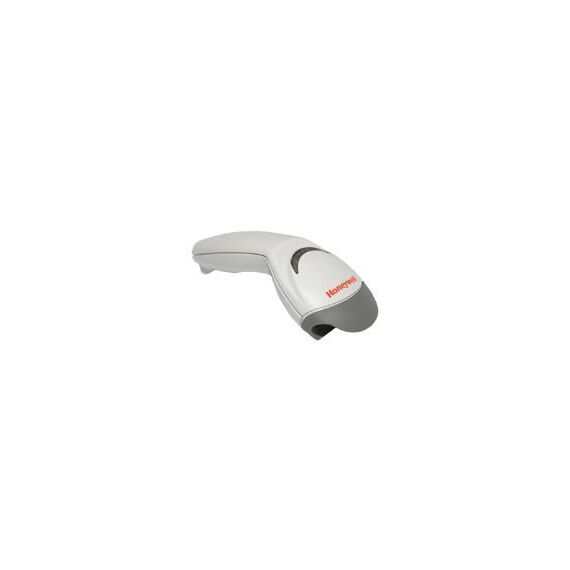

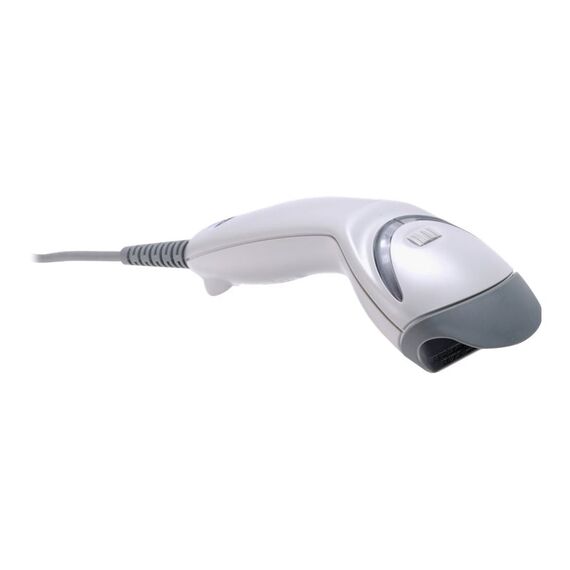

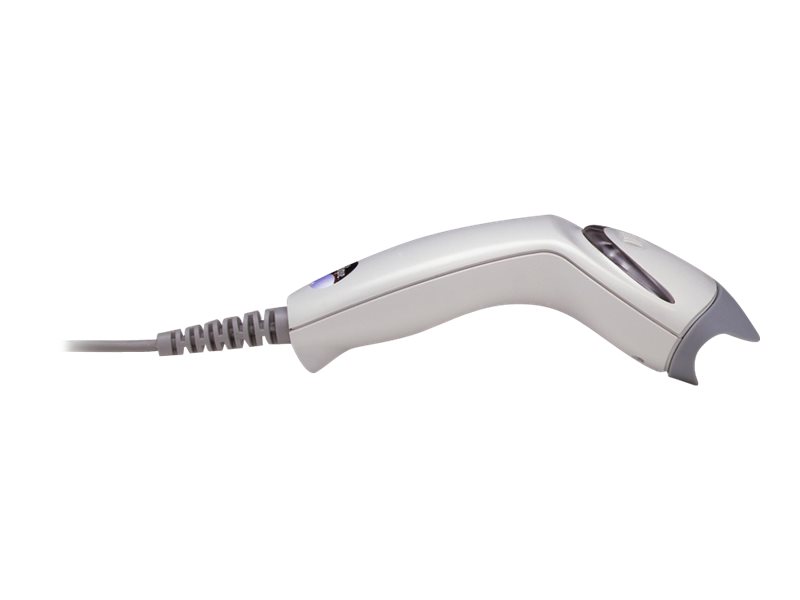

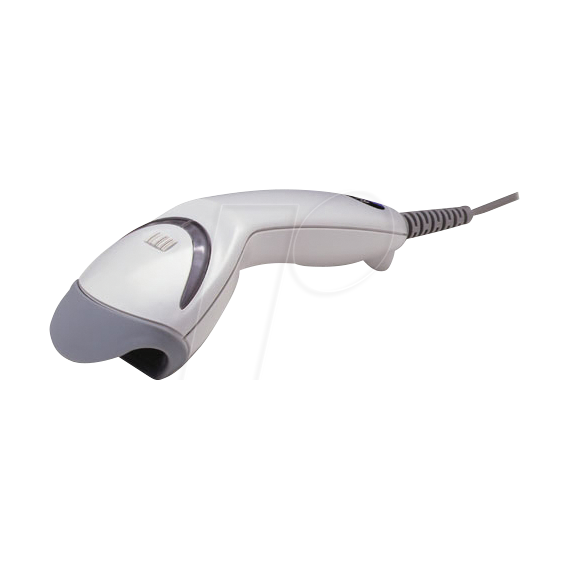

Honeywell Eclipse 5145 MK5145-71A38-EU 1D Laser USB Scanner Kit, CodeGate, Light Gray

Brand:
Honeywell
Honeywell Eclipse 5145 MK5145-71A38-EU USB Barcode Scanner Light Gray
Honeywell Eclipse 5145 MK5145-71A38-EU 1D Laser USB Scanner Kit, CodeGate, Light Gray
€72.16 inc. VAT
Buy
MK5145-71A38-EU
€60.64
€72.16 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:54682
EAN Code
4250389271539
Manufacturer
Honeywell

Quick Specs

Reading
1D single-line laser
Rate
72 scan lines/s
Control
CodeGate transmission button
Connection
USB kit
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Target the barcode before sending its data

1D laserCodeGateUSB kit

The Eclipse 5145 uses CodeGate to separate aiming from data transmission. Position the laser on the intended linear barcode, then press the button to send the result. This is useful when choosing one code from a menu or document containing several labels.

Compatibility — check before buying:
This exact SKU is the light-gray USB kit. The Eclipse family also has other interface variants; they do not establish additional connectors on this kit. Choose a 2D scanner for QR codes.

Best For

✓ Fixed checkout stations
✓ Packing and stock identification desks

Key Features


CodeGate control
Aim at a selected code before confirming transmission with the button.

CodeSense wake-up
A pulsing laser detects a barcode and changes to a steady line ready for CodeGate scanning.

Maintainable cable
The Powerlink cable is replaceable by the user; use the correct cable for the host interface.

Technical Specifications

Scanner & reading
SKU / EAN MK5145-71A38-EU / 4250389271539
Engine / rate Single-line laser; 72 scan lines/s
Codes / resolution Standard 1D and GS1 DataBar; 4 mil (0.102 mm)
Control CodeGate: aim at desired code, then press button to transmit; CodeSense automatic wake on detected code
Typical depth of field 5.2 mil: 0–51 mm; 7.5 mil: 0–76 mm; 10.4 mil: 0–108 mm; 13 mil: 0–140 mm; 26 mil: 25–178 mm
Range conditions Barcode quality and environmental conditions affect performance
Angles / contrast Horizontal scan angle 50°; pitch 68°; skew 52°; minimum reflectance difference 35%
Interface / colour USB kit; light gray
Physical & electrical
Dimensions / weight 169 × 63 × 51 mm (L×W×H); 100 g
Power 5 V DC ±0.25 V; 675 mW; 125 mA at 5 V (manufacturer figures)
Temperatures Operating 0–40 °C; storage −40–60 °C
Humidity / light 5–95% RH non-condensing; 4,842 lux
Durability / enclosure Designed for 1.5 m drops; sealed against airborne particulate contaminants
Integration / update OPOS/JPOS; Flash ROM updates through MetroSet2; user-replaceable Powerlink cable
Factory warranty 3 years; manufacturer terms apply

What's in the Box

Eclipse 5145 light-gray scanner
USB Type-A cable
Documentation

Frequently Asked Questions

What does CodeGate do?
It lets you aim at a barcode first and transmit its data when you press the button.
Does it decode QR codes?
No. The verified decoding capability is standard linear 1D and GS1 DataBar.
Singular Expert Insight
Start with a sample label and your checkout software. A matching connector alone does not establish that a barcode format or application workflow is supported. Compare barcode scanner types Check host USB connectivity, software input requirements and the barcode format before ordering.

Buyer’s Guide

Buy it if

You select individual linear codes from menus or documents and need a USB kit.

Skip it if

You require QR decoding or cordless mobility.

Also consider

A 2D imager for matrix labels or a presentation scanner for continuous hands-free work.

Features - Honeywell - MK5145-71A38-EU

Colour
grey
More Details
Product Code
04:54682
EAN Code
4250389271539
Manufacturer
Honeywell
