Honeywell PM45A Industrial Label Printer, 300 dpi, Full Touch Display, Thermal Transfer & Direct Thermal, Ethernet, USB & RS-232, Fixed Hanger

Brand:
Honeywell
Honeywell PM45A PM45A10000000300 Touch Label Printer
Honeywell PM45A Industrial Label Printer, 300 dpi, Full Touch Display, Thermal Transfer & Direct Thermal, Ethernet, USB & RS-232, Fixed Hanger
€2546.85 inc. VAT
Buy
PM45A10000000300
€2,140.21
€2,546.85 inc. VAT
Ships from EU stock: 54 item(s)
+ −
Add to wish list Ask a question
Product Code
CD14350
EAN Code
5704174892243
Manufacturer
Honeywell

Quick Specs

Resolution / print width
300 dpi / 105.7 mm
Print speed
50–300 mm/s
Operation
Full touch display
Interfaces
Ethernet, USB, RS-232
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

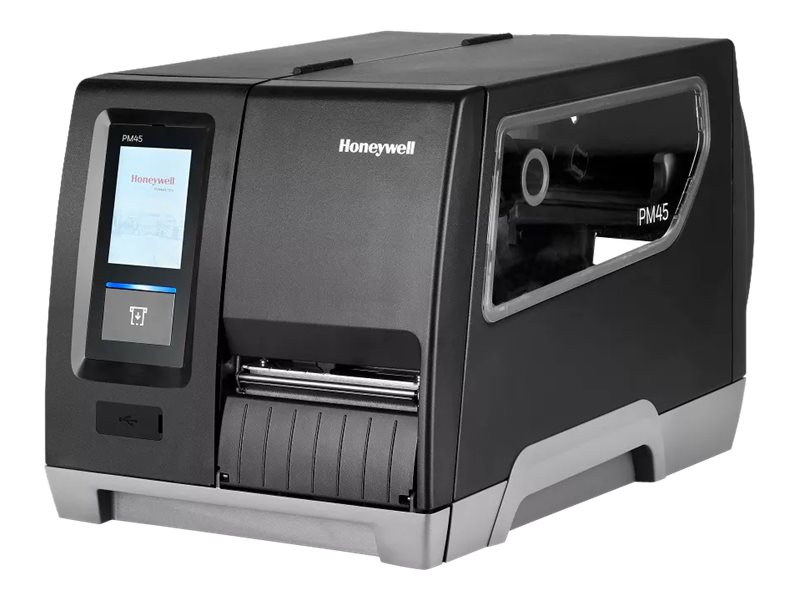

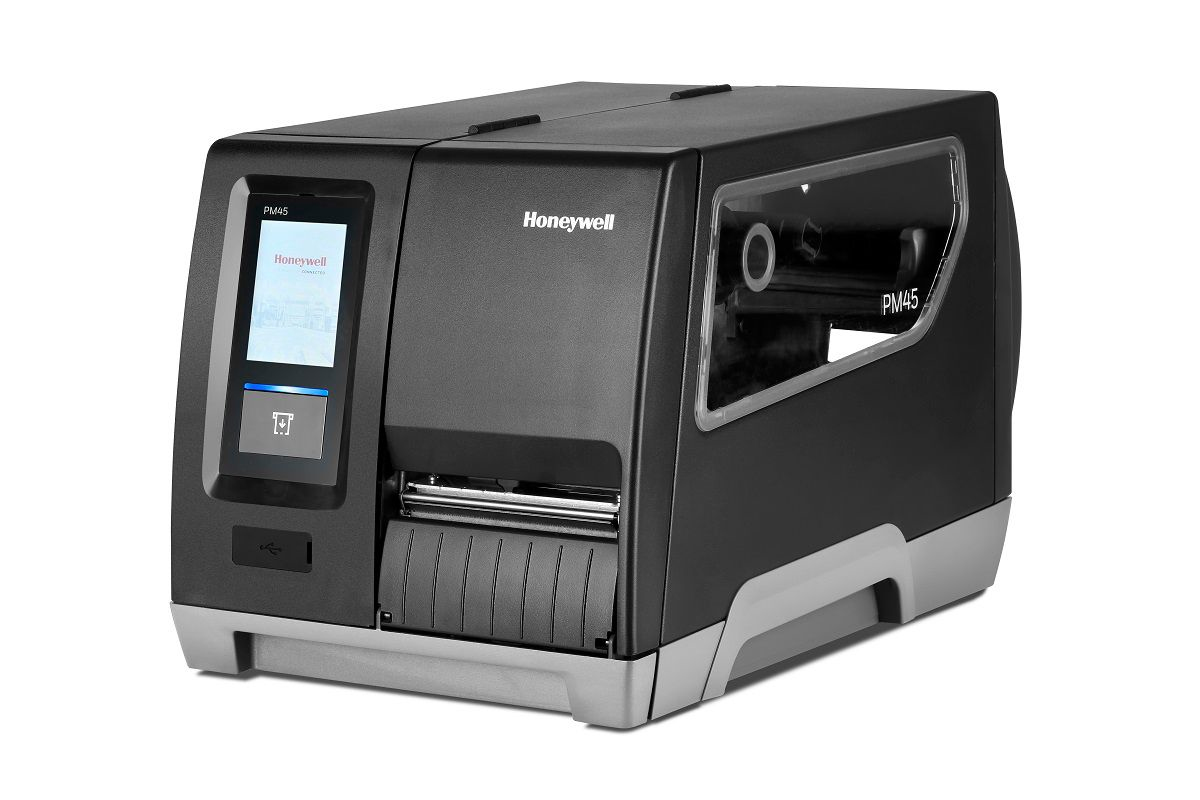

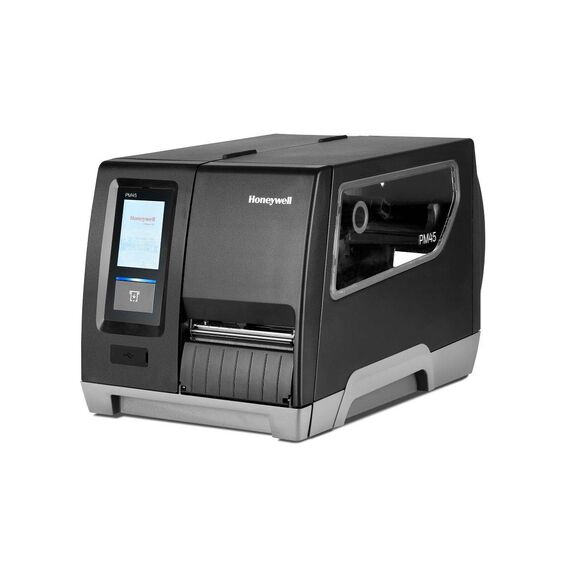

Honeywell PM45A 300 dpi Touch Industrial Label Printer

300 dpi / 105.7 mm50–300 mm/sFull touch displayEthernet, USB, RS-232

The PM45A10000000300 is a 300 dpi industrial label printer with a full touch display, fixed media hanger and real-time clock. It uses Ethernet, USB or RS-232 to receive labels from a compatible business application and supports thermal transfer and direct thermal printing. This standard full-size PM45 holds rolls up to 213 mm in diameter and ribbons up to 450 m, making it suitable for fixed warehouse and production workstations. A mains power cord is not supplied with this exact SKU.

Before you order:
Provide a suitable power cord and choose media/ribbon for the intended label. This is the wired 300 dpi configuration: Wi-Fi, Bluetooth, WWAN, RFID and automatic media-handling upgrades must not be assumed from the wider PM45 family. Maximum print width is 105.7 mm, while media including liner can be 19–114 mm wide.

What's in the Box

  • PM45A 300 dpi printer with full touch display, fixed hanger and RTC.
  • Power cord not included; supplies and connection cables must be selected for the installation.

What It Means in Practice

  • For a warehouse batch, load the label roll, fit a matching ribbon for thermal transfer, calibrate and send the label template from your host system.
  • Direct thermal uses heat-sensitive stock without a ribbon; thermal transfer uses a ribbon matched to the label material. Both methods need suitable supplies.
  • 300 dpi is useful for small text and detailed barcodes. The 50–300 mm/s speed range must be qualified with your actual labels and layout.

What Will Not Work

  • This SKU cannot be treated as a supplied Wi-Fi/WWAN/RFID configuration.
  • A cutter or automatic peel/rewind workflow requires the relevant optional hardware.
  • A smart-printing application can be configured for host-free operation; the printer does not create your label design or business data by itself.

Key Features


300 dpi industrial output
A 105.7 mm print width and speeds up to 300 mm/s support product, process and shipping labels. Resolution-specific limits are used instead of the family maximum of 350 mm/s.

Full touch control and wired connections
The touch display and RTC support local operation. Ethernet 10/100, USB Device, two USB Host ports and RS-232 connect to suitable host systems.

Long supply runs
The full-size PM45 accepts media rolls up to 213 mm and 450 m ribbons, with ink-in or ink-out winding. Verify the label and liner dimensions before choosing stock.

Integration and serviceability
Multiple command languages, Smart Parse and management tools support deployment. The metal print mechanism and tool-free printhead/platen replacement simplify planned maintenance.

Technical Specifications

Identification
Model / MPN Honeywell PM45A / PM45A10000000300
EAN 5704174892243
Configuration Full touch, fixed media hanger, real-time clock, no power cord
Printing and media
Methods Thermal transfer / direct thermal
Resolution 300 dpi / 11.8 dots/mm
Print speed at 300 dpi 50–300 mm/s (2–12 ips); manufacturer reference, application dependent
Maximum print width / length 105.7 mm / 2.2 m
Print registration Up to ±0.5 mm, manufacturer reference
Media width / thickness 19–114 mm / 3–10.4 mil
Media type / supply Labels, tags, linered media; roll-fed or fan-fold
Maximum media roll / core 213 mm outside diameter / 38–76 mm inside diameter
Media sensing Gap, notch, black mark, continuous, media end; media-low and label-taken sensors are optional
Other sensing Ribbon low/end, printhead lift
Ribbon type / winding Wax, mid-range, resin; ink-in or ink-out
Ribbon length / diameter / core 450 m / 80 mm maximum outside diameter / 25 mm inside diameter
Electronics and software
Standard interfaces Ethernet 10/100 Mbps, USB 2.0 Device, 2 × USB 2.0 Host, RS-232 up to 115.2 KB/s
Memory 512 MB Flash / 256 MB SDRAM; user partition 256 MB
Languages Fingerprint, Direct Protocol, IPL (203/300 dpi), ZSim2 (ZPL-II), DPL, XML for SAP AII / Oracle WMS, PDF, C#
Smart printing C# application capability for configured operation without a host computer
Drivers / integration InterDriver Windows, CUPS Linux, Honeywell Device Types for SAP; check current driver requirements
Management tools Smart Parse, PrintSet 5, web interface; optional Operational Intelligence / SOTI support
Network protocols IPv4/IPv6, TCP/UDP, LPR/LPD, Telnet/SSH, FTP/SFTP, DHCP, BOOTP, HTTP/HTTPS, SNMPv1/2c/3, SMTP
Barcodes All major 1D and 2D symbologies; UPC/EAN, UCC/EAN128, HIBCC, ISBT128 and shipping label standards
Fonts / graphics Monotype engine, WTLE non-Latin fonts; bitmap, OpenType/TrueType; PCX, PNG, GIF, BMP
Optional equipment WLAN/Bluetooth kit, WWAN, RFID, Parallel, applicator/industrial boards, cutter, self-strip/liner takeup, rewinder, sensors; not included in this configuration
Physical, power and environment
Mechanism / maintenance All-metal print mechanism; tool-free printhead and platen roller replacement
Dimensions (W × D × H) 284 × 483 × 295 mm
Weight 13.2 kg
Power input 100–240 VAC, 50–60 Hz
Power consumption reference Standby 9.6 W; peak 270 W (24 V), peak 145 W (33 V), manufacturer reference
Operating temperature / humidity 5–40 °C / 20–85% RH, non-condensing
Storage temperature / humidity −20–70 °C / 5–90% RH, non-condensing
Compliance RoHS, CE, EN55032 Class B, FCC Class B, ENERGY STAR 3.0
Verified package / separately required Printer; power cord not supplied. Suitable media, ribbon for thermal transfer, connection cable and compatible software/workflow required

Frequently Asked Questions

Is the power cord included?
No. PM45A10000000300 is explicitly listed without a power cord. Arrange a suitable mains cable along with the correct media, ribbon when needed and connection cable.
Does this SKU have Wi-Fi or Bluetooth?
The verified configuration is Ethernet with USB and RS-232. Wireless capabilities described for the PM45 family are optional and are not included here.
How is PM45 different from PM45c?
This is the full-size PM45 with 450 m ribbon capacity and two USB Host ports. The compact PM45c has different dimensions, ribbon capacity and one USB Host port; do not interchange their specifications.
Singular Expert Insight
Choose this wired full-size model when detailed 300 dpi labels and long ribbon capacity matter more than compact dimensions. Plan the correct supplies and power cable as part of the installation. Compare label printers at Singular.

Buyer’s Guide

✓

Buy it if

 You need 300 dpi touch-controlled industrial printing over a wired connection with 450 m ribbon capacity.
✕

Skip it if

 You require included wireless connectivity, a cutter or a compact PM45c footprint.
→

Also consider

 A compact PM45c for restricted space, or a factory configuration with the required media handling or wireless option.
Ask Singular to check your media, software and required configuration before ordering.
