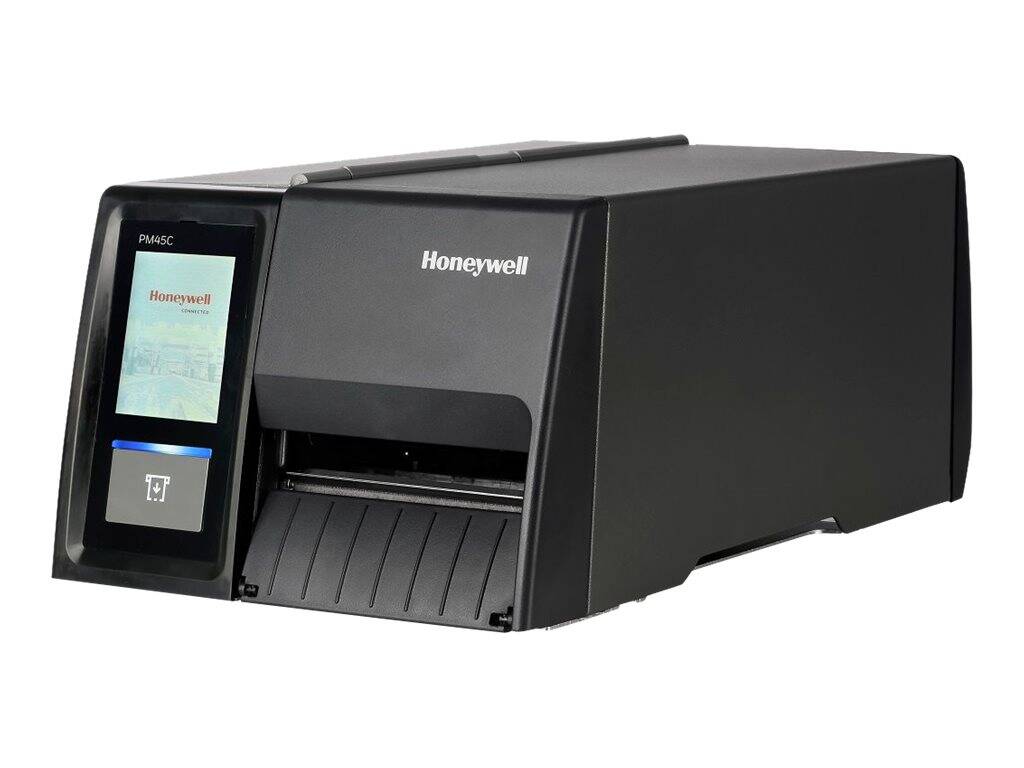

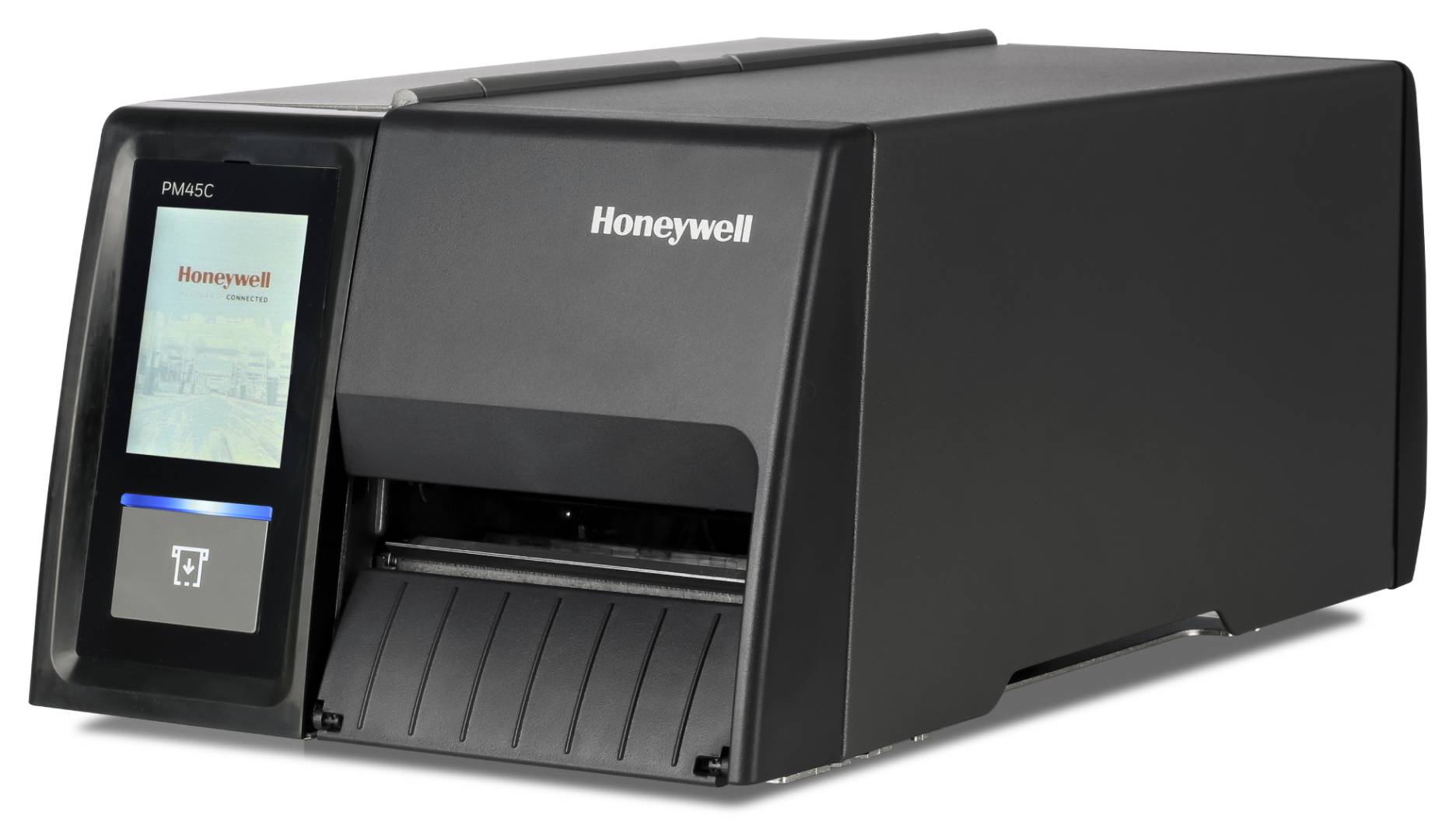

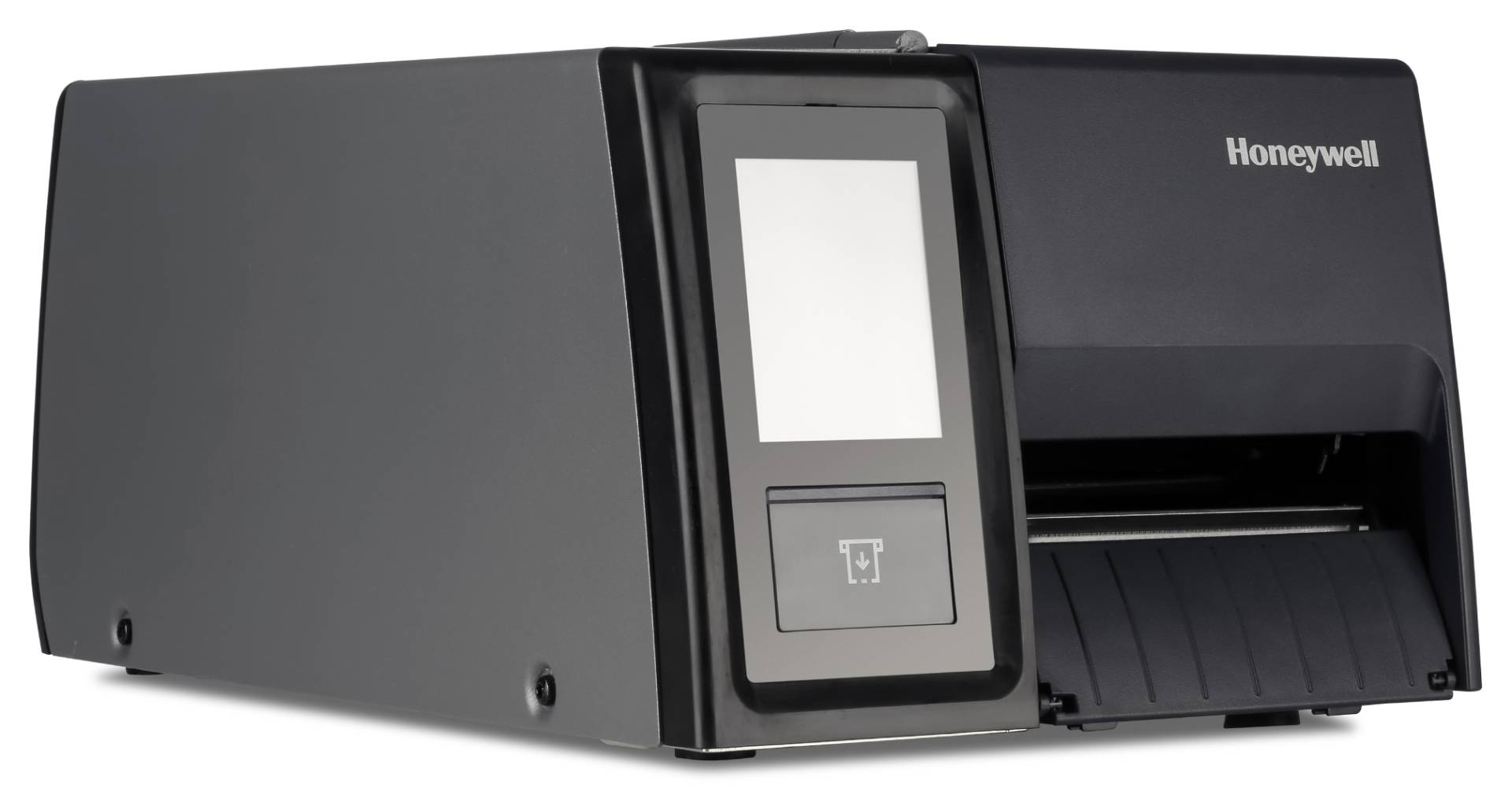

Honeywell PM45c Compact Industrial Label Printer, 203 dpi, Touch Display, Internal Rewinder & Label Taken Sensor, Ethernet, USB & RS-232

Brand:
Honeywell
Honeywell PM45C 4-inch Label Printer 203 dpi
Honeywell PM45c Compact Industrial Label Printer, 203 dpi, Touch Display, Internal Rewinder & Label Taken Sensor, Ethernet, USB & RS-232
€2871.82 inc. VAT
Buy
PM45CA1000030200
€2,413.29
€2,871.82 inc. VAT
Ships from EU stock: 21 item(s)
+ −
Add to wish list Ask a question
Product Code
CC22263
EAN Code
5704174956549
Manufacturer
Honeywell

Quick Specs

Resolution / print width
203 dpi / 108 mm
Handling
Rewinder + label taken sensor
Maximum speed
Up to 350 mm/s
Interfaces
Ethernet, USB, RS-232
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Honeywell PM45c 203 dpi Touch Rewinder Label Printer

203 dpi / 108 mmRewinder + label taken sensorUp to 350 mm/sEthernet, USB, RS-232

The PM45CA1000030200 is the compact PM45c industrial label printer with 203 dpi output, a full touch display, fixed media hanger, internal rewinder and label taken sensor. This configuration suits workflows in which a printed label is presented for removal and its backing is collected internally. It connects through Ethernet, USB or RS-232 and supports both thermal transfer and direct thermal printing. Its compact body uses ribbons up to 229 m; a mains power cord is not included.

Before you order:
Confirm the peel/present workflow, label material and liner before ordering. The installed rewinder and label taken sensor do not constitute a complete automatic label applicator. This 203 dpi model prints up to 108 mm wide at a manufacturer maximum of 350 mm/s. Wireless connectivity and a cutter are not included. Provide a suitable power cord.

What's in the Box

  • PM45c 203 dpi printer with full touch display, fixed hanger, internal rewinder and label taken sensor.
  • Power cord not included. Select suitable labels, ribbon when using thermal transfer, and the required interface cable.

What It Means in Practice

  • For manual label application, load compatible linered labels, route the backing through the installed rewind arrangement and configure the label taken sensor for the workflow. The operator removes the presented label and applies it to the item.
  • At 203 dpi, this configuration targets standard warehouse, shipping and process labels. Check the smallest text and barcode dimensions in your actual design before selecting this resolution.
  • The compact body saves installation space compared with full-size PM45, but ribbon capacity is 229 m rather than 450 m and it provides one USB Host port.

What Will Not Work

  • The rewinder does not automatically stick labels onto products; an operator or separate applicator performs that step.
  • This SKU does not include a cutter, Wi-Fi, Bluetooth, WWAN or RFID encoding.
  • Do not use full-size PM45 ribbon capacity or dimensions to plan this compact installation.

Key Features


203 dpi at up to 350 mm/s
A maximum 108 mm print width supports standard industrial labels. Qualify the actual media and label format at the speed your workflow needs.

Internal rewind and label taken sensor
The installed handling configuration supports collecting the backing and presenting labels for removal, reducing loose liner at the workstation.

Compact touch-controlled body
Full touch operation and a fixed media hanger suit a dedicated workstation. This PM45c uses one USB Host port and ribbons up to 229 m.

Wired integration and serviceability
Ethernet 10/100, USB Device and RS-232 connect to suitable applications. The shared Honeywell platform supports multiple languages, Smart Parse and maintenance tools.

Technical Specifications

Identification
Model / MPN Honeywell PM45c / PM45CA1000030200
EAN 5704174956549
Configuration Full touch, fixed hanger, internal rewinder and label taken sensor; no power cord
Printing and media
Methods Thermal transfer / direct thermal
Resolution 203 dpi / 8 dots/mm
Print speed at 203 dpi 50–350 mm/s (2–14 ips); manufacturer reference, application dependent
Maximum print width / length 108 mm / 4.8 m
Print registration Up to ±0.5 mm, manufacturer reference
Media width / thickness 19–114 mm / 3–10.4 mil
Media type / supply Labels, tags, linered media; roll-fed or fan-fold
Maximum media roll / core 152 mm outside diameter for long-door PM45c / 38–76 mm inside diameter
Media sensing Gap, notch, black mark, continuous, media end; label taken sensor fitted; media-low sensor optional
Other sensing Ribbon low/end, printhead lift
Ribbon type / winding Wax, mid-range, resin; ink-in or ink-out
Ribbon length / diameter / core 229 m / 61 mm maximum outside diameter / 25 mm inside diameter
Electronics and software
Standard interfaces Ethernet 10/100 Mbps, USB 2.0 Device, 1 × USB 2.0 Host, RS-232 up to 115.2 KB/s
Memory 512 MB Flash / 256 MB SDRAM; user partition 256 MB
Languages Fingerprint, Direct Protocol, IPL (203/300 dpi), ZSim2 (ZPL-II), DPL, XML for SAP AII / Oracle WMS, PDF, C#
Smart printing C# application capability for configured operation without a host computer
Drivers / integration InterDriver Windows, CUPS Linux, Honeywell Device Types for SAP; check current driver requirements
Management tools Smart Parse, PrintSet 5, web interface; optional Operational Intelligence / SOTI support
Network protocols IPv4/IPv6, TCP/UDP, LPR/LPD, Telnet/SSH, FTP/SFTP, DHCP, BOOTP, HTTP/HTTPS, SNMPv1/2c/3, SMTP
Barcodes All major 1D and 2D symbologies; UPC/EAN, UCC/EAN128, HIBCC, ISBT128 and shipping label standards
Fonts / graphics Monotype engine, WTLE non-Latin fonts; bitmap, OpenType/TrueType; PCX, PNG, GIF, BMP
Optional equipment WLAN/Bluetooth kit, WWAN, RFID, Parallel, cutter and media accessories; availability depends on PM45c configuration
Physical, power and environment
Mechanism / maintenance All-metal print mechanism; tool-free printhead and platen roller replacement
Dimensions (W × D × H) 253 × 432 × 181 mm
Weight 12.6 kg
Power input 100–240 VAC, 50–60 Hz
Power consumption reference Standby 9.6 W; peak 270 W (24 V), peak 145 W (33 V), manufacturer reference
Operating temperature / humidity 5–40 °C / 20–85% RH, non-condensing
Storage temperature / humidity −20–70 °C / 5–90% RH, non-condensing
Compliance RoHS, CE, EN55032 Class B, FCC Class B, ENERGY STAR 3.0
Verified package / separately required Configured printer; power cord not supplied. Suitable linered media, ribbon for thermal transfer and compatible application/workflow required

Frequently Asked Questions

What does the rewinder and label taken sensor do?
The internal handling arrangement collects backing and detects removal of a presented label. It supports peel-and-present workflows; it is not an automatic product applicator.
Does this compact model use 450 m ribbons?
No. The PM45c specification is up to 229 m ribbon length and one USB Host port. The full-size PM45 has a different body and 450 m ribbon capacity.
Is a mains cable included?
No. PM45CA1000030200 is listed without a power cord. Select a suitable cord and supplies, and check the connection and software requirements before installation.
Singular Expert Insight
Choose this variant for the combination of a compact body and installed rewind/label-taken handling. Match the liner and label presentation to the operator workflow before comparing speed figures. Compare label printers at Singular.

Buyer’s Guide

✓

Buy it if

 You need a compact 203 dpi wired printer with internal rewind and label taken sensing.
✕

Skip it if

 You require 300 dpi detail, 450 m ribbons or an included automatic cutter.
→

Also consider

 A full-size PM45 for larger ribbon capacity, or a higher-resolution compact configuration for finer labels.
Ask Singular to check your media, software and required configuration before ordering.
